Key specifications

BTU
66,000 BTU
Dimensions
36.38"W × 35.13"D × 16.38"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Heating Source
Infrared
Spec sheet
Vulcan SKU: VTEC36

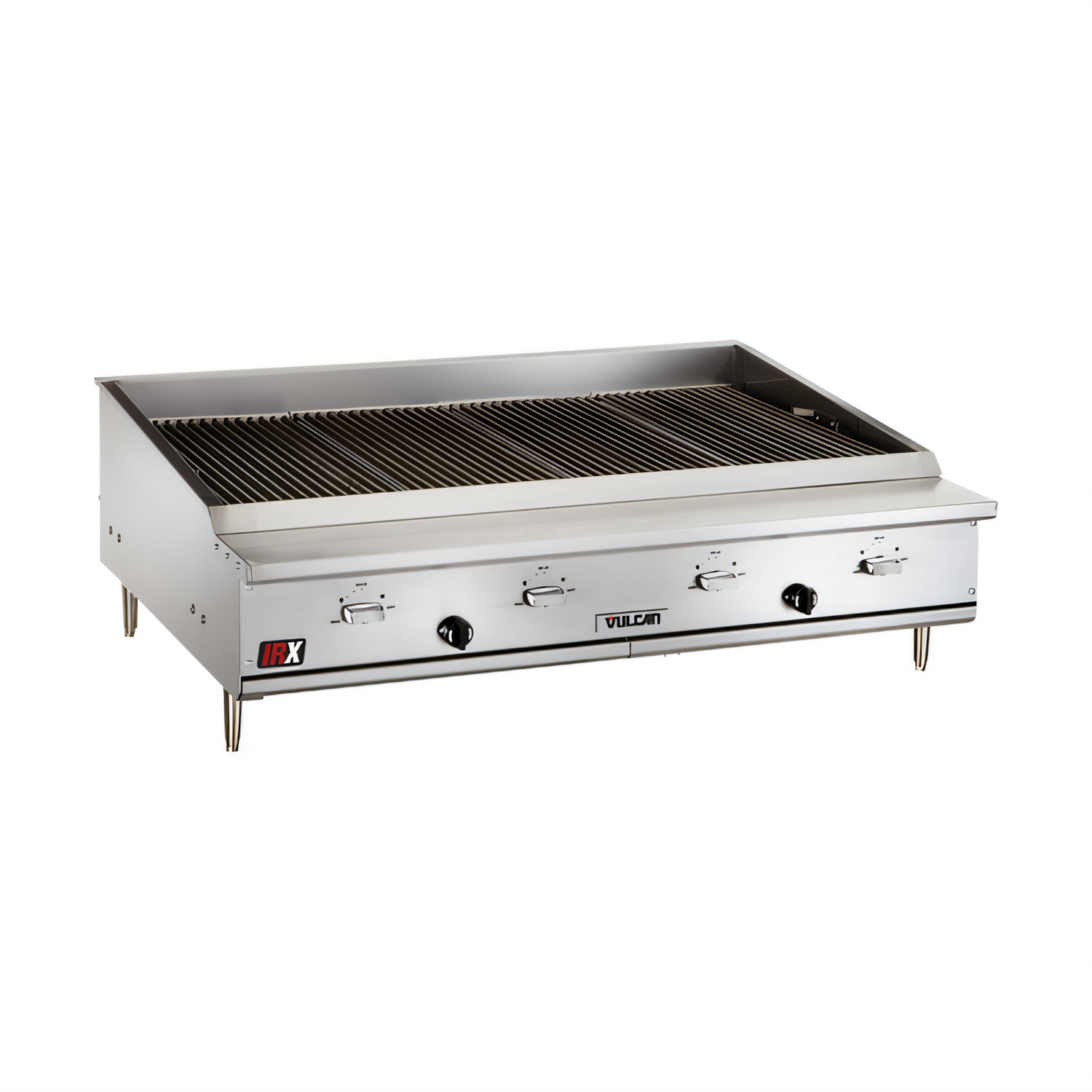

Vulcan IRX Technology VTEC36 3-Burner Infrared Charbroiler

$9,151.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeRequired
Gas Connector
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $846/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Heating Source Infrared
Burner Count 3
BTU 66,000 BTU
Burner Output 22,000 BTU
Controls Manual
Ignition Type Piezo Spark
Broiling Area 33 x 25.25 in
Working Height 12.5 in
Gas Connection 3/4 in NPT Rear
Leg Height 4 in Adjustable

Description

The VTEC36 is a countertop gas infrared charbroiler with three burner zones, manual controls, and direct-ignition piezo spark igniters.

  • Each burner provides 22,000 BTU/hr. for 66,000 BTU/hr. total output.
  • Stainless steel cooking grids, sides, control panel, and top trim support commercial kitchen use.
  • A full-width stainless steel crumb tray, removable heat shield and backsplash, and 4-inch adjustable legs are included.
  • A 3/4-inch NPT rear gas connection and gas pressure regulator are provided.

Overall Dimensions:

36.38"W x 35.13"D x 16.38"H

Product Weight:

210.0 lb

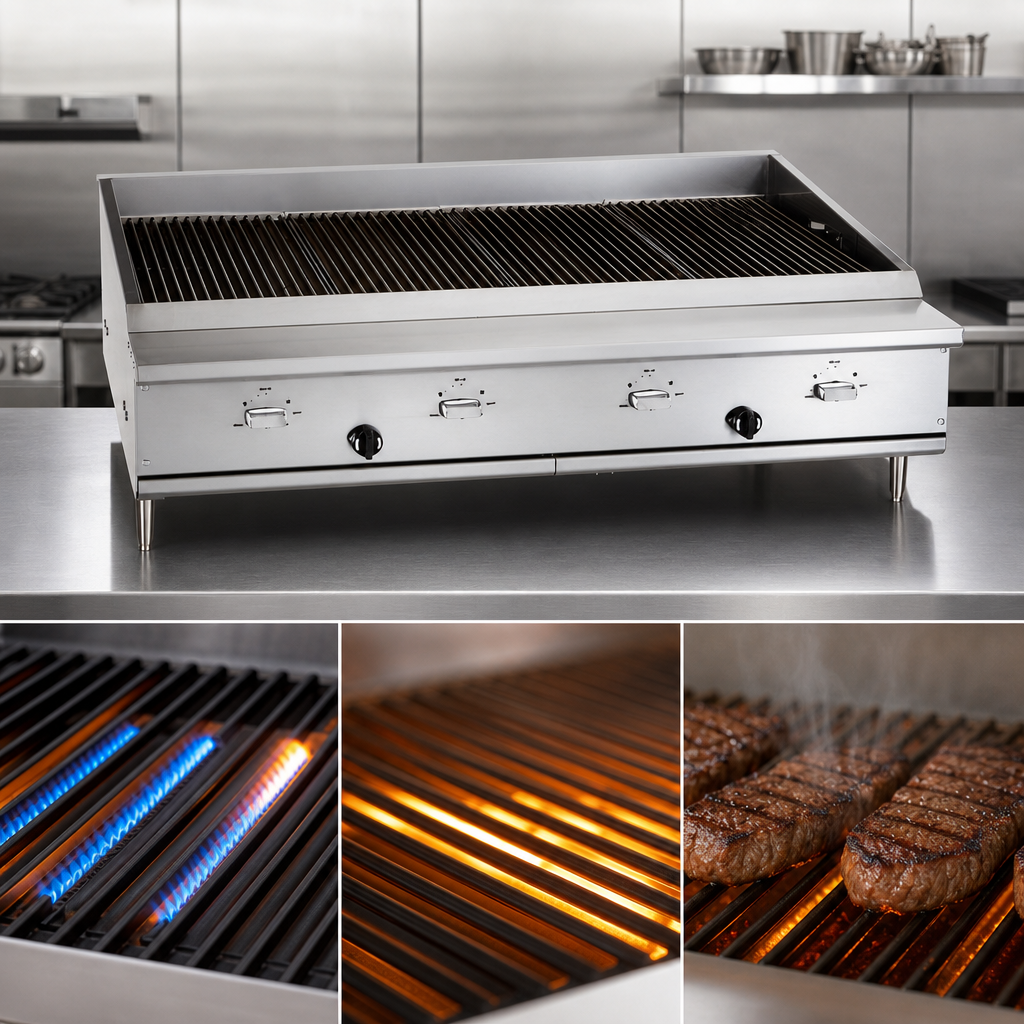

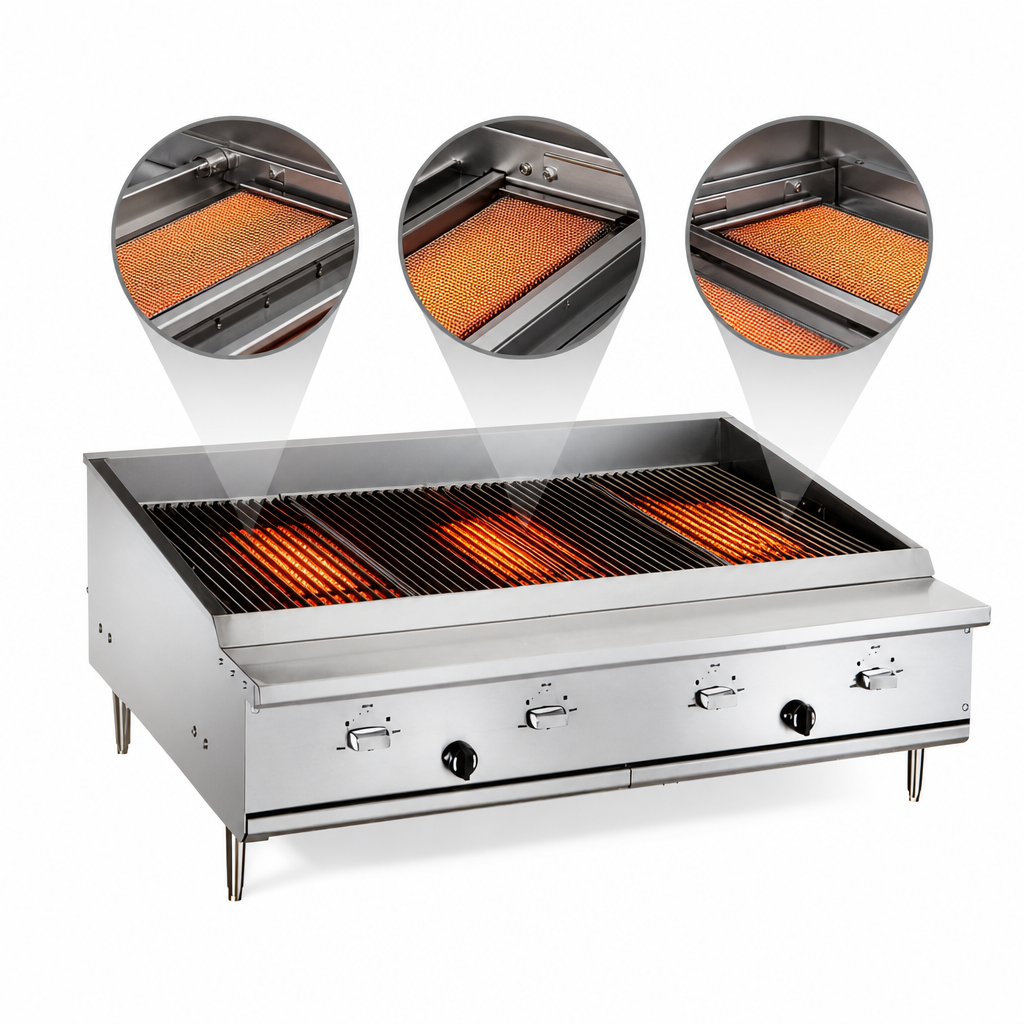

Three infrared burner zones

The charbroiler has three infrared burner systems, each rated at 22,000 BTU/hr.

Manual burner controls

Each burner has a high-range heat control valve and chrome control knob.

Piezo ignition

Direct-ignition piezo spark igniters are provided for the burners.

Stainless steel cooking grids

The unit uses stainless steel cooking grids for its burner zones.

Stainless steel construction components

Stainless steel sides, control panel, top trim, and front crumb tray are specified.

Removable heat shield and backsplash

The heat shield and backsplash are removable.

Adjustable legs

Four-inch adjustable legs are included.

Rear gas connection

A 3/4-inch NPT rear gas connection and gas pressure regulator are provided.

Frequently Asked Questions

Yes. The VTEC36 is specified as a countertop gas infrared charbroiler.
It has three infrared burners, each rated at 22,000 BTU/hr., for 66,000 BTU/hr. total.
It uses manual burner controls with direct-ignition piezo spark igniters.
The product measures 36.38 inches wide by 35.13 inches deep by 16.38 inches high and weighs 210 lb.
The unit has a 3/4-inch NPT rear gas connection and a provided gas pressure regulator. Gas type must be specified when ordering.
The VTEC36 has a one-year limited parts and labor warranty from the date of original installation, subject to Vulcan's commercial warranty terms.
