Key specifications

BTU
22,000 BTU
Dimensions
14.38"W × 35.13"D × 16.38"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Heating Source
Infrared
Spec sheet
Vulcan SKU: VTEC14

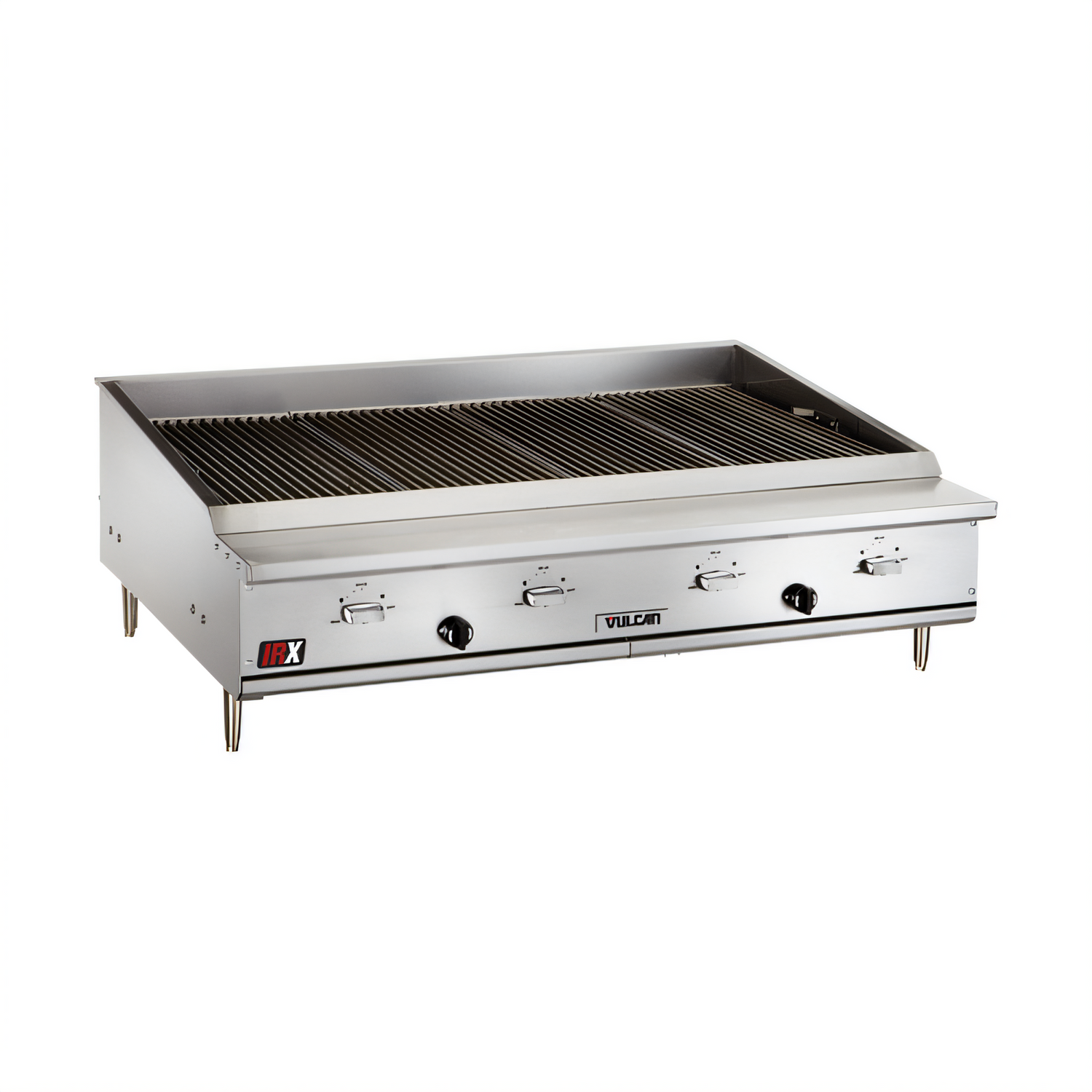

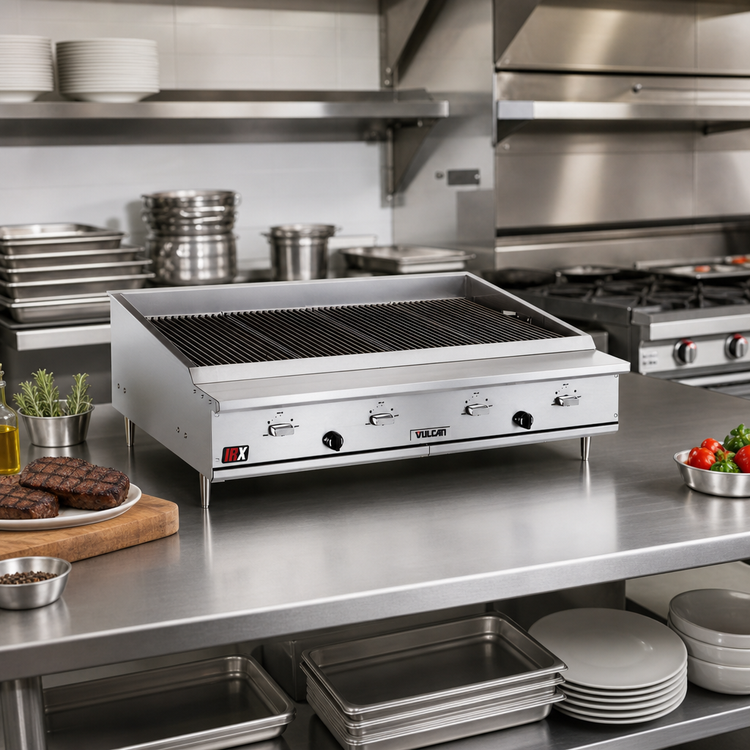

Vulcan IRX Technology VTEC14 Countertop Infrared Charbroiler

$4,916.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeRequired
Gas Connector
Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $455/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Heating Source Infrared
Controls Manual
Ignition Type Piezo
Burner Count 1
BTU 22,000 BTU
Broiling Area 11 x 25.25 in
Gas Connection 3/4 in NPT
Leg Height 4 in

Description

The VTEC14 is a countertop gas infrared charbroiler with one 22,000 BTU burner and manual controls.

  • Stainless steel cooking grids, sides, control panel, and top trim.
  • Piezo ignition, removable heat shield and backsplash, and a full-width front crumb tray.
  • 4-inch adjustable legs.

Overall Dimensions:

14.38"W x 35.13"D x 16.38"H

Product Weight:

97.0 lb

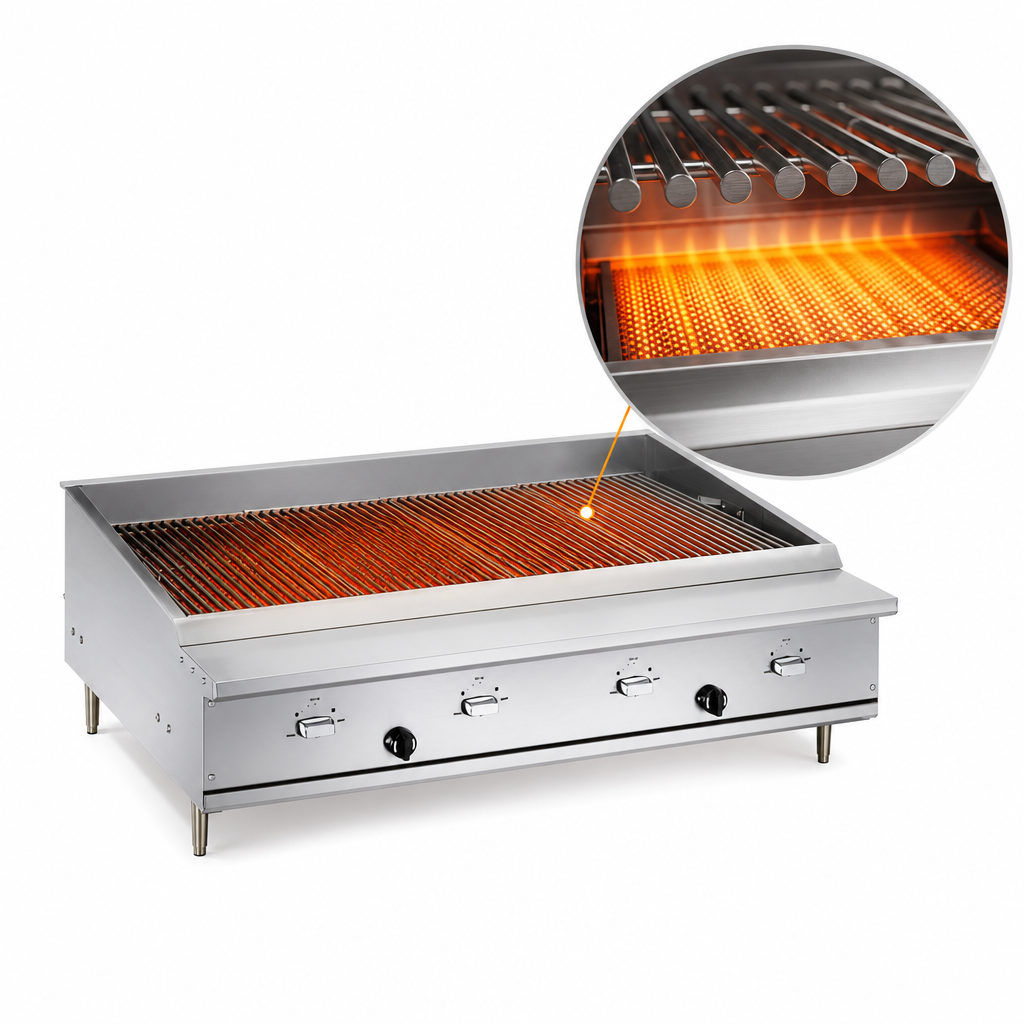

Infrared Burner System

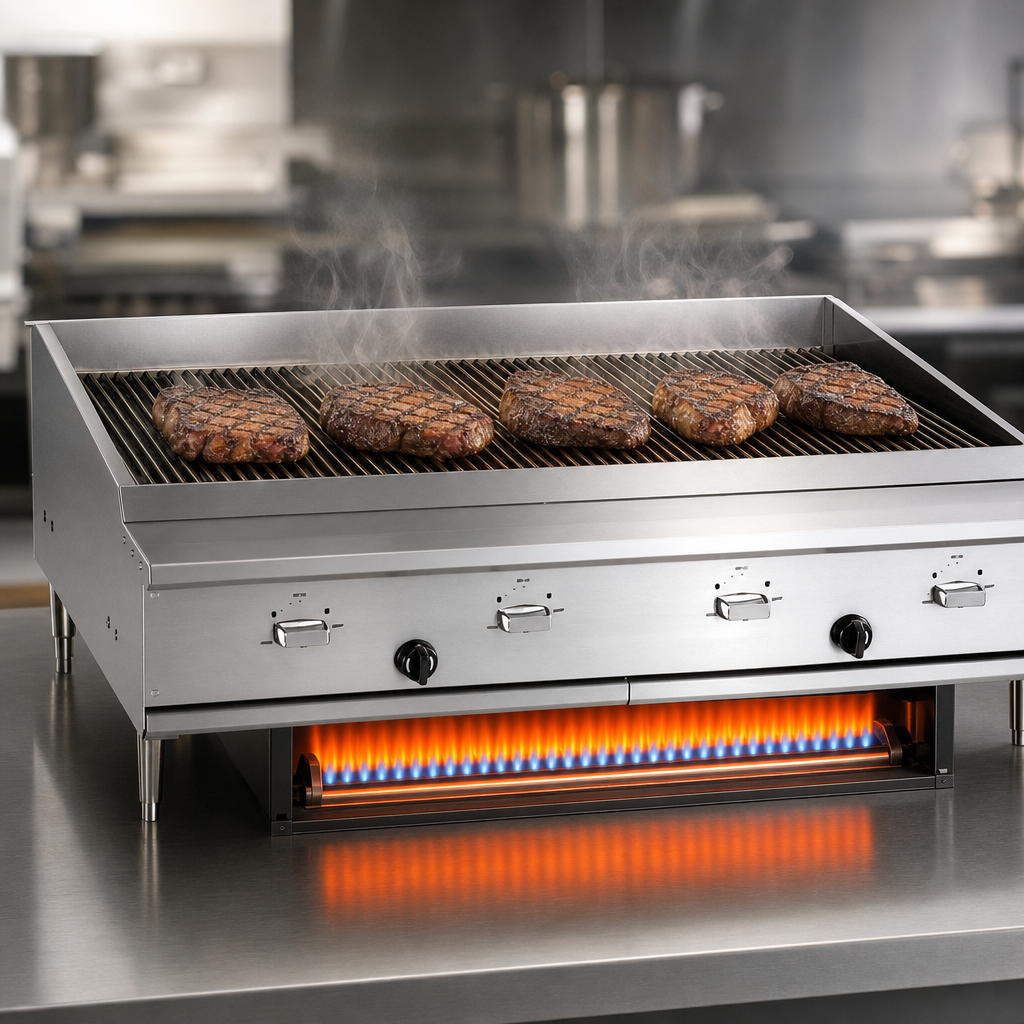

One 22,000 BTU infrared burner system.

Manual Controls

Manual control operation.

Piezo Ignition

Direct-ignition piezo spark igniter.

Stainless Steel Components

Stainless steel cooking grids, sides, control panel, and top trim.

Removable Heat Shield and Backsplash

Removable heat shield and backsplash.

Front Crumb Tray

Full-width stainless steel front crumb tray.

Adjustable Legs

4-inch adjustable legs.

Gas Connection and Regulator

3/4-inch NPT rear gas connection with gas pressure regulator provided.

Frequently Asked Questions

Yes. The VTEC14 is a gas infrared charbroiler. The provided specifications do not identify a specific gas type.
The listed dimensions are 14.38 in wide, 35.13 in deep, and 16.38 in high, with a listed weight of 97 lb.
It uses manual controls and direct-ignition piezo spark ignition.
The VTEC14 has a one-year limited parts and labor warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
