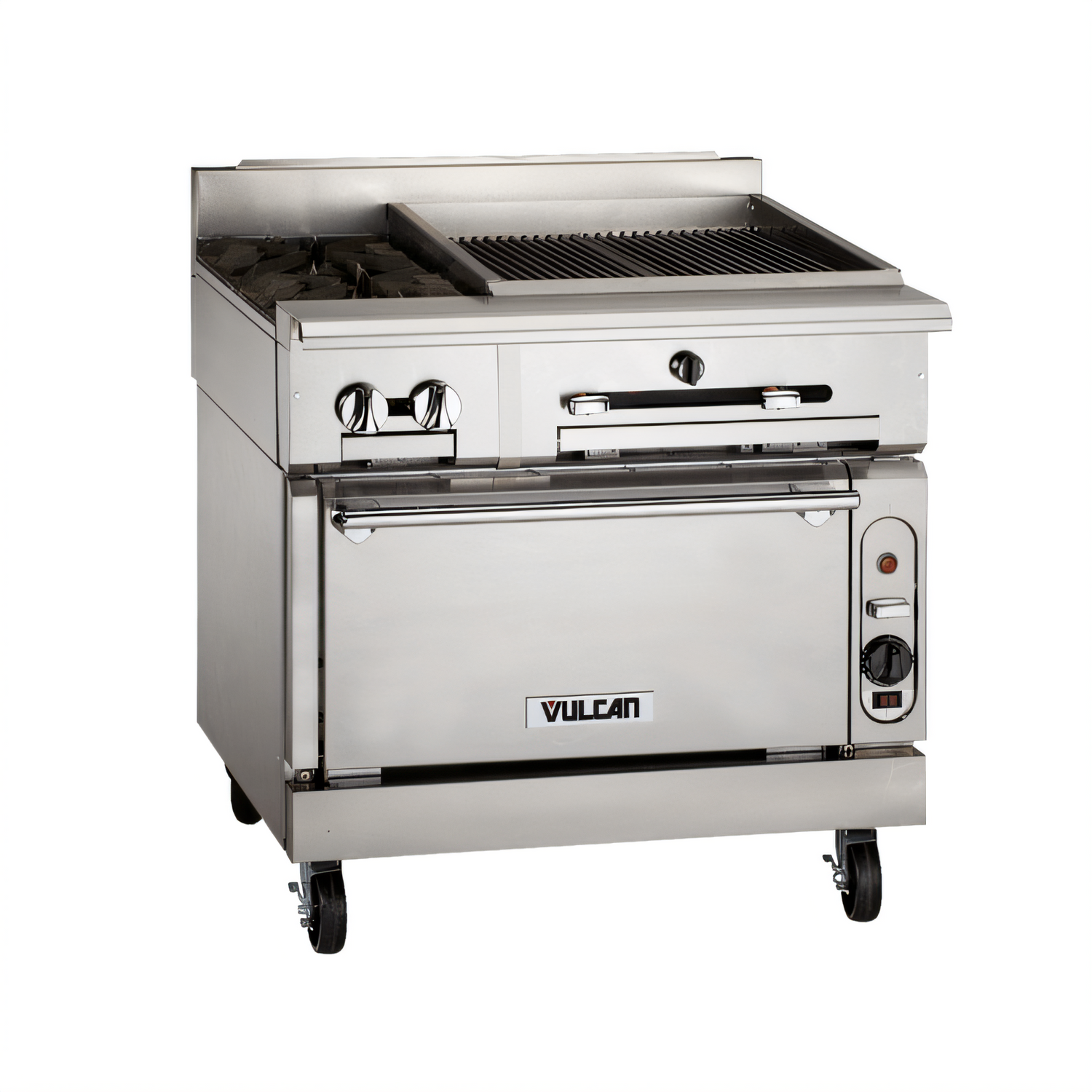

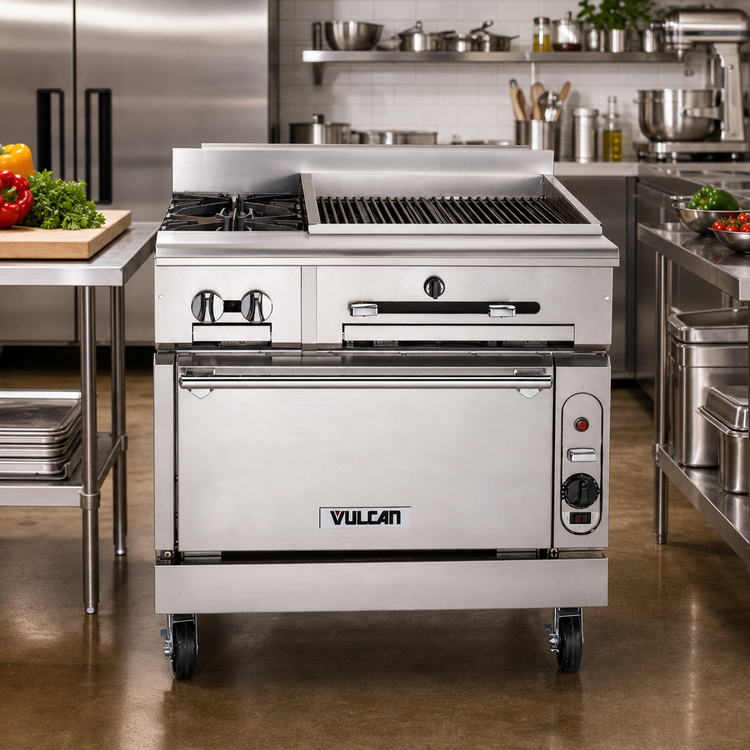

Vulcan 36-Inch Heavy Duty Gas Range with Infrared Charbroiler and Standard Oven

Manual Controls, Stainless Steel Construction, 116,000 BTU

A durable 36-inch gas range that pairs an infrared charbroiler with a standard oven for versatile high-volume cooking.

  • Combines a 36-inch infrared charbroiler top with a standard oven base.
  • Heavy-duty stainless steel construction is built for commercial kitchen use.
  • 22,000 BTU/hr infrared burners deliver fast, even heat across the charbroiler.
  • Standard oven features a porcelain cavity, one rack, and a 150°F to 550°F temperature range.
  • Manual high-range heat controls and piezo spark ignition support straightforward operation.
  • 116,000 BTU/hr total input for demanding cooking environments.

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

685.0 lb

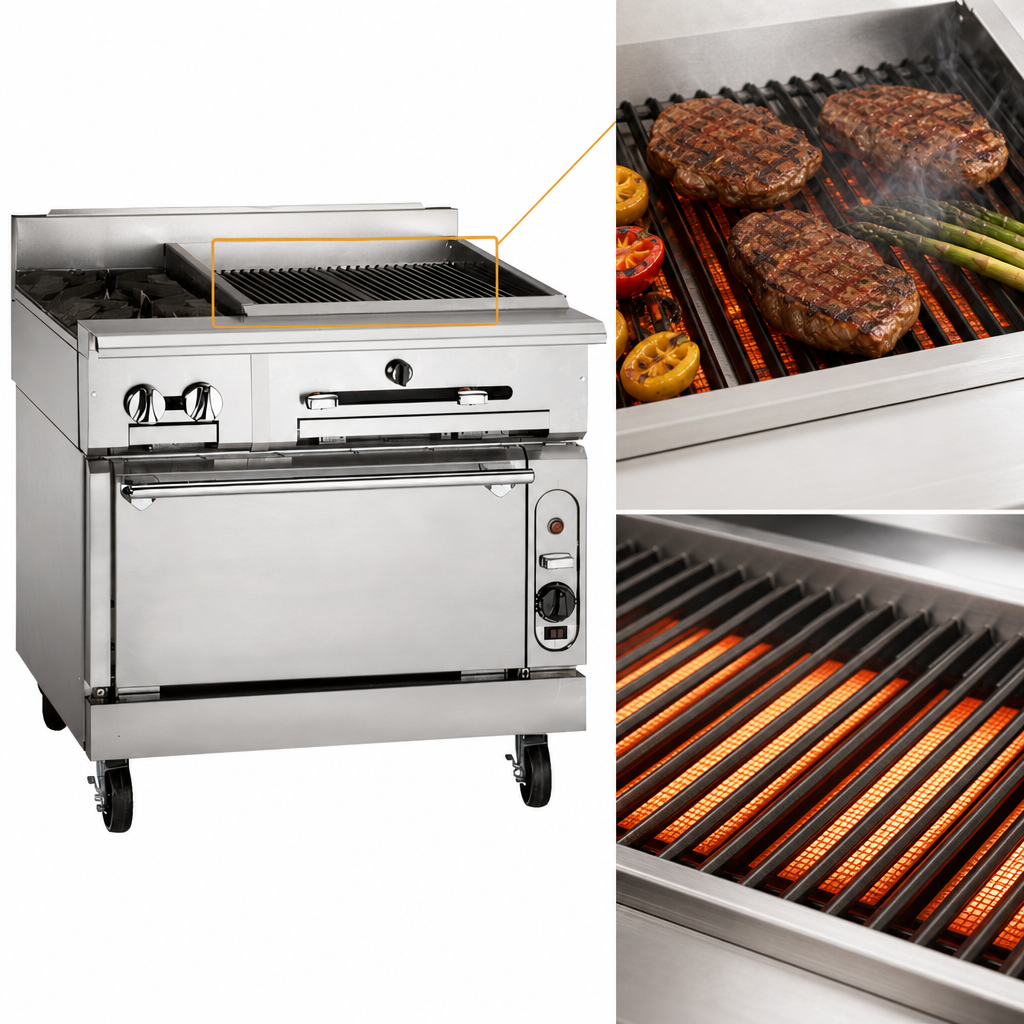

Infrared Charbroiler Top

Each cooking zone uses a patented 22,000 BTU/hr infrared burner system for strong, even heat.

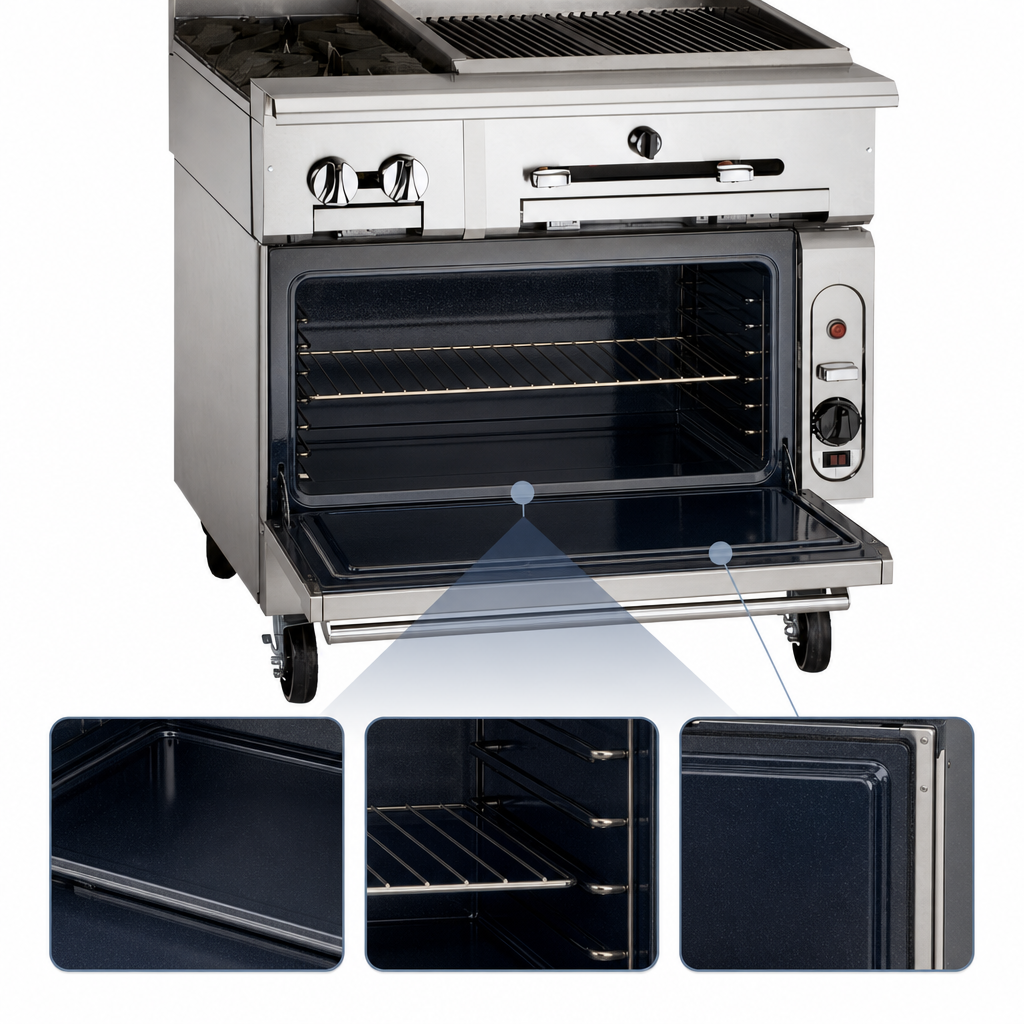

Standard Oven Base

Includes a 50,000 BTU/hr oven with porcelain bottom, sides, and interior door panel, plus one rack and three rack positions.

Stainless Steel Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back for durability and easy cleaning.

Manual Burner Controls

One high-range heat control valve per burner with chrome control knobs for direct heat adjustment.

Piezo Spark Ignition

Direct ignition piezo spark igniters support reliable burner start-up.

Heavy-Duty Cooking Surfaces

Features steel infrared emitter panels and 11" x 25" stainless steel cooking grids.

Commercial Gas Connections

Includes a 1-1/4" front gas manifold and a 1-1/4" rear gas connection (capped).

Adjustable Floor Support

Supplied with 6" adjustable stainless steel legs for installation.

Full-Width Crumb Tray

Stainless steel crumb tray helps collect debris and simplify cleanup.

Type Infrared Charbroiler Gas Range
Style Heavy Duty
Installation Type Floor Model
Material Stainless Steel
Controls Manual
BTU 116,000 BTU
Gas Connection Size 1-1/4 Inches NPT
Temperature Range 150°F to 550°F
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 685 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This is a 36-inch heavy-duty gas range with an infrared charbroiler top and a standard oven base.
The standard oven thermostat adjusts from 150°F to 550°F.
Total input is 116,000 BTU/hr.
It includes a 1-1/4" front gas manifold and a 1-1/4" rear gas connection. A properly sized regulator is required, and the gas type must be specified when ordering.
The unit measures 36"W x 36.75"D x 36"H on 6" adjustable legs.
The standard oven includes a porcelain cavity, one rack, and three rack positions.
