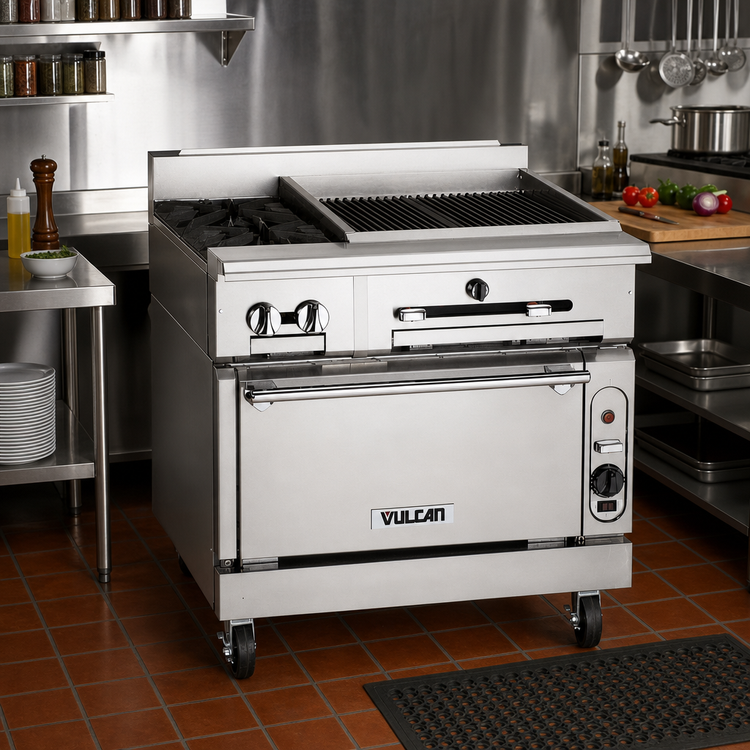

Vulcan 36-Inch Heavy Duty Gas Charbroiler Range with Convection Oven Base
Manual Controls, Stainless Steel Construction, 98,000 BTU
This 36-inch heavy-duty gas range pairs a high-output infrared charbroiler with a convection oven base for versatile, space-saving line cooking.
- Combines a 36-inch infrared charbroiler with a convection oven base in one heavy-duty range.
- Delivers 98,000 BTU/hr total input with 22,000 BTU/hr infrared burner systems at each cooking zone.
- Stainless steel front, sides, base, and stub back are built for demanding commercial kitchens.
- Convection oven includes a 32,000 BTU/hr burner, porcelain cavity, two racks, and three rack positions.
- 115V, 1-phase blower motor, manual burner controls, and piezo spark ignition support straightforward operation.
- Adjustable legs and a full-width crumb tray help with installation and cleanup.
Overall Dimensions:
36.0"W x 36.75"D x 36.0"HProduct Weight:

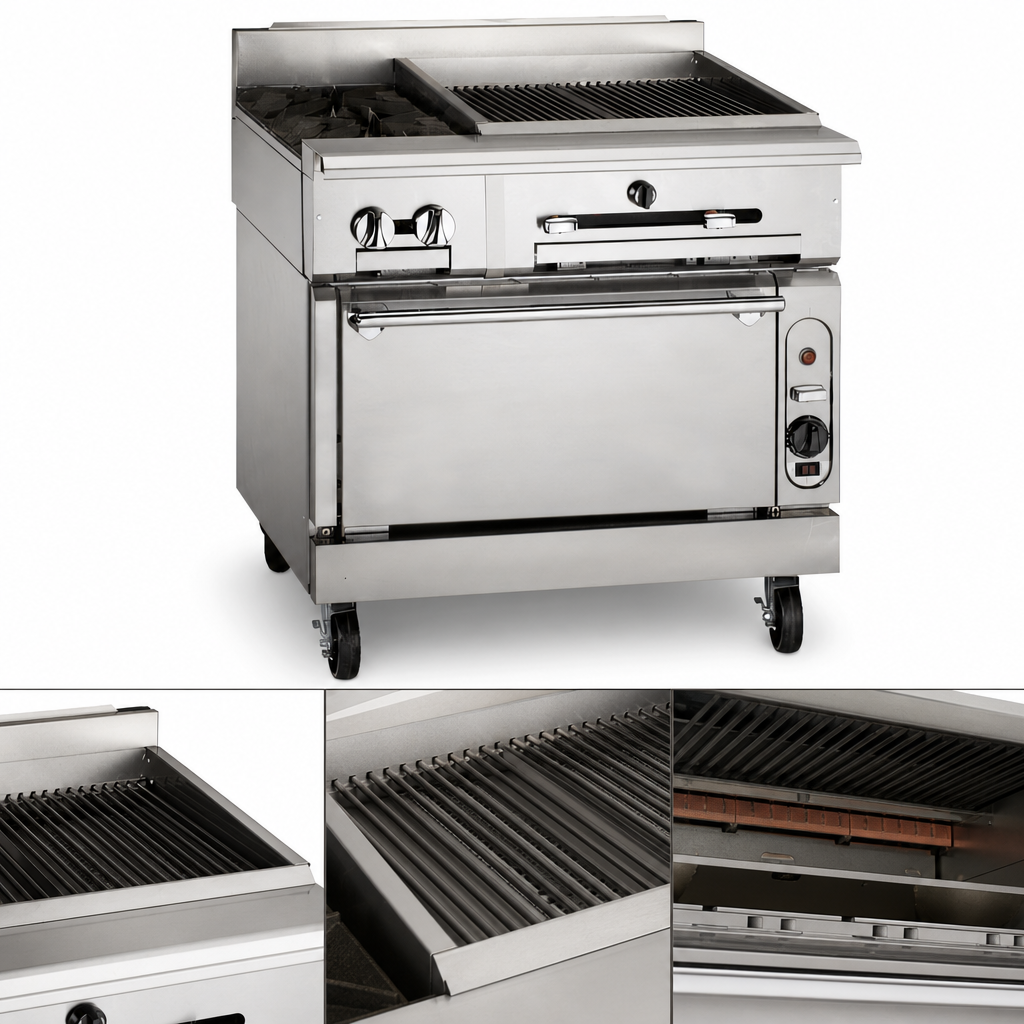

763.0 lbInfrared Charbroiler Top
High-output charbroiler with stainless steel cooking grids and heavy-duty steel infrared emitter panels.

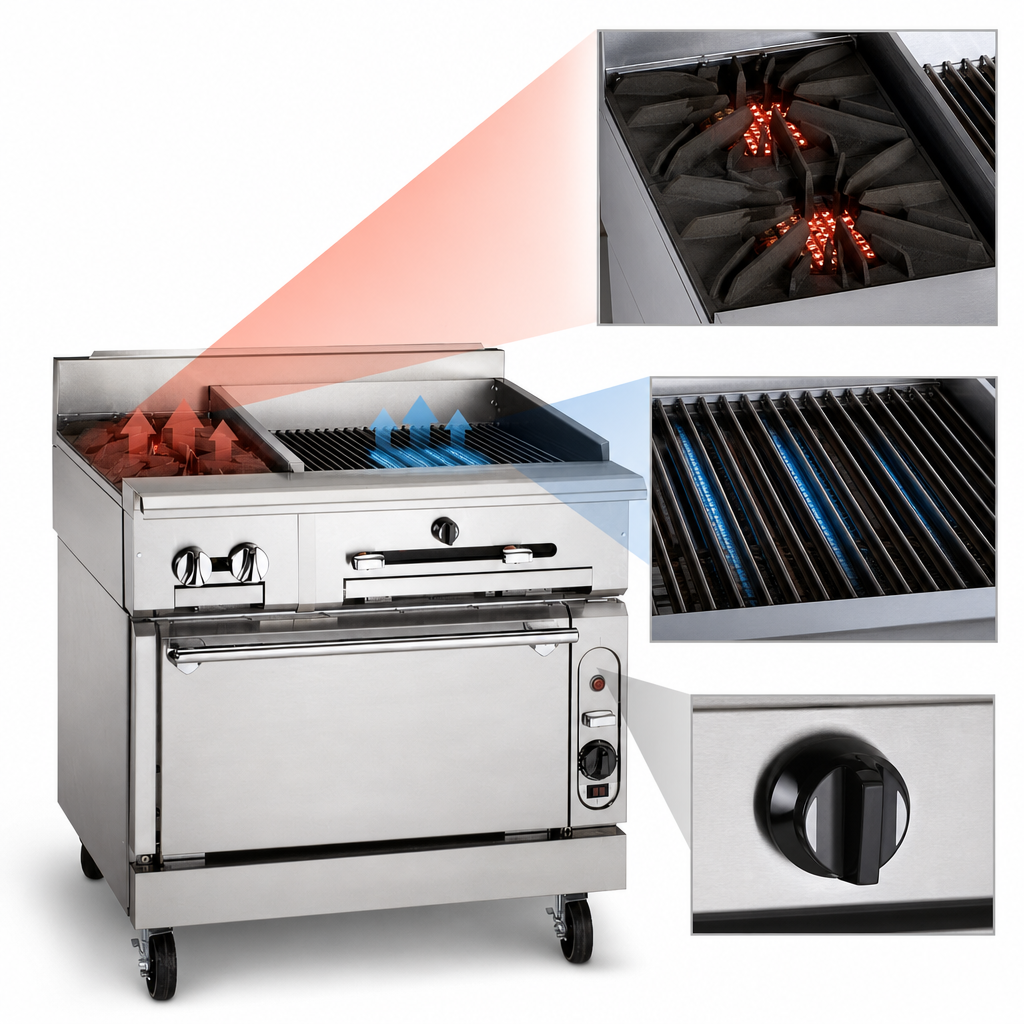

Independent Burner Zones
One 22,000 BTU/hr patented infrared burner system and one high-range heat control valve per cooking zone.
Stainless Steel Construction
Stainless steel front, front top ledge, burner box, sides, base, and stub back for durability.
Piezo Spark Ignition
Direct ignition piezo spark igniters and chrome burner knobs simplify startup and control.
Full-Width Crumb Tray
Stainless steel crumb tray supports easier cleanup.
Convection Oven Base
32,000 BTU/hr convection oven with porcelain bottom, sides, and interior door panel.
Oven Performance
Oven adjusts from 175°F to 550°F and includes two racks with three rack positions.
Electric Blower Motor
115V, 1-phase blower motor draws 4 amps and includes a 6-foot cord and plug.
Heavy-Duty Oven Door
Counterweight door hinges support smooth opening and closing.
Gas Connection and Legs
1-1/4 inch front gas manifold with capped 1-1/4 inch rear gas connection and adjustable legs.
Commercial Certifications
NSF and CSA certified for commercial kitchen use.
Oven Cavity Size
Oven cavity measures 27 inches wide by 27 inches deep by 13 inches high.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
