Vulcan

Vulcan 24-Inch Heavy Duty Modular Infrared Gas Charbroiler

SKU: VTC24
$7,558.75
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan 24-Inch Heavy Duty Modular Infrared Gas Charbroiler

Stainless Steel Construction, Manual Controls, 44,000 BTU

Delivering 44,000 BTU/hr of infrared heat in a compact 24-inch footprint, this heavy-duty charbroiler is built for reliable commercial grilling and easy cleanup.

  • 24-inch modular gas infrared charbroiler designed for high-output commercial cooking.
  • Stainless steel front, top ledge, sides, base, and stub back for durable construction.
  • Patented infrared burner system delivers 22,000 BTU/hr per cooking zone.
  • Manual high-range heat control valves provide independent zone control.
  • 11" x 25" stainless steel cooking grids support consistent grilling performance.
  • Full-width stainless steel crumb tray simplifies cleanup and maintenance.

Overall Dimensions:

24.0"W x 36.75"D x 36.0"H

Product Weight:

305.0 lb

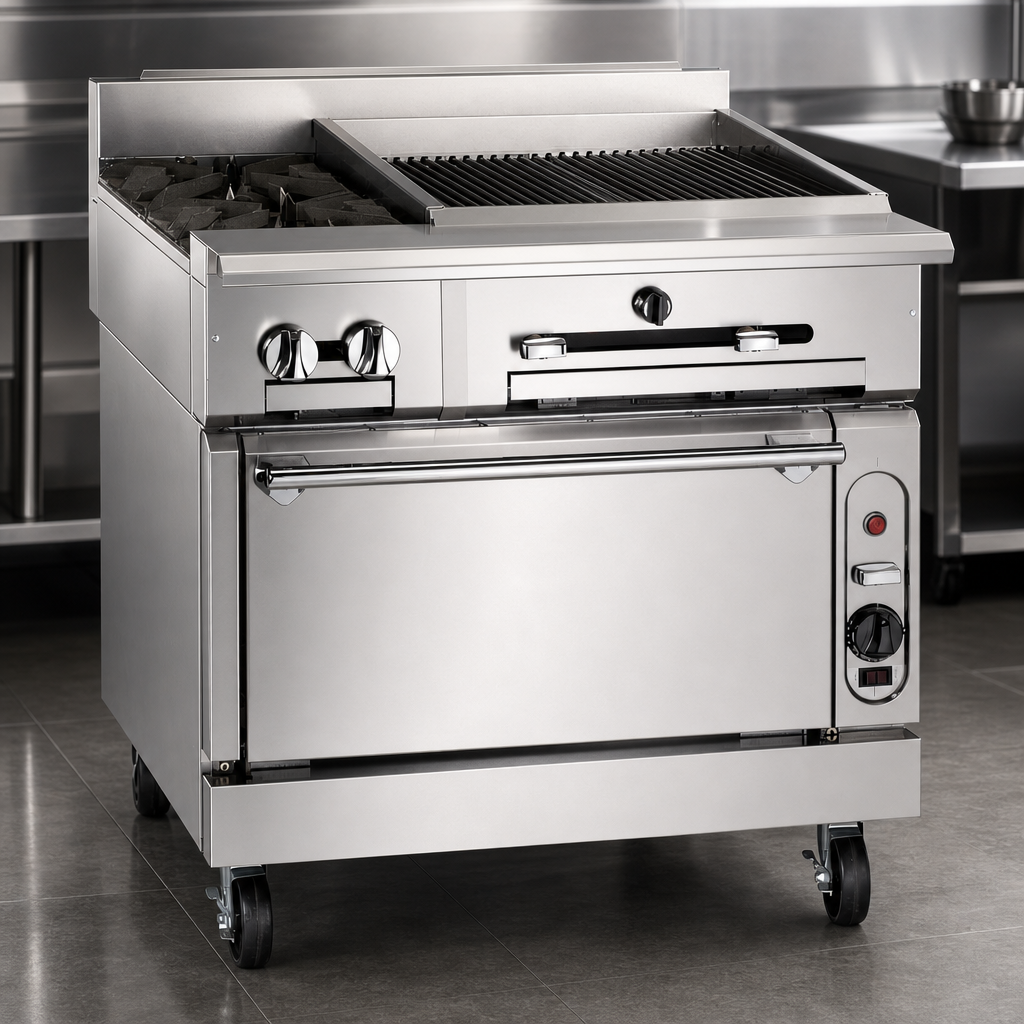

Stainless Steel Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back provide durability and a clean commercial appearance.

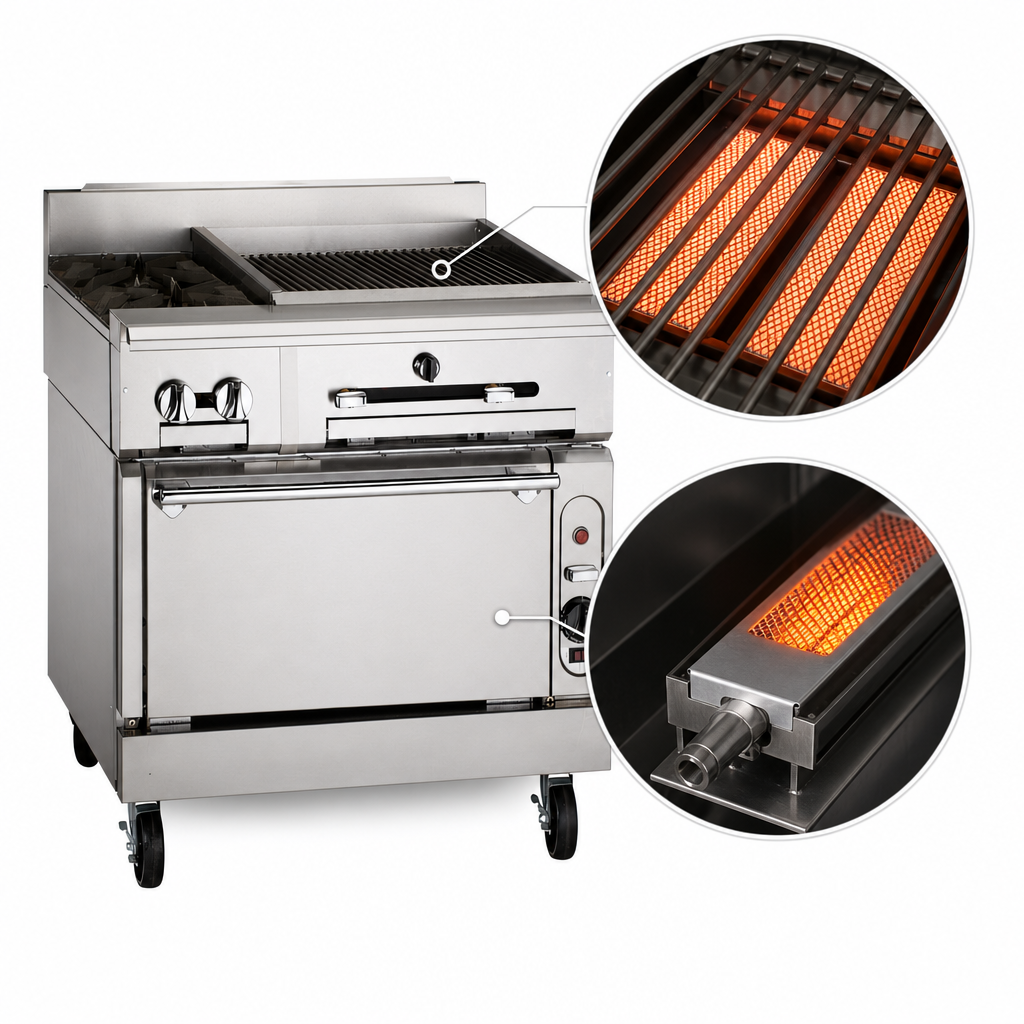

Infrared Burner System

Patented infrared burner system delivers 22,000 BTU/hr per cooking zone for high-efficiency grilling.

Heavy-Duty Emitter Panels

Steel infrared emitter panels are built to withstand demanding kitchen use.

Manual Heat Control

One high-range heat control valve per burner allows precise control over each cooking zone.

Direct Ignition

Piezo spark igniters provide direct ignition for dependable startup.

Stainless Steel Cooking Grids

11" x 25" stainless steel grids provide a durable broiling surface.

Full-Width Crumb Tray

A full-width stainless steel crumb tray helps catch debris for easier cleanup.

Gas Connection Flexibility

Includes a 1¼" front gas manifold and a 1¼" rear gas connection (capped) for installation flexibility.

Type Infrared Charbroiler
Style Modular
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Controls Manual
BTU 44,000 BTU/hr
Gas Connection Size 1 1/4 Inches NPT
Shipping Width 24 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 305 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It can be ordered for natural gas or propane; specify the gas type when ordering.
The total input is 44,000 BTU/hr.
The unit uses 11" x 25" stainless steel cooking grids.
Natural gas requires 6.0" W.C. and propane requires 10.0" W.C.
Yes. The installation instructions state that an adequate ventilation system is required for commercial cooking equipment.
