Key specifications

BTU
135,000 BTU
Dimensions
45.5"W × 34.19"D × 56.25"H
Type
Chophouse Broiler
Style
Over-Fired Deck
Installation Type
Floor Model
Material
Stainless Steel
Spec sheet
Vulcan SKU: VST4B

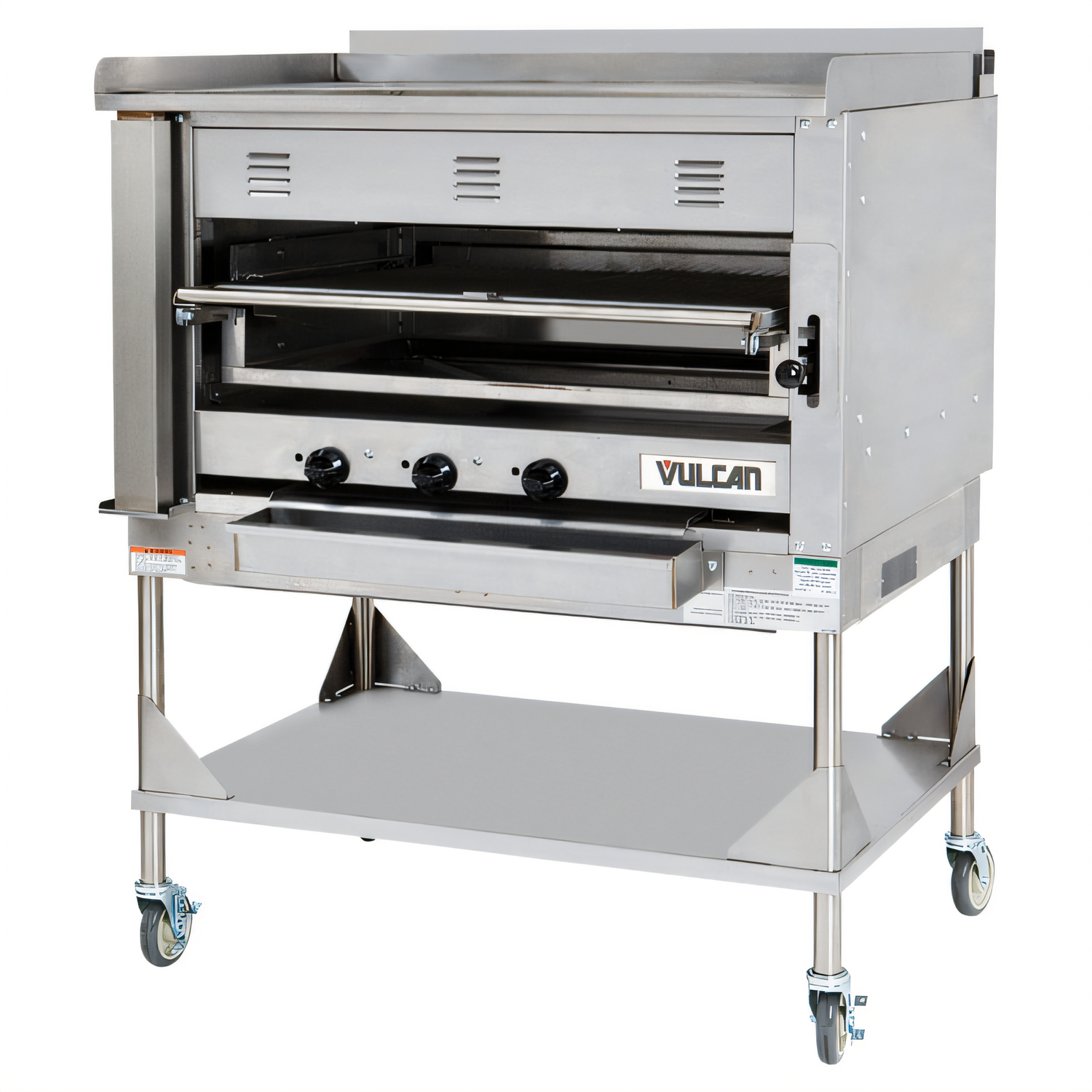

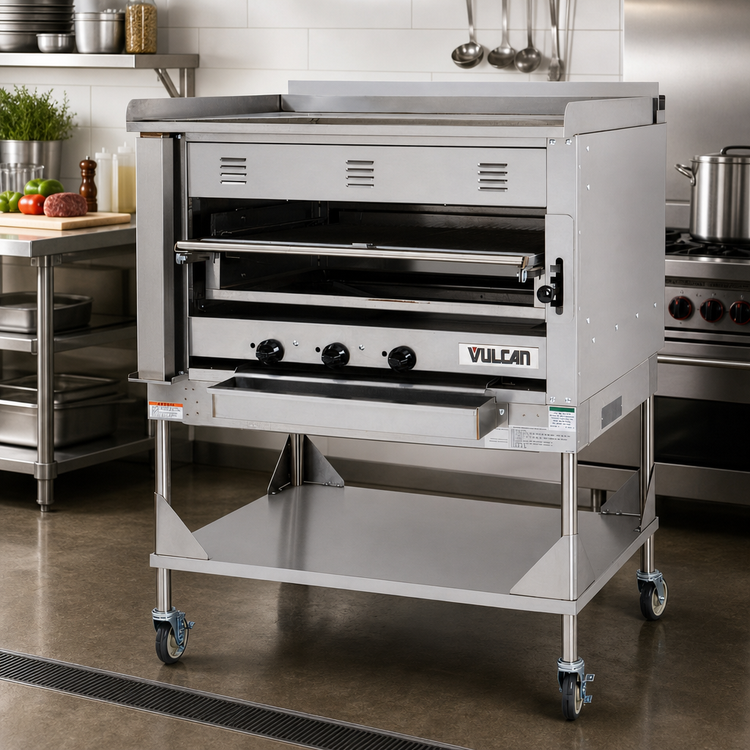

Vulcan Chophouse VST4B 45-Inch 3-Burner Chophouse Broiler

$23,323.00
/each
Estimated to ship in 8–11 business days Free Shipping
Gas typeRequired
Leg stand height
Gas Connector
Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $2,157/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Chophouse Broiler
Style Over-Fired Deck
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Base Open Stand With Undershelf
Deck Count 1
Heat Type Ceramic Radiants
Warming Oven Without
BTU 135,000 BTU
Burner Count 3
Burner Output 45,000 BTU Each
Controls 3 Infinite Heat Control Valves
Ignition Type Standing Pilot
Broiler Grid Positions 4
Broiler Grid Size 35.5 x 27 in
Griddle Plate Thickness 1/2 in
Backsplash Height 2 in
Gas Connection 3/4 in Rear
Casters Included

Description

VST4B is a heavy-duty gas ceramic chophouse broiler with an over-fired deck and an integrated griddle plate.

  • Burner system: Three 45,000 BTU/hr. ceramic burners provide 135,000 BTU/hr. total input.
  • Broiler grid: Floating four-position grid rack with positive positioning control handle.
  • Griddle: 1/2-inch griddle plate with 2-inch side and back splashers.
  • Construction: Stainless steel front, sides, leg stand, and undershelf, mounted on casters.
  • Controls: Standing pilot ignition and three infinite heat control valves.
  • Grease management: Front grease receptacle and side-mounted hanging grease container for the griddle plate.

This appliance is manufactured for commercial installation only.

Overall Dimensions:

45.5"W x 34.19"D x 56.25"H

Product Weight:

986.0 lb

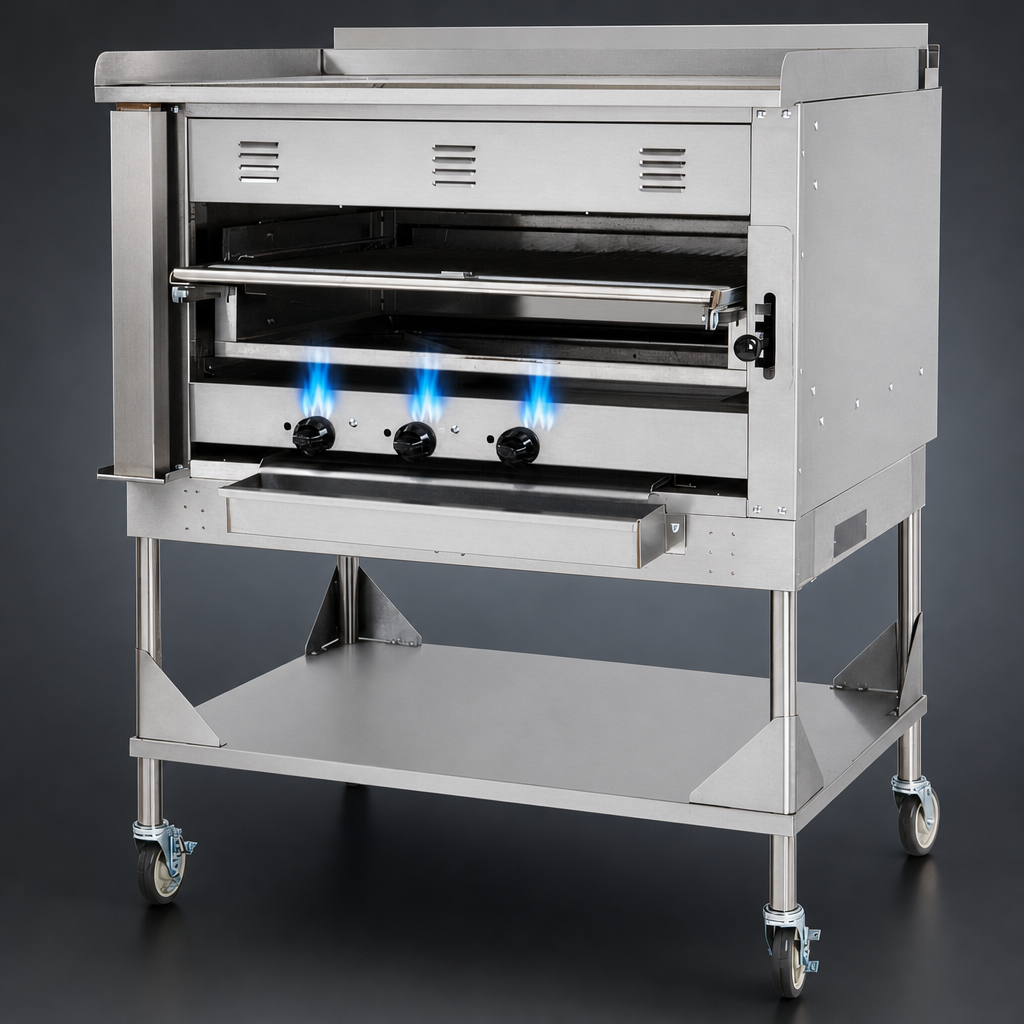

Three Ceramic Burners

Three 45,000 BTU/hr. ceramic burners provide 135,000 BTU/hr. total input.

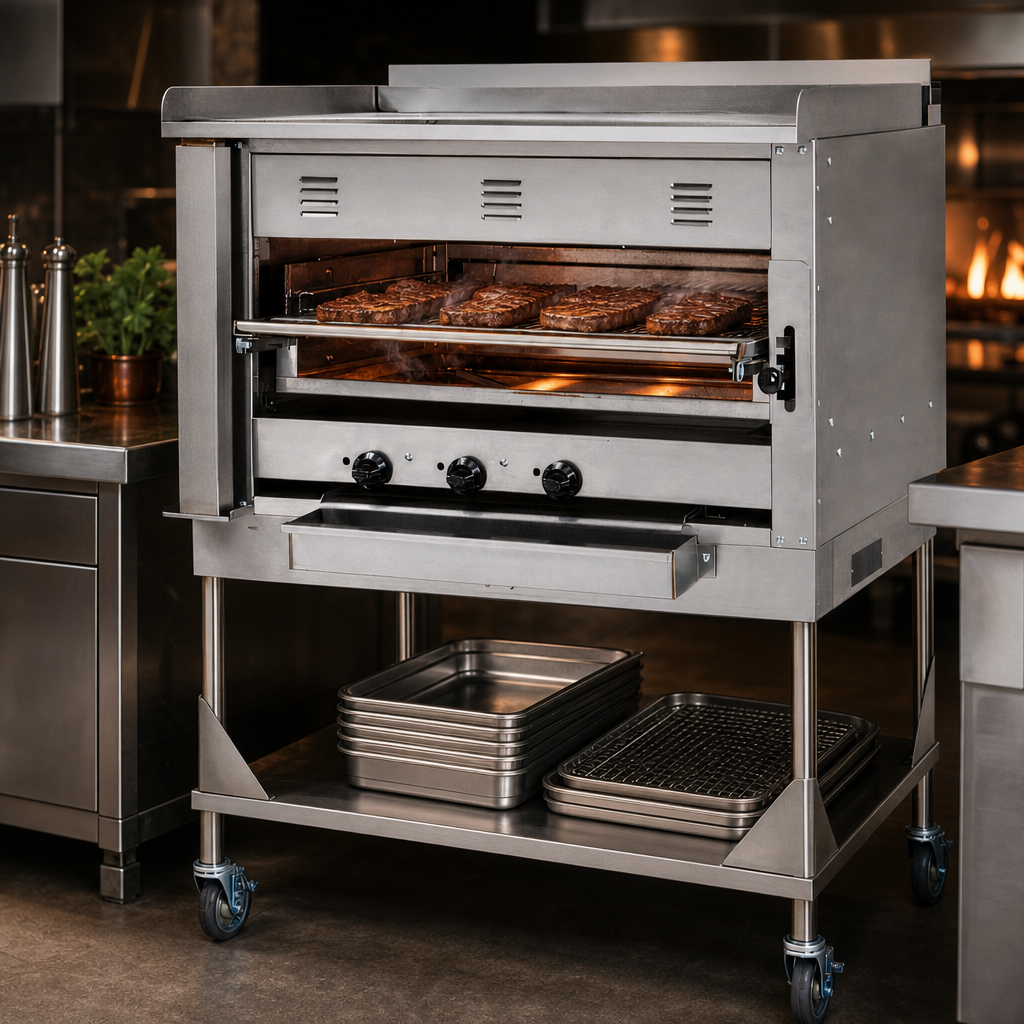

Over-Fired Broiler

Heavy-duty single-section gas over-fired ceramic broiler design.

Four-Position Grid

Floating grid rack assembly with four positions and a positive positioning control handle.

Integrated Griddle

1/2-inch griddle plate with 2-inch side and back splashers.

Stainless Steel Construction

Stainless steel front, sides, leg stand, and undershelf.

Grease Management

Front grease receptacle and side-mounted hanging grease container for the griddle plate.

Standing Pilot Ignition

Standing pilot ignition system with three infinite heat control valves.

Commercial Installation

Manufactured for commercial installation only.

Griddle and Broiler Brush

A griddle/broiler brush is included.

Frequently Asked Questions

It has three ceramic burners, each rated at 45,000 BTU/hr., for 135,000 BTU/hr. total input.
Yes. It includes a 1/2-inch griddle plate with 2-inch side and back splashers.
The floating broiler grid has four positions.
It measures 45.5 in wide by 34.19 in deep by 56.25 in high, with a listed weight of 986 lb.
The product specification states a one-year limited parts and labor warranty from the date of original installation, subject to Vulcan's commercial warranty terms.
