Vulcan

Vulcan PreciPan VPP40E-208 Electric Tilting Braising Pan, 40-Gallon Usable Capacity, 208V, 3-Phase

SKU: VPP40E-208
$29,336.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment Vulcan

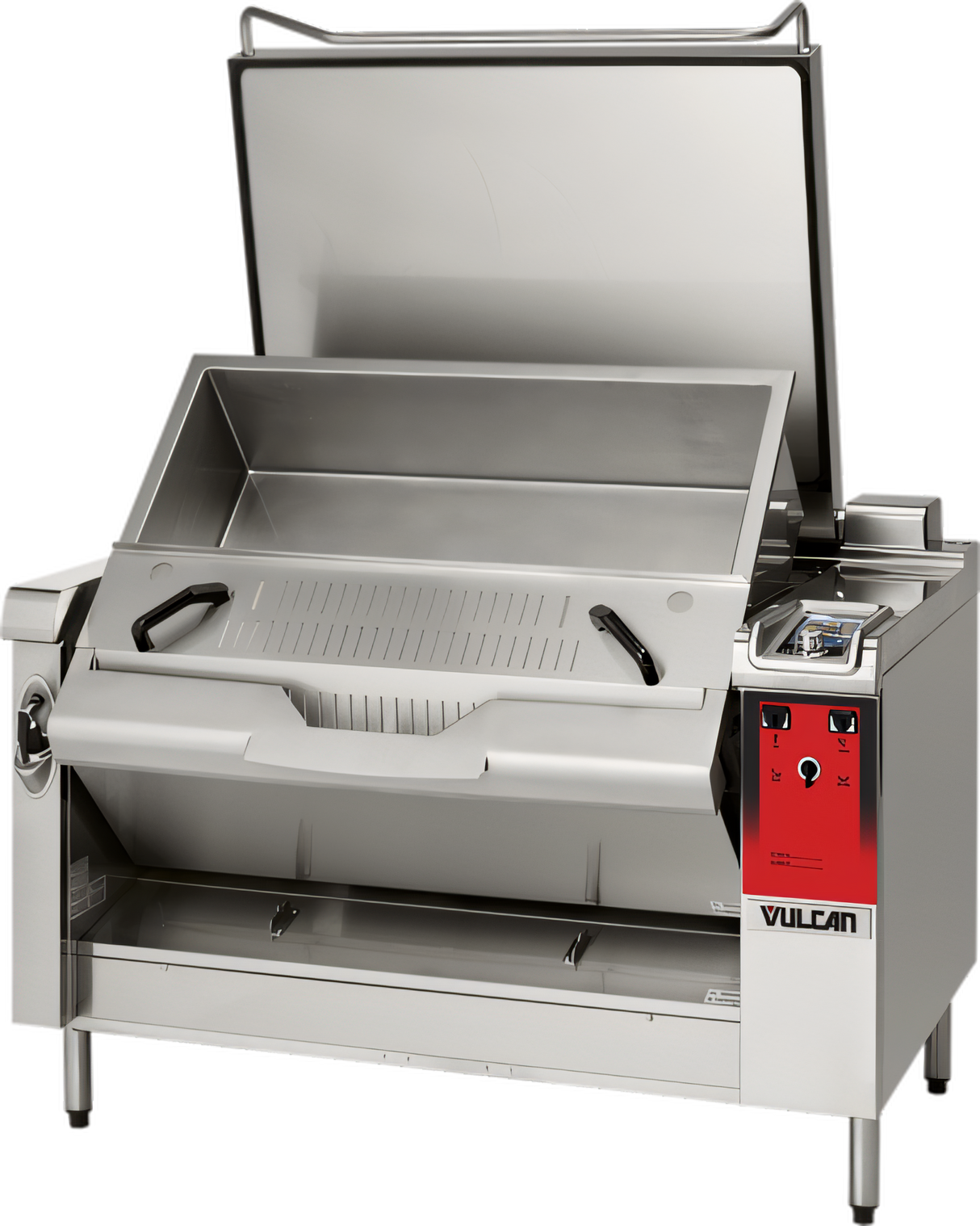

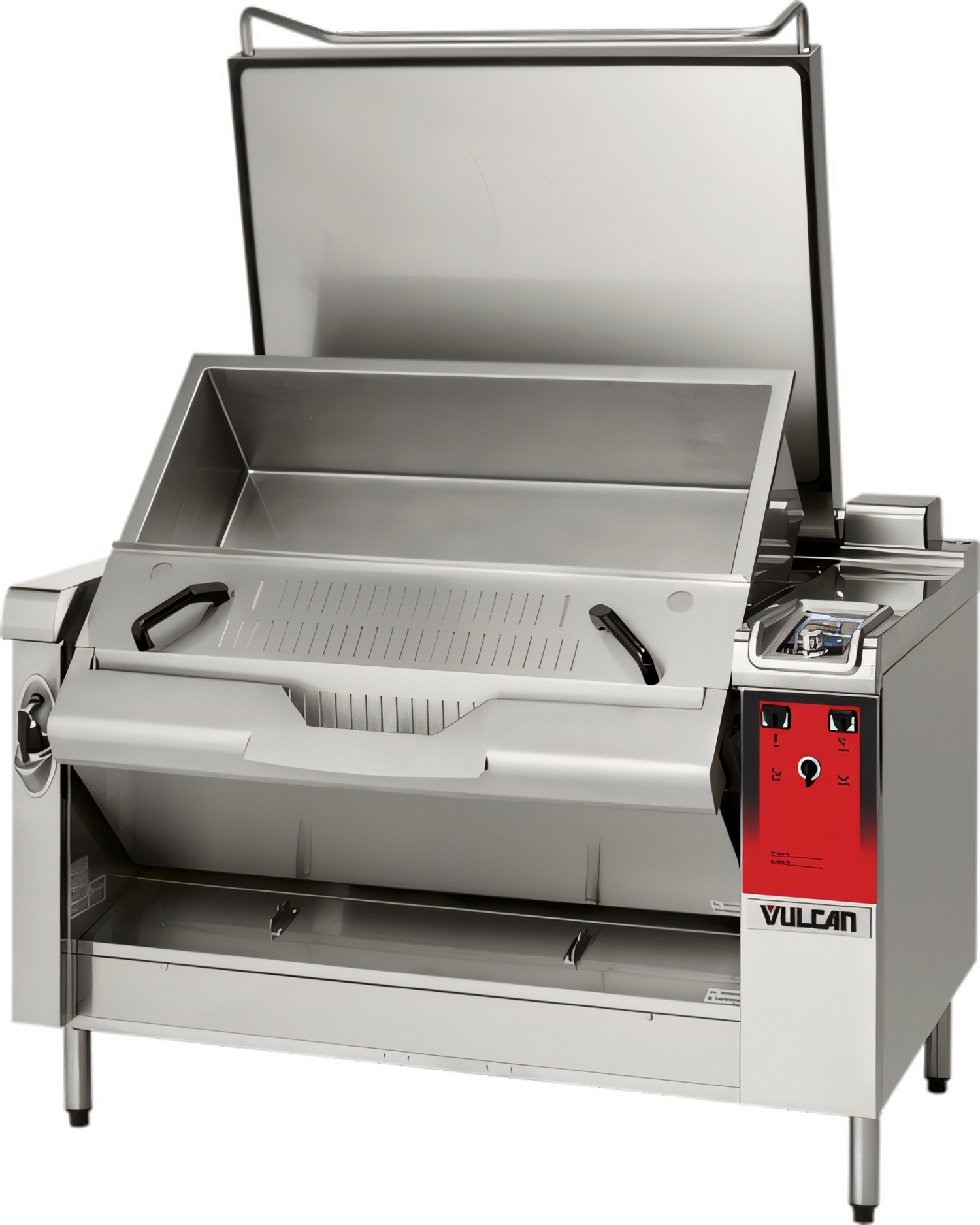

Vulcan PreciPan VPP40E-208 Electric Tilting Braising Pan, 40-Gallon Usable Capacity, 208V, 3-Phase

Intelligent multifunction cooker with multizone temperature control and powered drain

Built for high-volume kitchens, this 40-gallon electric braising pan combines multizone precision, automated recipes, and powered tilt/drain functions in one multifunction unit.

  • 40-gallon usable capacity supports high-volume braising, searing, sautéing, and boiling.
  • 80°F to 482°F temperature range with multiple timers and 3 heat zones for precise batch cooking.
  • Auto mode supports programmed recipes and USB recipe loading for repeatable results.
  • Manual pan and kettle modes add flexibility for different cooking workflows.
  • Food probe ready for cooking by time or target core temperature.
  • Motor-driven tilt/lift, auto-fill, and powered drain help improve speed and safety.
  • Retractable spray hose and strainer accessory support easier cleanup and maintenance.

Overall Dimensions:

60.6"W x 44.5"D x 50.0"H

Product Weight:

761.0 lb

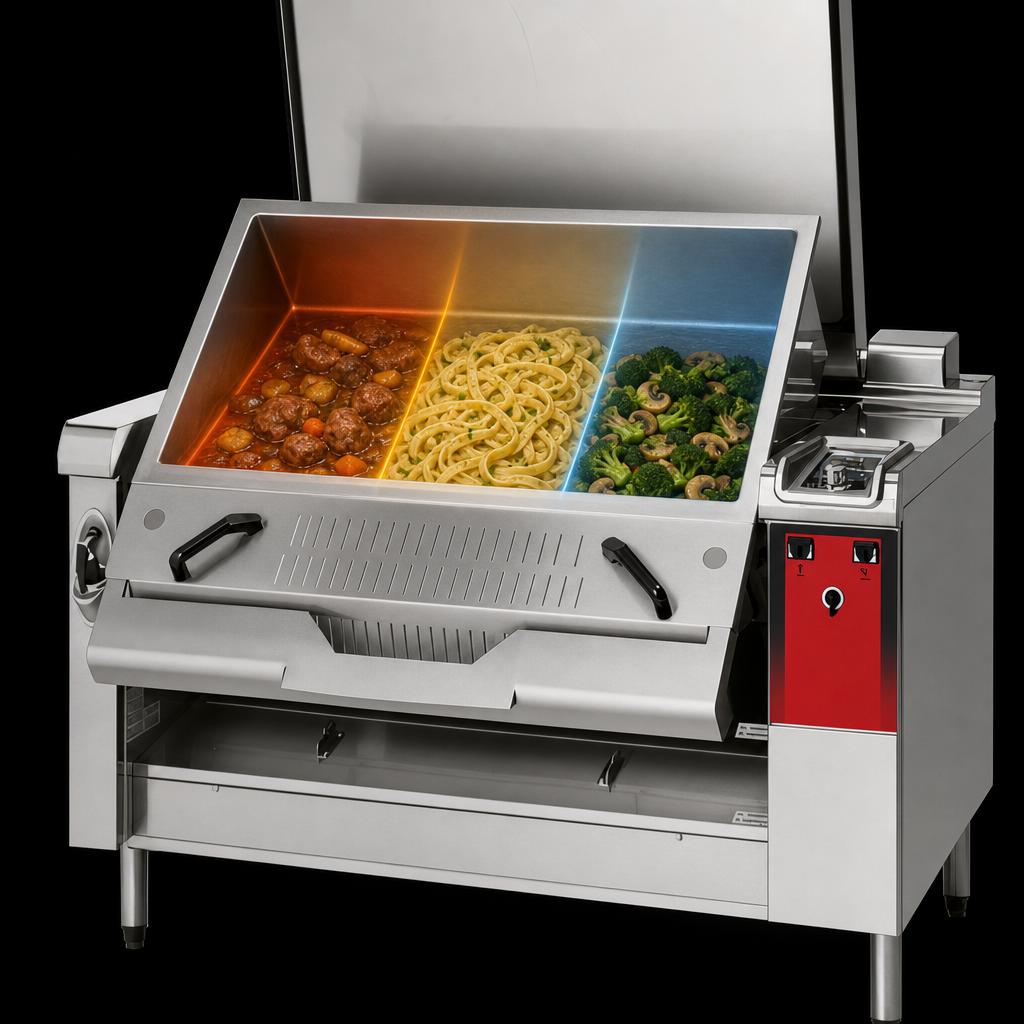

Three-Zone Cooking

Three heat zones let operators cook multiple items at different temperatures and times.

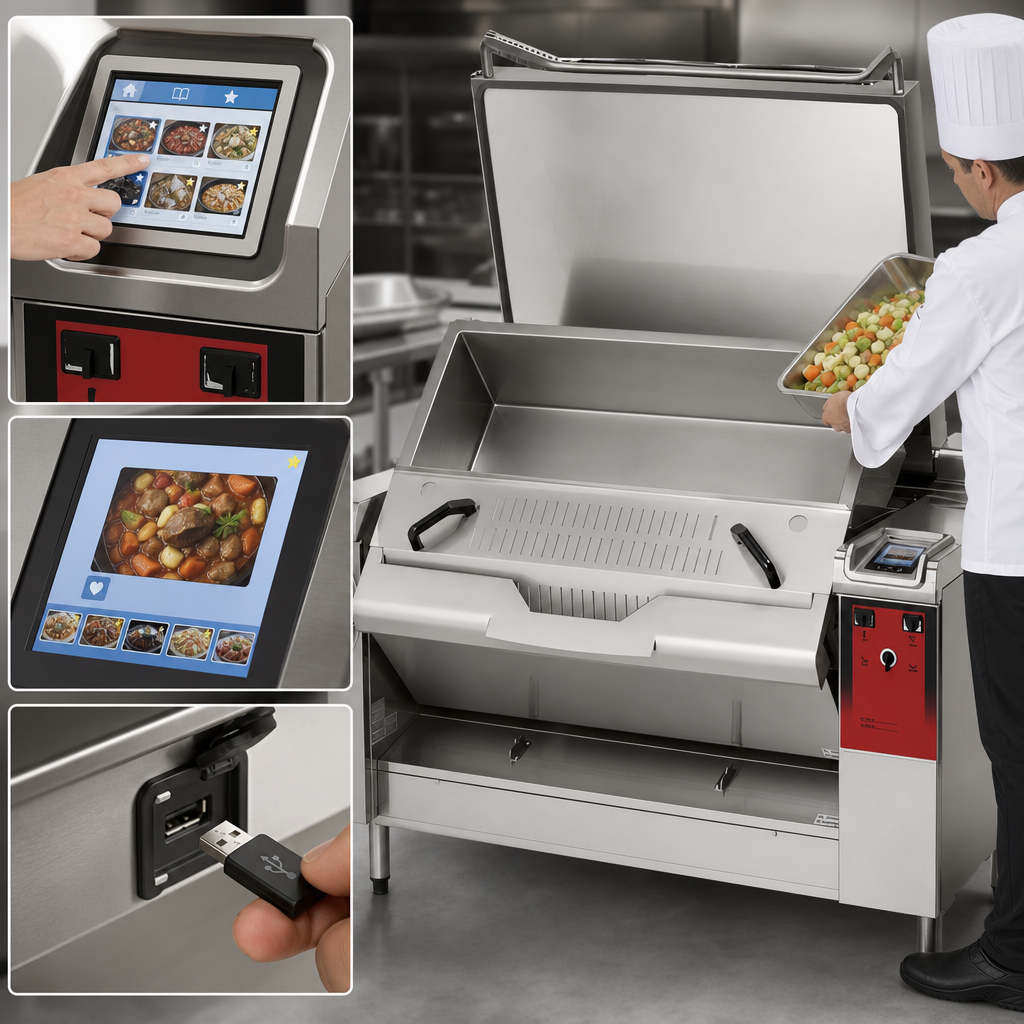

Auto Recipe Mode

Access a pre-programmed recipe library, save favorites, and load new recipes through the USB port.

Touchscreen Controls

A large touch screen, convenient knob, and intuitive menu help simplify training and everyday operation.

Manual Pan and Kettle Modes

Operators can set temperature, time, and heat zone in pan mode or use kettle mode for auto fill and preheat.

Food Probe Ready

Supports optional probe cooking by elapsed time or target core temperature.

Motor-Driven Pan Tilt/Lift

Automatic tilt and lift functions make dispensing and handling easier.

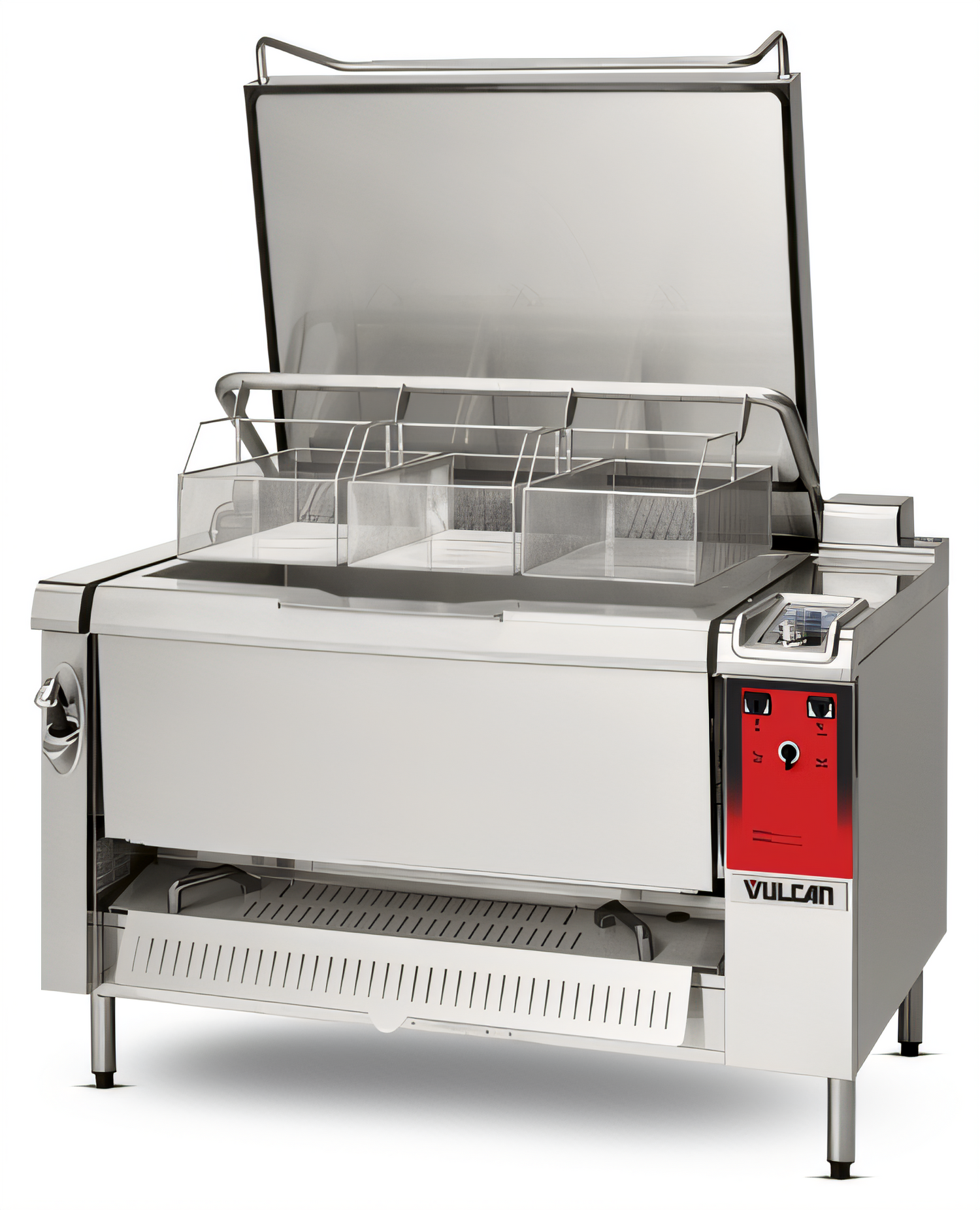

Auto-Lift Arm

Designed for use with basket accessories for pasta, retherming, and similar batch tasks.

Auto Fill, Powered Drain, and Spray Hose

Accurate water metering, tilt-free draining, and a retractable spray hose streamline production and cleanup.

Type Tilting Braising Pan
Style Open Frame
Installation Type Floor Model
Capacity 40 Gallons
Controls Touchscreen/Knob
Temperature Range 80°F to 482°F
Voltage 208 Volts
Amps 95 Amps
Watts 34.2 kW
Hertz 60 Hz
Phase 3-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 61 Inches
Shipping Depth 45 Inches
Shipping Height 50 Inches
Shipping Weight 761 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Installation manual PDF Download PDF Maintenance manual PDF Download PDF Certified installation PDF Download PDF Sell sheet PDF Download PDF Certified plus installation PDF Download PDF Operating manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 40 gallons of usable capacity.
It requires 208 Volts, 60 Hz, 3-phase power and draws 95 amps at 34.2 kW.
The VPP40E features 3 heat zones.
Yes. Auto mode supports a recipe library, favorites, and USB loading.
Yes. It is food probe ready, and the optional probe allows cooking by time or target core temperature.
It includes auto fill, powered drain without tilting, and a retractable spray hose.
