Vulcan

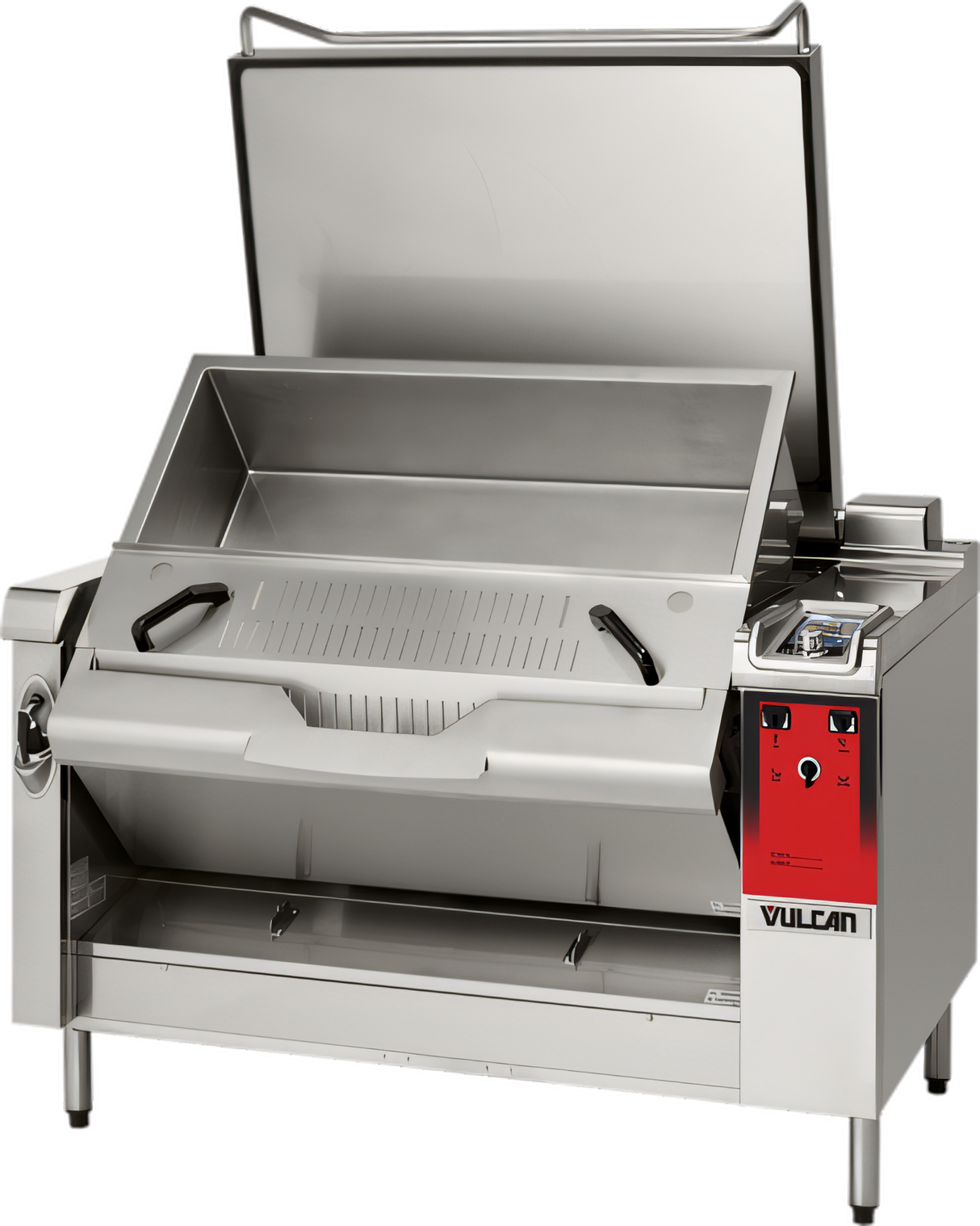

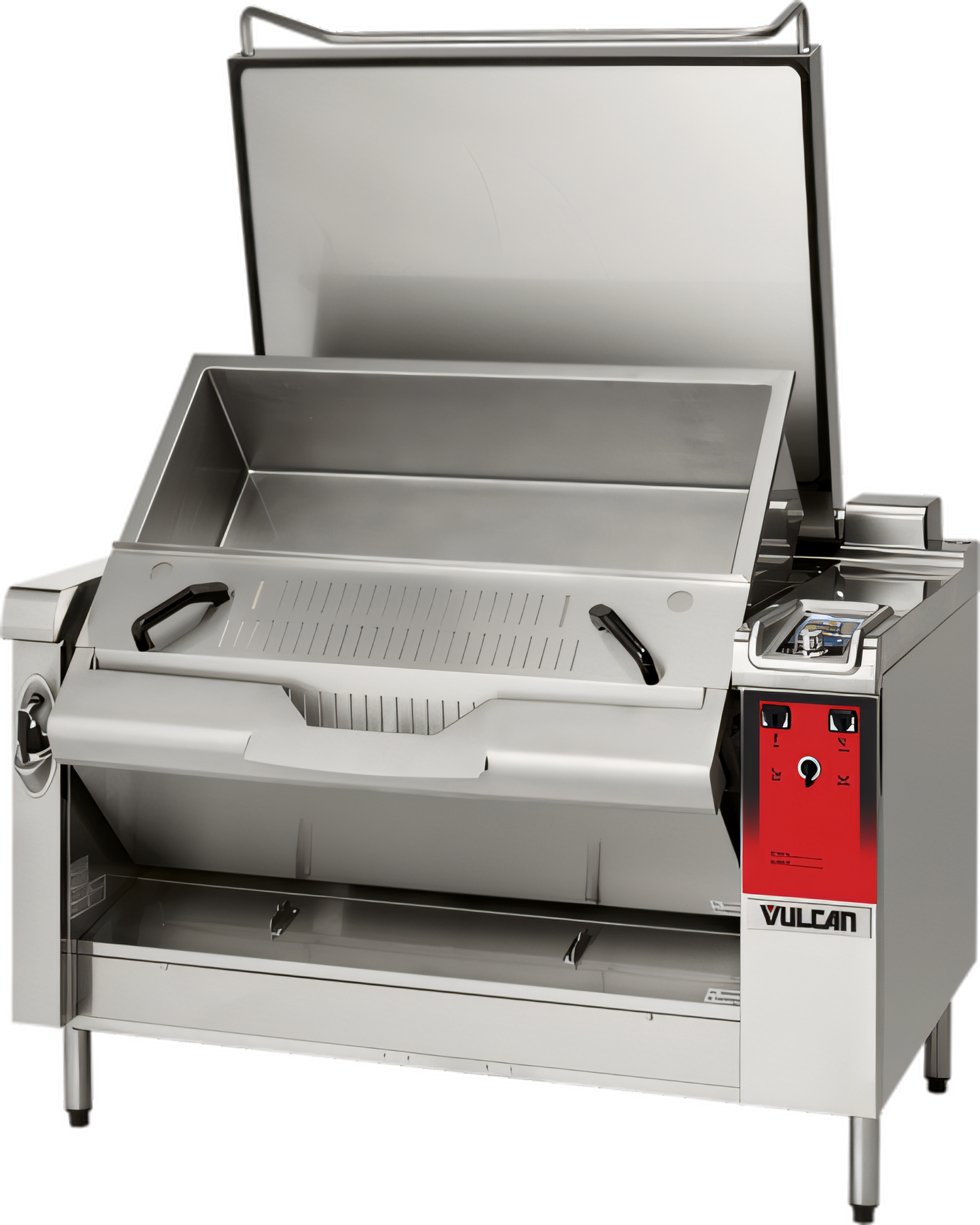

Vulcan PreciPan VPP28E-240 28 Gallon Electric Tilting Braising Pan

SKU: VPP28E-240
$23,606.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment Vulcan

Vulcan PreciPan VPP28E-240 28 Gallon Electric Tilting Braising Pan

240V, 3-Phase, Open Frame Base, 2 Heat Zones

A versatile 28-gallon electric braising pan that combines programmable multizone cooking, powered tilt/drain functions, and quick-clean features to boost kitchen throughput.

  • 28-gallon usable-capacity braising pan designed for boiling, braising, sautéing, searing, and more.
  • Two heat zones and a wide 80°F to 482°F range support precise, repeatable cooking.
  • Auto menu, USB recipe loading, and multiple timers help standardize production.
  • Food probe ready with manual pan or kettle modes for flexible batch cooking.
  • Auto fill, powered drain without tilting, and a retractable spray hose simplify cleanup.
  • Auto-lift arm and basket accessory support expand pasta and retherm applications.

Overall Dimensions:

52.8"W x 44.5"D x 50.0"H

Product Weight:

629.0 lb

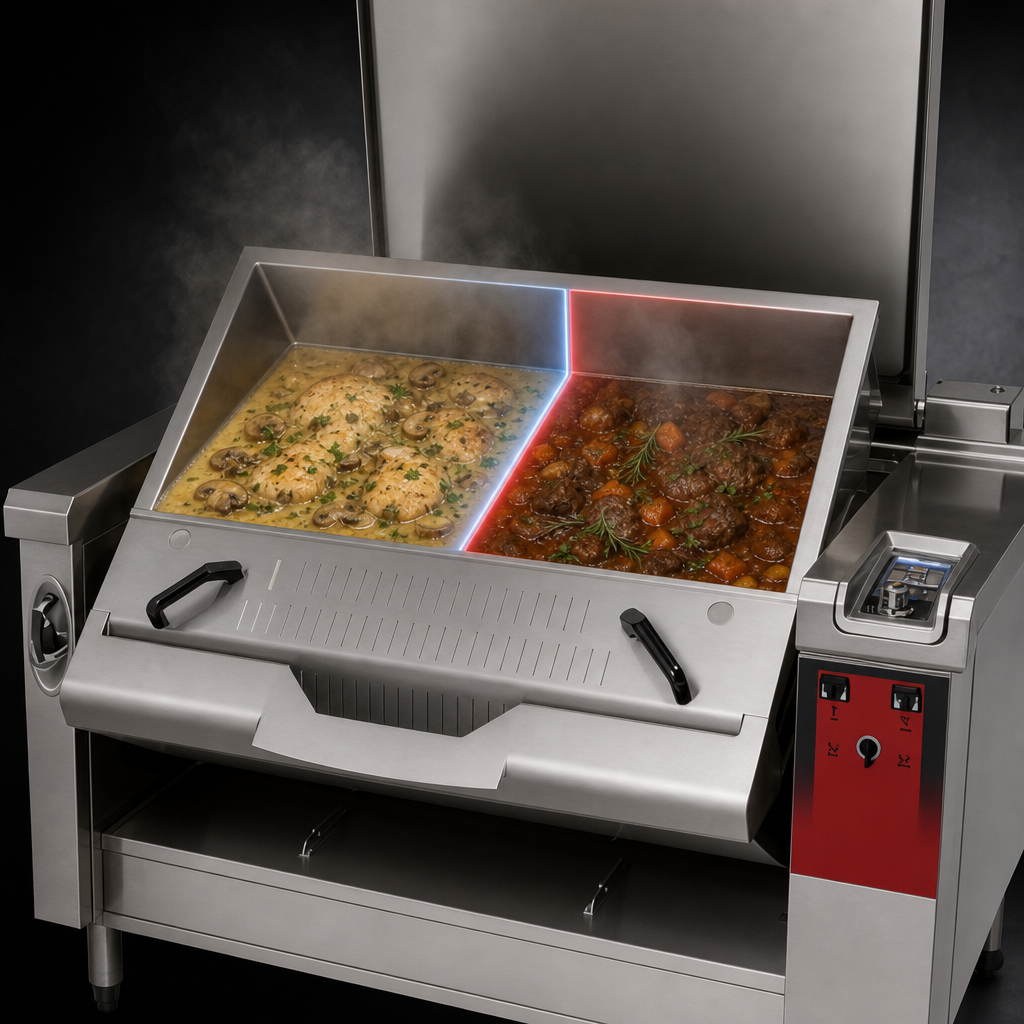

Multizone Temperature Control

Two heat zones let you cook different foods at different temperatures and times in the same pan.

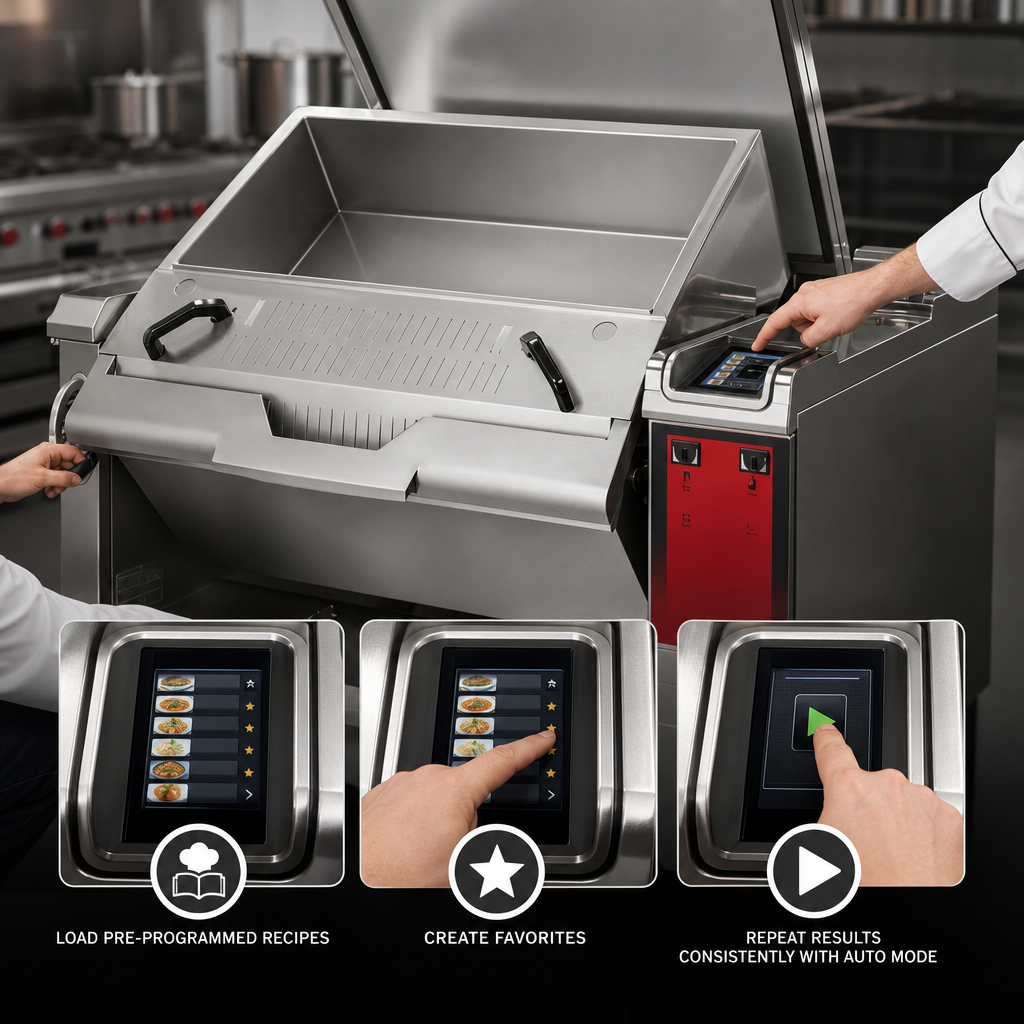

Programmable Recipe Library

Load pre-programmed recipes, create favorites, and repeat results consistently with auto mode.

USB Recipe Port

Built-in USB connectivity makes it easy to load and manage recipes.

Touchscreen Controls

Large touch screen and intuitive menu simplify operation and training.

Manual Pan or Kettle Modes

Choose the workflow that fits the task, with multiple timers and precise cooking control.

Food Probe Ready

Supports optional probe-based cooking by time or target core temperature.

Powered Tilt/Lift

Motor-driven pan tilt/lift helps dispense product with precision and control.

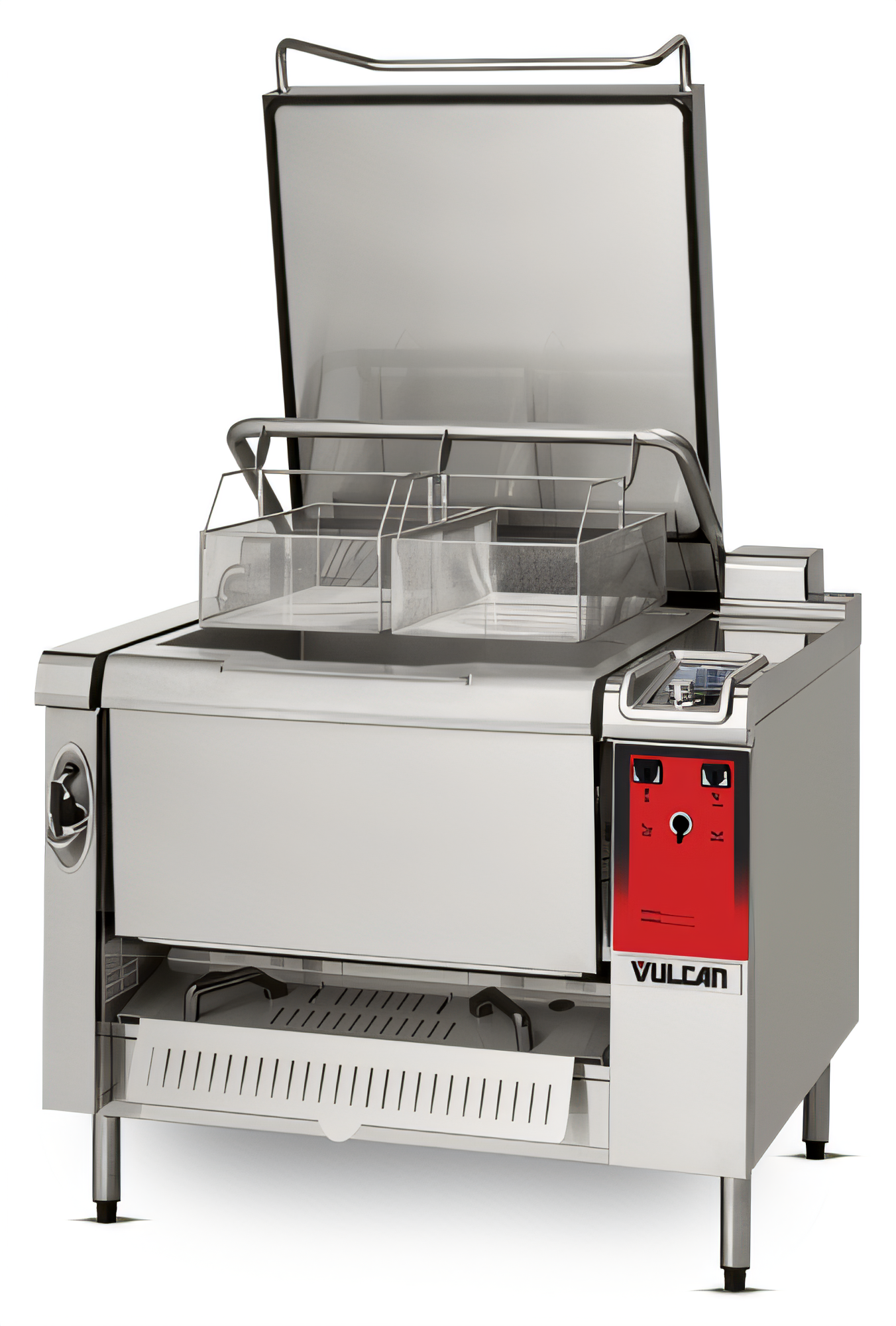

Auto-Lift Arm for Basket Accessories

Helps handle basket-based applications such as pasta and retherm.

Auto Fill and Tilt-Free Drain

Automatic water fill, powered drain without tilting, and a retractable spray hose help speed cleanup.

Open Frame Base

Floor-standing open frame design provides accessible space beneath the unit.

Type Braising Pan
Style Tilting
Installation Type Floor Model (Open Frame Base)
Controls Programmable Digital
Temperature Range 80°F to 482°F
Capacity 28 Gallons
Voltage 240 Volts
Amps 50.4 Amps
Watts 20.9 kW
Hertz 60 Hz
Phase 3-Phase
Selling Unit Each
Units Per Case 1
Shipping Width 53 Inches
Shipping Depth 45 Inches
Shipping Height 50 Inches
Shipping Weight 629 Pounds

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Certified plus installation PDF Download PDF Sell sheet PDF Download PDF Operating manual PDF Download PDF Certified installation PDF Download PDF Maintenance manual PDF Download PDF Installation manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The VPP28E has 2 heat zones for multizone cooking.
The unit operates from 80°F to 482°F.
Yes. It includes an auto menu with a USB port for loading recipes and saving favorites.
Yes. It is food probe ready for time-based or target core temperature cooking.
It includes auto fill, powered drain without tilting, and a retractable spray hose to streamline cleanup.
The sell sheet highlights boiling, braising, sautéing, searing, and other multifunction cooking applications.
