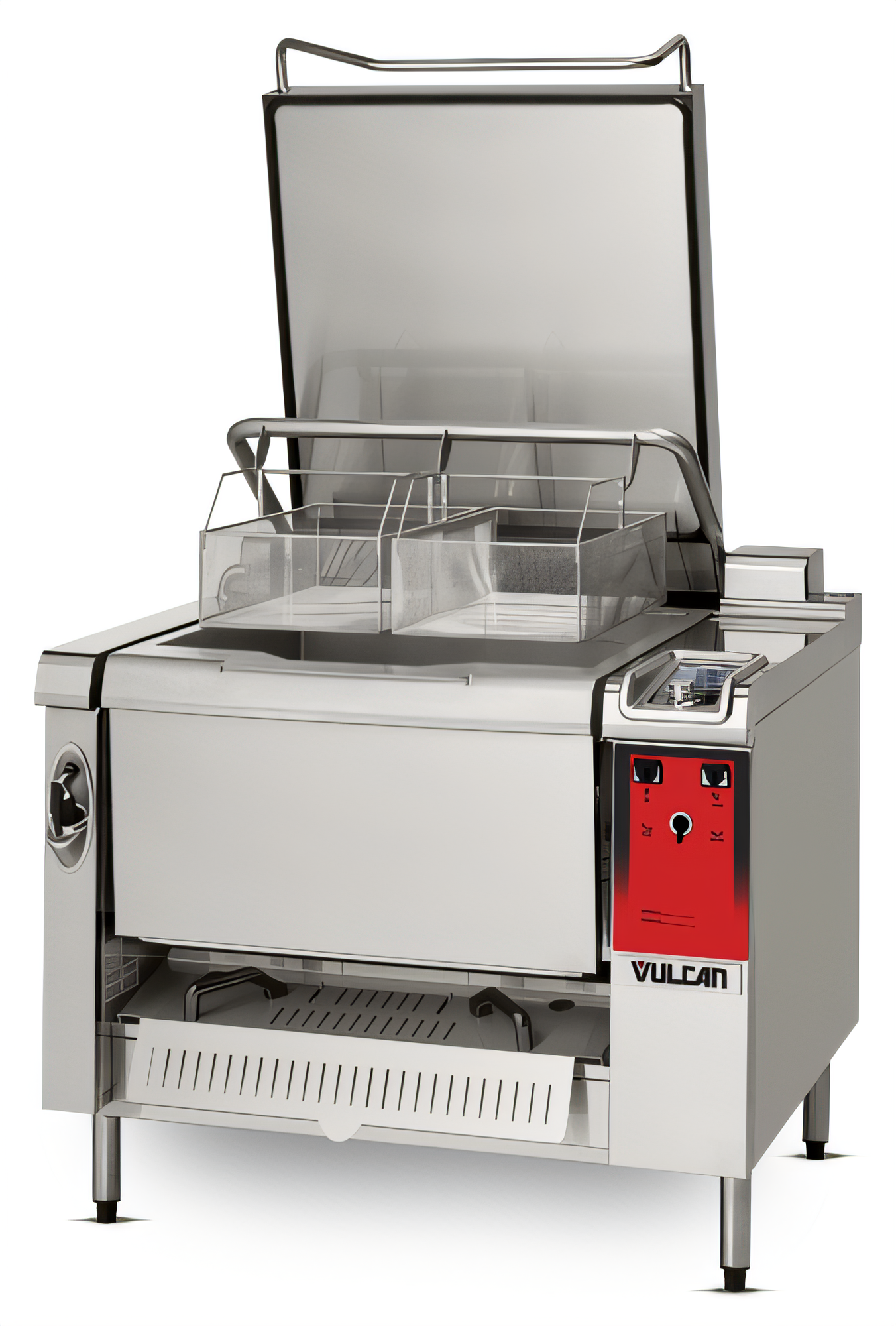

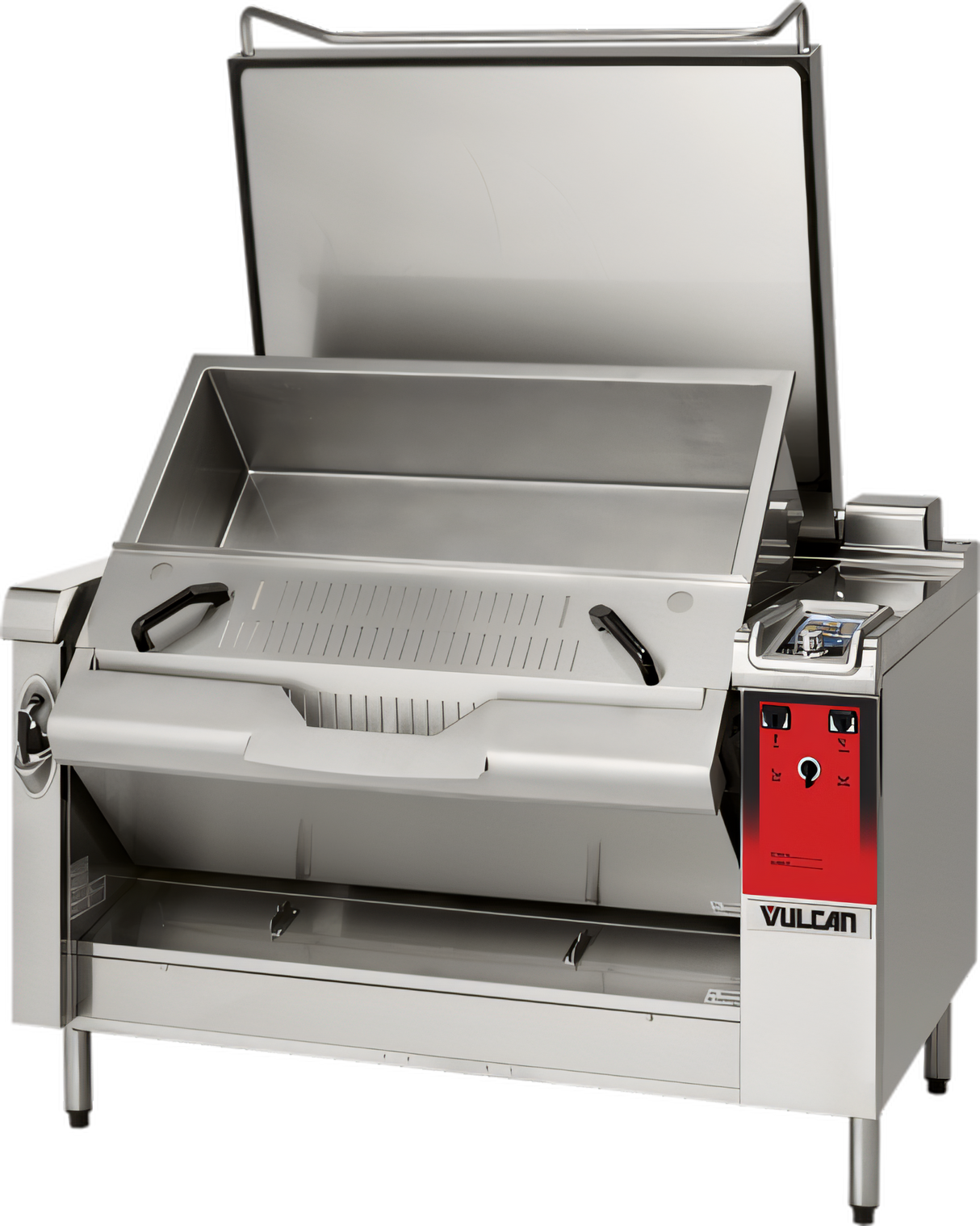

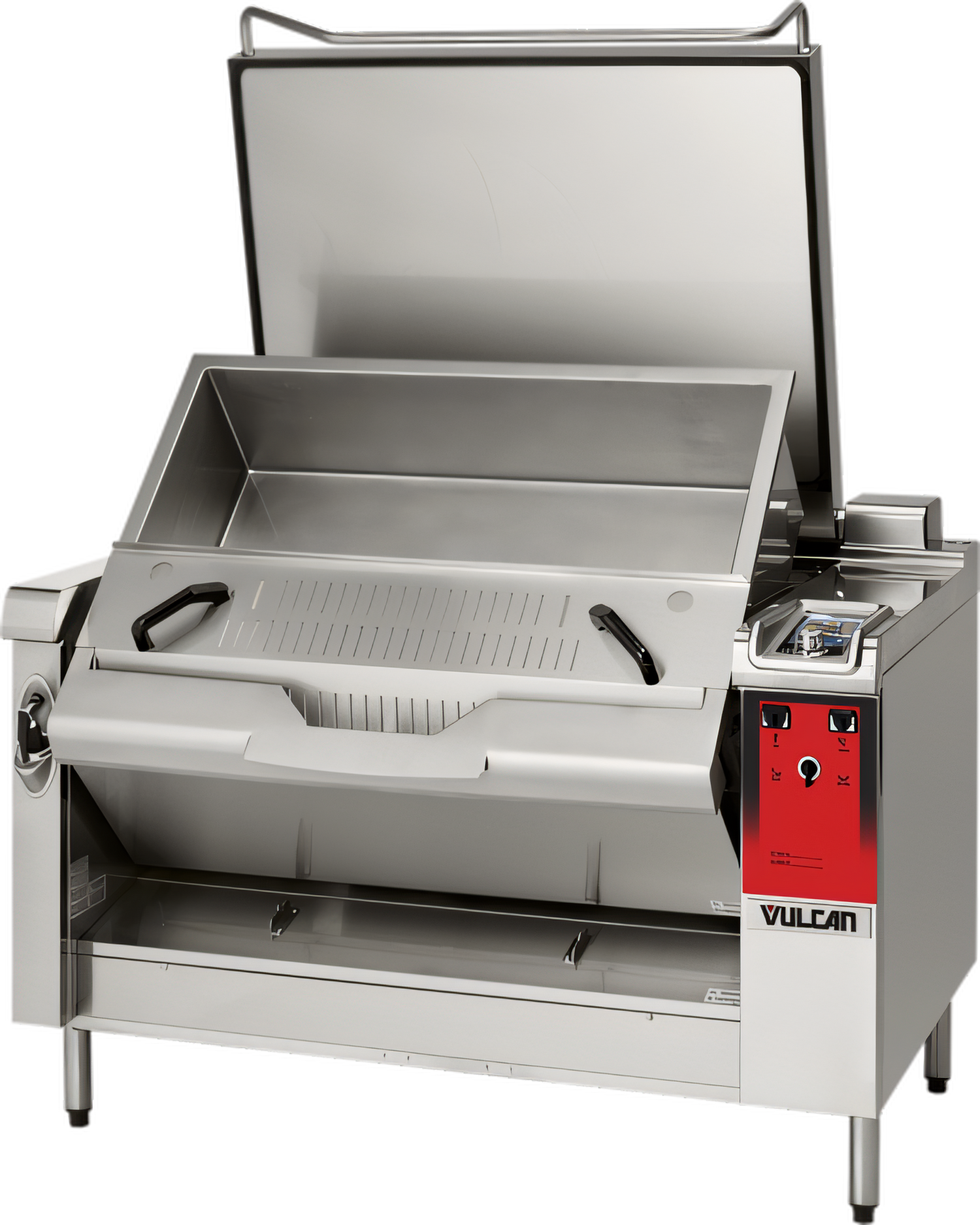

Vulcan PreciPan 28-Gallon Electric Tilting Braising Pan, Open Frame

SKU: VPP28E-208
$23,606.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Braising Pan & Tilt Skillet Braising Pans & Tilt Skillets Cooking Equipment Cooking Equipment New Arrivals Restaurant Equipment Specialty Cooking Equipment Steam Cooking Equipment Vulcan

Vulcan PreciPan 28-Gallon Electric Tilting Braising Pan, Open Frame

208V, 3-Phase, 20-29 Gallon Capacity

Built for high-volume kitchens, this multifunction braising pan combines precise multizone cooking, recipe automation, and tilt-free draining to streamline production.

  • 28-gallon usable capacity supports batch cooking in busy commercial kitchens.
  • Two heat zones and an 80°F to 482°F range provide precise multizone cooking.
  • Auto mode, multiple timers, and USB recipe loading help standardize results.
  • Manual pan and kettle modes add flexibility for a range of prep tasks.
  • Auto fill, powered drain, and a retractable spray hose simplify operation and cleanup.
  • 208V, 3-phase electric service is suited for dedicated kitchen installations.

Overall Dimensions:

52.8"W x 44.5"D x 50.0"H

Product Weight:

629.0 lb

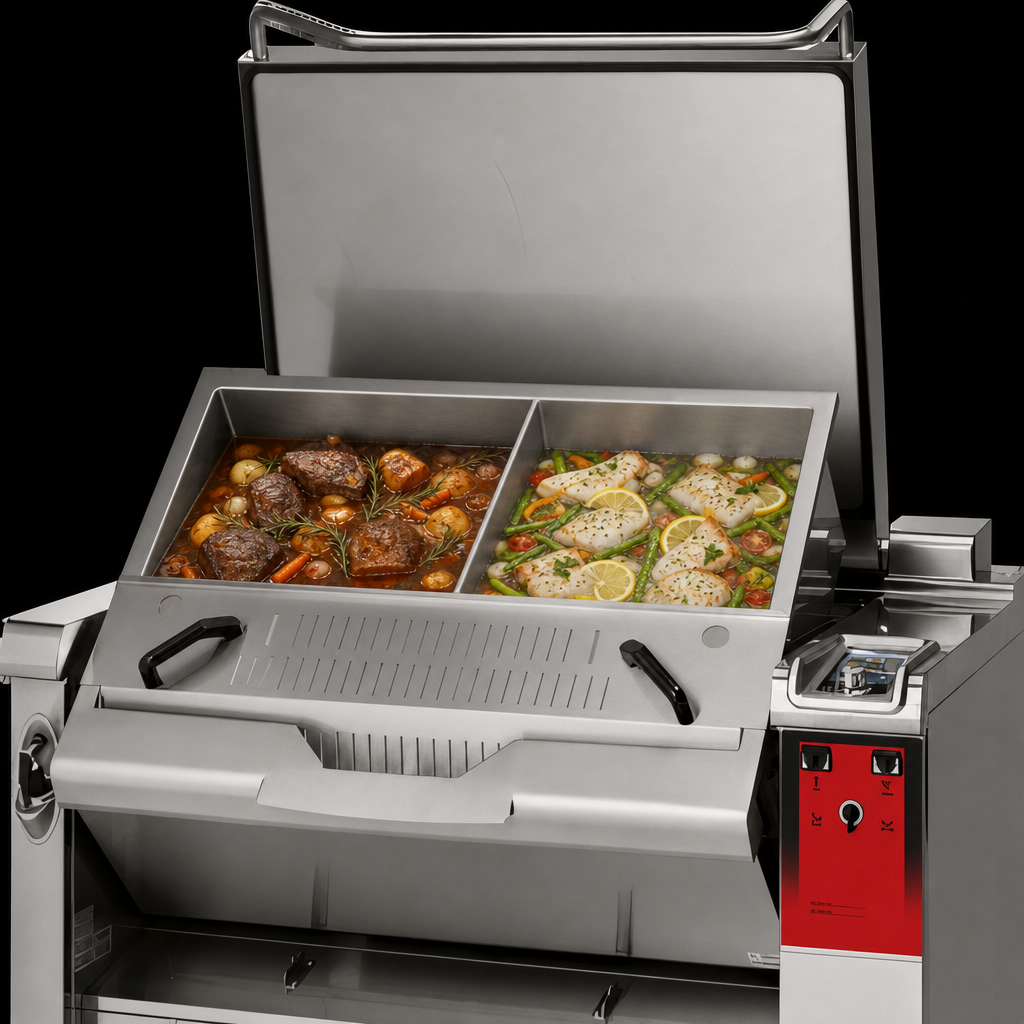

Two Heat Zones

The VPP28E model features 2 heat zones for multizone cooking at different temperatures and times.

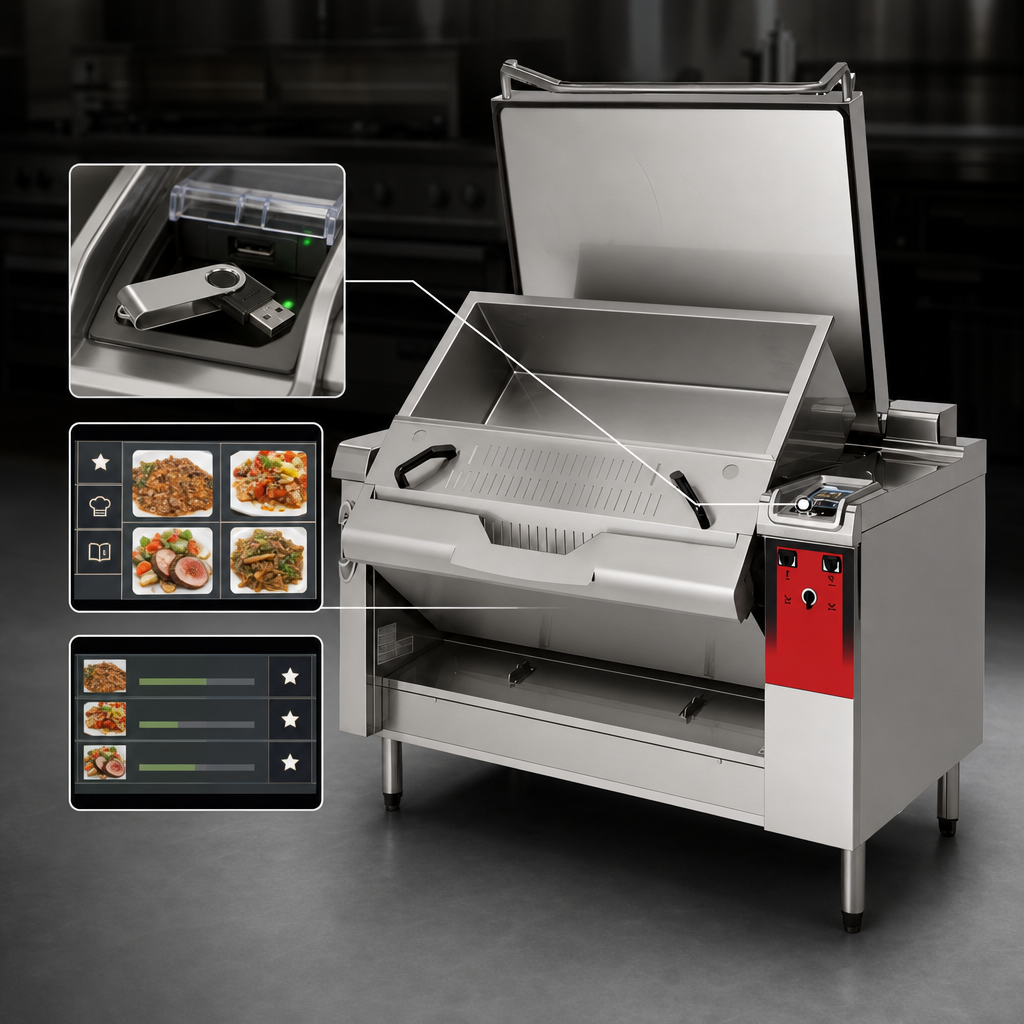

Programmable Auto Mode

Load pre-programmed recipes, create favorites, and access stored recipes through the USB port.

Manual Pan and Kettle Modes

Offers manual control for pan cooking and kettle-style operation, including auto fill and up to six timers in kettle mode.

80°F to 482°F Temperature Range

Wide temperature range supports boiling, braising, sautéing, searing, and more.

Food Probe Ready

Optional food probe allows cooking by time or by target core temperature.

Auto Fill and Powered Drain

Accurate water metering and a powered drain let operators fill and drain without tilting.

Motor-Driven Tilt/Lift

Motorized pan tilt/lift improves handling and helps dispense product with control.

Auto-Lift Arm

Designed for use with basket accessories to support pasta, retherm, and similar applications.

Retractable Spray Hose

Built-in spray hose helps streamline washdown and cleaning.

Touchscreen Control Interface

Large touch screen, convenient knob, and intuitive menus simplify operation and training.

Semi-Automatic Cleaning

Toolbox menu prompts users through a simple cleaning process.

Type Tilting Braising Pan
Style Open Frame
Installation Type Floor Model
Capacity 28 Gallons Usable
Controls Programmable Digital
Temperature Range 80°F to 482°F
Voltage 208 Volts
Amps 63.3 Amps
Watts 22.8 kW
Hertz 60 Hz
Phase 3-Phase
Shipping Width 53 Inches
Shipping Depth 45 Inches
Shipping Height 50 Inches
Shipping Weight 629 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Documents

PDF Cutsheet PDF Download PDF Certified plus installation PDF Download PDF Maintenance manual PDF Download PDF Certified installation PDF Download PDF Installation manual PDF Download PDF Sell sheet PDF Download PDF Operating manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The VPP28E has a 28-gallon usable capacity.
This model features 2 heat zones for multizone cooking.
It requires 208V, 60 Hz, 3-phase power at 63.3 amps and 22.8 kW.
Yes. Auto mode supports pre-programmed recipes, favorites, and USB recipe loading.
The unit is food probe ready. An optional food probe enables cooking by time or target core temperature.
Yes. It includes powered drain capability without tilting, plus auto and precise water fill.
