Vulcan VMG60 Heavy Duty Manual Control Countertop Gas Griddle, 60 x 24 Inch Cooking Surface

SKU: VMG60
$6,922.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Vulcan

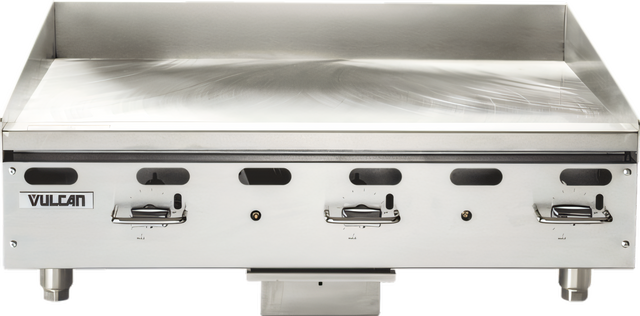

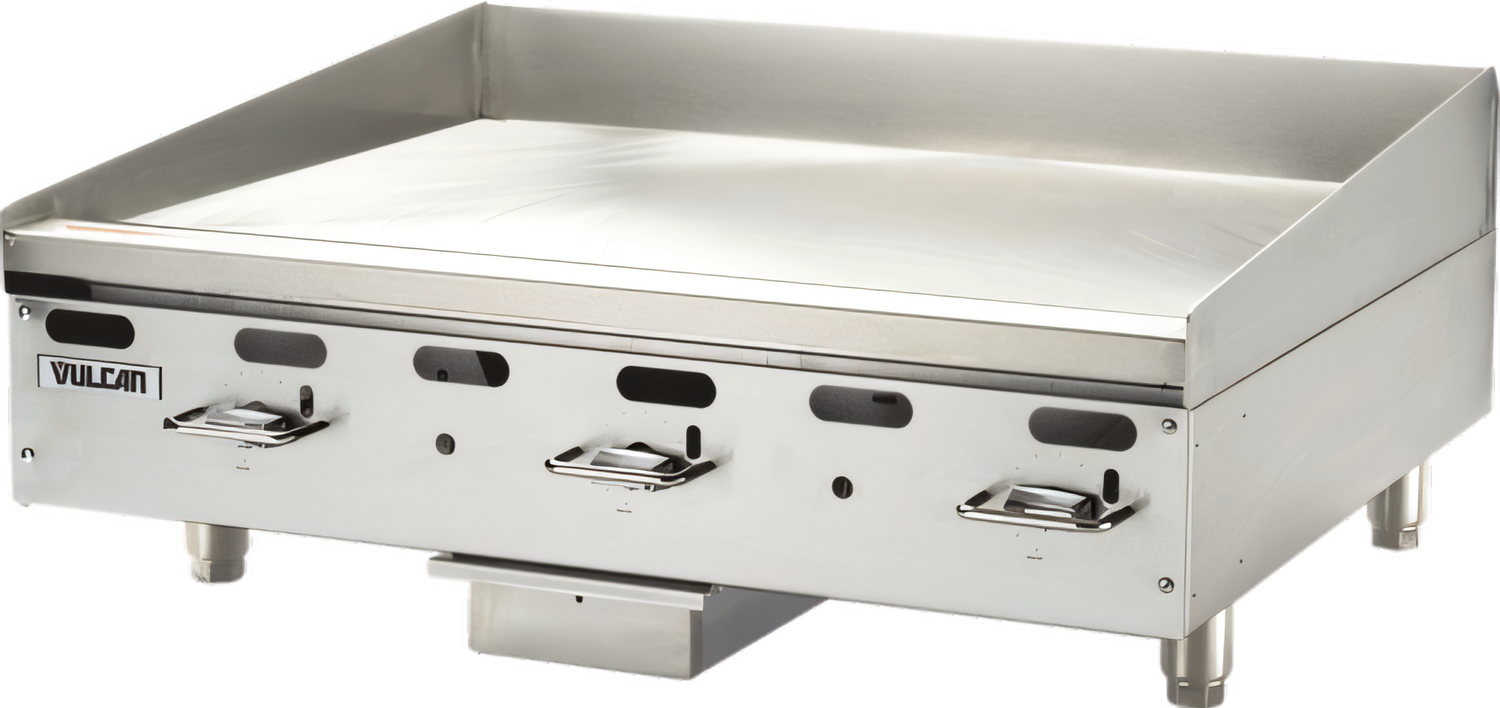

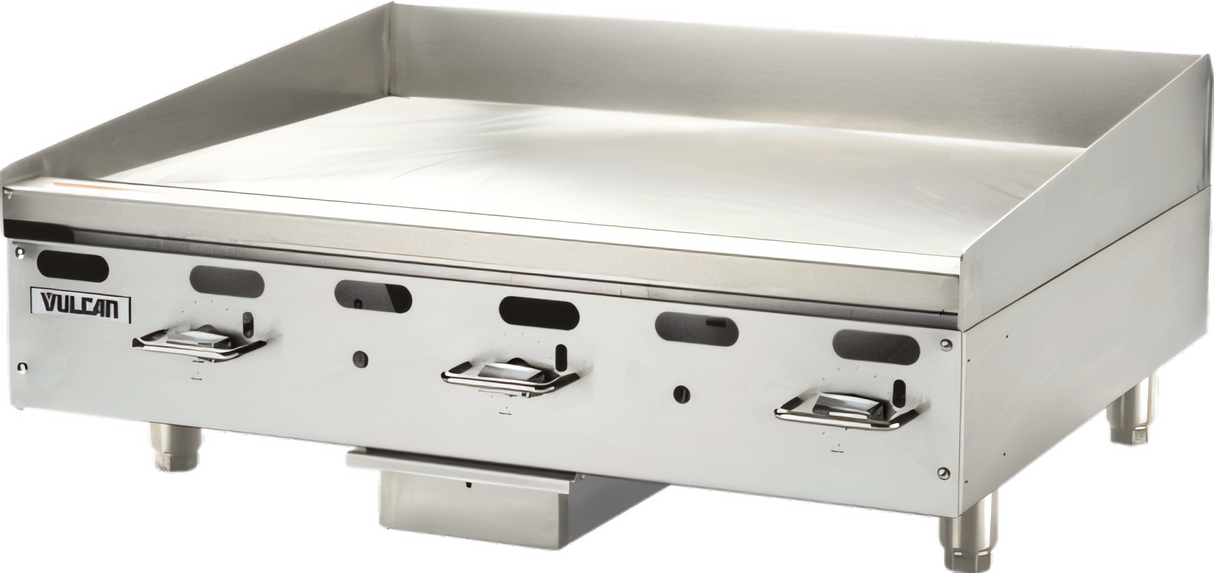

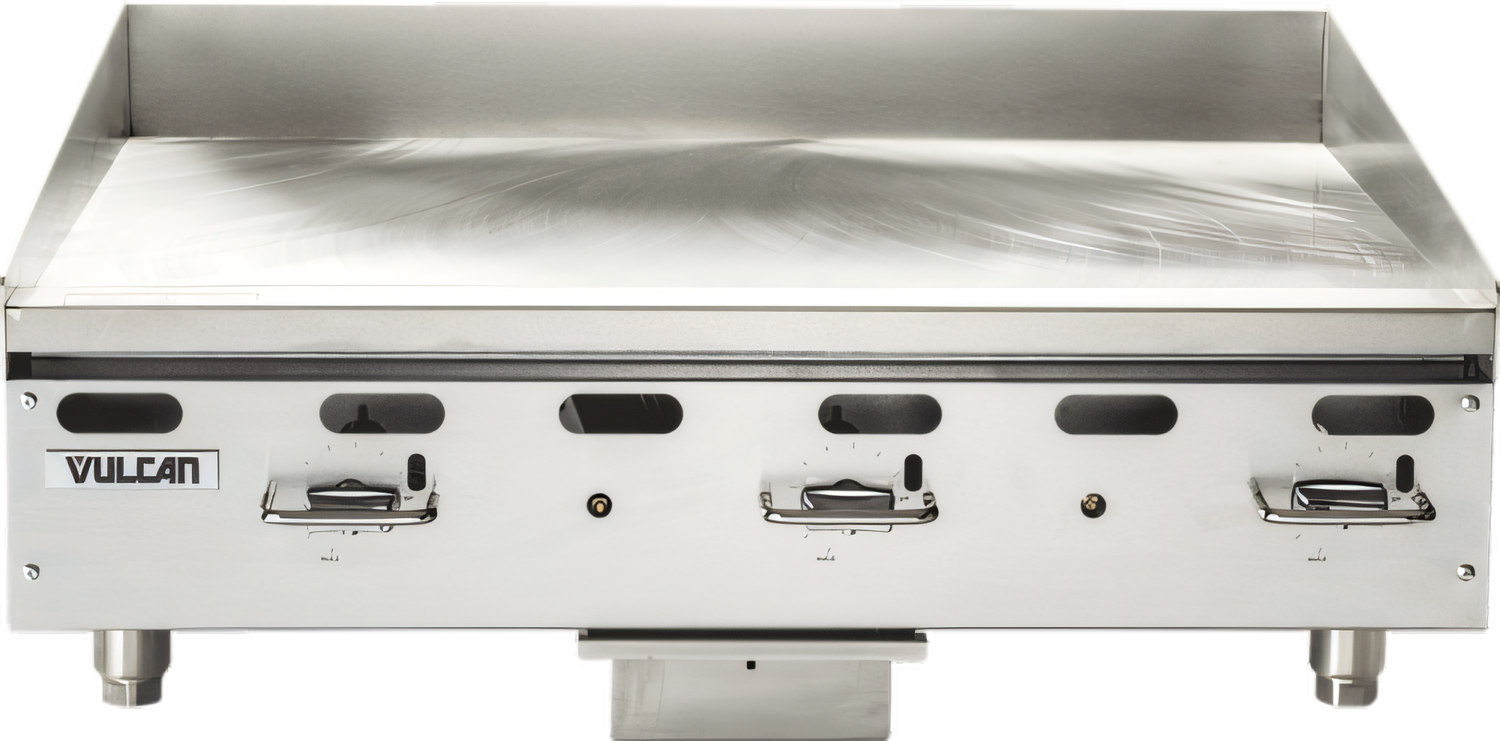

Vulcan VMG60 Heavy Duty Manual Control Countertop Gas Griddle, 60 x 24 Inch Cooking Surface

1-Inch Polished Steel Plate, 135,000 BTU, Dual Grease Drawers

A 60-inch countertop gas griddle with a 1-inch polished steel plate, five burners, and dual grease drawers for demanding commercial kitchens.

  • 60" W x 24" D cooking surface with a 1" thick polished steel griddle plate.
  • Five 27,000 BTU burners deliver 135,000 BTU total output.
  • Manual infinite heat controls help create and manage multiple cooking zones.
  • Stainless steel front, sides, and top ledge with a fully welded heavy-duty frame.
  • Two 6-quart grease drawers and a welded grease chute simplify cleanup.
  • Low-profile design with 4" adjustable legs supports countertop installation.

Overall Dimensions:

60.0"W x 31.5"D x 15.25"H

Product Weight:

650.0 lb

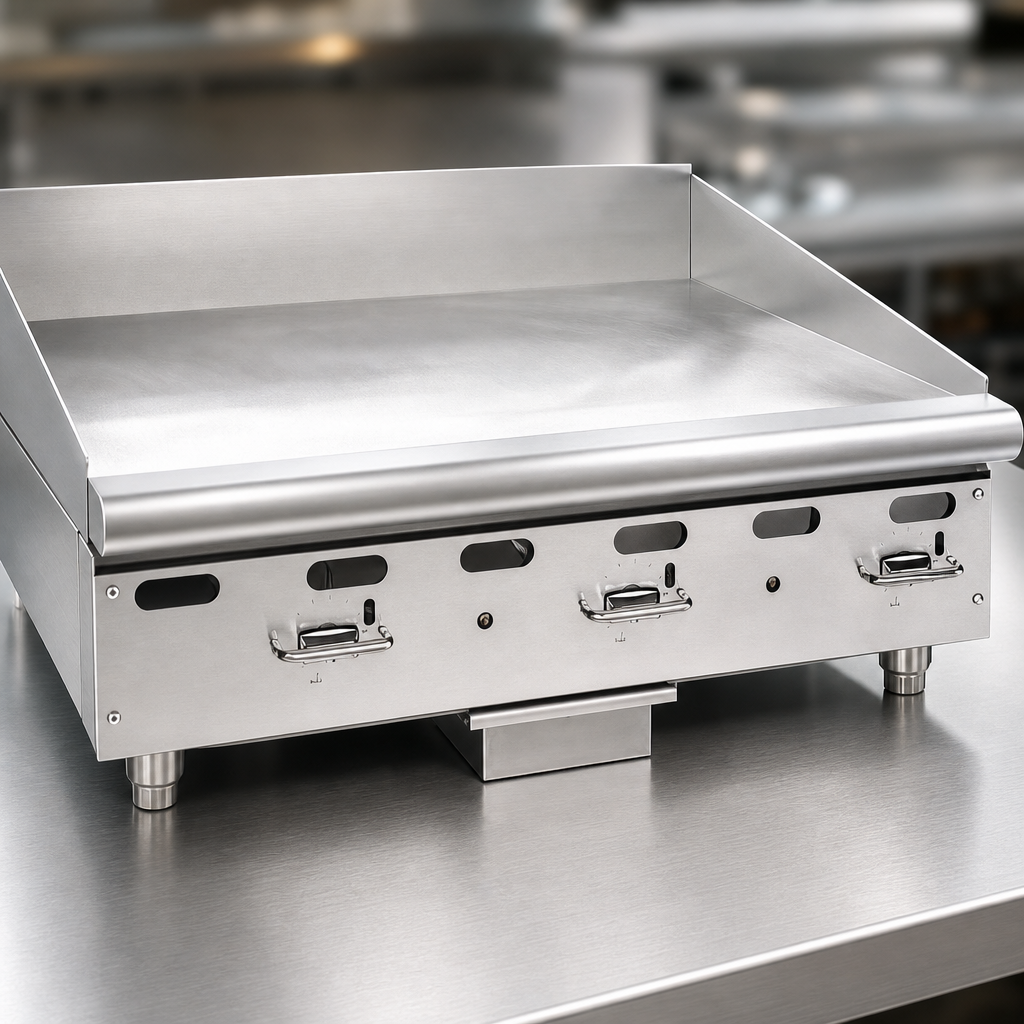

Stainless Steel Bullnose Front

Stainless steel front, sides, and front top ledge with a cool bullnose design for durability and a clean appearance.

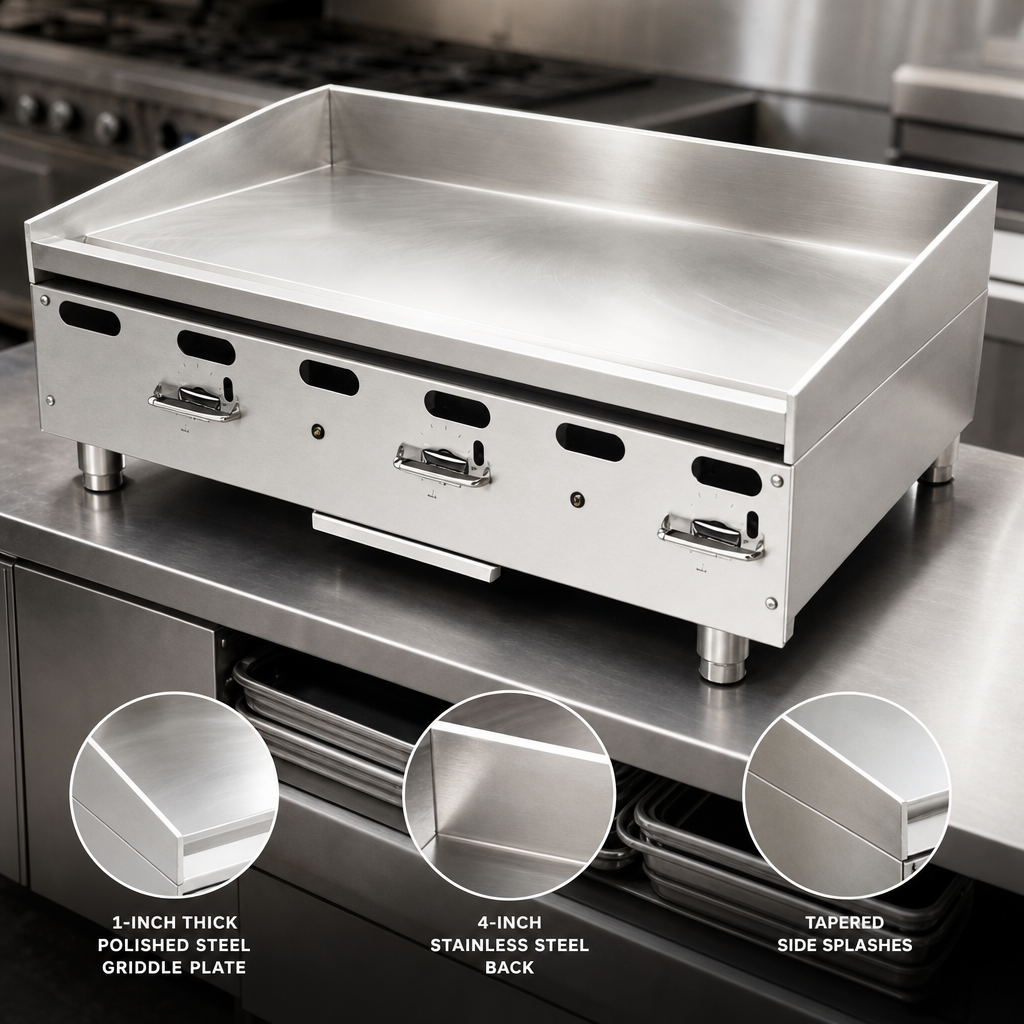

Polished Steel Griddle Plate

1-inch thick polished steel griddle plate with a 4-inch stainless steel back and tapered side splashes.

High-Output Burner Layout

Five 27,000 BTU/hr burners provide even heat across the 60-inch cooking surface.

Manual Infinite Heat Controls

One high-range infinite control valve per burner allows manual heat adjustment across multiple zones.

Grease Management System

Spatula-wide grease gutter, fully welded grease chute, and two 6-quart stainless steel grease drawers support easier cleanup.

Heavy-Duty Welded Frame

Fully welded stainless steel and aluminized steel chassis frame adds strength for high-volume service.

Low-Profile Cooking Height

11-inch cooking height on 4-inch adjustable legs supports comfortable countertop use.

Pilot Ignition And Heat Shields

Standing pilot ignition system and bottom heat shields are included for dependable operation.

Type Gas Griddle
Style Heavy Duty
Installation Type Countertop
Controls Manual
Material Stainless Steel
Finish Polished Steel
BTU 135,000 BTU
Plate Thickness 1 Inch
Cooking Surface Width 60 Inches
Cooking Surface Depth 24 Inches
Gas Connection Size 3/4 Inch
Shipping Width 60 Inches
Shipping Depth 32 Inches
Shipping Height 16 Inches
Shipping Weight 650 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The VMG60 has a 60" W x 24" D cooking surface with a 1" thick polished steel plate.
It has five burners, with one 27,000 BTU/hr burner for every 12 inches of griddle width.
The unit includes a spatula-wide grease gutter, a fully welded grease chute, and two 6-quart stainless steel grease drawers.
The griddle has a 3/4" rear gas connection and uses a supplied pressure regulator. The installation instructions list 4.0" W.C. for natural gas and 10.0" W.C. for propane gas.
Available add-ons include a plate rail, condiment rail, cutting board, gas flex hose with quick disconnect, banking strip, universal equipment stand, and integrated stand option.
