Vulcan VMCS-201 Heavy Duty 208V Electric Grooved Steel Manual Clamshell Griddle Top

10.4" x 22.9" Cooking Surface, 3.6 kW, Thermostatic Control

Add fast, consistent clamshell cooking to a compatible griddle without taking up extra counter space.

  • Grooved steel clamshell plate is built for high-volume cooking on compatible griddles.
  • Compact 10.4" W x 22.9" D cooking surface keeps the footprint small.
  • Thermostatic control adjusts from 200°F to 450°F and includes LED indicator lights.
  • One-hand lift mechanism makes loading and unloading easier for staff.
  • Stainless steel front, top, and sides with anodized aluminum arm for durable construction.
  • Includes Teflon sheet mounting kit, two Teflon sheets, and the standard plate gap adjustment accessory.
  • 208V, 3.6 kW, 50/60 Hz, single-phase connection; junction box included, no power cord supplied.

Overall Dimensions:

10.35"W x 22.95"D x 17.97"H

Product Weight:

81.0 lb

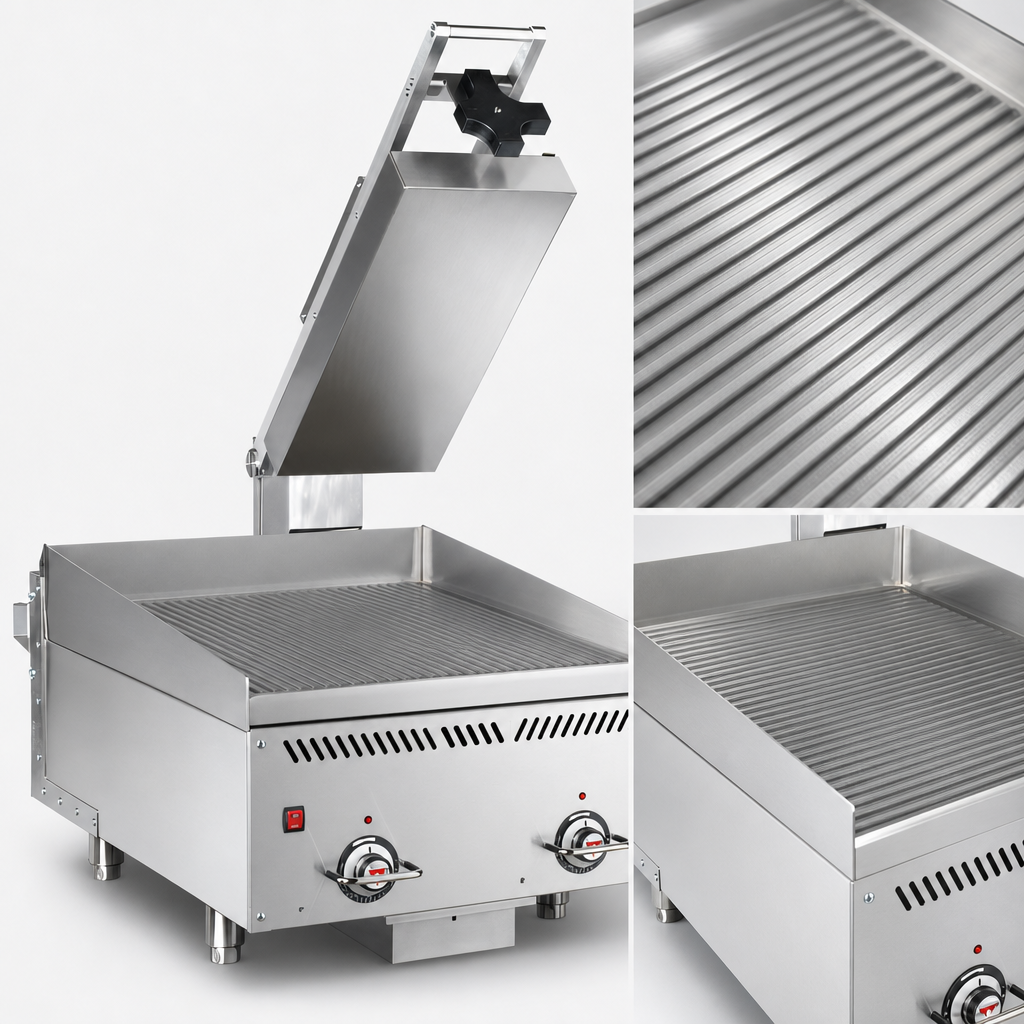

Grooved Steel Cooking Surface

Model-specific grooved steel plate cooking surface on the VMCS-201.

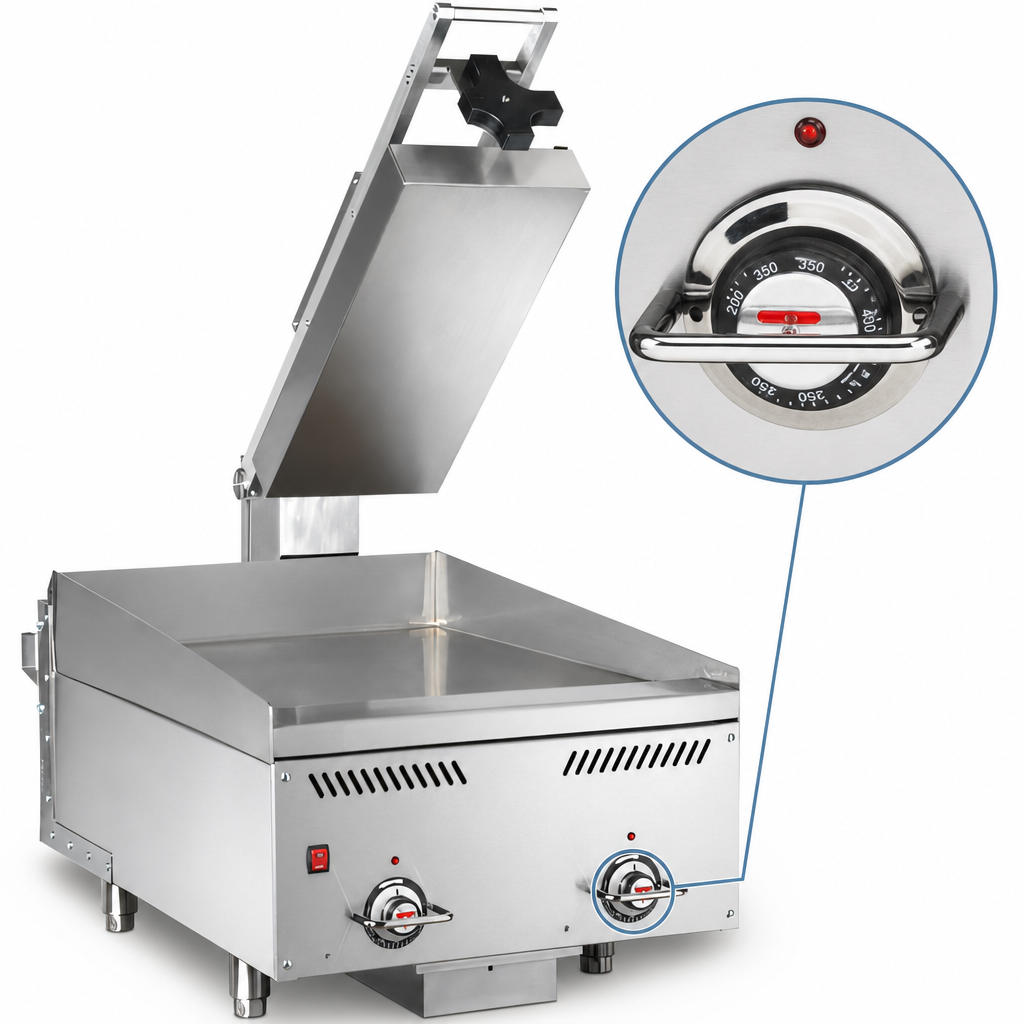

Adjustable Thermostat

Thermostatic control adjusts cooking temperatures from 200°F to 450°F.

LED Indicator Lights

LED lights and an On/Off switch clearly identify operating mode.

One-Hand Lift Mechanism

Lift design holds the clamshell upright for easier operation and loading.

Durable Stainless Steel Construction

Built with stainless steel front, top, and sides plus an anodized aluminum arm.

Included Teflon Release Kit

Ships with a Teflon sheet mounting kit and two Teflon sheets for easier product release.

Gap Adjustment Accessory Included

Includes the standard GADJUST-VMCS plate gap adjustment accessory.

Field Line Connection

Uses a junction box for field connection; no power cord is supplied.

Mounting Frame Required

Requires a mounting frame for installation on compatible griddles; frame can be field- or factory-installed.

Type Clamshell Griddle Hood
Style Manual Clamshell
Material Stainless Steel
Controls Thermostatic
Temperature Range 200°F to 450°F
Cooking Surface Width 10.4 Inches
Cooking Surface Depth 22.9 Inches
Voltage 208 Volts
Watts 3.6 kW
Amps 17.3 Amps
Hertz 50/60 Hz
Phase 1-Phase
Shipping Width 11 Inches
Shipping Depth 23 Inches
Shipping Height 18 Inches
Shipping Weight 81 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 10.4 inches wide by 22.9 inches deep.
It requires 208 volts, 3.6 kW, 17.3 amps, 50/60 Hz, single-phase power.
The thermostat adjusts from 200°F to 450°F.
Yes. It includes a Teflon sheet mounting kit, two Teflon sheets, and the standard plate gap adjustment accessory.
Yes. A mounting frame is required for installation and can be field-installed or factory-installed.
No. It uses a junction box for field line connection and no power cord is supplied.
