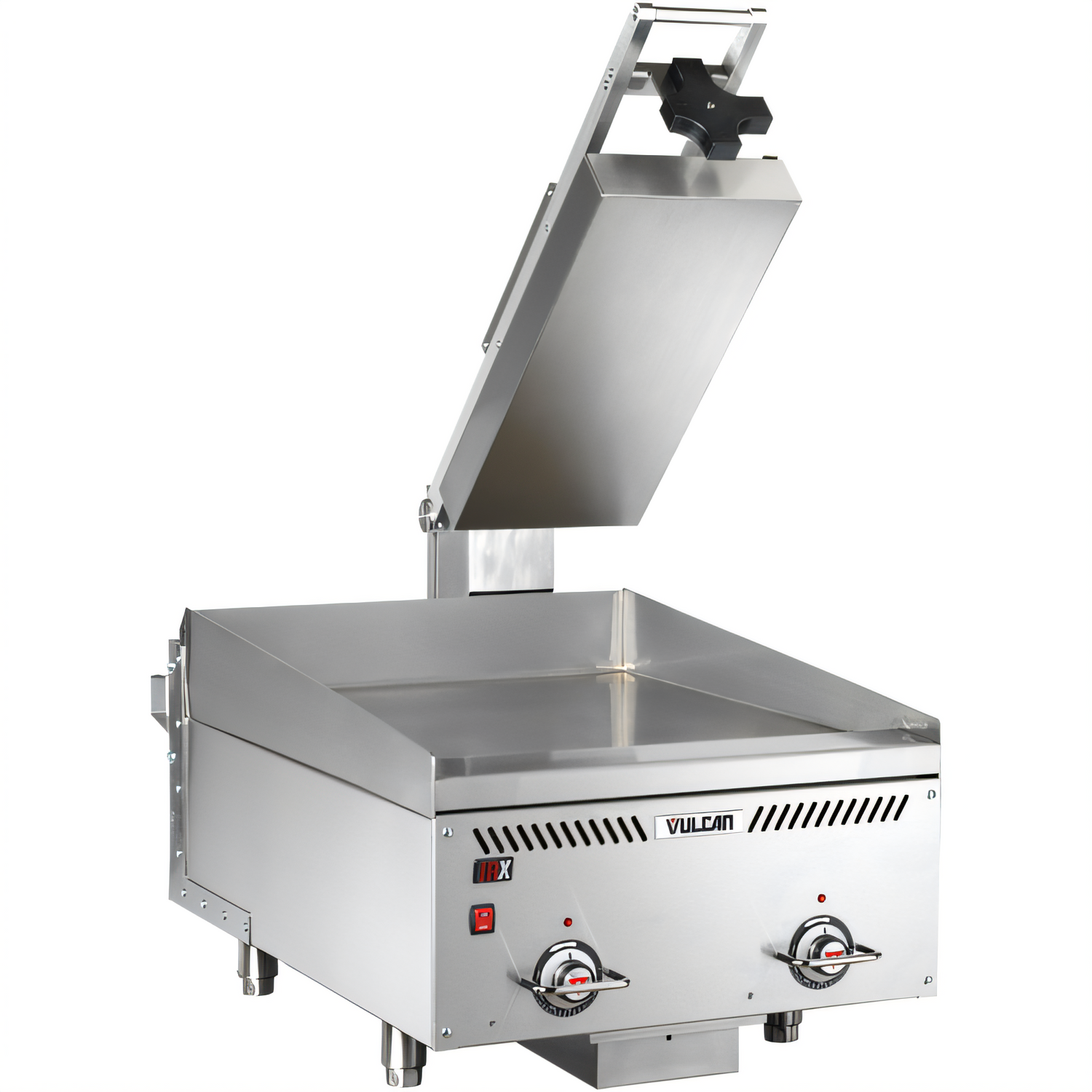

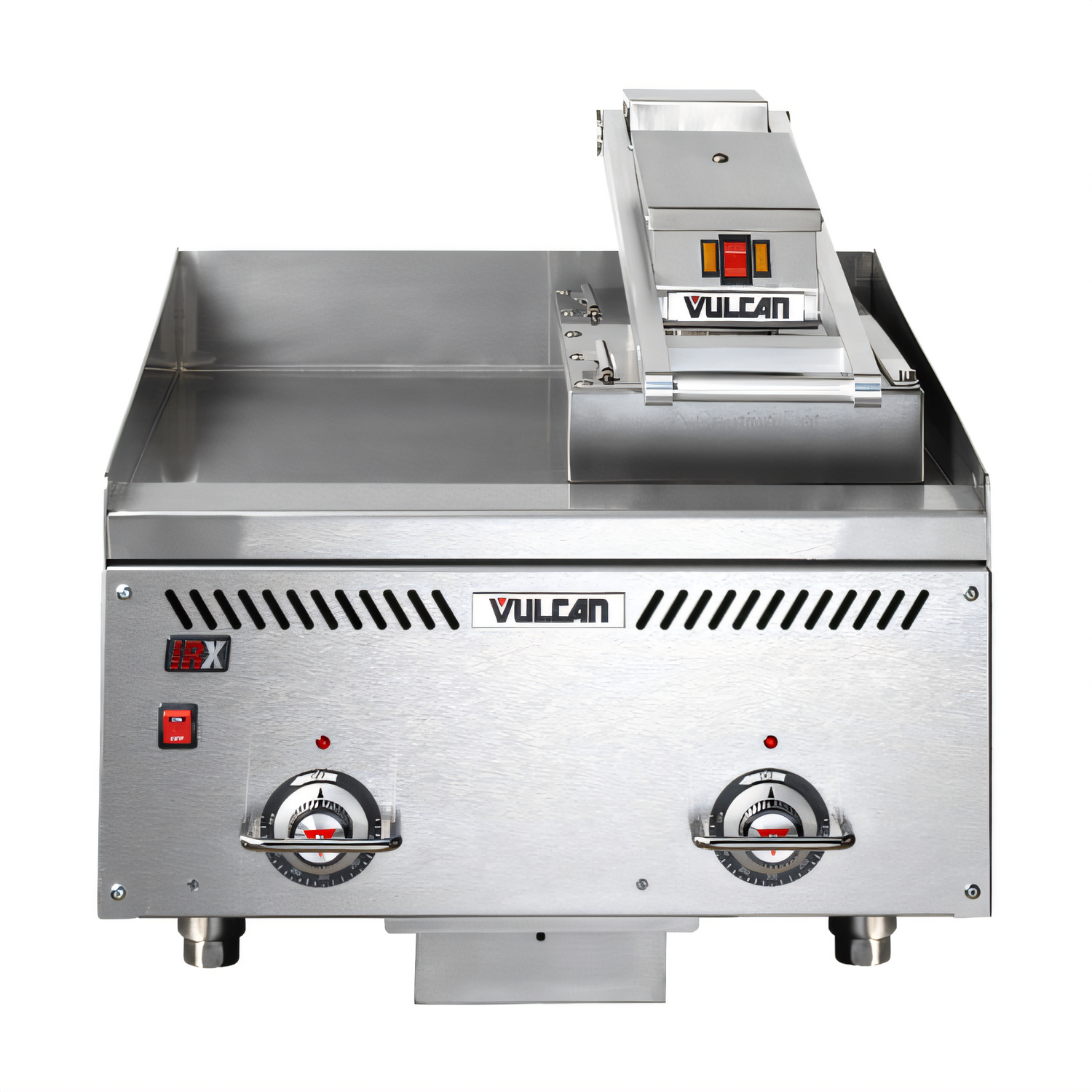

Vulcan Rapid Recovery Electric Manual Clamshell Hood for Griddles, 10.4" x 22.9", 240V

240V, 3.6 kW, 1-Phase, Thermostatic Control

Add a compact 240V clamshell to a compatible griddle to speed service, recover heat quickly, and cook more consistently.

  • Designed to mount on compatible heavy-duty Vulcan gas and electric griddles.
  • Rapid Recovery composite plate helps deliver fast, even heating and quick temperature recovery.
  • 10.4" x 22.9" cooking surface and one-hand lift mechanism support efficient, high-volume operation.
  • Thermostatic control adjusts from 200° F to 450° F with LED indicator lights for easy monitoring.
  • Includes Teflon sheet mounting kit, two Teflon sheets, and plate gap adjustment accessory.
  • Junction box field connection requires no power cord; mounting frame is required for installation.

Overall Dimensions:

10.35"W x 22.95"D x 17.97"H

Product Weight:

81.0 lb

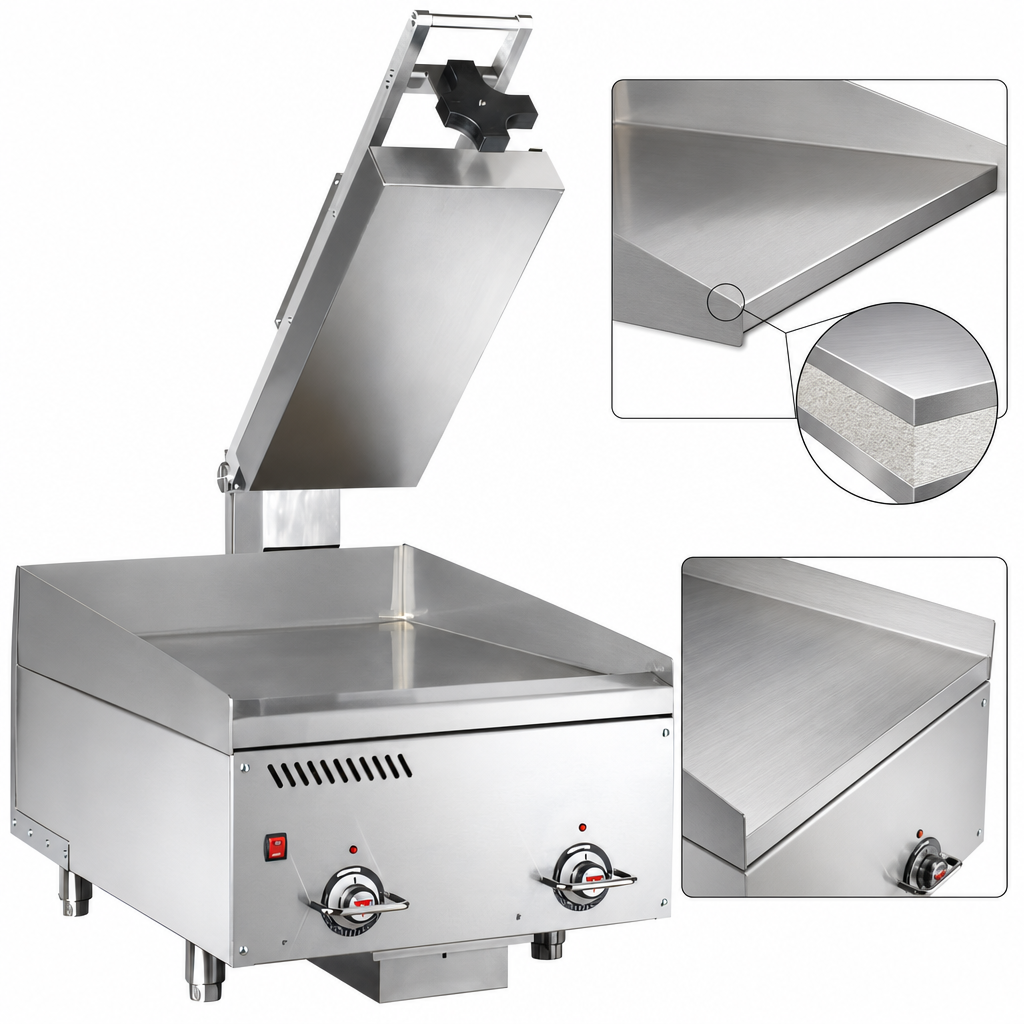

Rapid Recovery Composite Plate

9/16-inch thick fully welded composite griddle plate with an aluminum-core interior and 304 stainless steel exterior for even heating and fast recovery.

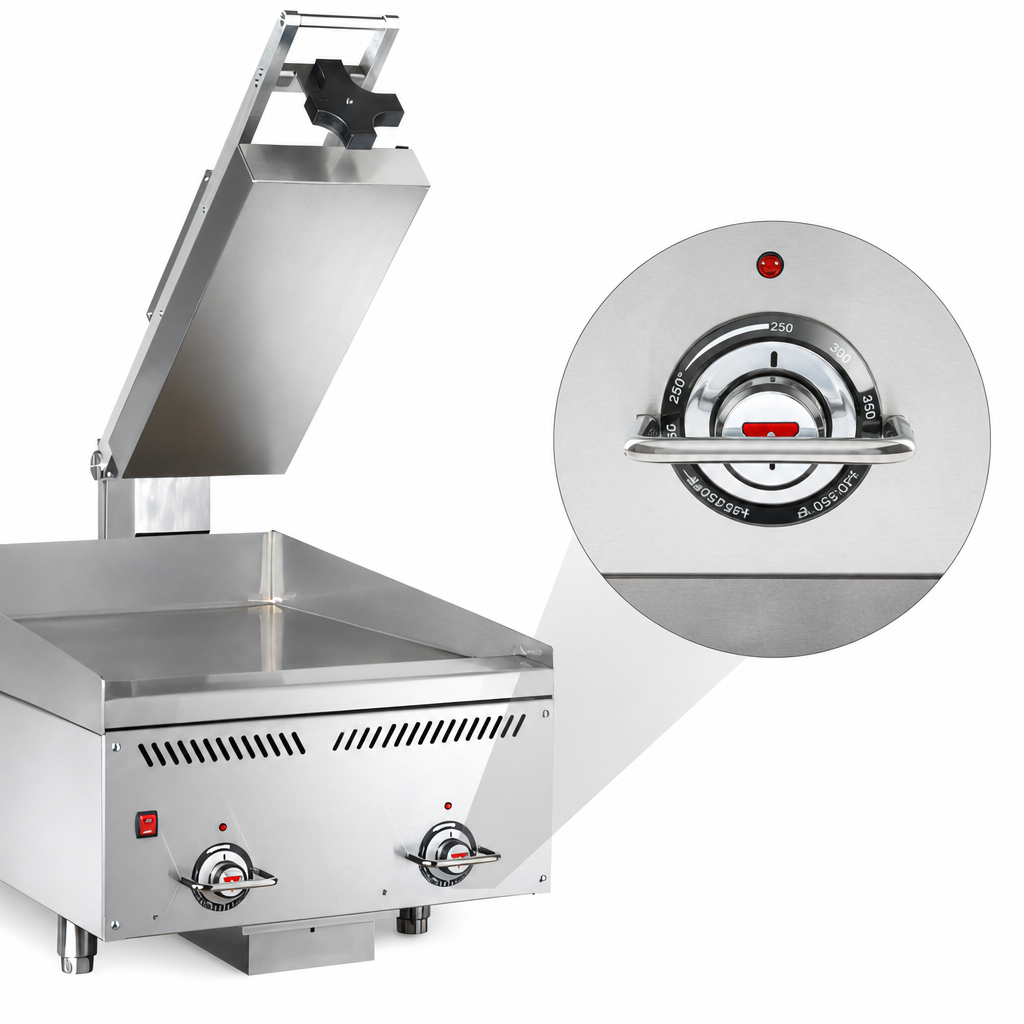

Thermostatic Temperature Control

Adjustable control lets operators set cooking temperatures from 200° F to 450° F.

One-Hand Lift Mechanism

Keeps the clamshell upright for easier loading, unloading, and day-to-day operation.

Durable Stainless Steel Construction

Stainless steel front, top, and sides with an anodized aluminum arm for long-term durability.

LED Indicators and On/Off Switch

Visual status lights and simple controls help staff monitor operation at a glance.

Included Teflon Sheets and Gap Adjustment

Ships with a Teflon sheet mounting kit, two Teflon sheets, and a plate gap adjustment accessory.

Field Line Electrical Connection

Uses a junction box for field line connection and does not include a power cord.

Type Griddle Clamshell Hood
Style Manual
Controls Thermostatic
Material Stainless Steel
Cooking Surface Width 10.4 Inches
Cooking Surface Depth 22.9 Inches
Temperature Range 200° F to 450° F
Voltage 240 Volts
Watts 3.6 kW
Amps 15 Amps
Hertz 50/60 Hz
Phase 1-Phase
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts list PDF Download PDF Installation & operation PDF Download PDF Sell sheet PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It operates on 240 Volts, 3.6 kW, 15.0 amps, 1-phase, 50/60 Hz power.
The cooking surface measures 10.4 inches wide by 22.9 inches deep.
The thermostat adjusts from 200° F to 450° F.
It includes a Teflon sheet mounting kit, two Teflon sheets, and a plate gap adjustment accessory.
Yes. A mounting frame is required, and it can be field-installed or factory-installed on the original purchase order.
No. The unit uses a junction box for field line connection and does not include a power cord.
