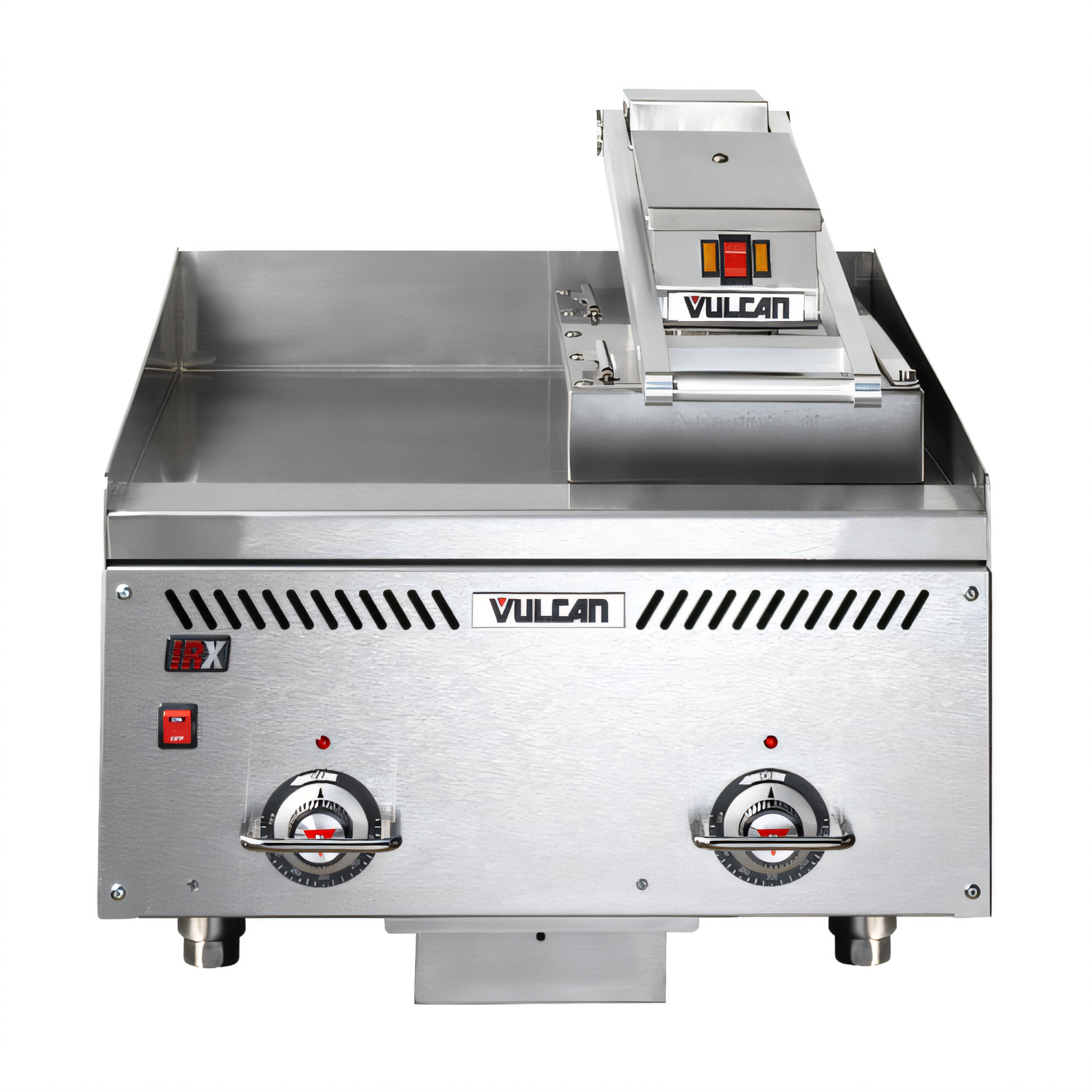

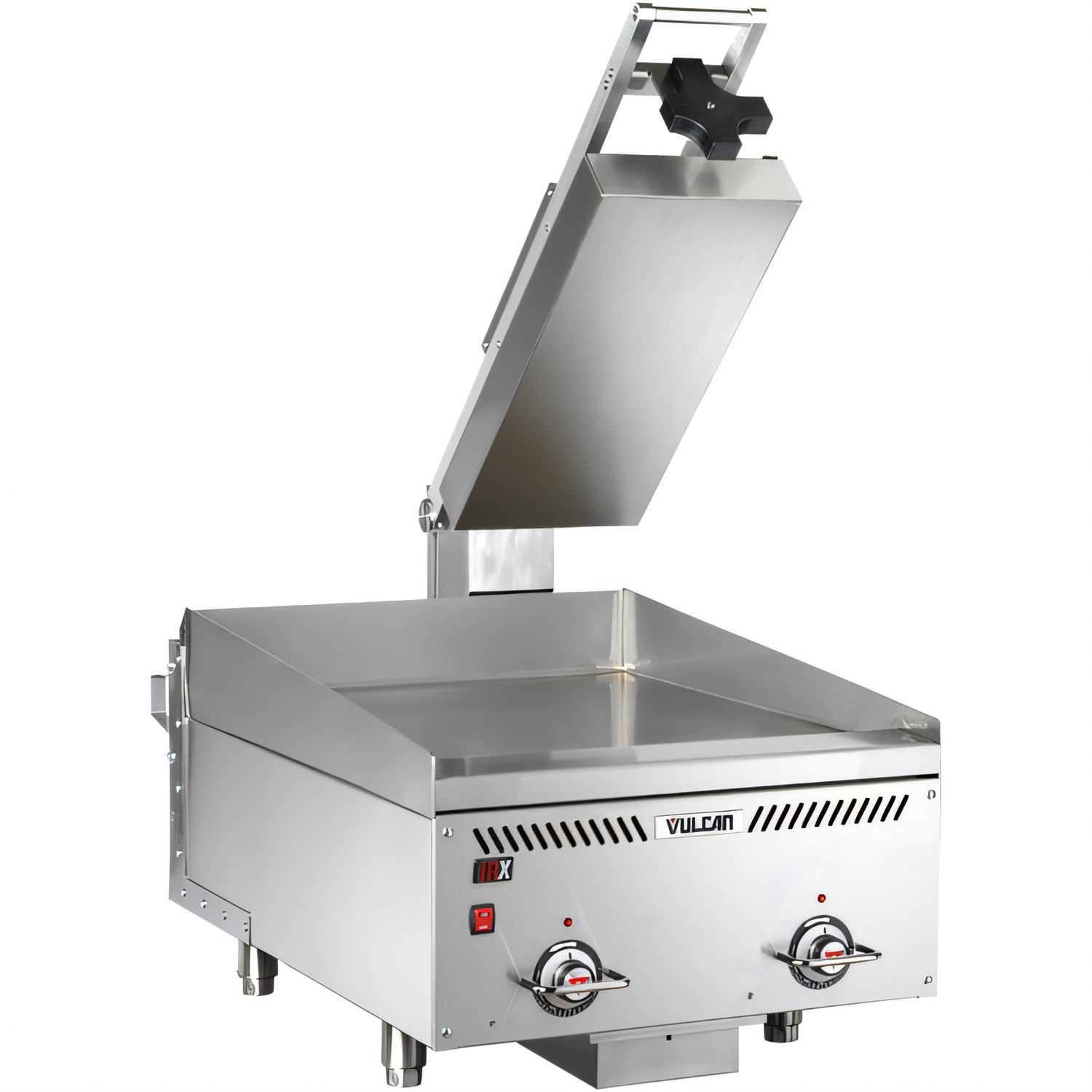

Vulcan VMCS-101 Rapid Recovery Electric Manual Griddle Clamshell Hood

208 Volts, 3.6 kW, 10.4 x 22.9 in. Cooking Surface

Boost griddle output in a compact footprint with a Rapid Recovery clamshell hood that heats fast, lifts easily, and helps portion food consistently.

  • Rapid Recovery composite plate delivers fast heat recovery and even cooking performance.
  • 10.4" W x 22.9" D cooking surface with a 9/16" thick composite plate.
  • Thermostatic control adjusts from 200°F to 450°F for flexible menu use.
  • One-hand lift mechanism and LED indicator lights make operation simple.
  • Stainless steel front, top, and sides with an anodized aluminum arm for durability.
  • Includes Teflon sheet mounting hardware, two Teflon sheets, and plate gap adjustment accessory.
  • Designed for 208V, 50/60 Hz, single-phase electric operation.

Overall Dimensions:

10.35"W x 22.95"D x 17.97"H

Product Weight:

81.0 lb

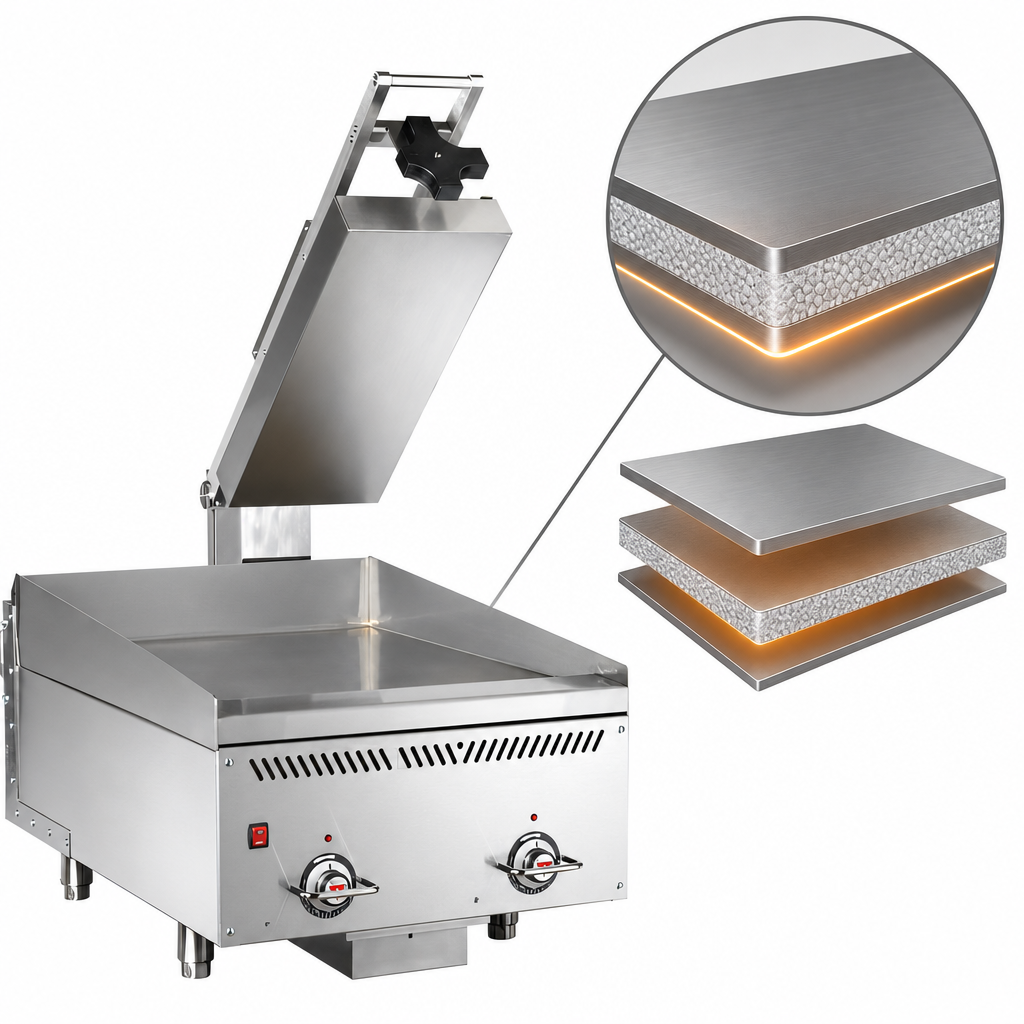

Rapid Recovery Composite Plate

9/16-inch thick fully welded composite griddle plate with an aluminum-core interior and 304 series stainless steel exterior for fast recovery and even heating.

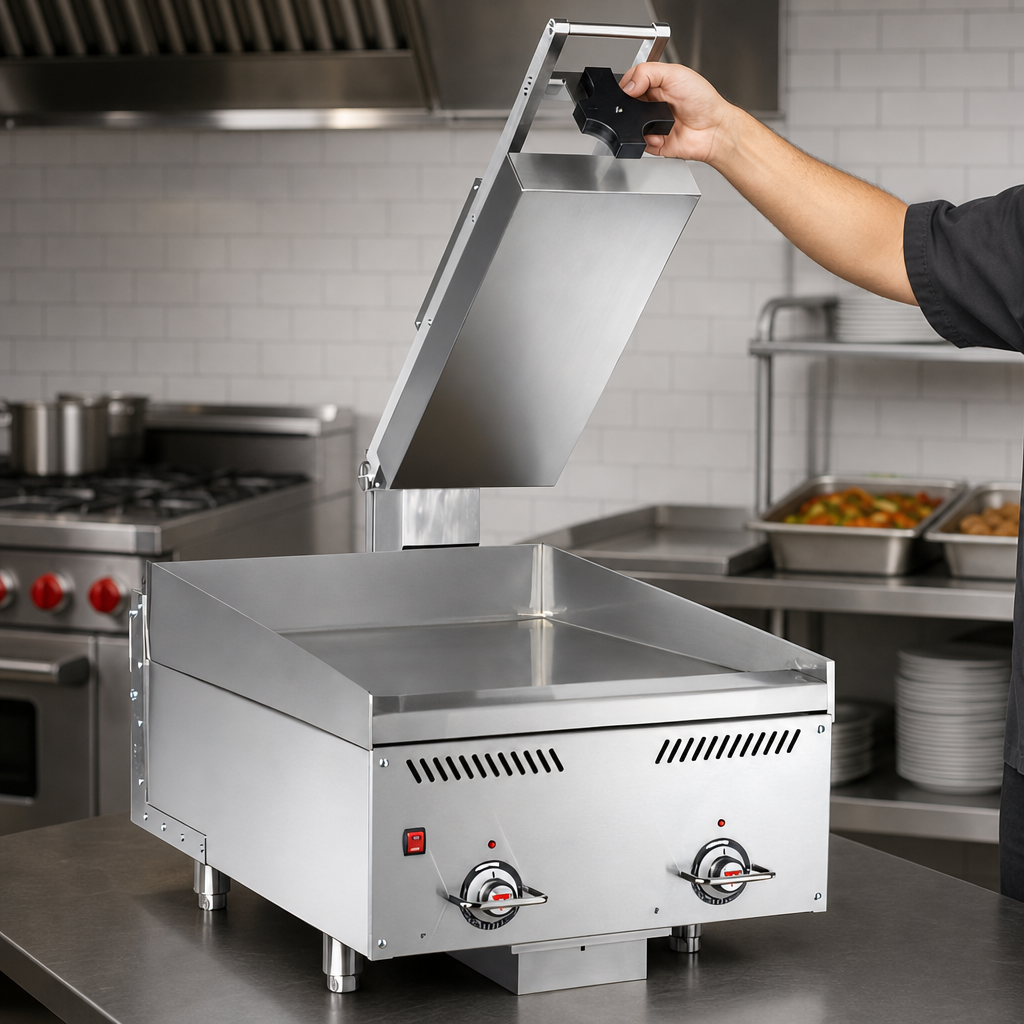

One-Hand Lift Mechanism

Holds the clamshell upright to make loading, monitoring, and unloading easier.

Thermostatic Temperature Control

Adjustable from 200°F to 450°F to handle a variety of griddle menu items.

LED Indicator Lights

On/off switch and LED lights clearly show operating mode.

Durable Construction

Stainless steel front, top, and sides with an anodized aluminum arm.

Included Teflon Sheet Kit

Comes with Teflon sheet mounting hardware and two Teflon sheets for easier product release.

Plate Gap Adjustment

Includes a plate gap adjustment accessory to help match clamshell height to menu items.

Field Line Connection

Junction box supports field line connection and no power cord is supplied.

Mounting Compatibility

Compatible with heavy-duty Vulcan gas and electric griddles; mounting frame required for installation.

Type Griddle Clamshell Hood
Style Manual
Controls Thermostatic
Cooking Surface Width 10.4 Inches
Cooking Surface Depth 22.9 Inches
Temperature Range 200°F to 450°F
Voltage 208 Volts
Watts 3.6 kW
Amps 17.3 Amps
Hertz 50/60 Hz
Phase 1-Phase
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 11 Inches
Shipping Depth 23 Inches
Shipping Height 18 Inches
Shipping Weight 81 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Parts list PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The VMCS-101 operates on 208 volts, 3.6 kW, 17.3 amps, single-phase power.
It has a 10.4-inch wide by 22.9-inch deep cooking surface.
The thermostatic control adjusts from 200°F to 450°F.
It includes Teflon sheet mounting hardware, two Teflon sheets, and a plate gap adjustment accessory.
Yes. A mounting frame is required, and it can be field-installed or factory-installed on the original purchase order.
