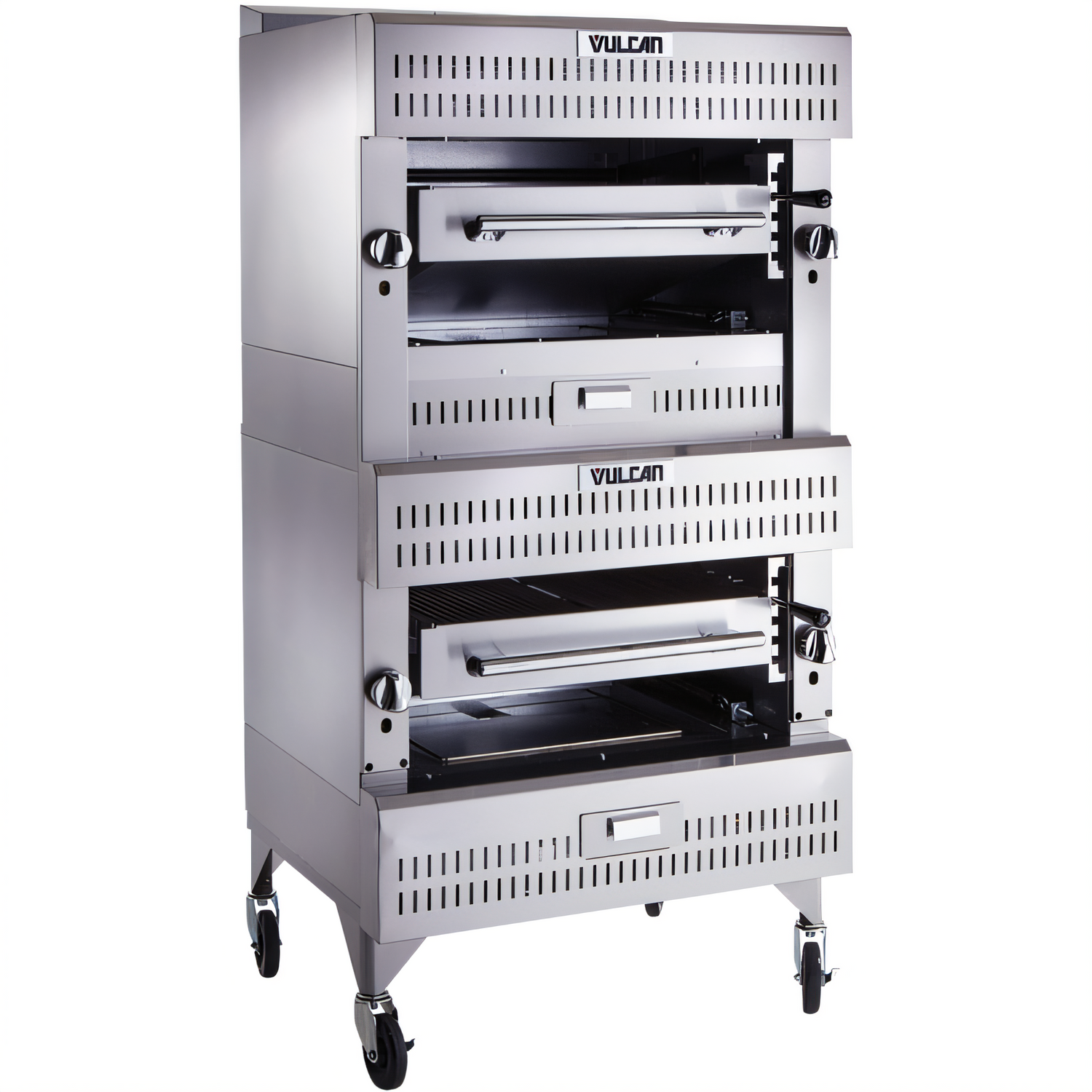

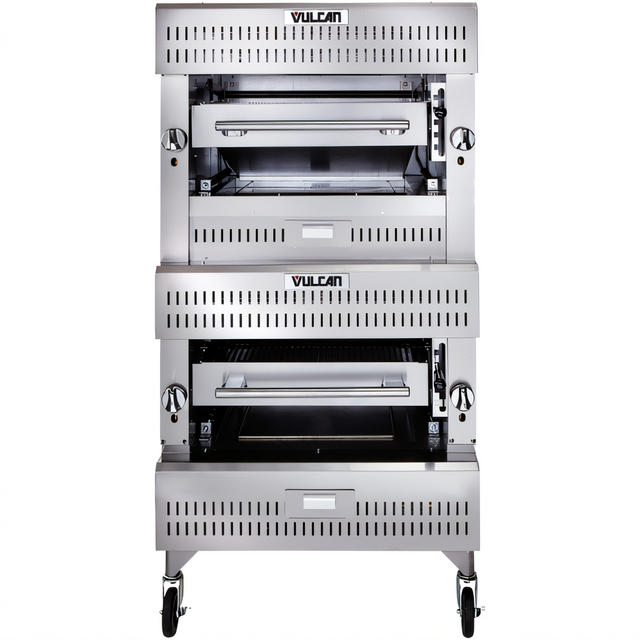

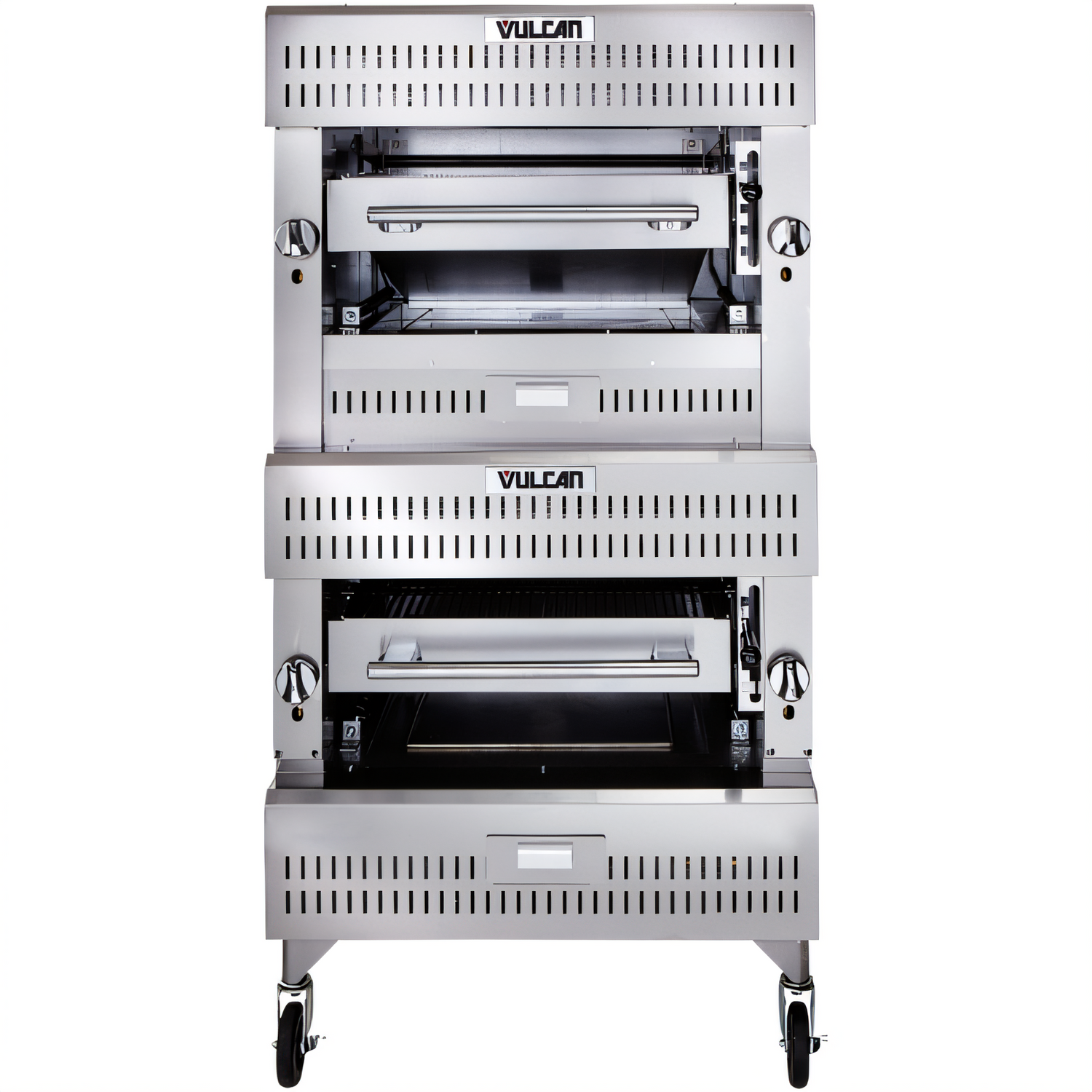

Vulcan V Series Heavy-Duty Range Match Double Deck Infrared Upright Gas Broiler

SKU: VIR2
$29,660.77
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Deck Ovens Deck Ovens New Arrivals Ovens Restaurant Equipment Upright Broilers Vulcan

Vulcan V Series Heavy-Duty Range Match Double Deck Infrared Upright Gas Broiler

Stainless Steel Body on Casters

Built for heavy-duty range match cooking, this double-deck infrared broiler delivers 200,000 BTU/hr of intense, controllable heat in a durable stainless steel body on casters.

  • Double-deck infrared broiler designed for high-volume, repeat-loading broiling.
  • 200,000 BTU/hr input provides powerful heat and fast recovery.
  • Spring-balanced five-position grids make height adjustment quick and precise.
  • Two infinite heat controls per deck help dial in consistent results.
  • Stainless steel construction and casters improve durability and mobility.
  • Rear 1-inch gas connection with regulator supplied; specify gas type when ordering.

Overall Dimensions:

36.0"W x 42.63"D x 74.0"H

Product Weight:

1100.0 lb

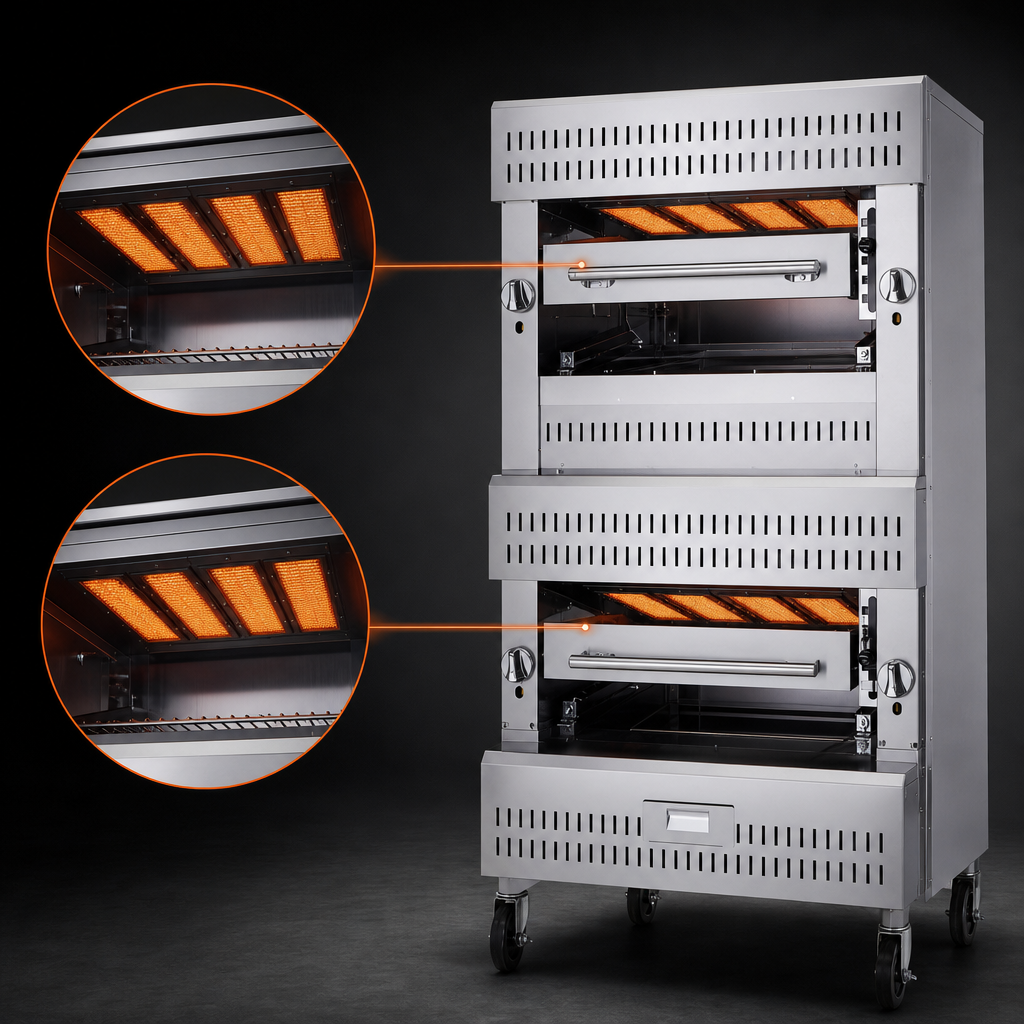

Double Deck Infrared Burners

Four 25,000 BTU/hr ceramic tile faced infrared burners per deck deliver intense, even broiling performance.

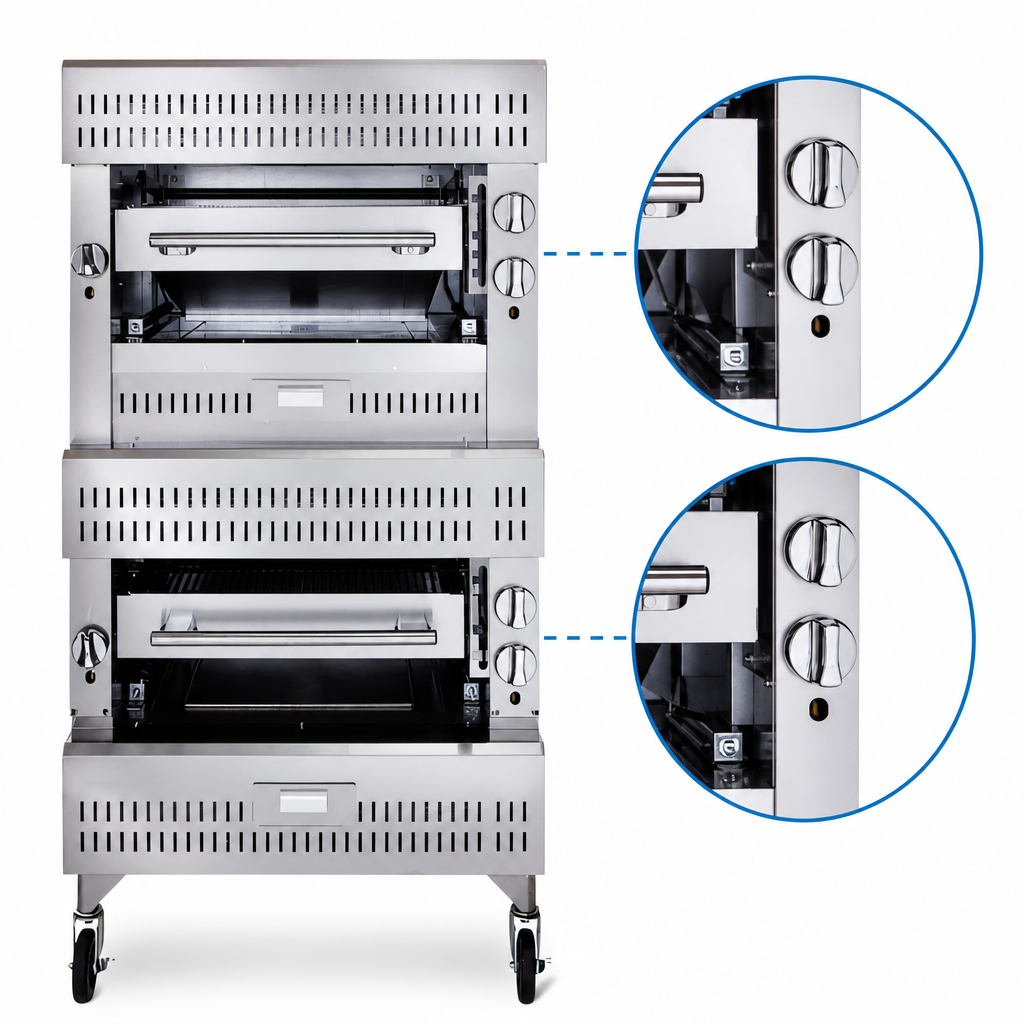

Infinite Heat Controls

Two infinite heat controls per deck provide independent temperature adjustment for different menu items.

Spring-Balanced Five-Position Grid

The broiler grid raises and lowers smoothly through five locking positions for better control over cooking distance.

Roller Bearing Grid Movement

Grid movement on roller bearings helps the cooking surface glide more easily during adjustment.

Stainless Steel Construction

Stainless steel body construction is built for heavy-duty commercial use and easier cleaning.

Casters for Mobility

Factory-installed casters make it easier to move the unit for cleaning or kitchen layout changes.

Rear Gas Connection with Regulator

Includes a rear 1-inch gas connection and supplied 1-inch regulator for installation.

Standing Pilots

Standing pilots support ready-to-cook operation.

Type Infrared Broiler
Style Range Match
Installation Type Floor Model
Capacity 2 Decks
Controls Infinite Heat
BTU 200,000 BTU
Gas Connection Size 1 Inch Rear
Material Stainless Steel
Shipping Width 36 Inches
Shipping Depth 43 Inches
Shipping Height 74 Inches
Shipping Weight 1,100 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Service manual PDF Download PDF Sell sheet PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Specify natural gas or propane when ordering.
Natural gas requires 6.0" W.C. and propane requires 10.0" W.C.
Yes, a 1-inch rear gas regulator is supplied.
It has two infinite heat controls per deck.
It includes a one-year limited parts and labor warranty. A second-year extended limited parts and labor warranty is available as an option.
