Vulcan VICM72 72-Inch Gas Infrared Cheesemelter Broiler with 2 Burners, 3-Position Rack, 60,000 BTU

Natural Gas Standard, Propane Conversion Kit Supplied

A high-output 72-inch cheesemelter built for fast finishing, with two infrared burners, a three-position rack, and durable stainless steel construction.

  • 72-inch gas infrared cheesemelter delivers 60,000 BTU for high-heat browning and finishing.
  • Two heavy-duty pre-mix atmospheric infrared burners provide consistent broiling performance.
  • Three-position chrome-plated rack lets you control food placement and browning intensity.
  • Removable full-width spillage pan helps catch drips and simplify cleanup.
  • Stainless steel construction inside and out is built for demanding commercial kitchens.
  • Ships standard for natural gas; propane conversion kit is supplied with the unit.

Overall Dimensions:

72.0"W x 18.61"D x 23.03"H

Product Weight:

340.0 lb

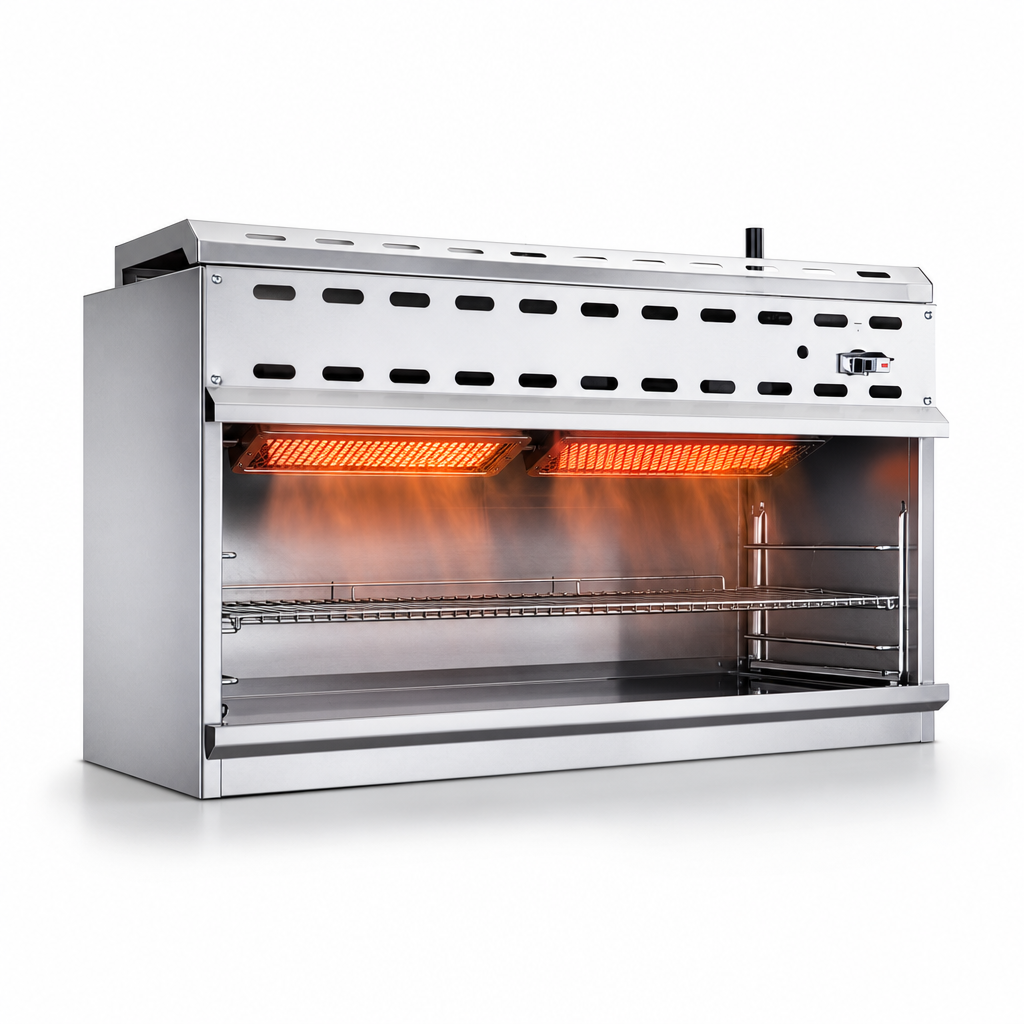

Infrared Burner System

Equipped with two heavy-duty pre-mix atmospheric infrared burners for fast, even heat.

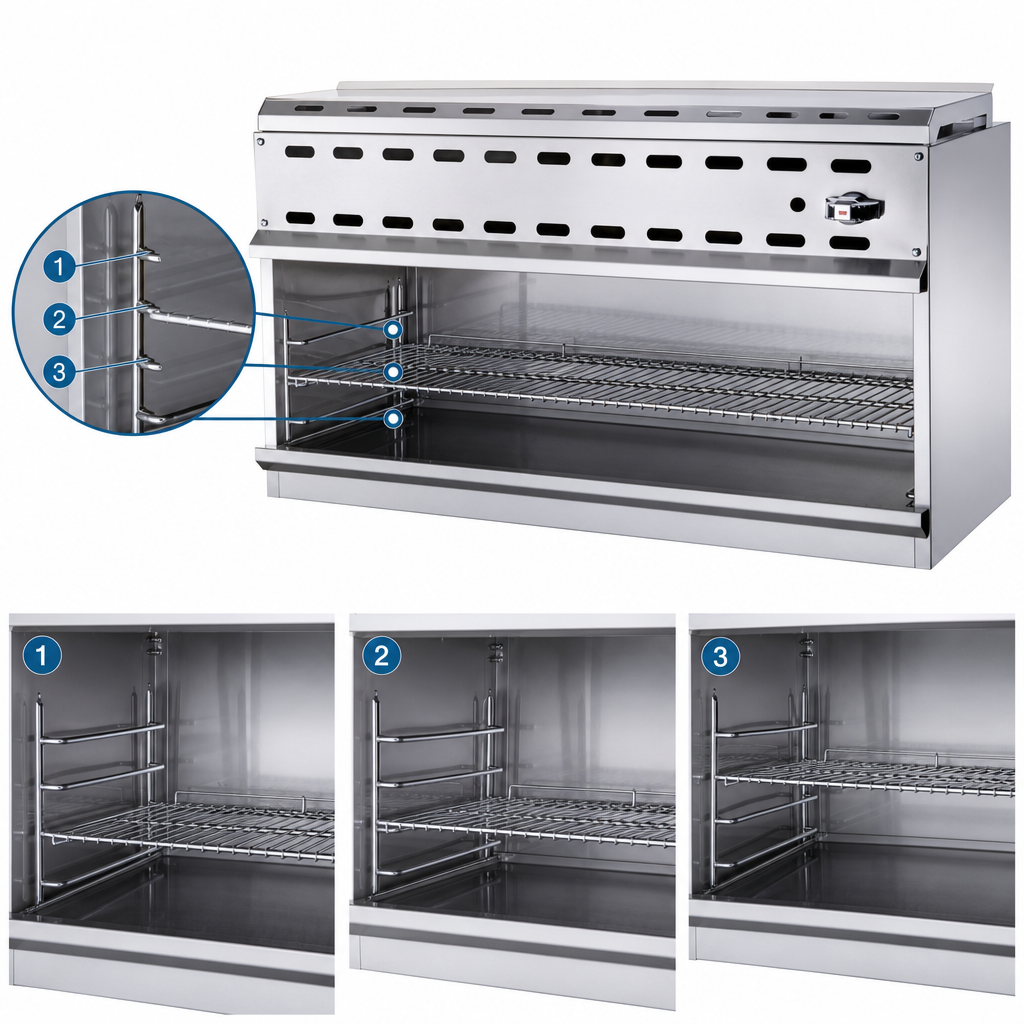

Three-Position Rack Guide

Heavy-duty chrome plated grid rack and rack guide adjust to three positions for flexible broiling control.

Removable Spillage Pan

Full-width removable pan catches drippings and makes cleanup easier.

Stainless Steel Construction

Stainless steel front, top, bottom, sides, and interior support durability and easy maintenance.

Standing Pilot Ignition

Standing pilot ignition system supports reliable burner startup.

Mounting Hardware Included

Wall mounting brackets are included, along with a wall mount panel.

Gas Connection and Regulator

Features a 3/4-inch rear gas connection and includes a gas pressure regulator.

Fuel Configuration

Models are standard for natural gas service; a propane conversion kit is supplied, with conversion handled by the customer.

Type Gas Infrared Cheesemelter
Installation Type Wall Mounted
Burners 2
Rack Positions 3
Pan Capacity 2 Pans
BTU 60,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Material Stainless Steel
Interior Finish Stainless Steel
Shipping Width 72 Inches
Shipping Depth 19 Inches
Shipping Height 24 Inches
Shipping Weight 340 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It ships standard for natural gas service. A propane conversion kit is supplied, and conversion is the customer's responsibility.
This model has two infrared burners and a heavy-duty rack with three positions.
It uses a 3/4-inch rear gas connection and includes a gas pressure regulator. The gas line connecting to the appliance must be 3/4-inch diameter or larger.
Yes. Wall mounting brackets are included, and the cutsheet also lists a wall mount panel.
Required clearances are 2 inches rear, 20 inches sides, and 10 inches bottom for combustible construction; non-combustible clearances are 0 inches rear and sides, and 4 inches bottom.
The cutsheet lists a one-year limited parts and labor warranty.
