Key specifications

BTU
50,000 BTU
Gas Type
Natural Gas
Dimensions
60.0"W × 18.61"D × 23.03"H
Type
Cheesemelter
Material
Stainless Steel
Finish
Stainless Steel
Spec sheet
Vulcan SKU: VICM60

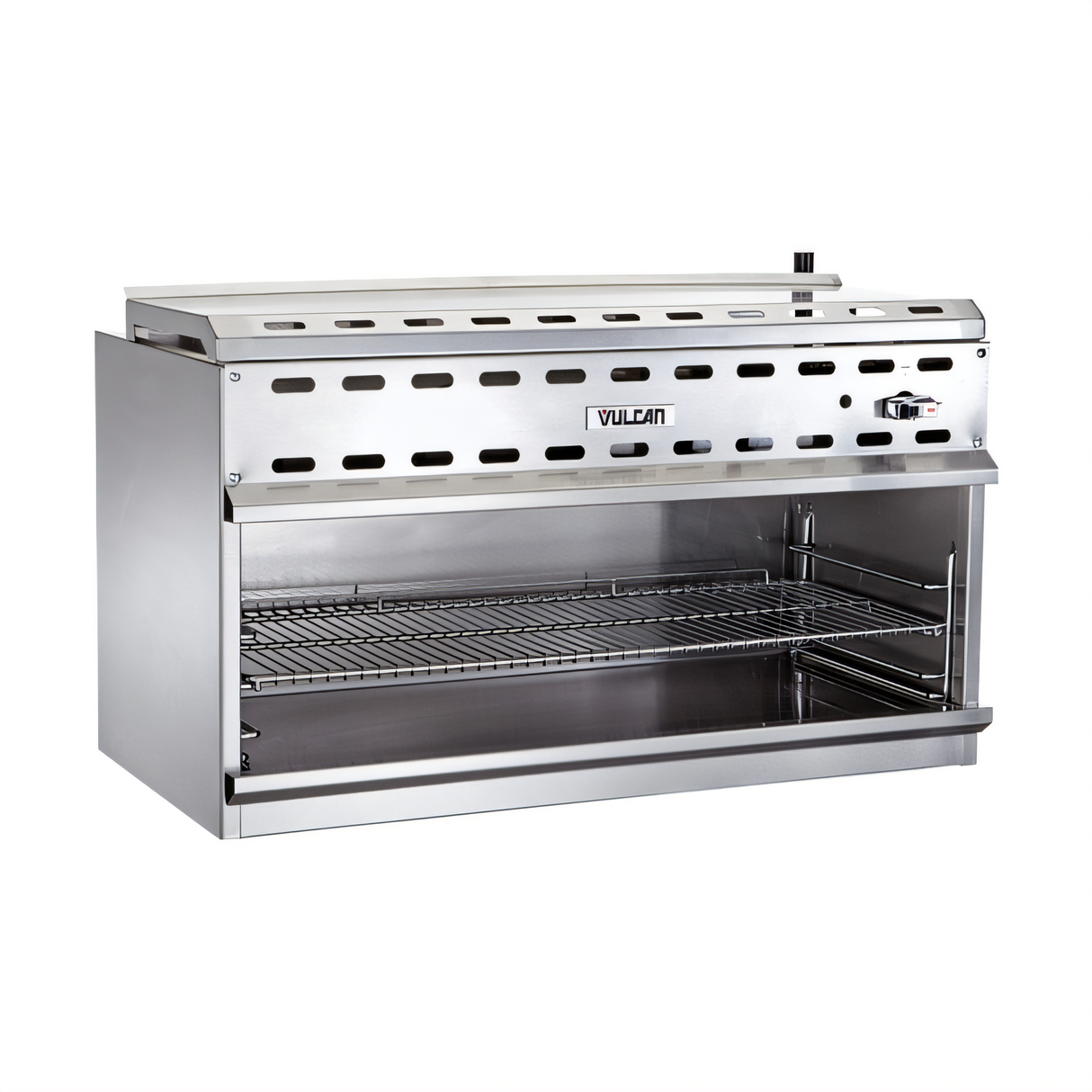

Vulcan VICM60 60-Inch Natural Gas Infrared Cheesemelter

$9,347.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeNatural gas
Gas Connector
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $865/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cheesemelter
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Heat Type Infrared
Gas Type Natural Gas
BTU 50,000 BTU
Burner Count 2
Burner Type Pre-Mix Atmospheric Infrared
Rack Positions 3
Rack Finish Chrome Plated
Pan Count 2
Pan Type Removable Full-Width Spillage
Ignition Type Standing Pilot
Gas Connection 3/4 in NPT
Gas Pressure 5.0 in W.C.
Chassis Material Welded Stainless Steel and Aluminized Steel

Description

The Vulcan VICM60 is a 60-inch range-mount gas infrared cheesemelter with two heavy-duty pre-mix atmospheric infrared burners and 50,000 BTU total input for natural gas service.

It features stainless steel front, top, bottom, sides, and interior surfaces, a heavy-duty chrome-plated grid rack with three positions, removable full-width spillage pans, and an included wall mount panel.

  • Standing pilot ignition system
  • Stainless steel exterior and interior
  • Three-position heavy-duty rack guide
  • Two removable full-width spillage pans

Overall Dimensions:

60.0"W x 18.61"D x 23.03"H

Product Weight:

265.0 lb

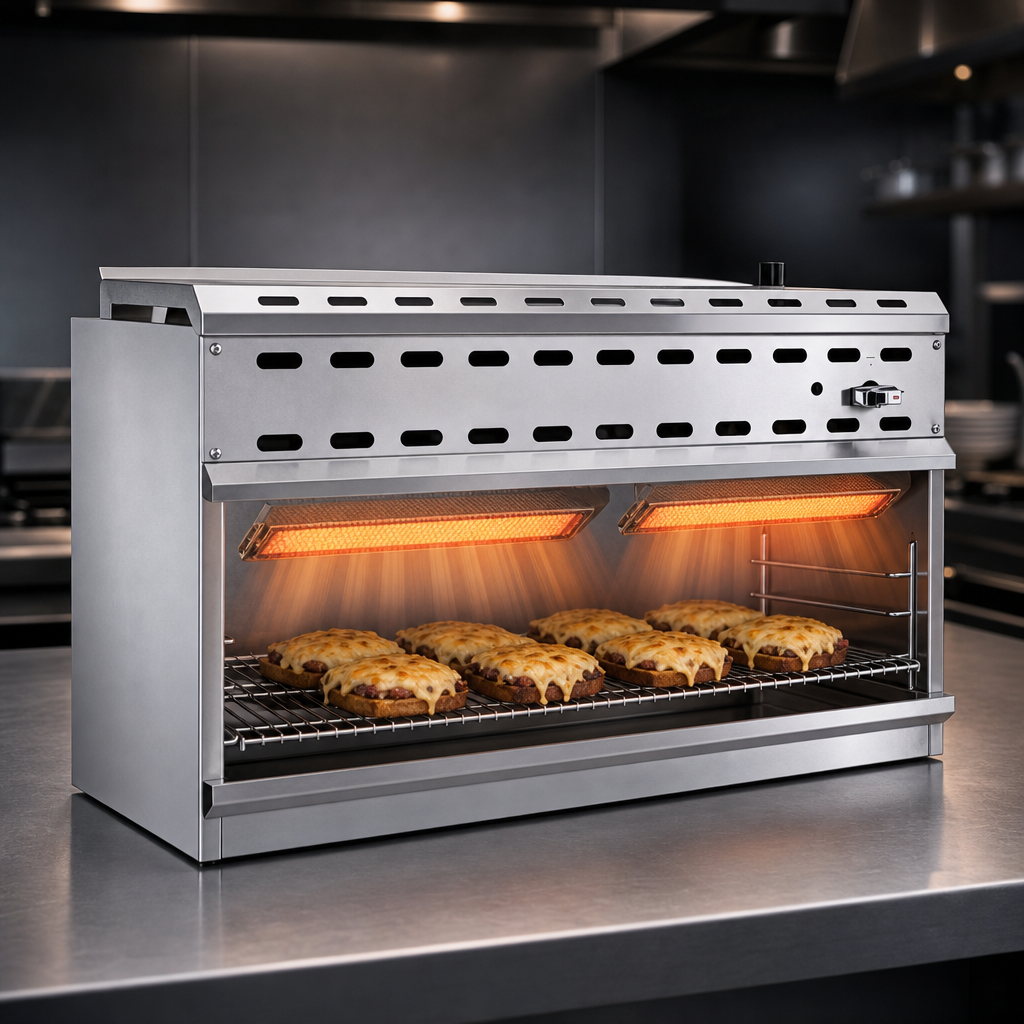

Infrared Heat

Equipped with two heavy-duty pre-mix atmospheric infrared burners.

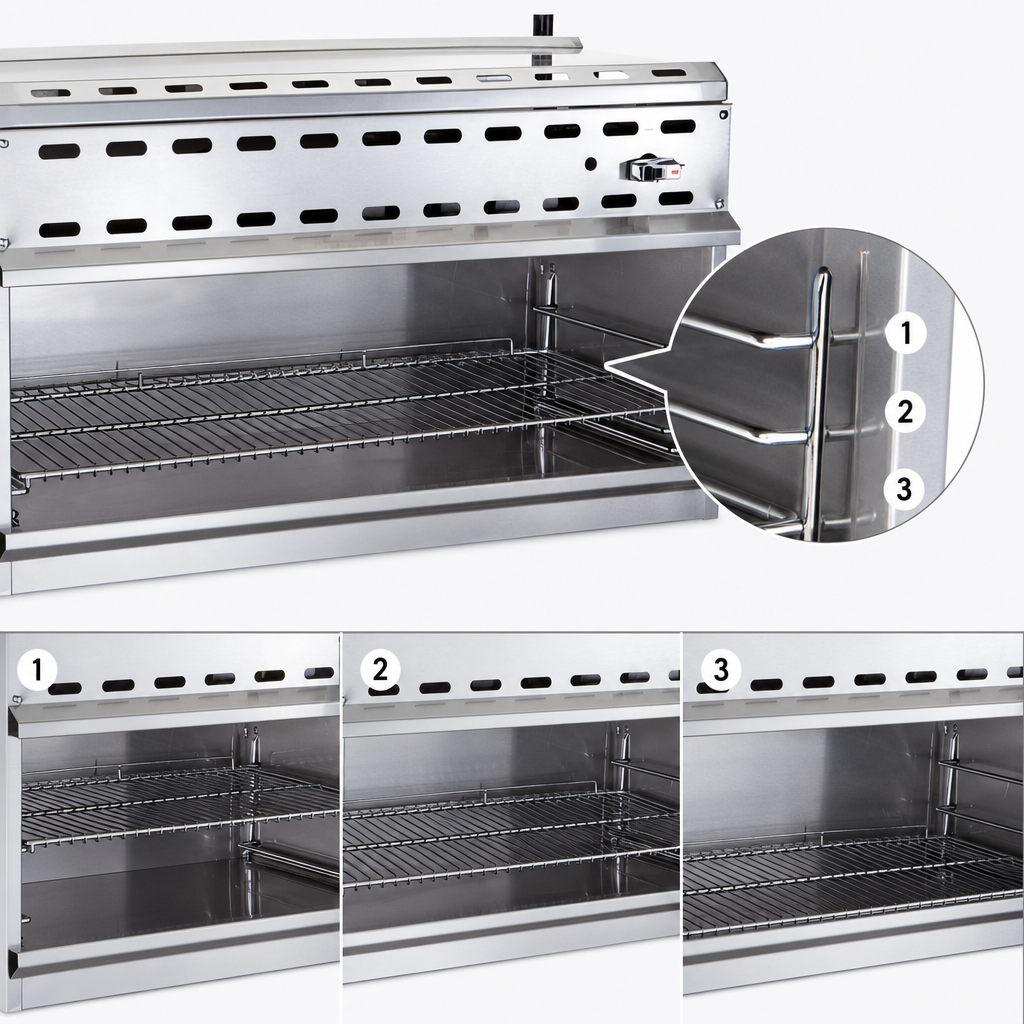

Three-Position Rack

Includes a heavy-duty chrome-plated grid rack and three-position rack guide.

Removable Spillage Pans

Includes two removable full-width spillage pans.

Stainless Steel Surfaces

Stainless steel front, top, bottom, sides, and interior.

Natural Gas Operation

Constructed standard for natural gas service with 50,000 BTU total input.

Standing Pilot Ignition

Uses a standing pilot ignition system.

Wall Mount Panel

Includes a wall mount panel; the cutsheet specifies wall mounting brackets.

Frequently Asked Questions

The VICM60 is constructed standard for natural gas service.
It has a heavy-duty rack with three positions.
The VICM60 has two heavy-duty pre-mix atmospheric infrared burners.
The product is 60 inches wide, 18.61 inches deep, and 23.03 inches high.
Vulcan provides a one-year limited parts and labor warranty from the date of original installation, subject to the commercial warranty terms.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
