Key specifications

BTU
40,000 BTU
Gas Type
Natural Gas
Dimensions
48.0"W × 18.61"D × 23.03"H
Type
Cheesemelter
Style
Core Series
Material
Stainless Steel
Spec sheet
Vulcan SKU: VICM48

Vulcan VICM48 48-Inch Gas Infrared Cheesemelter

$6,845.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeNatural gas
Gas Connector
Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $633/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cheesemelter
Style Core Series
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Heat Type Infrared
Burner Count 2
Burner Type Pre-Mix Atmospheric Infrared
BTU 40,000 BTU
Rack Positions 3
Pan Count 2
Ignition Type Standing Pilot
Gas Type Natural Gas
Gas Connection 3/4 in NPT

Description

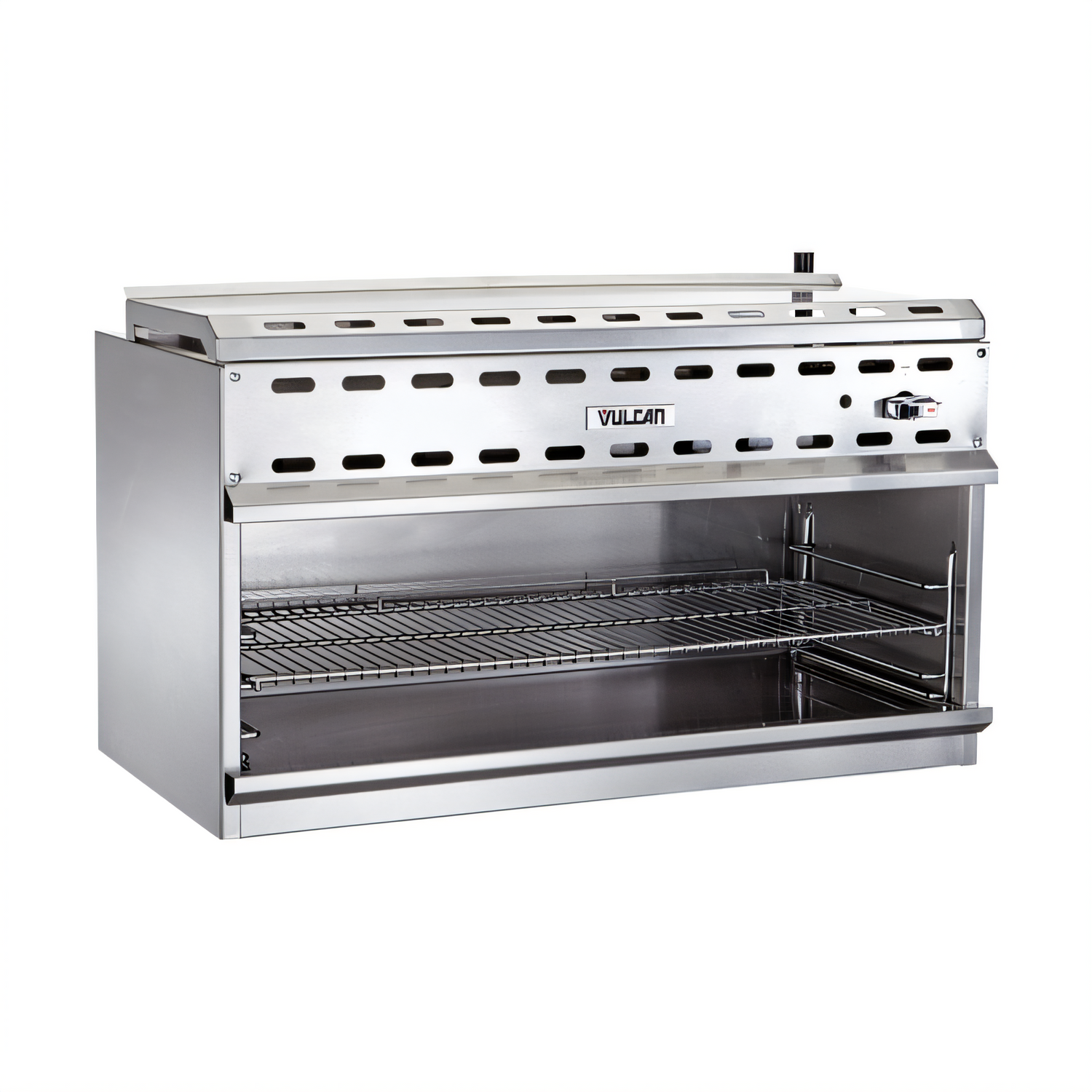

The Vulcan VICM48 is a 48-inch gas infrared cheesemelter with two heavy-duty pre-mix atmospheric infrared burners and 40,000 BTU input.

  • Stainless steel exterior and interior.
  • Heavy-duty chrome-plated grid rack with three positions.
  • Removable full-width spillage pans.
  • Standing pilot ignition, wall mounting brackets, and a 3/4-inch rear gas connection with regulator.

Overall Dimensions:

48.0"W x 18.61"D x 23.03"H

Product Weight:

240.0 lb

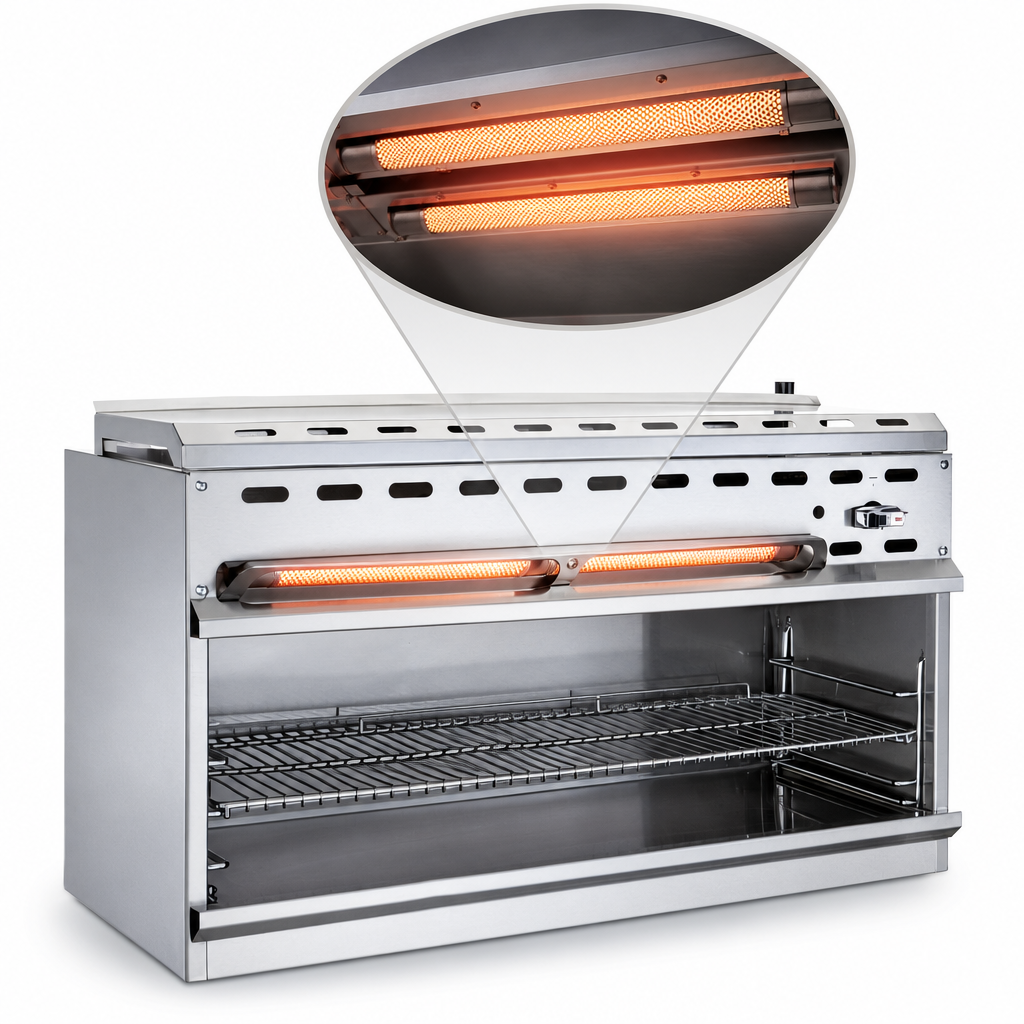

Infrared Burners

Equipped with two heavy-duty pre-mix atmospheric infrared burners delivering 40,000 BTU total input.

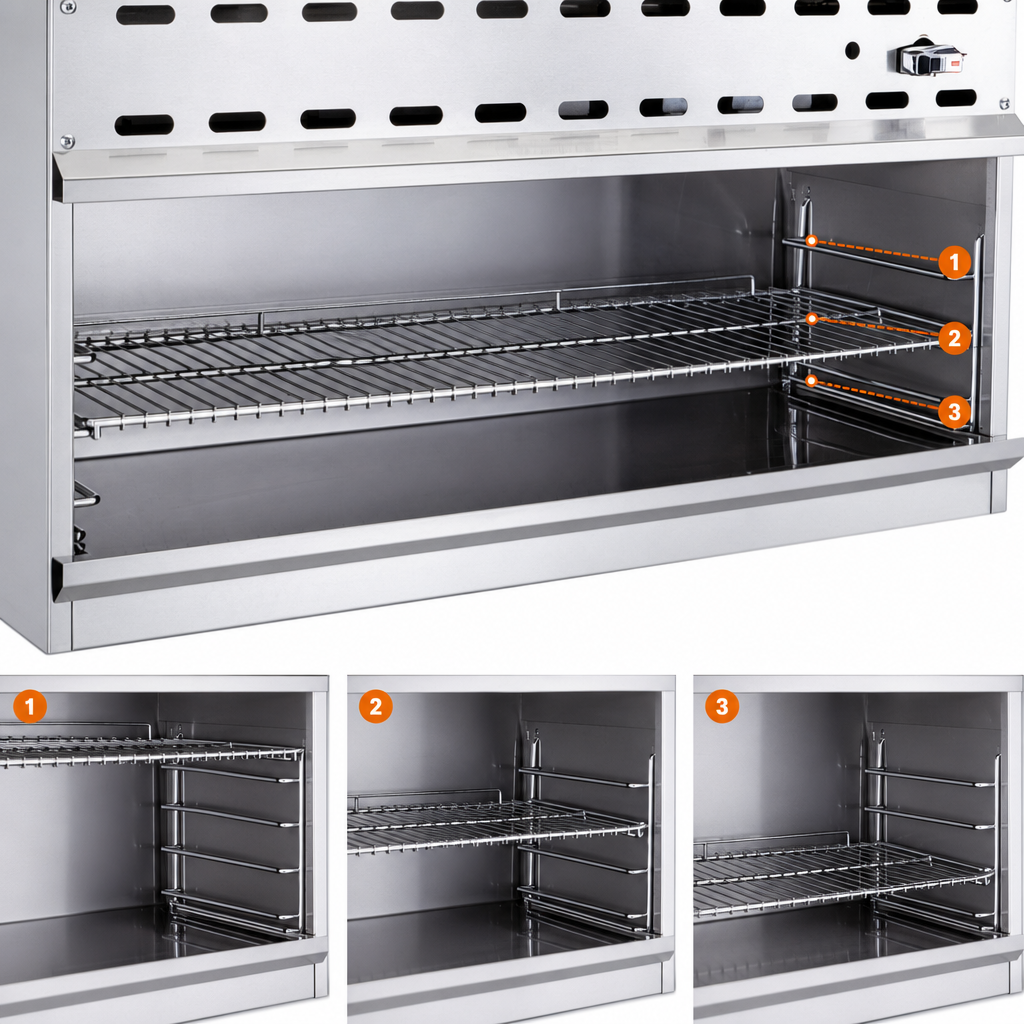

Three-Position Rack

Includes a heavy-duty chrome-plated grid rack with three rack positions.

Stainless Steel Construction

Features a stainless steel front, top, bottom, sides, and interior.

Removable Spillage Pans

Includes removable full-width spillage pans.

Wall Mounting

Includes a wall mount panel and wall mounting brackets.

Gas Connection

Uses a 3/4-inch rear gas connection and supplied gas pressure regulator.

Standing Pilot Ignition

Uses a standing pilot ignition system.

Frequently Asked Questions

The VICM48 has two heavy-duty pre-mix atmospheric infrared burners.
The heavy-duty rack has three positions.
The unit is constructed standard for natural gas service and includes a propane conversion kit; conversion is the customer's responsibility.
Yes. It includes a wall mount panel and wall mounting brackets.
The VICM48 has a one-year limited parts and labor warranty, subject to Vulcan's commercial warranty terms.
