Key specifications

BTU
30,000 BTU
Gas Type
Natural Gas
Dimensions
36.0"W × 18.61"D × 23.03"H
Type
Cheesemelter
Installation Type
Wall Mounted
Material
Stainless Steel
Spec sheet
Vulcan SKU: VICM36

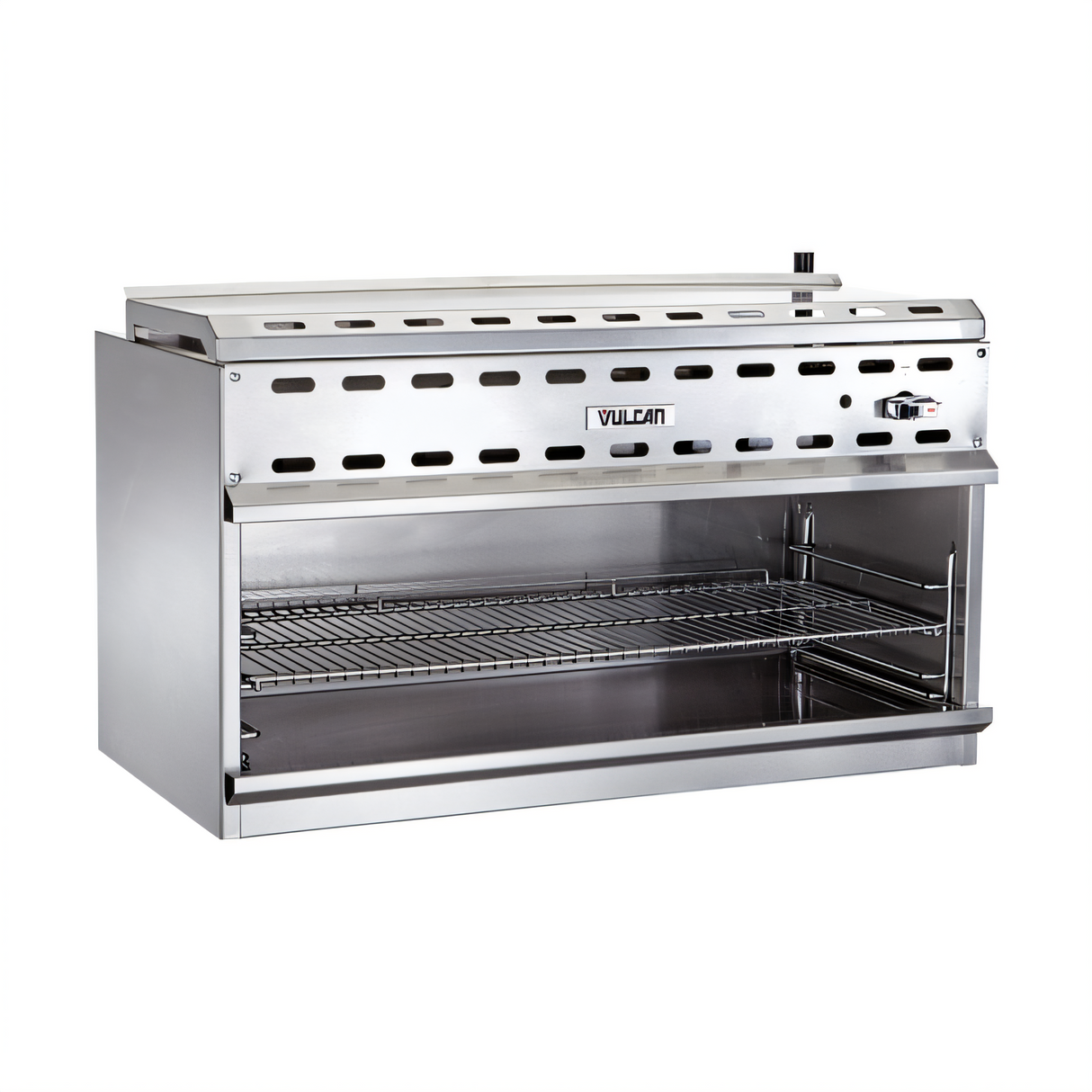

Vulcan VICM36 36-Inch Gas Infrared Cheesemelter

$5,477.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeNatural gas
Gas Connector
Included: Vulcan warranty One-year limited commercial warranty on parts and labor from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $507/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cheesemelter
Installation Type Wall Mounted
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Size 36 Inch
Rack Positions 3
Heat Type Infrared
BTU 30,000 BTU
Gas Type Natural Gas
Burner Type Pre-Mix Atmospheric Infrared
Ignition Type Standing Pilot
Pan Count 1
Pan Type Full-Width Spillage
Rack Material Chrome Plated
Gas Connection 3/4 Inch NPT

Description

The Vulcan VICM36 is a 36-inch gas infrared cheesemelter with 30,000 BTU/hr total input and a heavy-duty three-position rack.

It features stainless steel construction, a removable full-width spillage pan, standing pilot ignition, and a wall mount panel.

  • Heavy-duty chrome-plated grid rack with three rack positions
  • Stainless steel front, top, bottom, sides, and interior
  • 3/4-inch rear gas connection and gas pressure regulator
  • Standard natural gas service with a supplied propane conversion kit

Overall Dimensions:

36.0"W x 18.61"D x 23.03"H

Product Weight:

159.0 lb

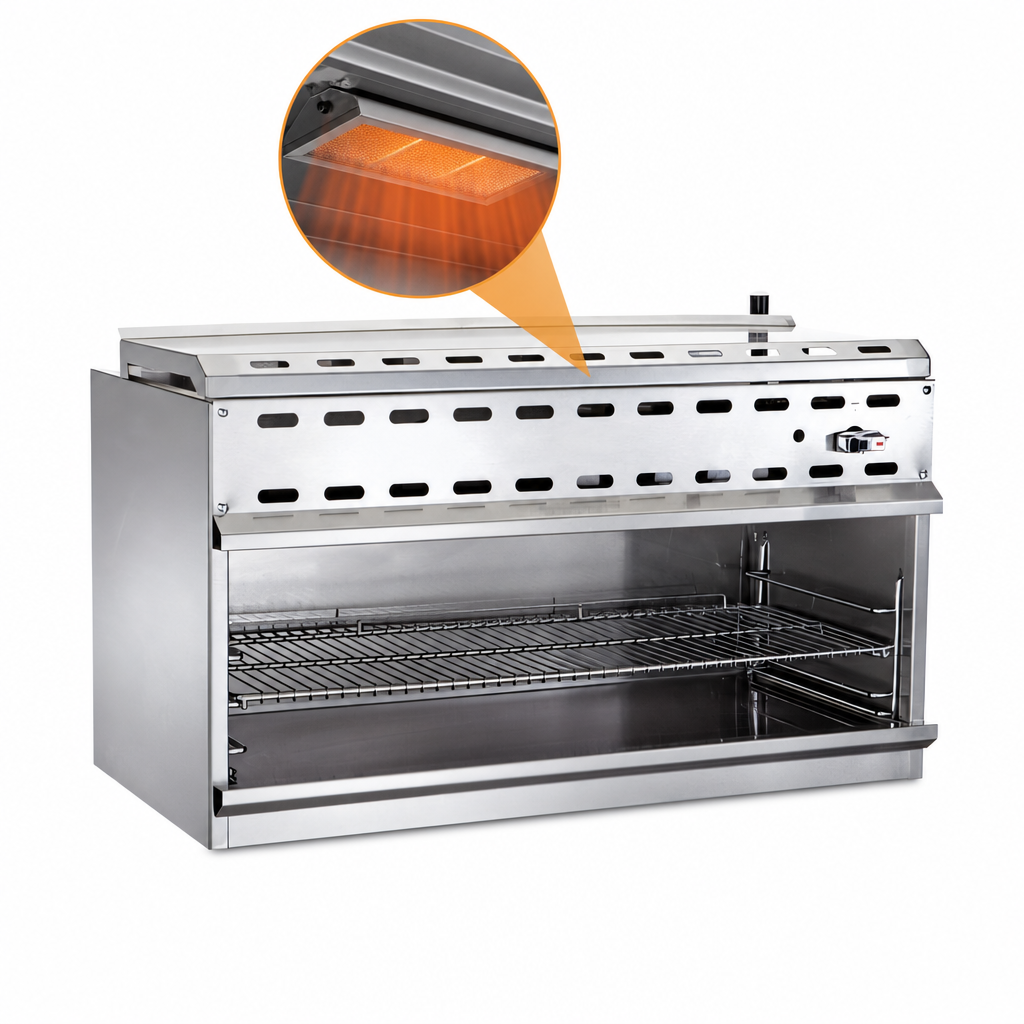

Infrared Heating

Equipped with heavy-duty pre-mix atmospheric infrared burners.

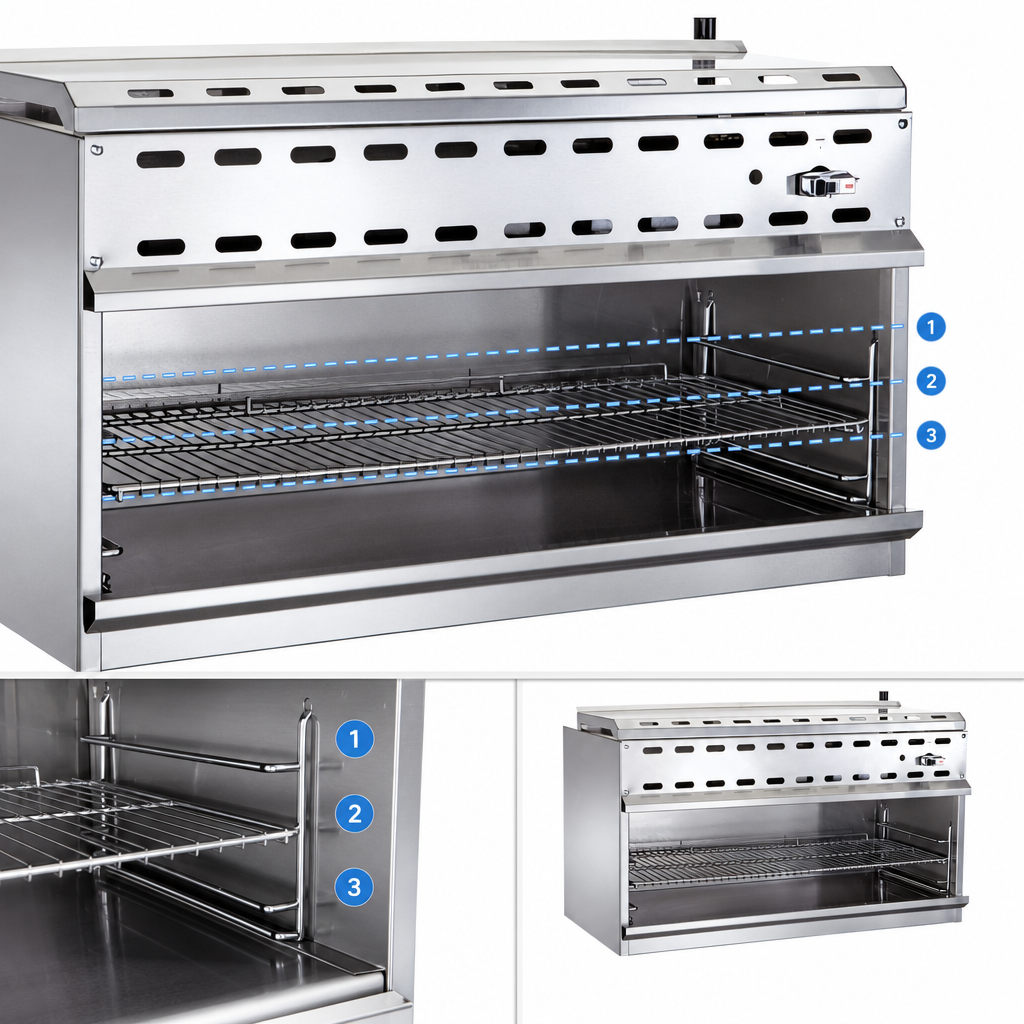

Three-Position Rack

The heavy-duty chrome-plated grid rack is supported by a three-position rack guide.

Stainless Steel Construction

The front, top, bottom, and sides are stainless steel; the chassis is welded stainless and aluminized steel.

Removable Spillage Pan

Includes one removable full-width spillage pan.

Wall Mounting

Includes a wall mount panel; the cutsheet specifies wall mounting brackets.

Standing Pilot Ignition

Uses a standing pilot ignition system.

Gas Connection

Includes a 3/4-inch rear gas connection and gas pressure regulator.

Gas Conversion

Constructed standard for natural gas service with a supplied propane conversion kit; conversion is the customer's responsibility.

Frequently Asked Questions

It has three rack positions.
The product measures 36 in wide by 18.61 in deep by 23.03 in high.
The unit is constructed standard for natural gas service. A propane conversion kit is supplied, and conversion is the customer's responsibility.
Yes. The product includes a wall mount panel, and the cutsheet specifies wall mounting brackets.
It includes a one-year limited parts and labor warranty from the date of original installation.
The VICM36 is listed with NSF, CSA Star, and CSA Flame.
