Key specifications

BTU
20,000 BTU
Gas Type
Natural Gas
Dimensions
24.0"W × 18.61"D × 23.03"H
Type
Cheesemelter
Size
24 Inch
Installation Type
Wall Mounted
Spec sheet
Vulcan SKU: VICM24

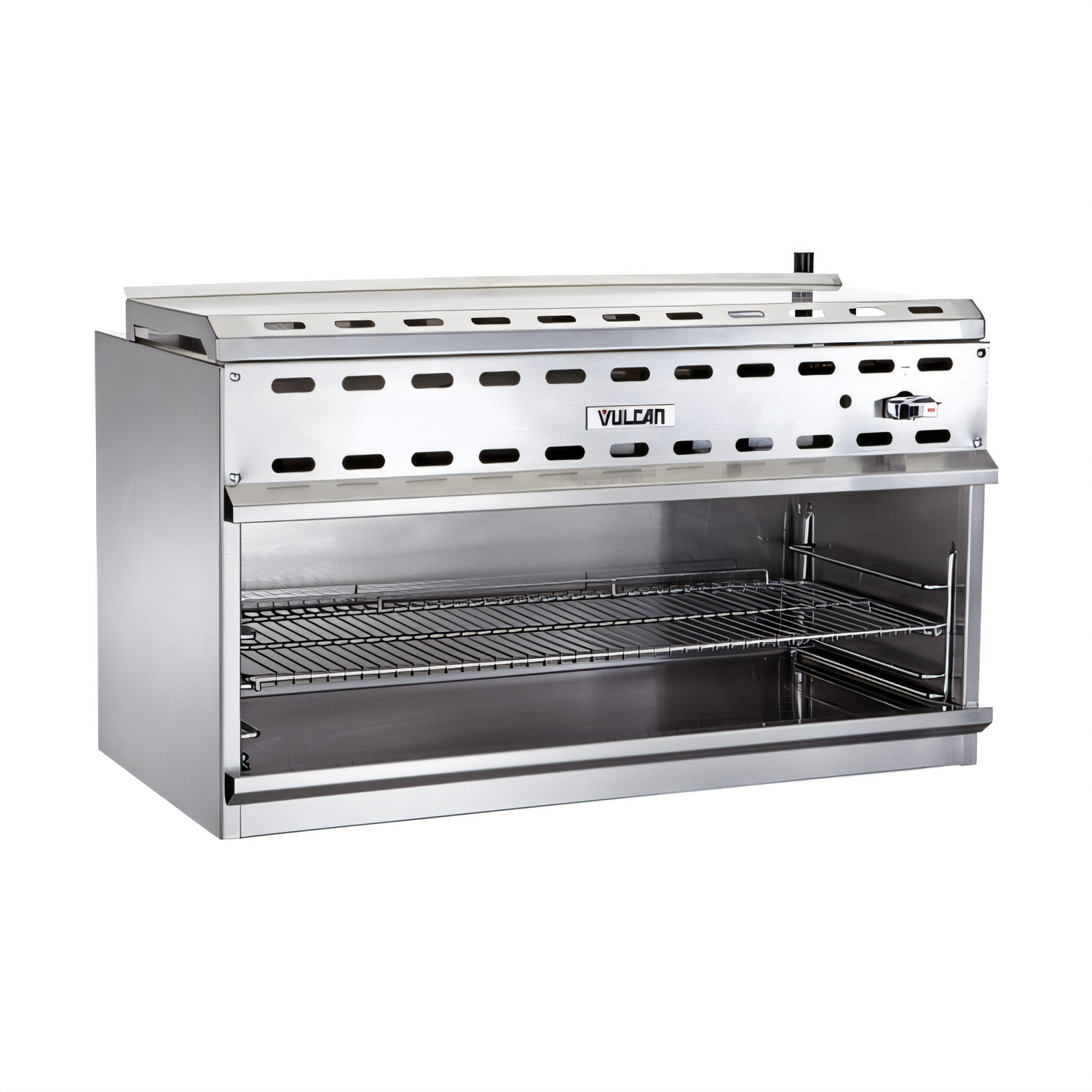

Vulcan VICM24 24-Inch Gas Infrared Cheesemelter

$4,681.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeNatural gas
Gas Connector
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $433/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Cheesemelter
Size 24 Inch
Installation Type Wall Mounted
Material Stainless Steel
Finish Stainless Steel
Interior Finish Stainless Steel
Heat Type Infrared
BTU 20,000 BTU
Gas Type Natural Gas
Controls Standing Pilot
Rack Positions 3
Pan Count 1
Gas Connection 3/4 in NPT

Description

The Vulcan VICM24 is a 24-inch gas infrared cheesemelter with a 20,000 BTU burner.

It features a heavy-duty rack with three positions, a removable full-width spillage pan, wall mounting brackets, and stainless steel front, top, bottom, sides, and interior.

  • Standing pilot ignition system
  • 3/4-inch rear gas connection with supplied gas pressure regulator

Overall Dimensions:

24.0"W x 18.61"D x 23.03"H

Product Weight:

140.0 lb

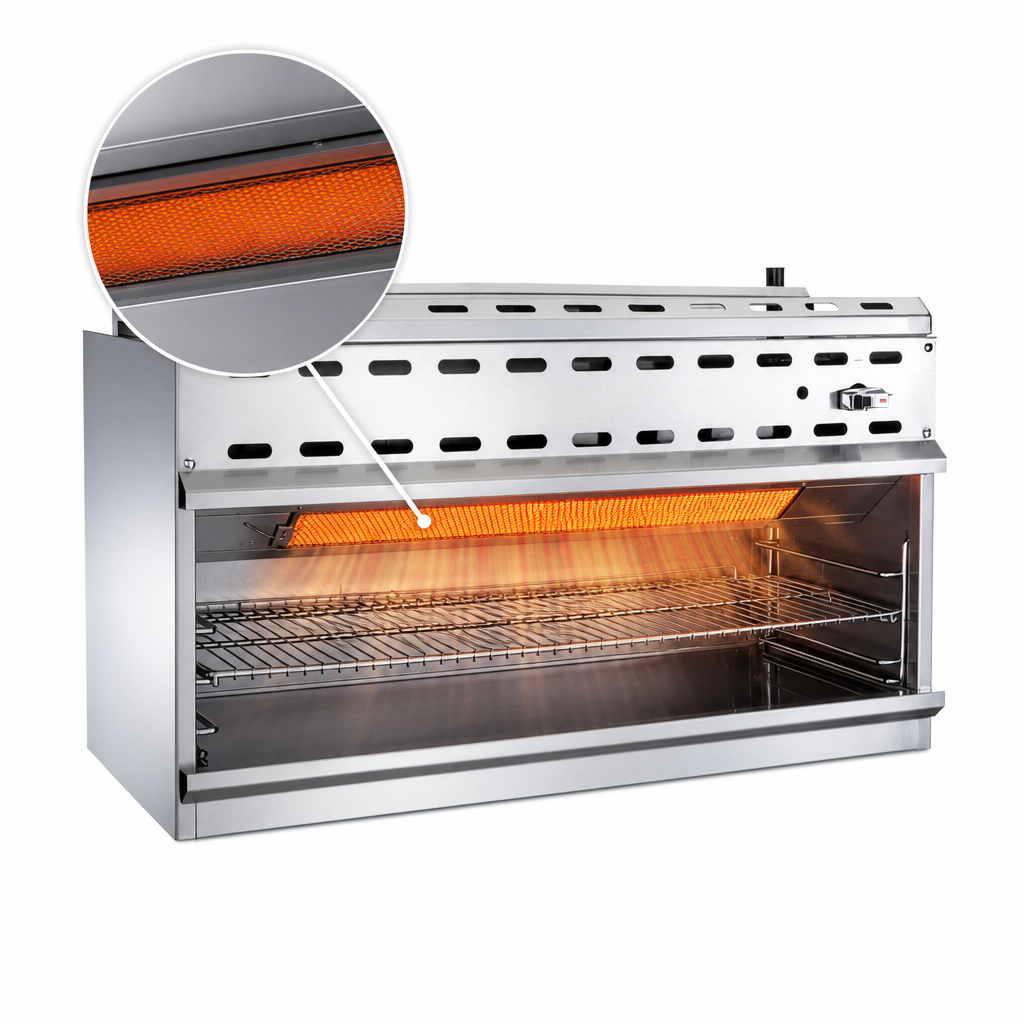

Infrared Gas Heating

Equipped with a heavy-duty pre-mix atmospheric infrared burner rated at 20,000 BTU.

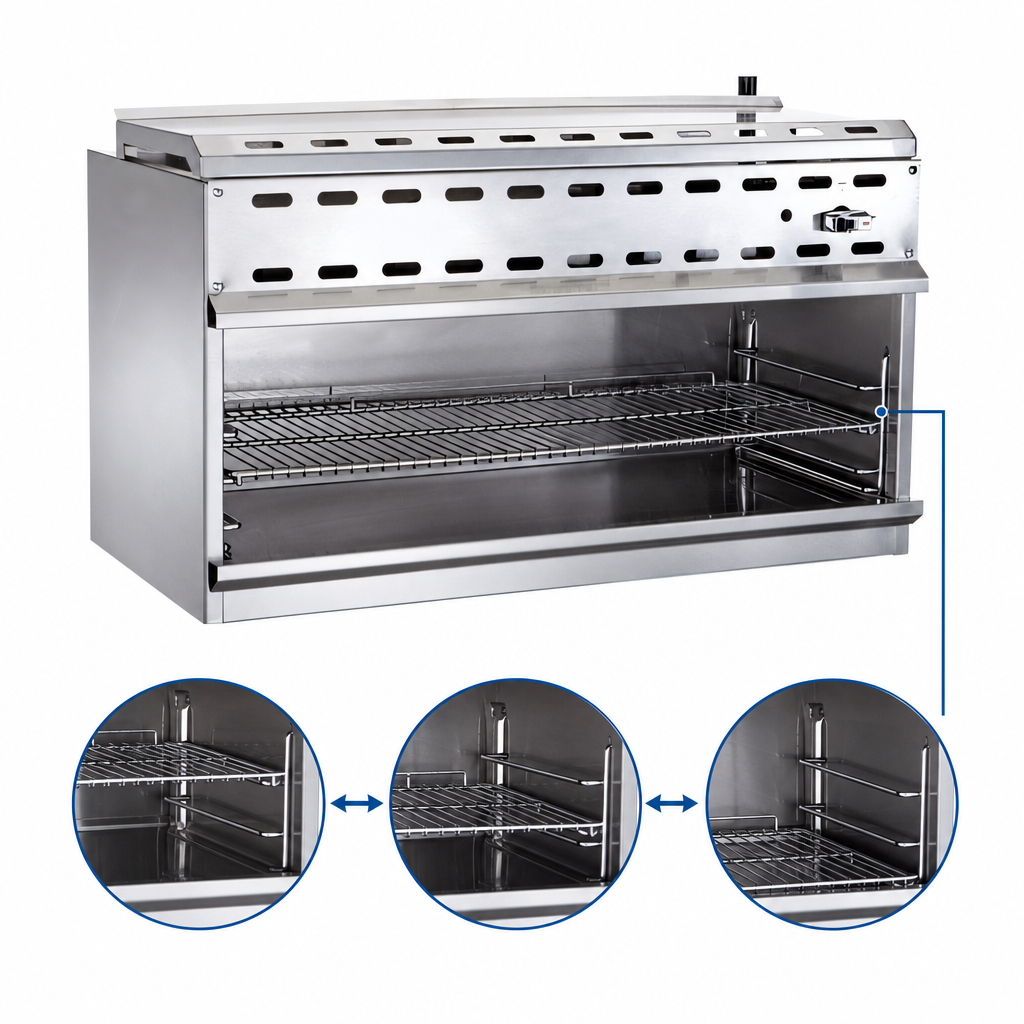

Three-Position Rack

Includes a heavy-duty chrome-plated grid rack and three-position rack guide.

Removable Spillage Pan

Includes one removable full-width spillage pan.

Stainless Steel Surfaces

The front, top, bottom, sides, and interior are stainless steel.

Wall Mounting

Includes wall mounting brackets.

Standing Pilot Ignition

Uses a standing pilot ignition system.

Gas Connection

Includes a 3/4-inch rear gas connection and supplied gas pressure regulator.

Frequently Asked Questions

It is a gas infrared cheesemelter.
The VICM24 has a 20,000 BTU burner.
The heavy-duty rack has three positions.
Yes. It includes one removable full-width spillage pan.
It has a 3/4-inch rear gas connection and a supplied gas pressure regulator.
The product measures 24 inches wide by 18.61 inches deep by 23.03 inches high.
Vulcan provides a one-year limited parts and labor warranty from the date of original installation, subject to its commercial warranty terms.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.
