Vulcan

Vulcan Achiever VHP636 36-Inch Heavy Duty Countertop Gas Hot Plate with 6 Open Burners

SKU: VHP636
$4,048.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Hot Plates Commercial Ranges Hot Plates New Arrivals Restaurant Equipment Vulcan

Vulcan Achiever VHP636 36-Inch Heavy Duty Countertop Gas Hot Plate with 6 Open Burners

Stainless Steel Construction, Infinite Heat Controls

Built for high-volume kitchens, this 36-inch gas hot plate delivers six powerful open burners, rugged cast iron grates, and precise infinite heat control.

  • Six 30,000 BTU/hr open burners deliver strong heat for busy prep lines.
  • Lift-off burner heads, standing pilots, and infinite heat controls make operation and cleaning easier.
  • Stainless steel front, sides, control panel, top trim, and backsplash are built for commercial durability.
  • Cast iron top grates and a full-width pull-out crumb tray support heavy-duty use and quick cleanup.
  • 4-inch adjustable legs and a 3/4-inch rear gas connection help with installation and leveling.

Overall Dimensions:

36.0"W x 31.38"D x 16.63"H

Product Weight:

291.0 lb

Six Open Burners

Each burner is rated at 30,000 BTU/hr on natural gas and 27,500 BTU/hr on propane gas.

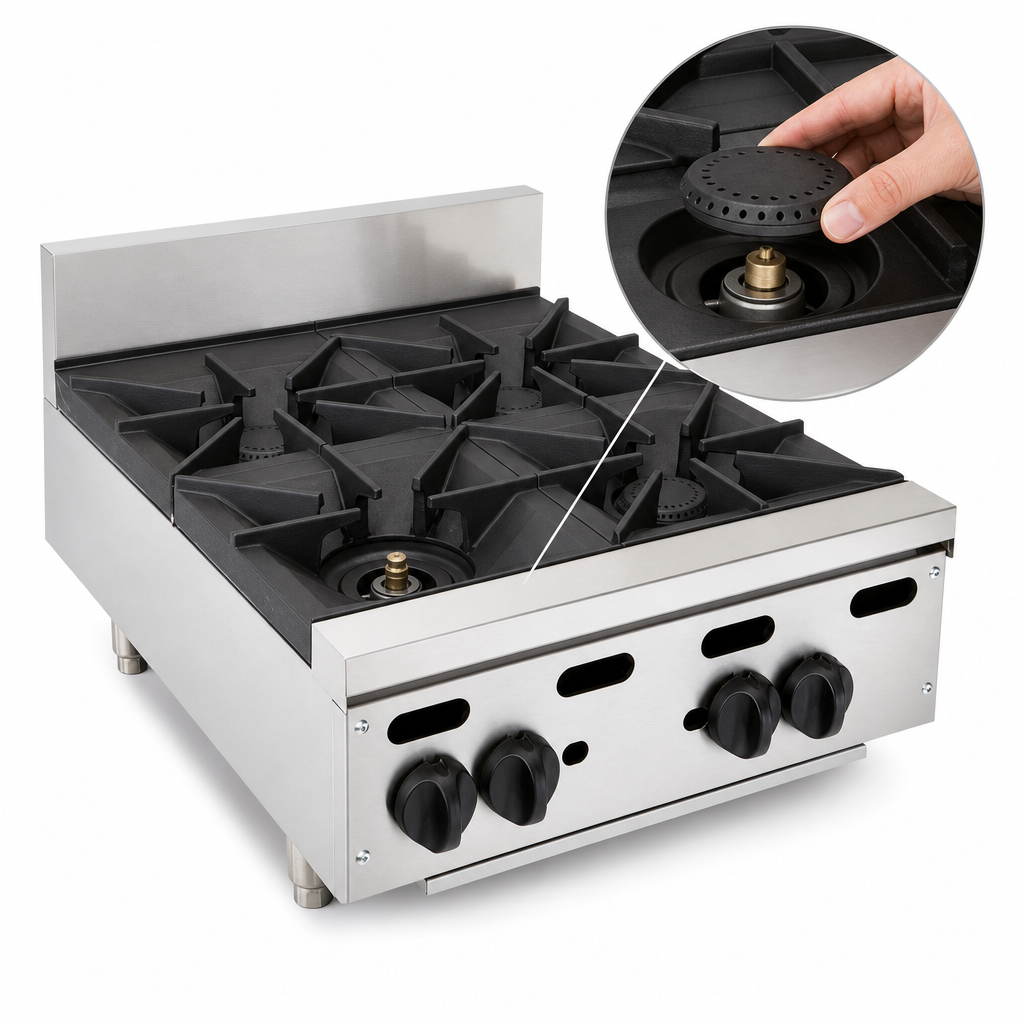

Lift-Off Burner Heads

Burner heads remove easily for simpler cleaning and service.

Standing Pilot Ignition

Protected standing pilots provide reliable burner ignition.

Infinite Heat Controls

One infinite heat control valve per burner allows independent temperature adjustment.

Cast Iron Top Grates

Heavy-duty cast iron grates provide durable support for cookware.

Stainless Steel Construction

Stainless steel sides, control panel, top trim, backsplash, and front with Cool Bullnose help withstand daily commercial use.

Pull-Out Crumb Tray

A full-width aluminized crumb tray helps catch debris and speeds cleanup.

Adjustable Legs

4-inch adjustable legs help level the unit on uneven floors.

Gas Connection and Regulator

Includes a 3/4-inch NPT rear gas connection and gas pressure regulator.

Type Gas Hot Plate
Style Heavy Duty
Installation Type Countertop
Burners 6
Controls Infinite Heat
BTU 180,000 BTU/hr
Gas Connection Size 3/4 Inch NPT
Material Stainless Steel
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 32 Inches
Shipping Height 17 Inches
Shipping Weight 291 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Vhp accessories PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 6 open burners.
Each burner is rated at 30,000 BTU/hr on natural gas and 27,500 BTU/hr on propane gas.
Yes. The documentation says to specify the gas type when ordering, and it can be configured for natural gas or propane.
It uses a 3/4-inch NPT rear gas connection and requires a gas pressure regulator.
Yes. Available accessories include a cutting board, condiment rail, plate rail, and a stainless steel stand with undershelf and casters.
Yes. The installation instructions state that an adequate ventilation system is required for commercial cooking equipment.
