Vulcan

Vulcan V Series 24-Inch Heavy Duty Thermostatic Gas Griddle Range with Cabinet Base

SKU: VGT24B
$8,753.17
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan V Series 24-Inch Heavy Duty Thermostatic Gas Griddle Range with Cabinet Base

3/4-Inch Polished Steel Plate, 60,000 BTU, Stainless Steel Exterior

A compact, heavy-duty gas griddle range that delivers precise thermostatic control and built-in storage for busy commercial kitchens.

  • 24-inch thermostatically controlled gas griddle range with a cabinet base for added storage.
  • 3/4-inch polished steel griddle plate with 4-inch side splashes helps contain heat and mess.
  • Two 30,000 BTU burners deliver 60,000 BTU total input for fast, even cooking.
  • Snap-action thermostats and individual burner controls provide responsive temperature management.
  • Stainless steel exterior construction is built for durability in high-volume kitchens.
  • 6-inch adjustable stainless steel legs support stable floor installation and leveling.

Overall Dimensions:

24.0"W x 36.75"D x 36.0"H

Product Weight:

360.0 lb

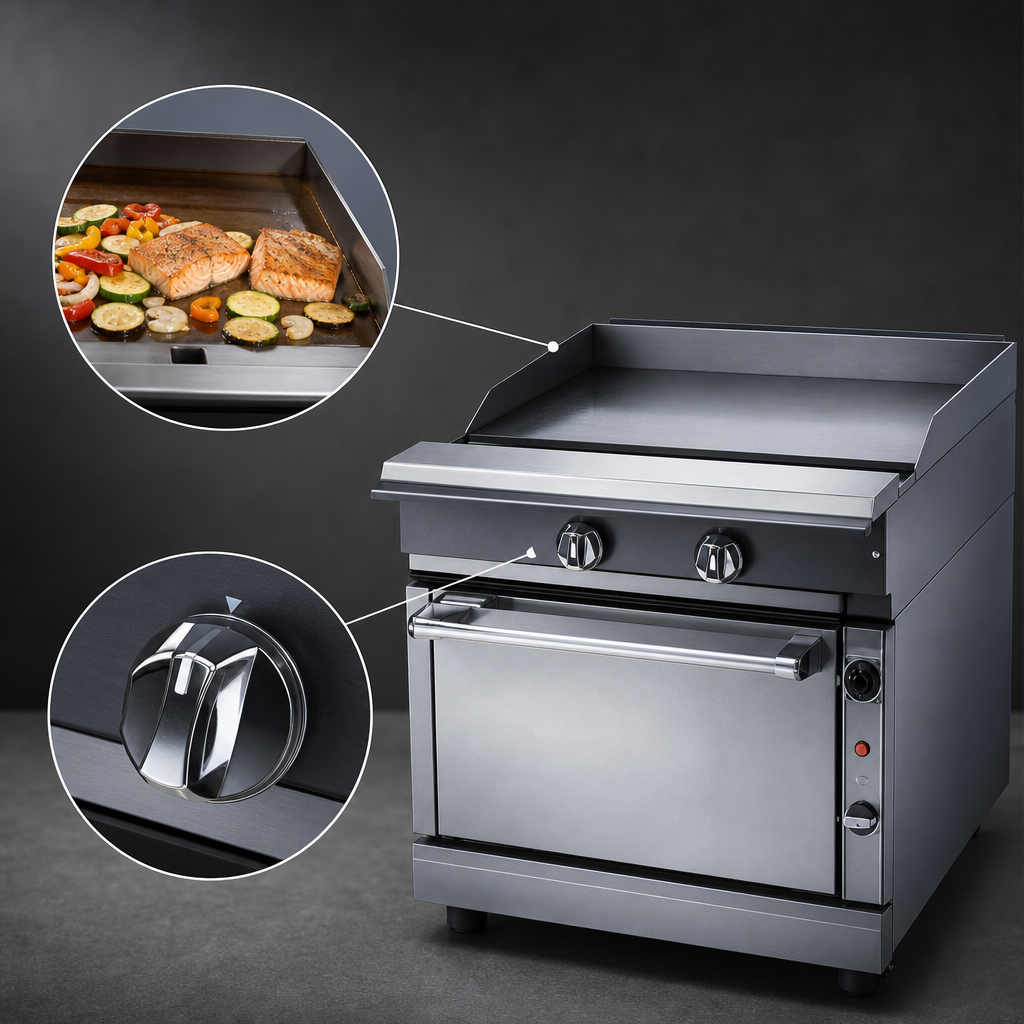

Thermostatic Griddle Control

Two snap-action thermostats regulate the burners for consistent griddle temperatures.

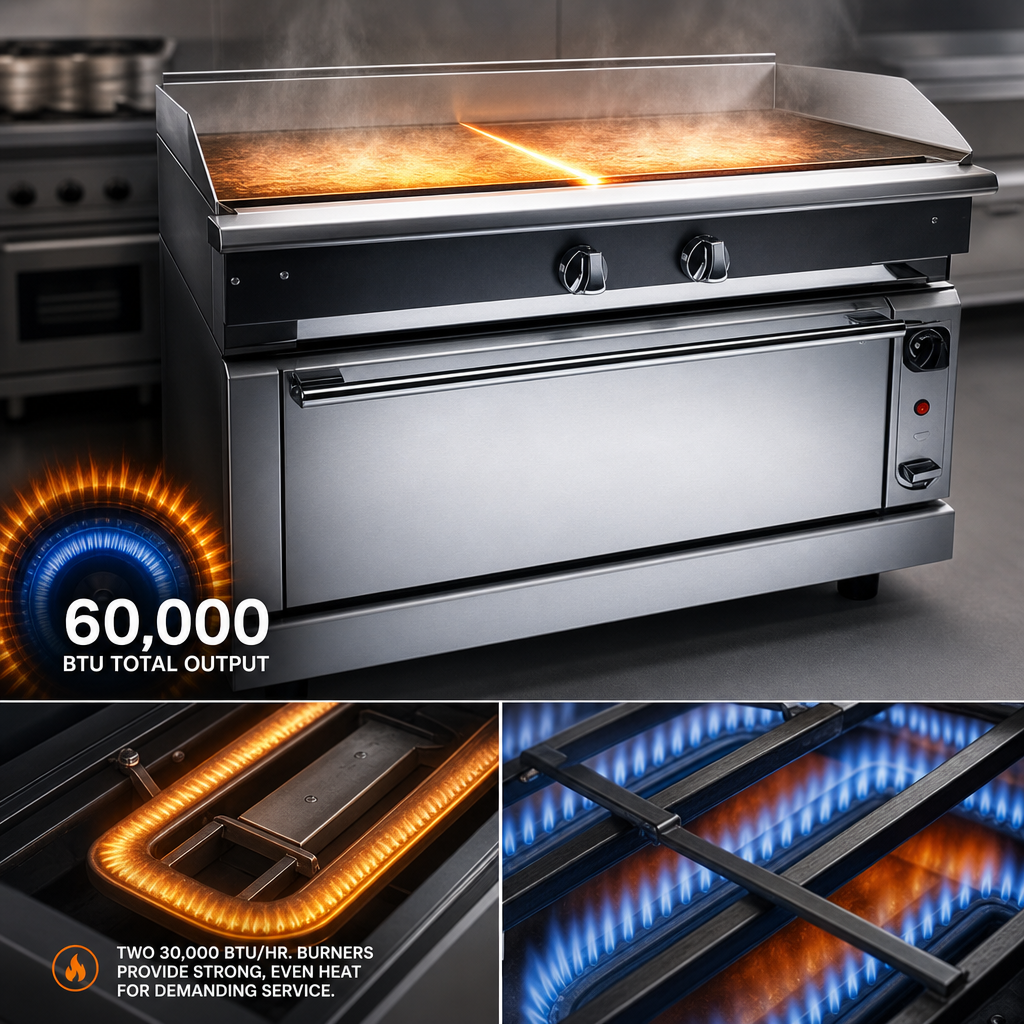

60,000 BTU Total Output

Two 30,000 BTU/hr. burners provide strong, even heat for demanding service.

3/4-Inch Polished Steel Plate

Heavy-duty griddle plate offers excellent heat retention and cooking performance.

4-Inch Side Splashes

Side splashes help contain grease and food debris during cooking.

Cabinet Base Storage

Cabinet base includes doors and a shelf for convenient undercounter storage.

Stainless Steel Construction

Stainless steel front, sides, ledge, burner box, base, and stub back support long-term durability.

Adjustable Floor Legs

6-inch adjustable stainless steel legs help level the range on the floor.

Wide Temperature Range

Temperature control from 150°F to 450°F supports a variety of menu items.

Type Gas Range
Style Griddle
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Controls Snap-Action Thermostatic
Temperature Range 150 to 450 Degrees F
BTU 60,000 BTU
Gas Connection Size 1 1/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 360 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Service manual PDF Download PDF Sell sheet PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The temperature range is 150°F to 450°F.
Yes. The VGT24B includes a cabinet base with doors and a shelf.
The unit has a total input of 60,000 BTU/hr.
Overall dimensions are 24 inches wide, 36.75 inches deep, and 36 inches high.
The documentation calls for specifying gas type when ordering. Natural gas uses 6.0 inches W.C., and propane uses 10.0 inches W.C.
