Vulcan V Series Heavy Duty 36-Inch Manual Griddle Gas Range with Standard Oven Base
Vulcan V Series Heavy Duty 36-Inch Manual Griddle Gas Range with Standard Oven Base
Stainless Steel, 3/4-Inch Polished Steel Plate, 6-Inch Adjustable Legs
Built for high-volume kitchens, this 36-inch heavy-duty gas range combines a durable manual griddle top with a powerful standard oven in a rugged stainless steel design.
- 36-inch-wide heavy-duty gas range with a manual griddle top and standard oven base.
- 3/4-inch polished steel griddle plate with three 30,000 BTU/hr top burners.
- Standard oven delivers 50,000 BTU/hr and includes one rack with three rack positions.
- Stainless steel construction across the front, top ledge, sides, base, burner box, and stub back.
- Heavy-duty oven door with counterweight hinges for smoother operation.
- 6-inch adjustable stainless steel legs and a 4-inch side splash help support installation and cleanup.
- 1 1/4-inch front gas manifold connection with a capped rear gas connection.
Overall Dimensions:
36.0"W x 36.75"D x 40.5"HProduct Weight:

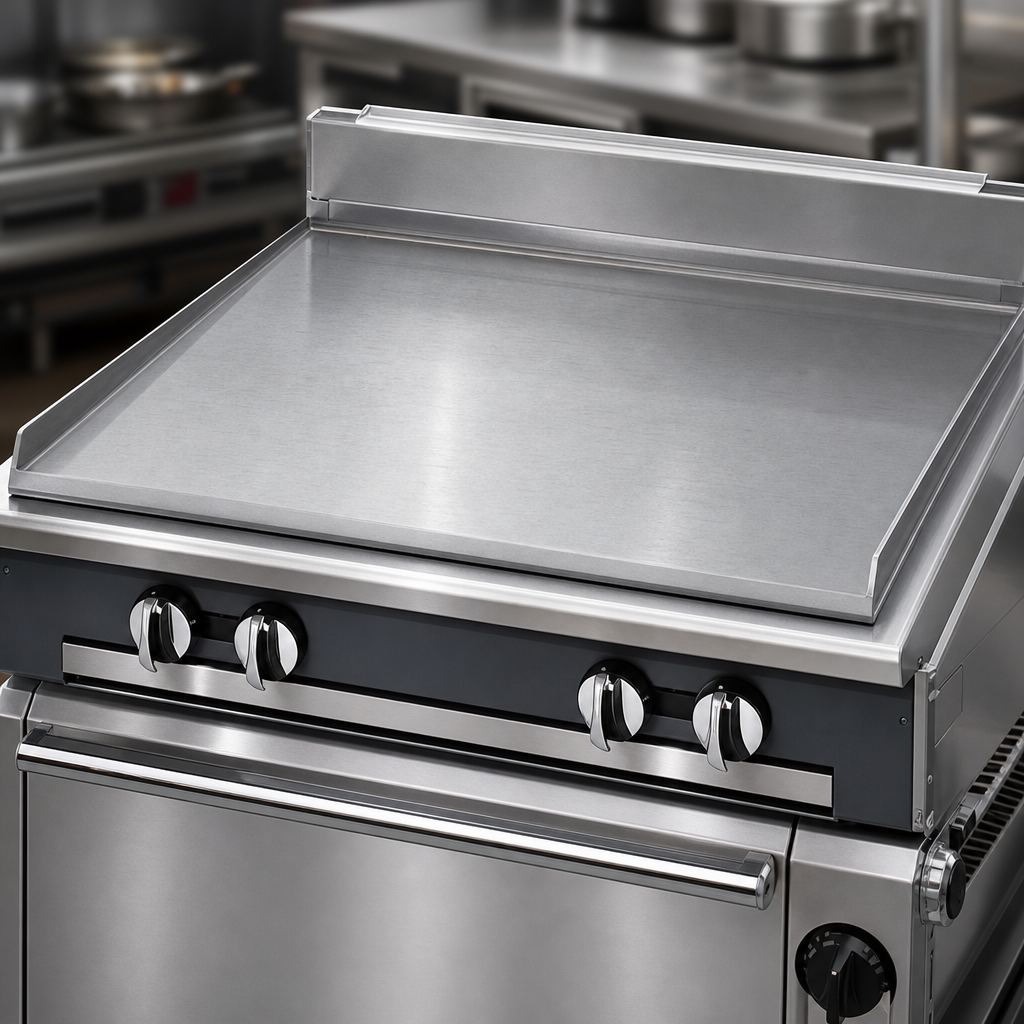

685.0 lb3/4-Inch Polished Steel Griddle Plate
Durable manual griddle surface designed for high-volume cooking and even heat distribution.
Three 30,000 BTU/Hr Top Burners
Three individual burners with separate pilots and controls provide responsive heat management across the griddle.
50,000 BTU/Hr Standard Oven
The standard oven base adds cooking capacity below the griddle for multi-purpose production.
Porcelain-Lined Oven Interior
Porcelain oven bottom, sides, and interior door panel help simplify cleanup and improve durability.
Stainless Steel Heavy-Duty Construction
Stainless steel front, front top ledge, burner box, sides, base, and stub back provide a rugged commercial build.
6-Inch Adjustable Stainless Steel Legs
Factory-installed adjustable legs help level the unit during installation.
Counterweight Oven Door Hinges
Heavy-duty counterweight hinges support smoother oven door operation.
Extra-Deep Crumb Tray and 4-Inch Side Splash
Helps contain spills and crumbs for easier maintenance during service.
1 1/4-Inch Gas Connection
Features a 1 1/4-inch front gas manifold connection and a capped 1 1/4-inch rear gas connection.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
