Vulcan

Vulcan V Series 36-Inch Heavy Duty Gas Range with Manual Griddle and Convection Oven

SKU: VGM36C
$18,121.07
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan V Series 36-Inch Heavy Duty Gas Range with Manual Griddle and Convection Oven

3/4-Inch Polished Steel Plate, Stainless Steel Exterior, 122,000 BTU

A rugged 36-inch gas range that combines a manual griddle and convection oven for versatile, high-output cooking in demanding kitchens.

  • 36-inch heavy duty gas range with a manual griddle top and convection oven base
  • 3/4-inch polished steel griddle plate for durable, even heat distribution
  • Three 30,000 BTU/hr burners plus a 32,000 BTU/hr convection oven burner
  • Stainless steel construction across the front, sides, base, burner box, and stub back
  • Convection oven includes a 115V blower motor, one rack, and three rack positions
  • 6-inch adjustable stainless steel legs and a heavy-duty counterweighted oven door

Overall Dimensions:

36.0"W x 36.75"D x 40.5"H

Product Weight:

763.0 lb

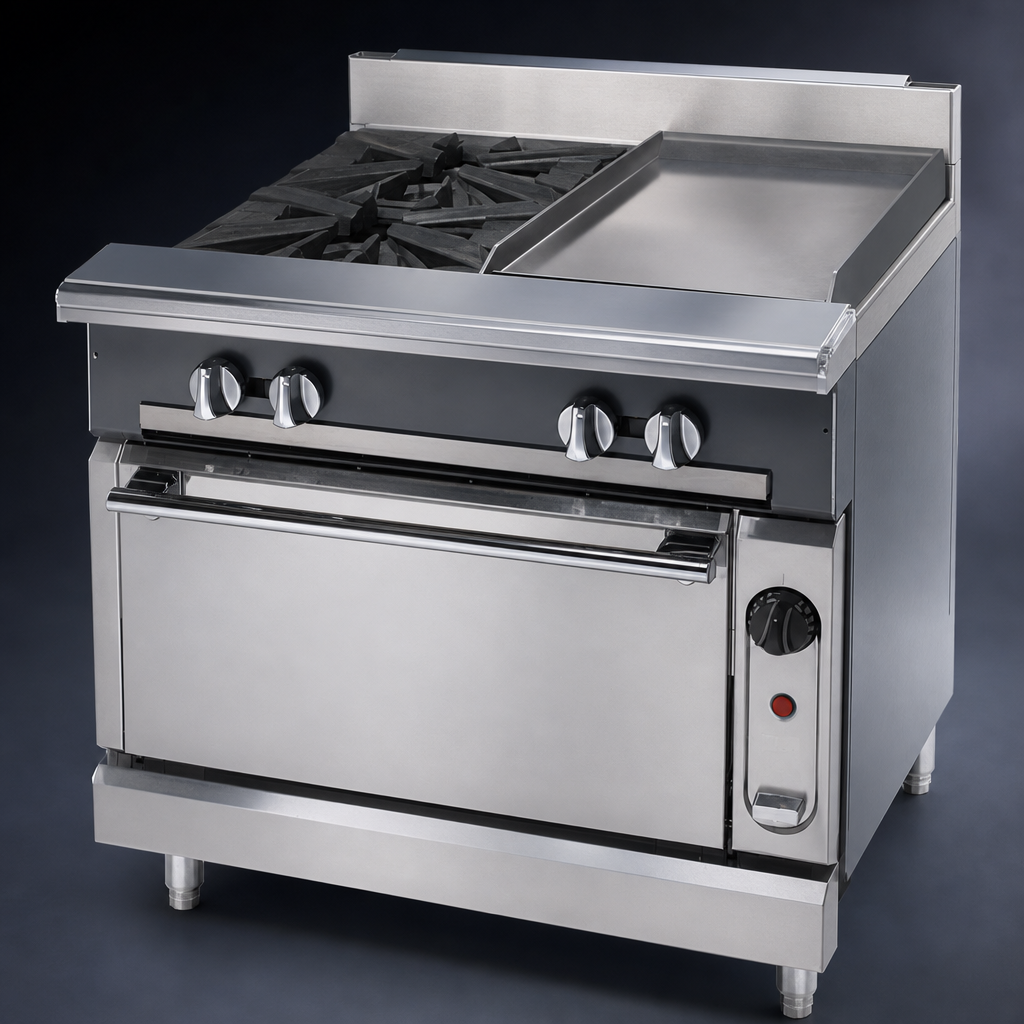

3/4-Inch Polished Steel Griddle Plate

Durable manual griddle surface provides strong heat retention for high-volume cooking.

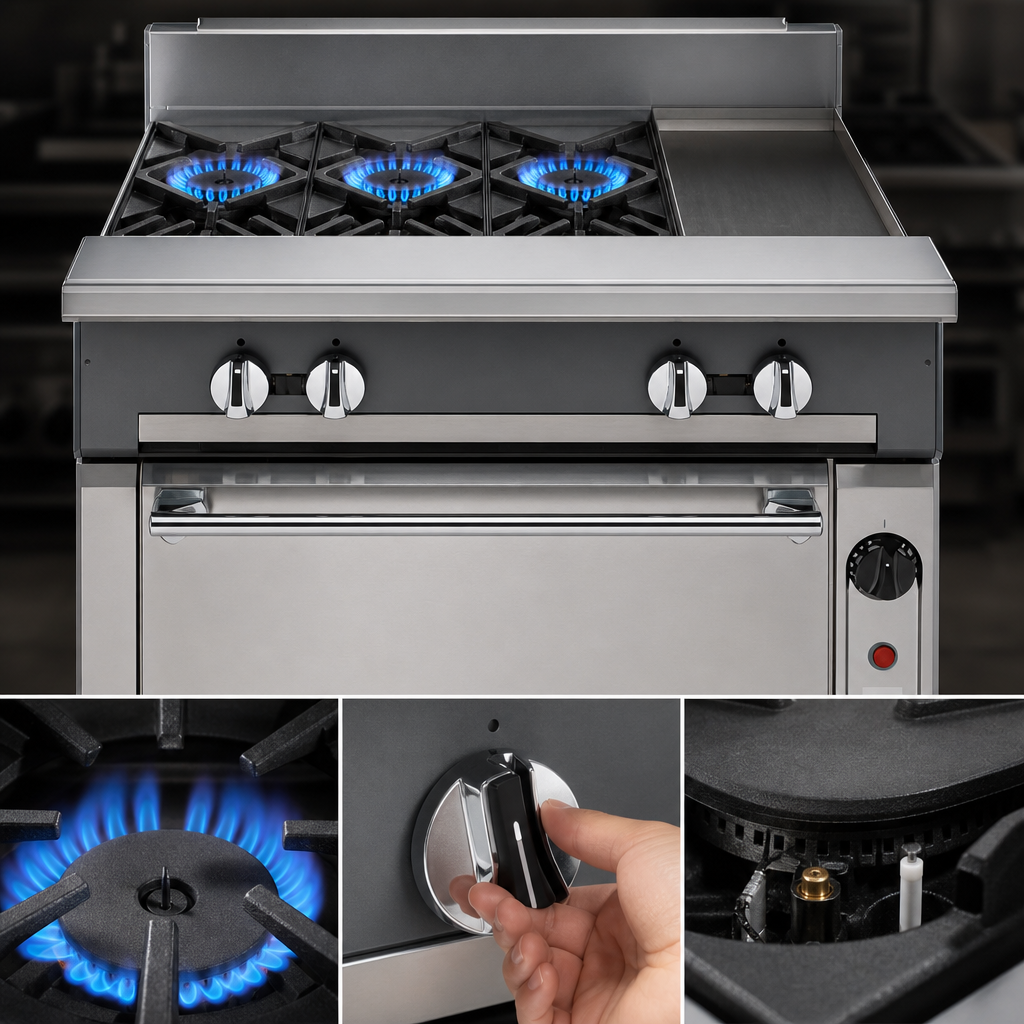

Three 30,000 BTU Burners

Individual pilots and controls for each burner support responsive top-side cooking.

Convection Oven Base

32,000 BTU convection oven with porcelain bottom, sides, and interior door panel; includes one rack and three rack positions.

Stainless Steel Heavy-Duty Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back for commercial durability.

115V Convection Blower Motor

Single-phase blower motor draws 4 amps and includes a 9-foot cord and plug.

Counterweighted Oven Door

Heavy-duty oven door with counterweight hinges for smoother operation and improved durability.

Integrated Splash Protection

Includes a 4-inch high side splash and 4-inch stainless steel stub riser.

6-Inch Adjustable Stainless Steel Legs

Adjustable legs help level the range and support floor installation.

Extra Deep Crumb Tray

Helps simplify cleanup by collecting crumbs and debris during service.

Type Heavy Duty Gas Range
Style Manual Griddle With Convection Oven
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain
BTU 122,000 BTU
Voltage 115 Volts
Amps 4 Amps
Phase 1-Phase
Cord Length 9 Feet
Temperature Range 175°F to 550°F
Gas Connection Size 1 1/4 Inches
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 41 Inches
Shipping Weight 763 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Parts manual PDF Download PDF Sell sheet PDF Download PDF Installation & operation PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a convection oven base with a 32,000 BTU/hr oven burner.
The convection oven uses a 115V, 1-phase blower motor, draws 4 amps, and includes a 9-foot cord and plug.
The oven measures 27 inches wide x 27 inches deep x 13 inches high.
The range has three 30,000 BTU/hr burners plus the convection oven burner for a total input of 122,000 BTU/hr.
It uses a 1 1/4-inch front manifold and a 1 1/4-inch rear gas connection. Installation instructions call for 6.0" W.C. natural gas or 10.0" W.C. propane gas.
The range includes a one-year limited parts and labor warranty.
