Vulcan

Vulcan VGM36B 36-Inch Heavy Duty Manual Gas Griddle Range with Cabinet Base

SKU: VGM36B
$10,525.29
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

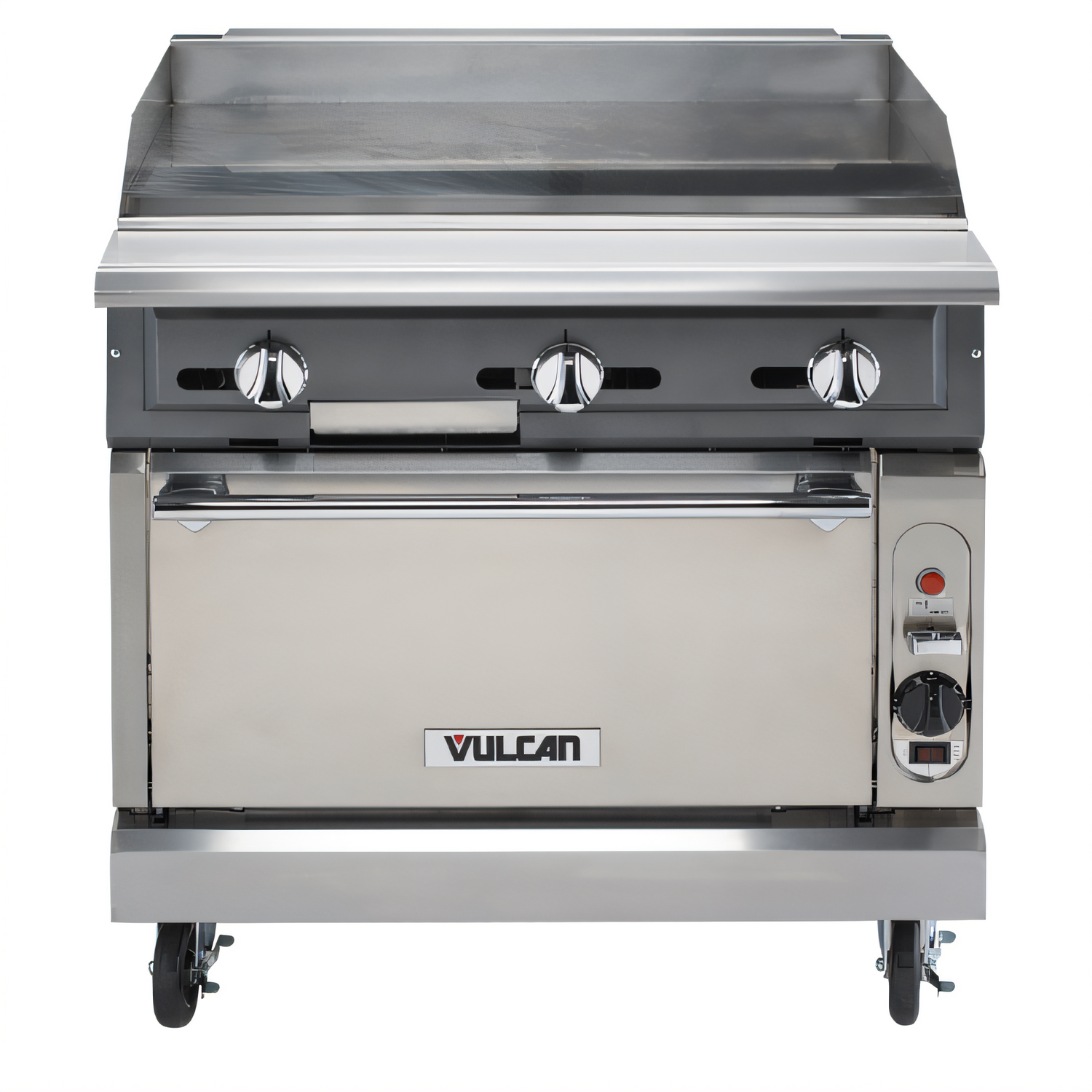

Vulcan VGM36B 36-Inch Heavy Duty Manual Gas Griddle Range with Cabinet Base

3/4-Inch Polished Steel Griddle Plate, Stainless Steel Construction

A durable 36-inch gas griddle range with a thick polished steel cooking surface, 90,000 BTU output, and built-in cabinet storage for busy commercial kitchens.

  • 36-inch wide heavy duty gas griddle range with cabinet base
  • 3/4-inch polished steel griddle plate for dependable heat retention
  • Three 30,000 BTU burners deliver 90,000 BTU/hr total input
  • Manual controls with individual pilots for each burner
  • Stainless steel construction on the front, sides, base, and burner box
  • Cabinet base includes stainless steel doors, universal rack guides, and one removable shelf
  • 6-inch adjustable stainless steel legs support floor installation
  • NSF, CSA Flame, and CSA Star listed for commercial kitchen use

Overall Dimensions:

36.0"W x 36.75"D x 40.5"H

Product Weight:

504.0 lb

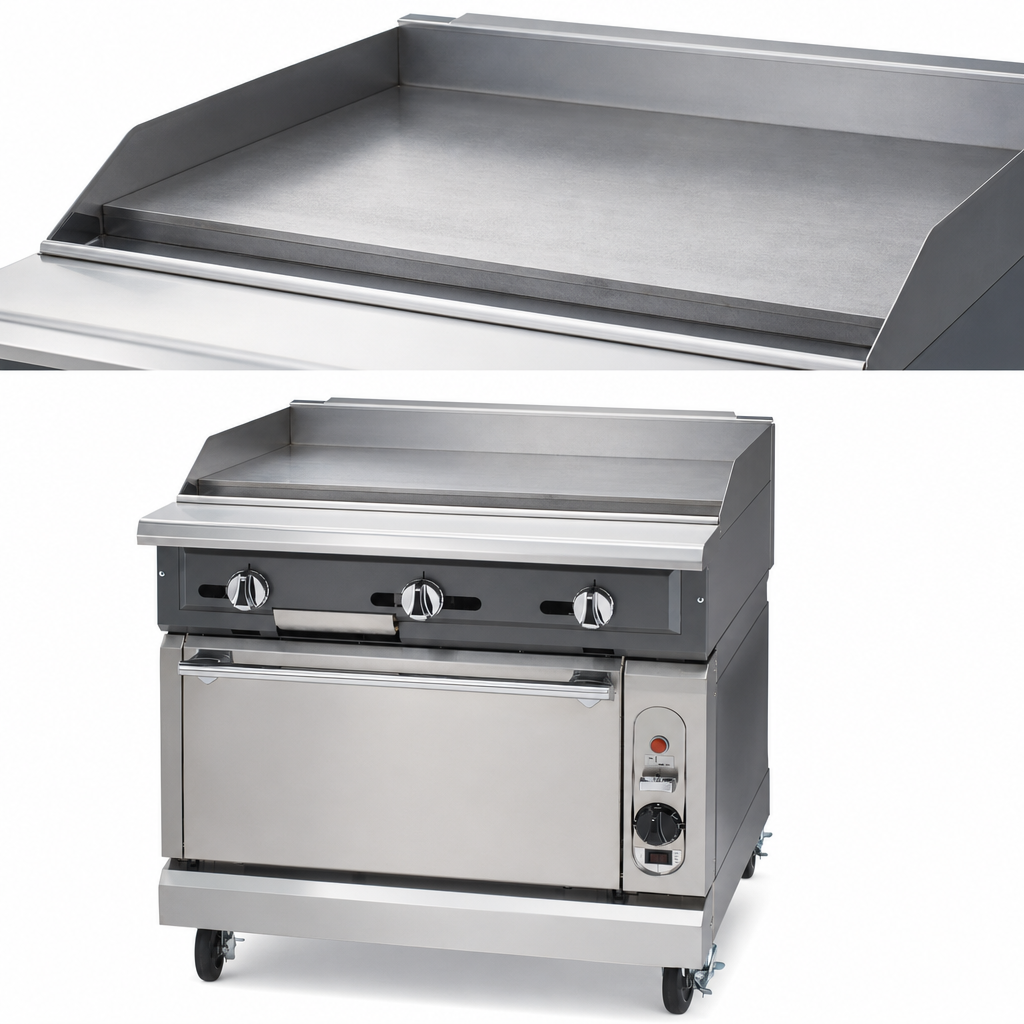

3/4-Inch Polished Steel Griddle Plate

Heavy-duty cooking surface designed for even heat distribution and everyday commercial use.

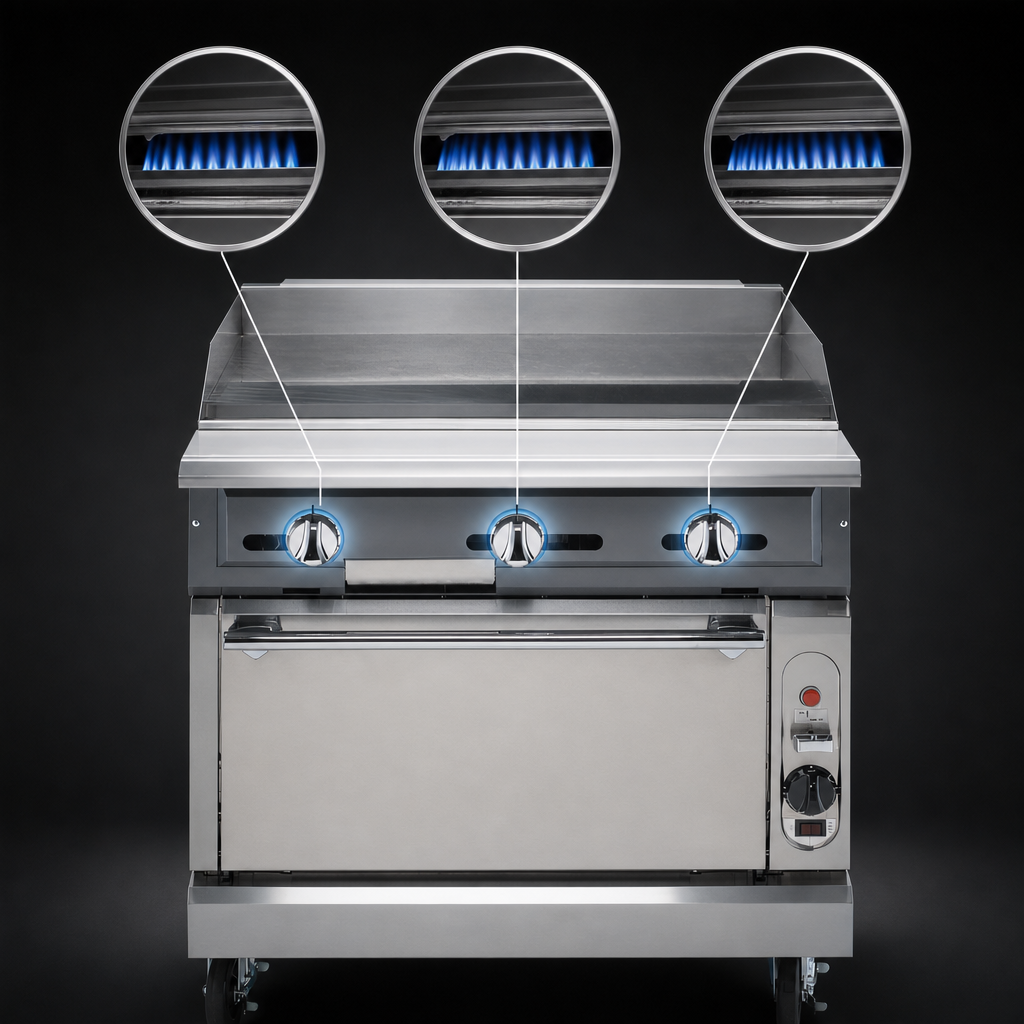

Three 30,000 BTU Burners

Delivers 90,000 BTU/hr total input for high-output griddle performance.

Manual Individual Controls

Each burner has its own pilot and control for independent heat management.

Stainless Steel Construction

Stainless steel front, top front ledge, burner box, sides, base, and stub back for durability.

Cabinet Base Storage

Stainless steel cabinet base doors with universal rack guides and one removable shelf.

6-Inch Adjustable Stainless Steel Legs

Provides leveling flexibility and stable floor placement.

Extra-Deep Crumb Tray

Helps capture debris and makes cleanup easier.

4-Inch Side Splash and Stub Riser

Helps contain splatter and protect adjacent surfaces.

Type Gas Range
Style Manual Griddle
Installation Type Floor Model
Controls Manual
Material Stainless Steel
BTU 90,000 BTU/hr
Gas Connection Size 1 1/4 Inches
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 41 Inches
Shipping Weight 504 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Video PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Sell sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It uses a 3/4-inch polished steel griddle plate.
The range uses three 30,000 BTU burners for a total of 90,000 BTU/hr.
The cabinet base includes stainless steel doors, universal rack guides, and one removable shelf.
It uses a 1 1/4-inch front manifold connection with a 1 1/4-inch rear gas connection that is capped.
The installation instructions call for 6.0 inches W.C. on natural gas and 10.0 inches W.C. on propane.
The cutsheet states a one-year limited parts and labor warranty.
