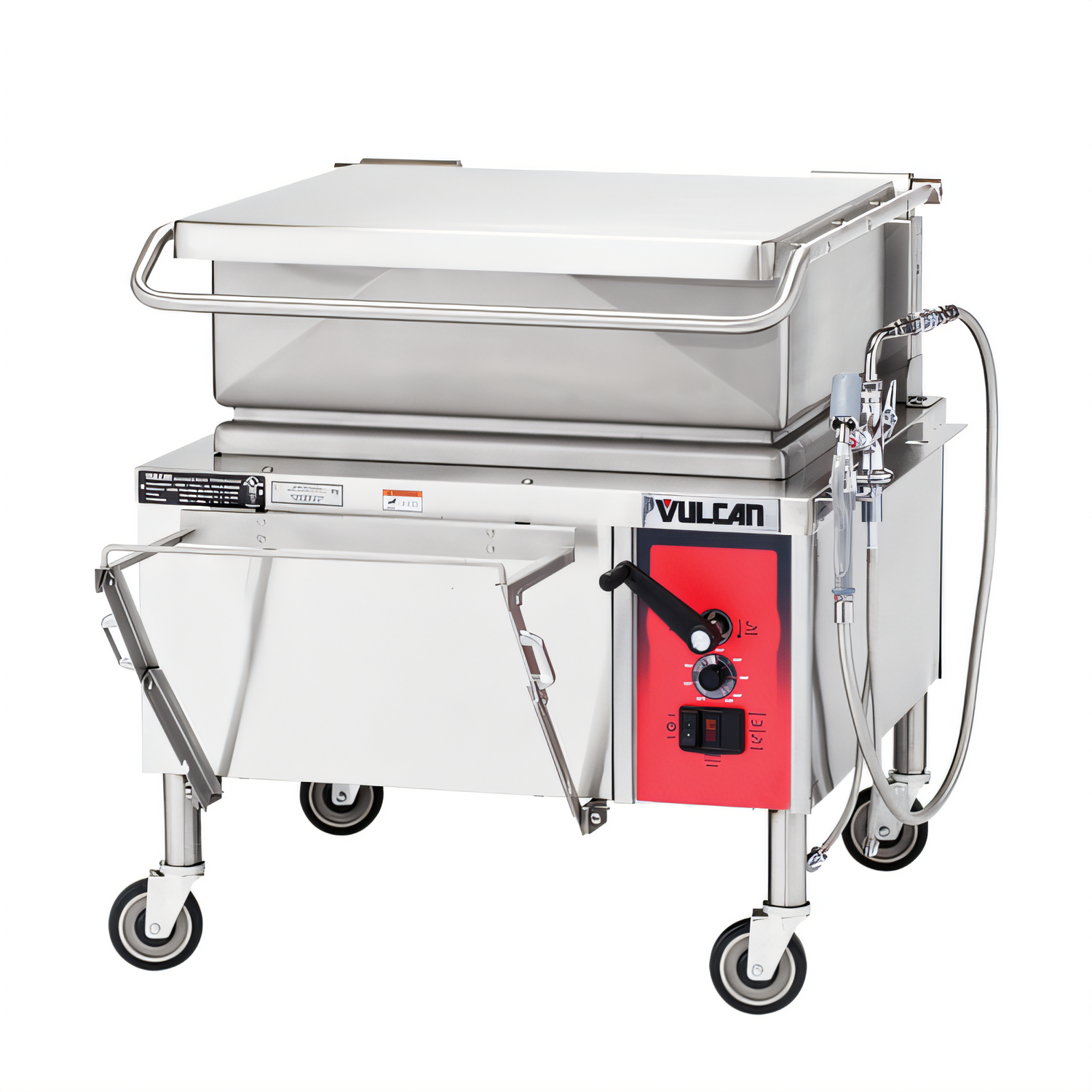

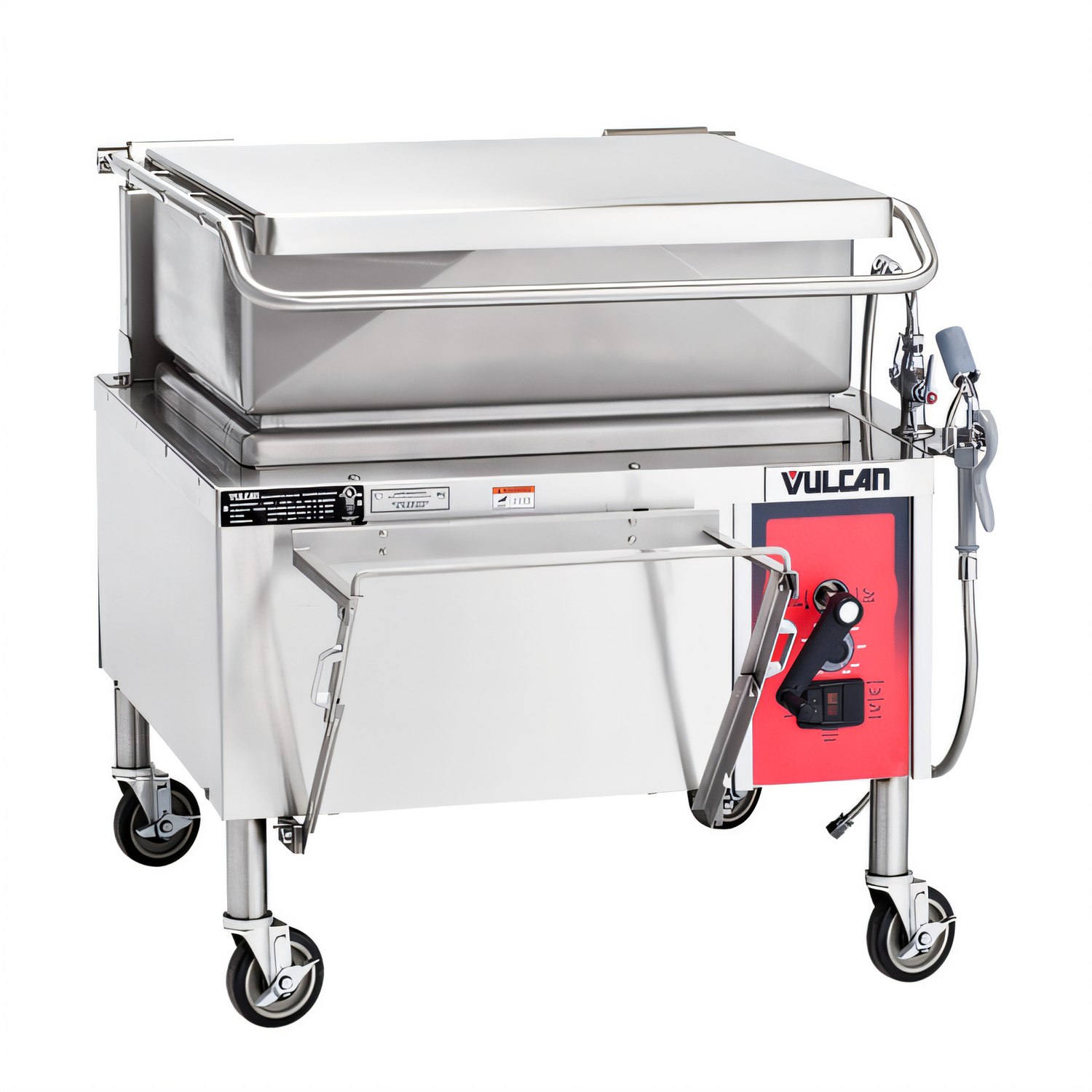

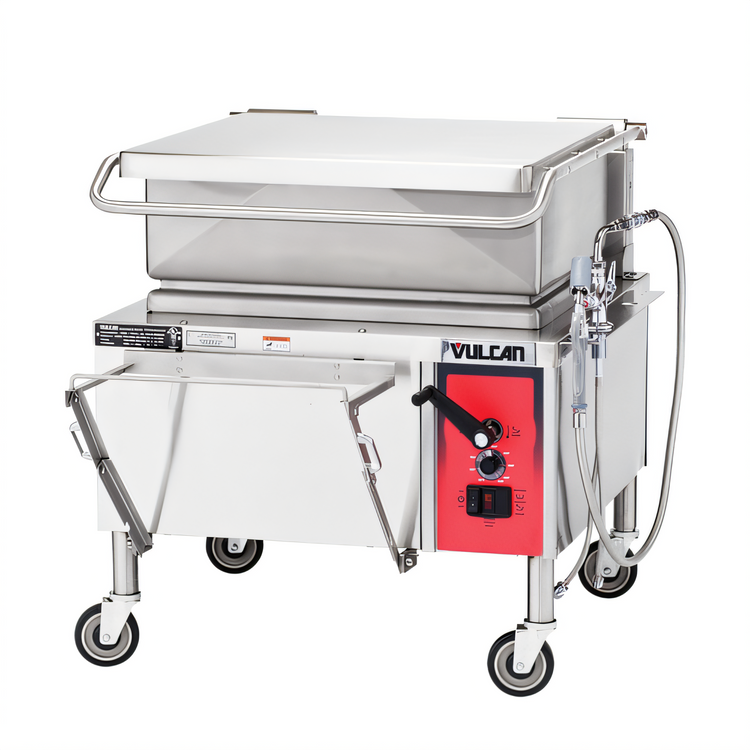

Vulcan VG40 Gas Braising Pan / Tilt Skillet, 40-Gallon, Manual Tilt, Open Base

46-Inch Wide Open Base with 9-Inch Deep Stainless Steel Pan

Built for high-volume kitchen production, this 40-gallon gas braising pan delivers manual tilt control, durable stainless steel construction, and easy-pour features for efficient batch cooking.

  • 40-gallon capacity supports large-batch braising, sautéing, simmering, and holding.
  • Manual tilt design helps operators pour and empty product with control.
  • 9-inch-deep stainless steel pan includes gallon markings, a pouring lip, and a removable strainer.
  • Spring assist cover with drip edge helps manage condensation and reduce mess.
  • Solid state controls and electric ignition support straightforward operation.
  • Open base with 12-inch stainless steel legs and adjustable flanged feet provides stable floor-mounted support.

Overall Dimensions:

46.0"W x 35.5"D x 40.5"H

Product Weight:

760.0 lb

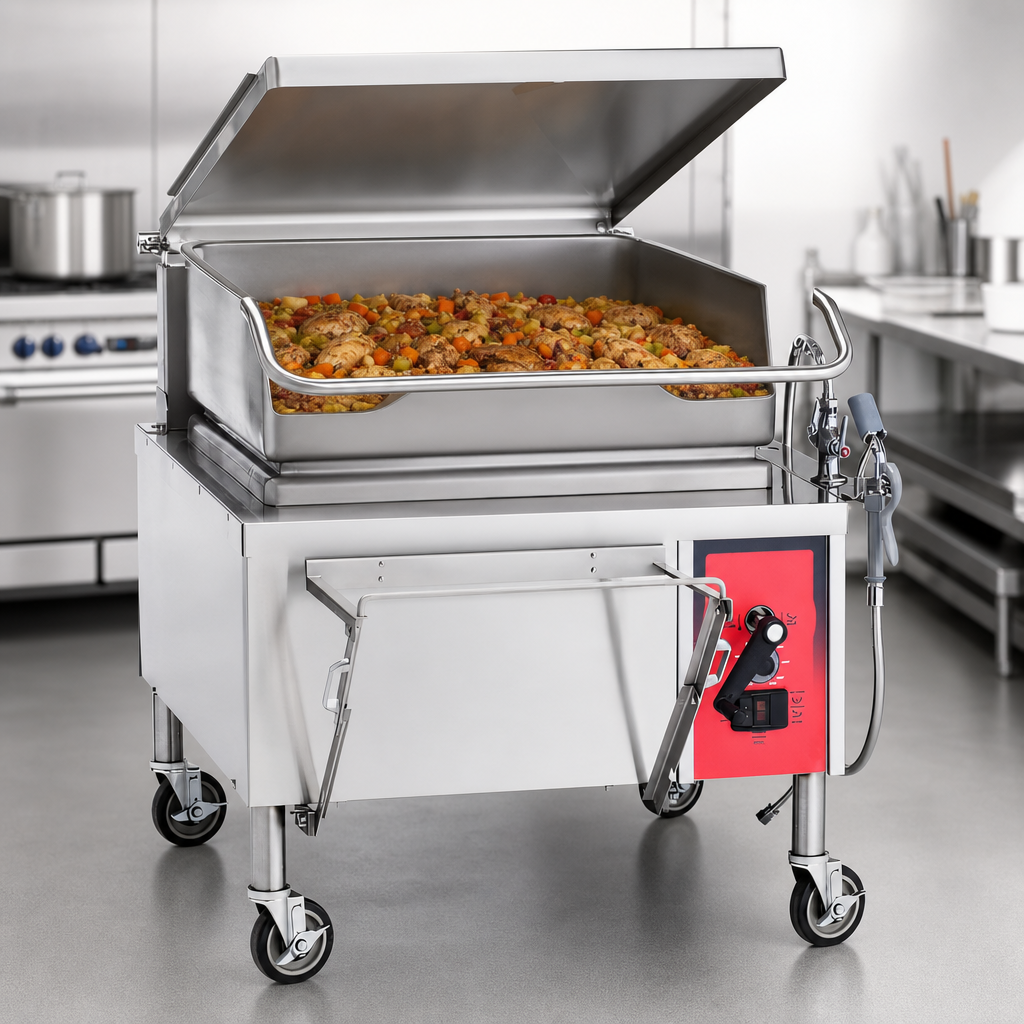

40-Gallon Capacity

High-capacity pan is suited for large-volume commercial kitchen production.

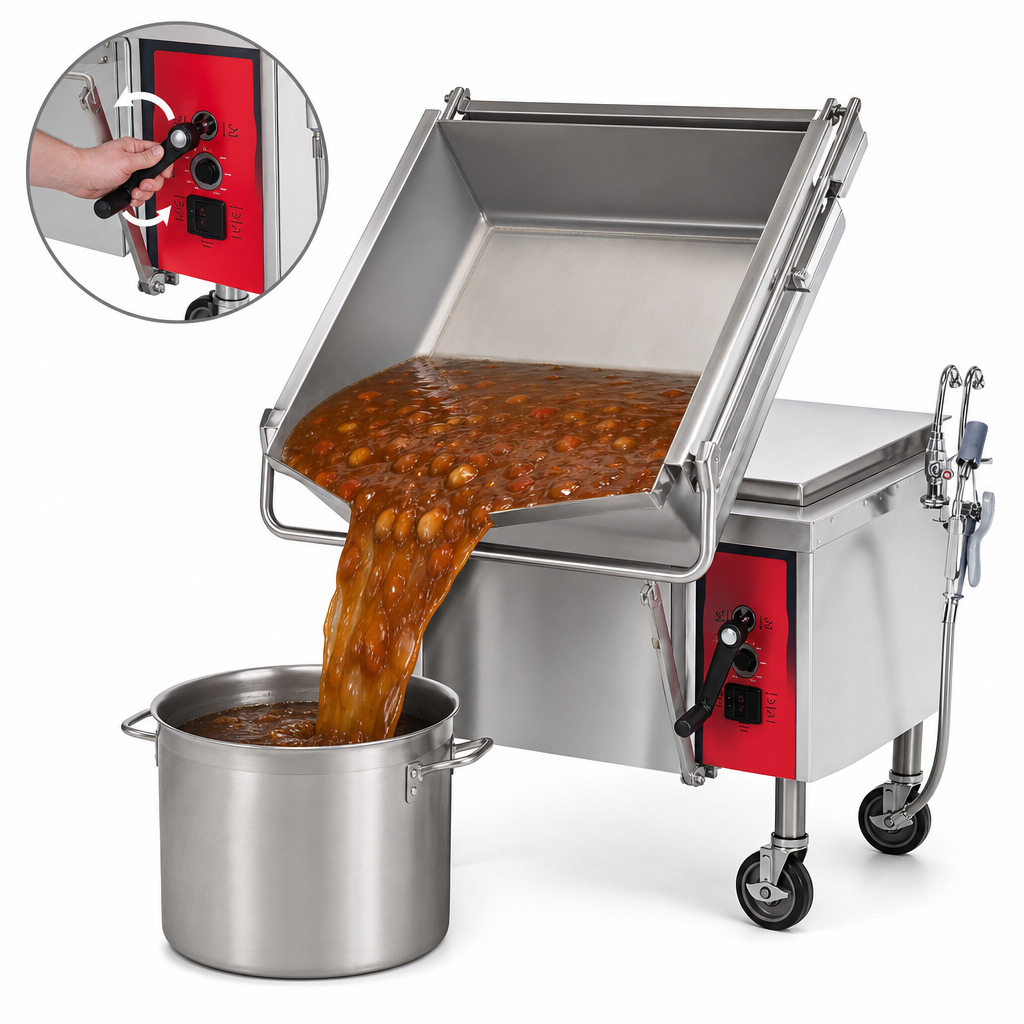

Manual Tilt Mechanism

Allows controlled pouring and emptying without powered tilt components.

Stainless Steel Pan

9-inch-deep pan includes gallon markings for easier portion and volume tracking.

Pouring Lip and Removable Strainer

Helps direct liquid flow and supports cleaner draining during service.

Spring Assist Cover with Drip Edge

Supports smoother cover movement and helps contain condensation runoff.

Solid State Controls with Electric Ignition

Provides straightforward operation and dependable start-up.

Open Base with Adjustable Flanged Feet

46-inch-wide open frame base sits on 12-inch stainless steel legs for stable floor installation.

Included L Faucet Bracket

Factory-included bracket supports faucet attachment.

Capacity 40 Gallons
BTU 120,000 BTU
Controls Solid State
Installation Type Floor Model
Style Open Base
Type Braising Pan
Material Stainless Steel
Shipping Width 46 Inches
Shipping Depth 36 Inches
Shipping Height 41 Inches
Shipping Weight 760 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Parts list PDF Download PDF Owner's manual PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a 40-gallon capacity.
This model uses a manual tilt design.
It uses solid state controls.
The unit includes electric ignition.
The documentation notes an L faucet bracket, a pan holder, and a spring assist cover with drip edge.
CSA Flame, CSA Star, and UL EPH Classified are listed.
