Vulcan

Vulcan 48-Inch Low Profile Countertop Gas Griddle with 1-Inch Polished Steel Plate

SKU: VCRG48-T-QS-PLATINUM
$4,899.35
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Vulcan

Vulcan 48-Inch Low Profile Countertop Gas Griddle with 1-Inch Polished Steel Plate

48 x 20-1/2-Inch Cooking Surface, Natural Gas Standard, LP Convertible

Built for high-volume griddling, this 48-inch countertop unit pairs a thick polished steel plate with responsive thermostat control and a 100,000 BTU gas system.

  • 48" x 20-1/2" cooking surface with a 1" polished steel griddle plate for excellent heat retention.
  • Four 25,000 BTU burners deliver 100,000 BTU total output.
  • Embedded mechanical snap action thermostats every 12" provide responsive temperature control from 200°F to 450°F.
  • Natural gas standard with a supplied LP conversion kit and convertible pressure regulator.
  • Fully welded stainless/aluminized steel chassis with stainless steel front, sides, and front top ledge.
  • 4-1/2 quart grease can, stainless grease trough, and heavy gauge drawer help simplify cleanup.

Overall Dimensions:

48.0"W x 27.0"D x 16.0"H

Product Weight:

408.0 lb

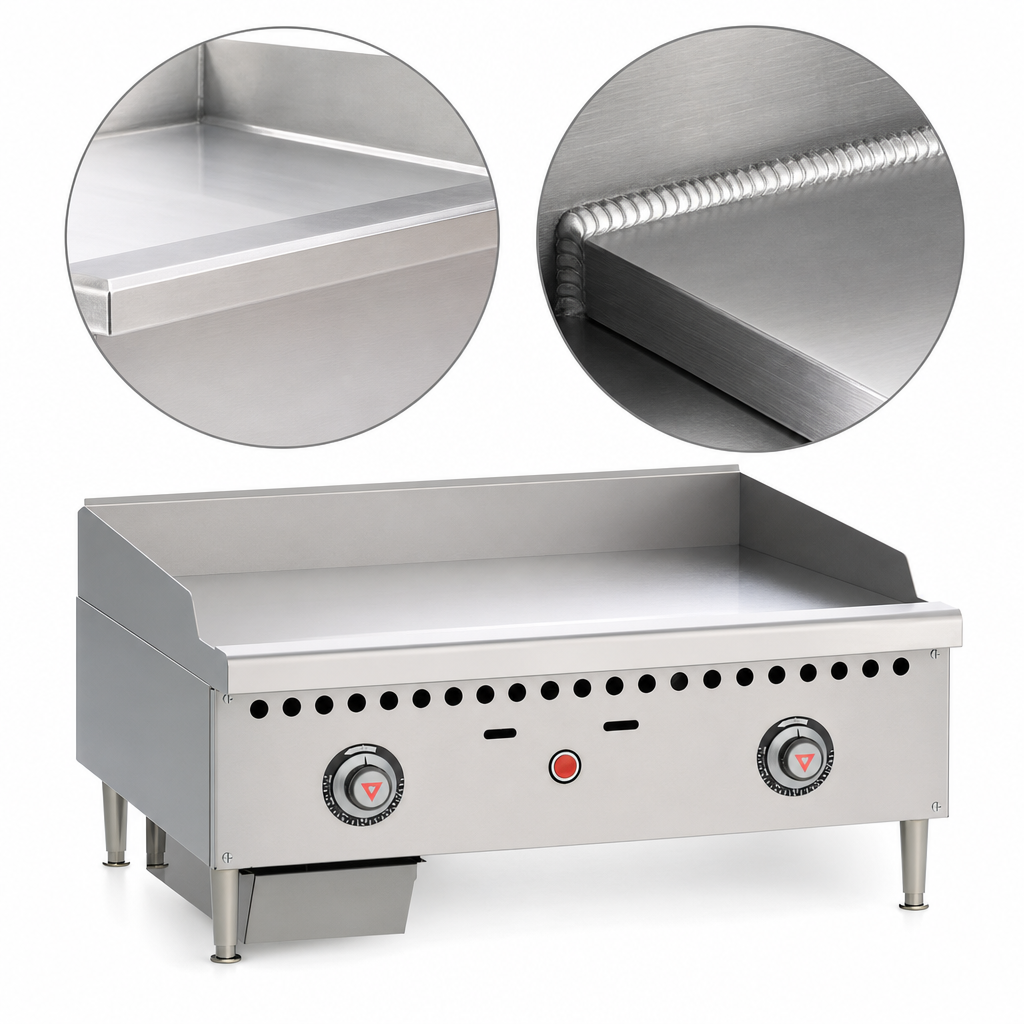

1-Inch Polished Steel Griddle Plate

A thick polished steel cooking surface is welded to the stainless steel back for durability and heat retention.

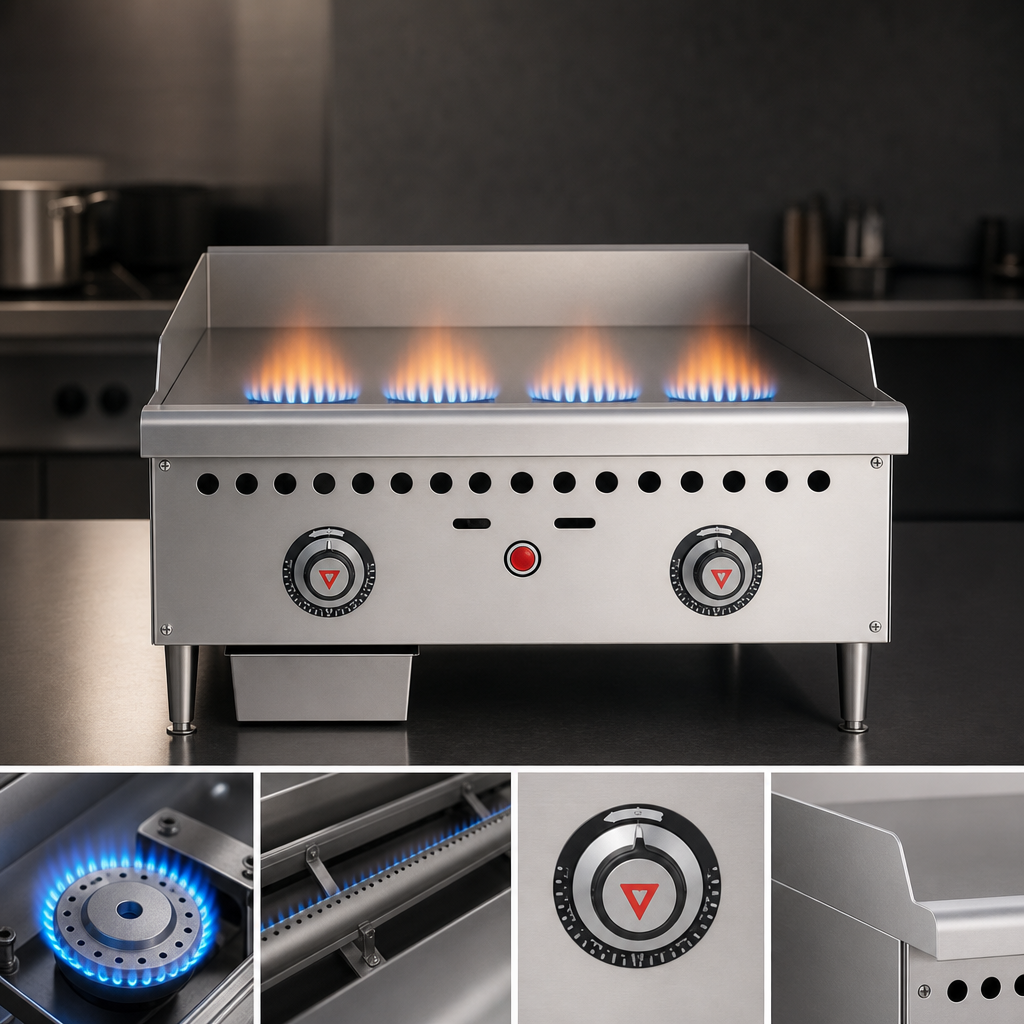

Four High-Output Burners

Four 25,000 BTU/hr burners provide a 100,000 BTU total output across the griddle width.

Mechanical Snap Action Thermostats

An embedded thermostat is positioned every 12 inches for precise, responsive heat control.

Temperature Range

Heat adjusts from 200°F to 450°F for a wide range of griddle applications.

Millivolt Pilot Safety

Pilot safety shuts off gas to the pilot and burners if the pilot flame extinguishes.

Low-Profile Stainless Steel Construction

Stainless steel front, sides, and front top ledge with a fully welded chassis frame for commercial durability.

4-1/2 Quart Grease Can

High-capacity grease management helps support easier cleaning during busy service.

LP Conversion Kit Included

The unit is built standard for natural gas service and includes an LP conversion kit for propane use.

Type Gas Griddle
Style Low Profile
Installation Type Countertop
Material Stainless Steel
Finish Polished Steel
Controls Mechanical Snap Action Thermostat
Cooking Surface Width 48 Inches
Cooking Surface Depth 20.5 Inches
Temperature Range 200°F to 450°F
BTU 100,000 BTU
Gas Type Natural Gas
Gas Connection Size 3/4 Inch NPT
Gas Inlet Pressure 4.0 Inches W.C.
Shipping Width 48 Inches
Shipping Depth 27 Inches
Shipping Height 16 Inches
Shipping Weight 408 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Owner's manual - french PDF Download PDF Owner's manual PDF Download PDF Parts list PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is constructed standard for natural gas service. A propane conversion kit is supplied, and the gas pressure regulator is convertible for LP service.
The temperature adjusts from 200°F to 450°F.
This 48-inch model has four 25,000 BTU/hr burners, with one burner for every 12 inches of griddle width.
The unit requires 6 inches of clearance at both sides and rear adjacent to combustible construction, 4 inches of bottom clearance, and minimum 4-inch legs.
It includes a one-year limited parts and labor warranty.
