Key specifications

BTU
90,000 BTU
Amps
2 Amps
Phase
1-Phase
Dimensions
36.0"W × 33.1"D × 18.8"H
Type
Griddle
Style
Heavy Duty
Spec sheet
Vulcan SKU: VCCG36-AS

Vulcan VCCG36-AS 36-Inch Countertop Gas Griddle

$11,350.00
/each
Estimated to ship in 8–11 business days Free Shipping
Feature
Gas typeRequired
Plate surface
Grease configuration
Gas Connector
Included: Vulcan warranty One-year limited commercial equipment warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,050/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Chassis Material Stainless Steel and Aluminized Steel
Griddle Plate Material Steel
Finish Stainless Steel
Griddle Plate Finish Smooth Steel
Cooking Surface Width 36 inches
Cooking Surface Depth 24 inches
Plate Thickness 1 inch
Burner Count 3
Burner Type Atmospheric
BTU 90,000 BTU
Controls Solid State Thermostat
Temperature Range 200°F to 550°F
Drawer Count 1
Cooking Zone Width 12 inches
Grease Trough Location Front
Leg Type 4 inch Adjustable
Voltage 120 Volts
Amps 2 Amps
Hertz 50/60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Cord Length 6 ft
Energy Efficiency ENERGY STAR
Gas Connection 3/4 inch NPT

Description

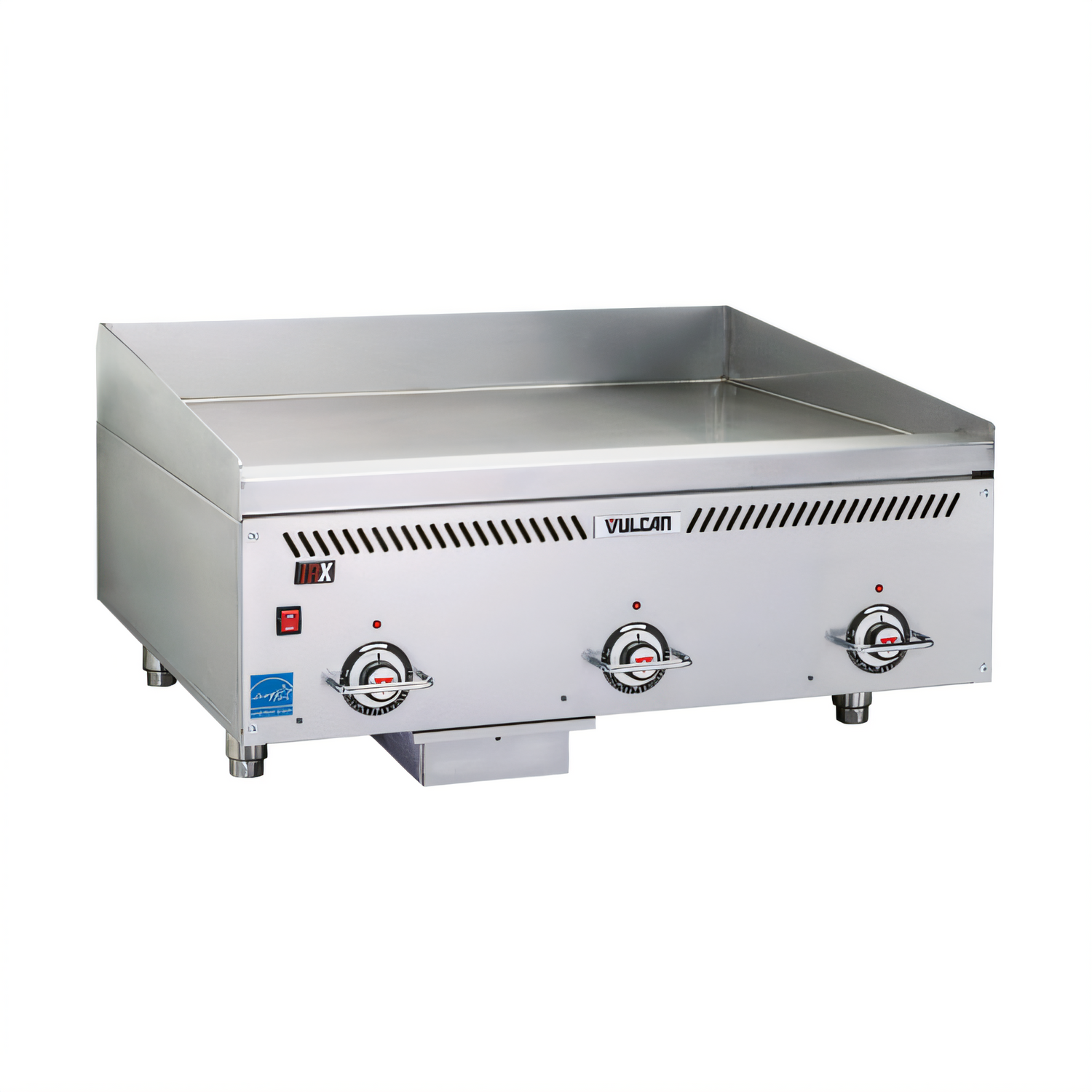

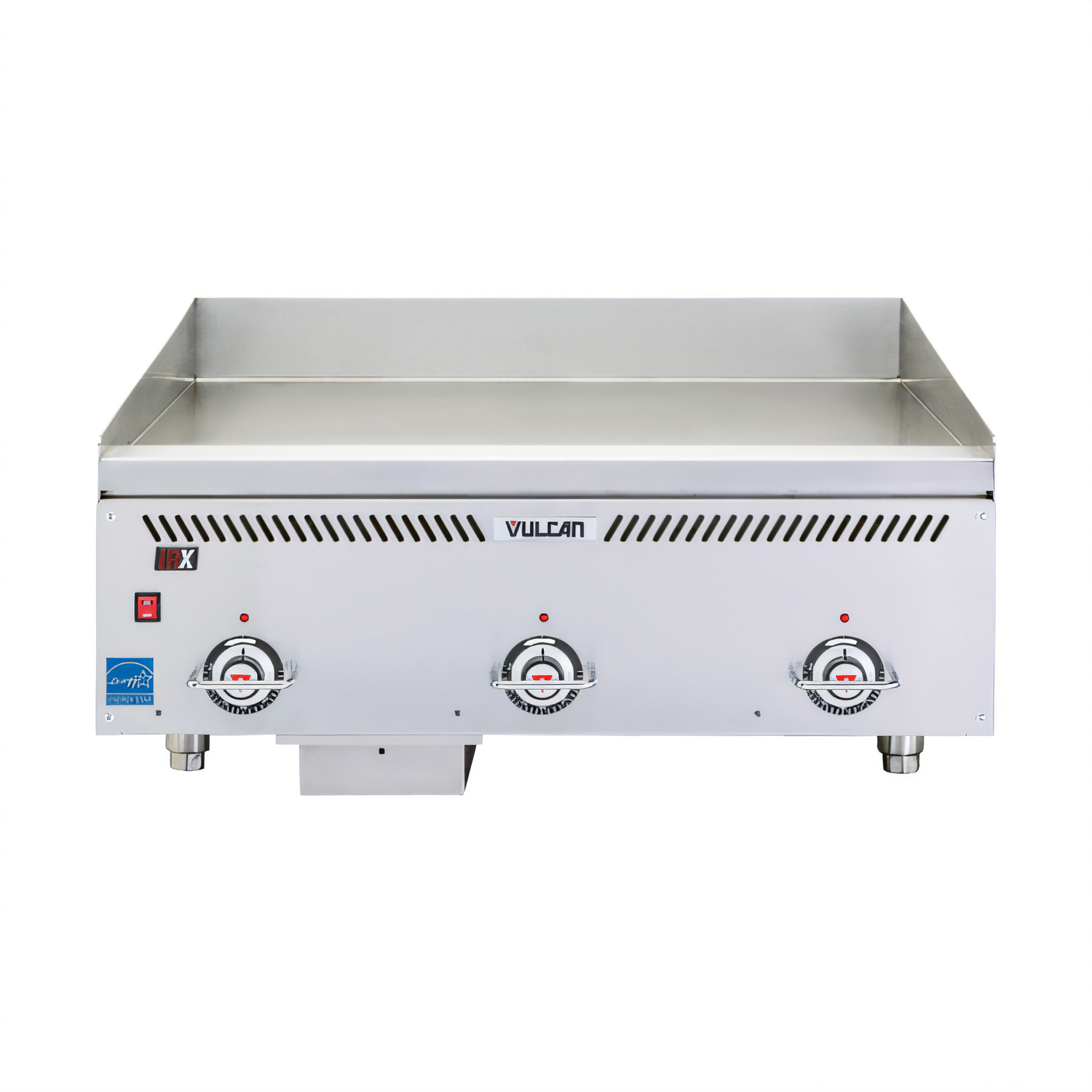

Vulcan VCCG36-AS is a heavy-duty countertop gas griddle with a 36-inch-wide cooking surface, 24-inch cooking depth, and 1-inch-thick steel plate.

It has three atmospheric burners rated at 90,000 BTU, solid-state thermostatic controls for each 12-inch cooking zone, electronic spark ignition with pilot protection, and a front grease trough with one drawer.

  • Stainless steel front, sides, and front top ledge
  • Four-inch back and tapered side splashes
  • Four-inch adjustable legs
  • Six-foot power cord with NEMA 5-15 plug
  • CSA, ENERGY STAR, and NSF certified

Overall Dimensions:

36.0"W x 33.1"D x 18.8"H

Product Weight:

475.0 lb

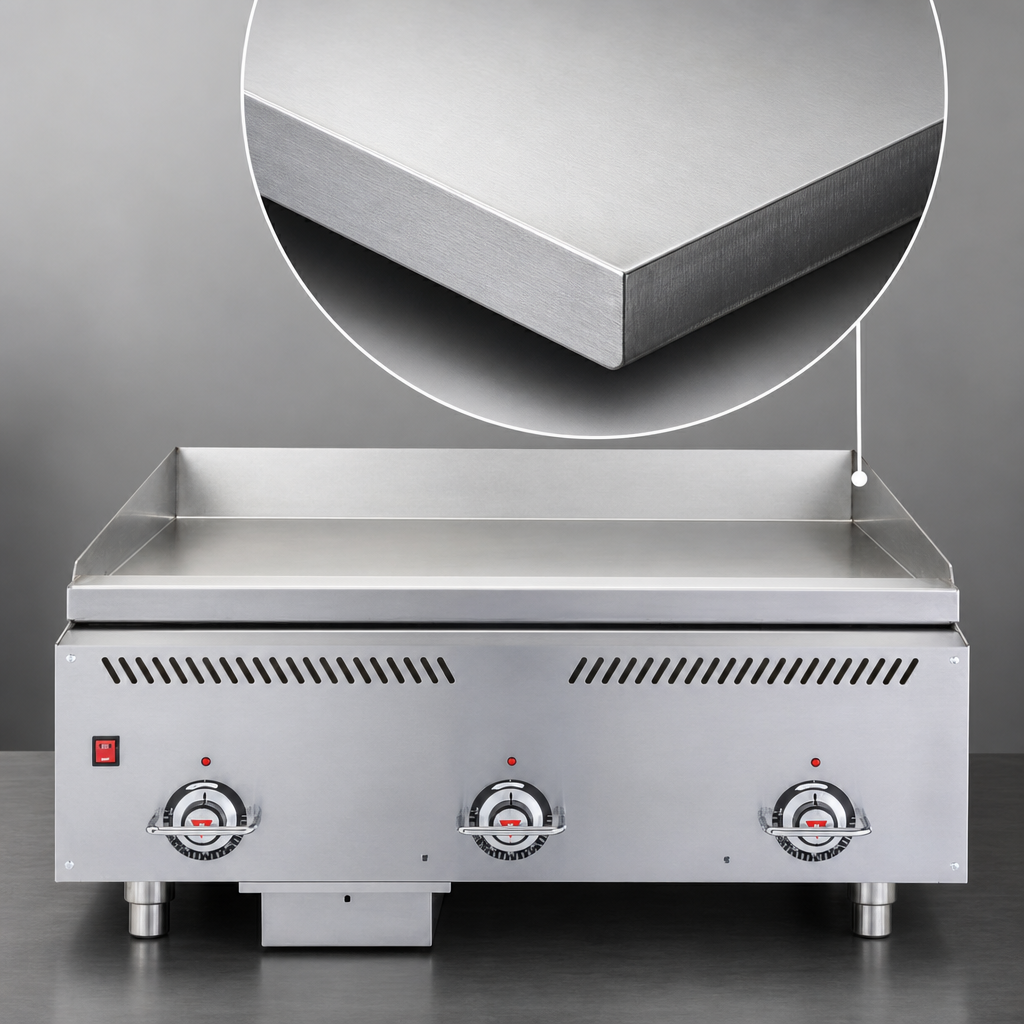

1-Inch Steel Griddle Plate

The griddle has a 1-inch-thick steel plate with a smooth steel finish.

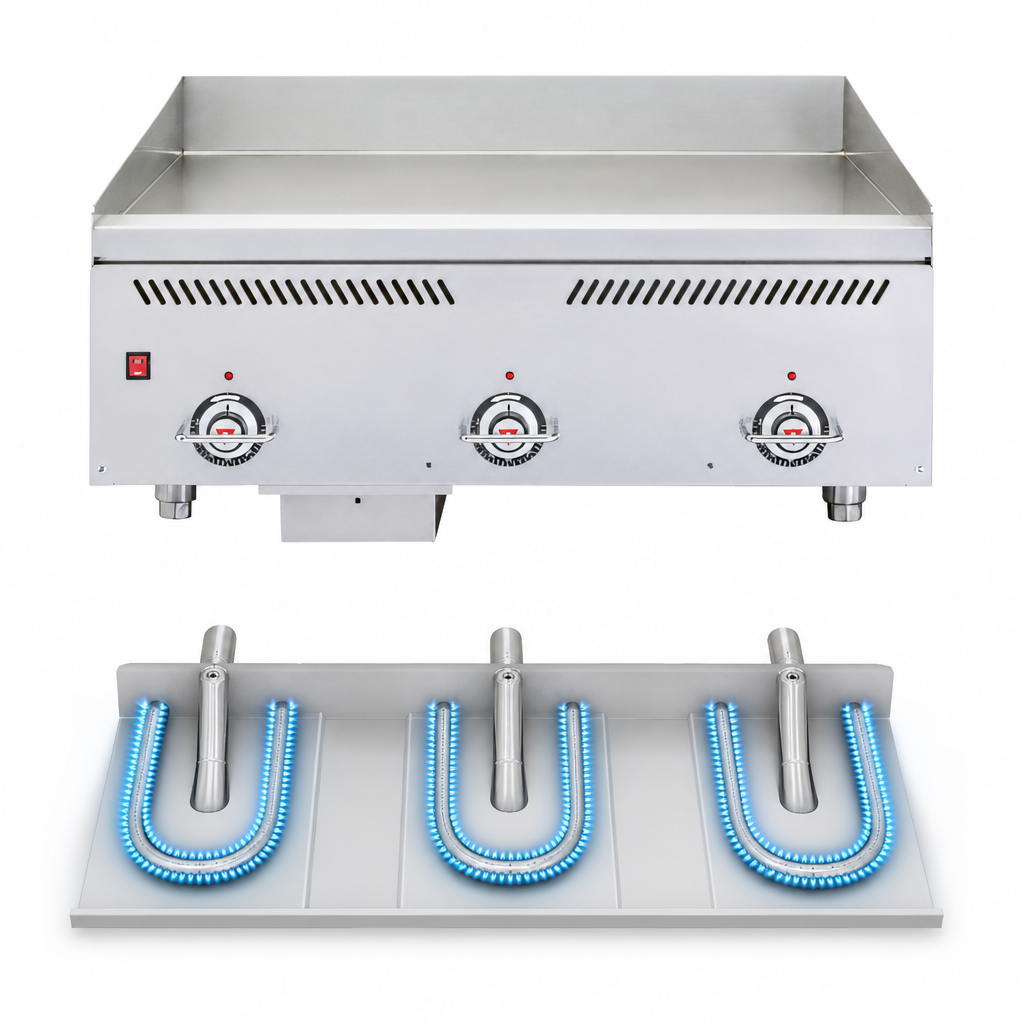

Three Atmospheric Burners

Three atmospheric burners provide a total input of 90,000 BTU.

Independent 12-Inch Cooking Zones

Each 12-inch cooking zone has independent solid-state temperature control and electronic ignition.

Solid-State Thermostatic Controls

Solid-state thermostatic controls regulate each cooking zone.

Electronic Spark Ignition

Electronic spark ignition is included with pilot protection.

Front Grease Management

The unit has a front grease trough and one drawer.

Adjustable Legs

Four-inch adjustable legs are included.

Stainless Steel Exterior Components

The front, sides, and front top ledge are stainless steel.

Energy Efficiency

The exact model is ENERGY STAR certified.

Frequently Asked Questions

The cooking surface is 36 inches wide by 24 inches deep.
The griddle has three atmospheric burners with a total input of 90,000 BTU.
It uses solid-state thermostatic controls for each 12-inch cooking zone.
The steel plate temperature range is 200°F to 550°F.
The unit uses 120 volts, 2 amps, 50/60 Hz, single-phase power with a NEMA 5-15 plug and a 6-foot power cord.
The exact model is certified by CSA, ENERGY STAR, and NSF.
