Vulcan

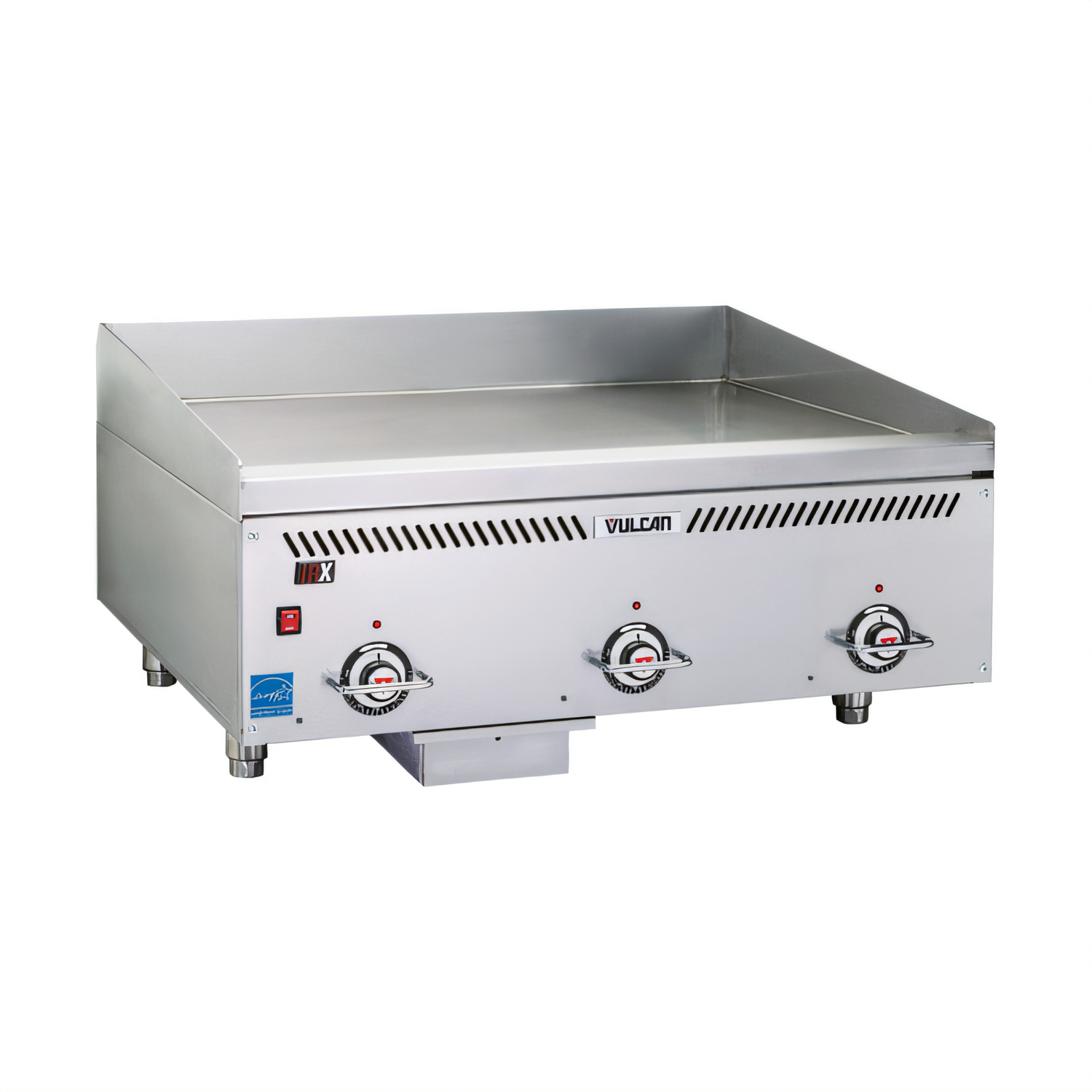

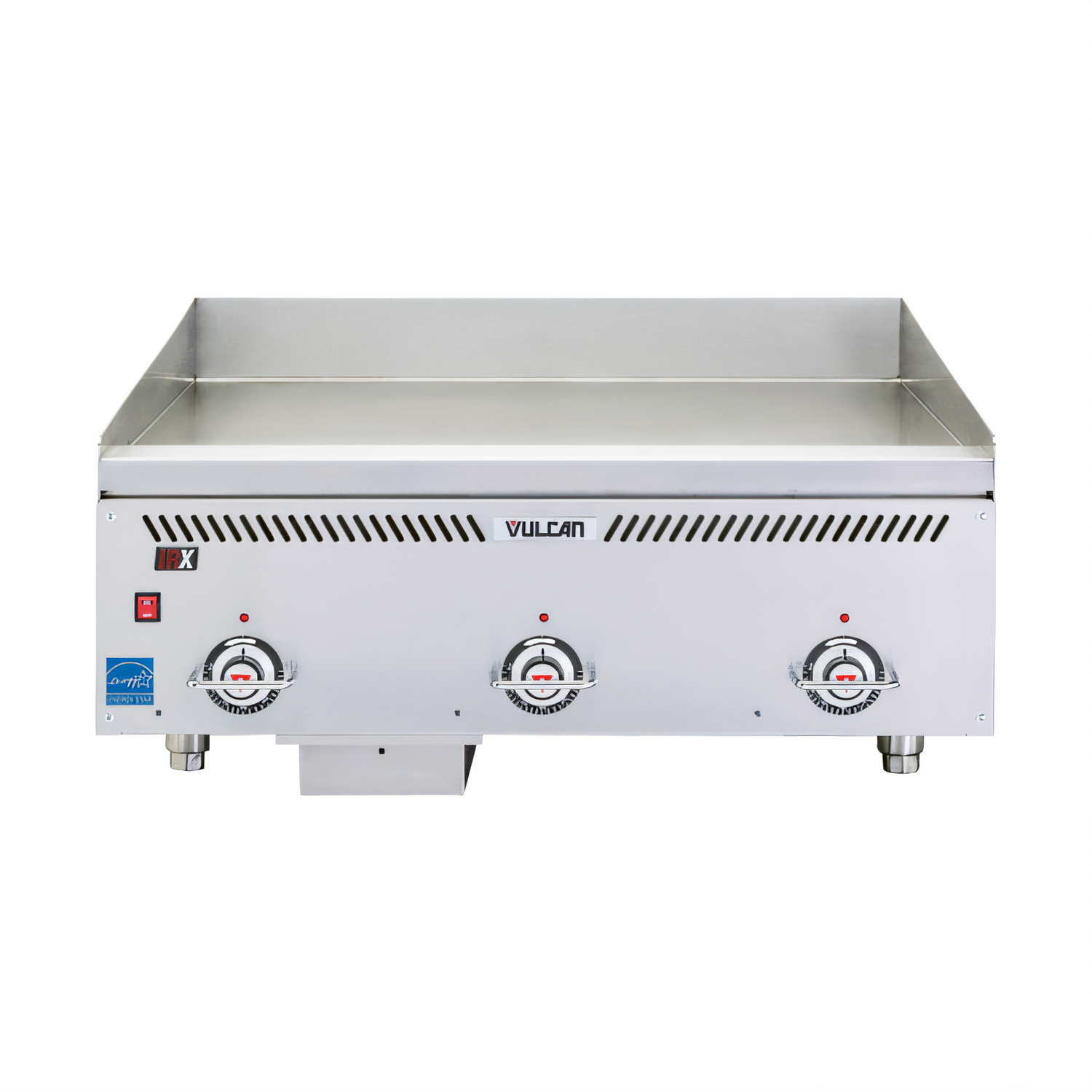

Heavy-Duty 24-Inch Countertop Gas Griddle with 1-Inch Chrome Plate and Infrared Burners

SKU: VCCG24-IR
$13,946.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment Vulcan

Heavy-Duty 24-Inch Countertop Gas Griddle with 1-Inch Chrome Plate and Infrared Burners

48,000 BTU, Stainless Steel Body, 1 Drawer

Built for high-output countertop cooking, this griddle combines infrared burners, a chrome plate, and easy-clean grease management in a compact 24-inch footprint.

  • 24" x 24" chrome-plated cooking surface delivers a durable, easy-to-clean griddling area.
  • IRX infrared burner technology and solid-state thermostats help maintain consistent heat control.
  • 48,000 BTU output supports fast recovery and dependable cooking performance.
  • Stainless steel front, sides, front top ledge, and grease trough add durability and simplify cleanup.
  • 4" back and tapered side splashes help contain grease and food debris.
  • Includes a palmetto brush, scraper, and blade for routine maintenance.
  • Wire knob guards and 4" adjustable legs round out the practical, operator-friendly design.

Overall Dimensions:

24.0"W x 33.1"D x 18.8"H

Product Weight:

380.0 lb

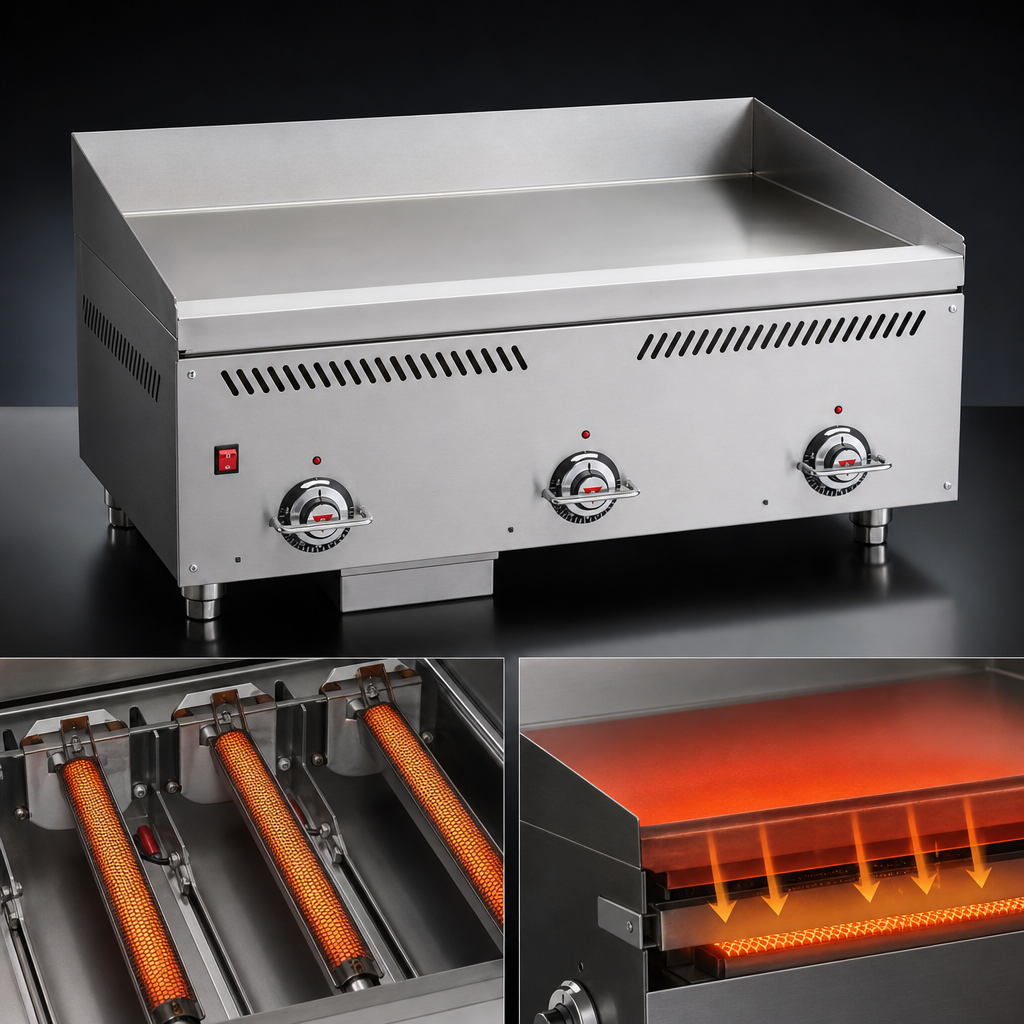

IRX Infrared Burner Technology

Infrared burner system designed to deliver efficient, responsive heat across the cooking surface.

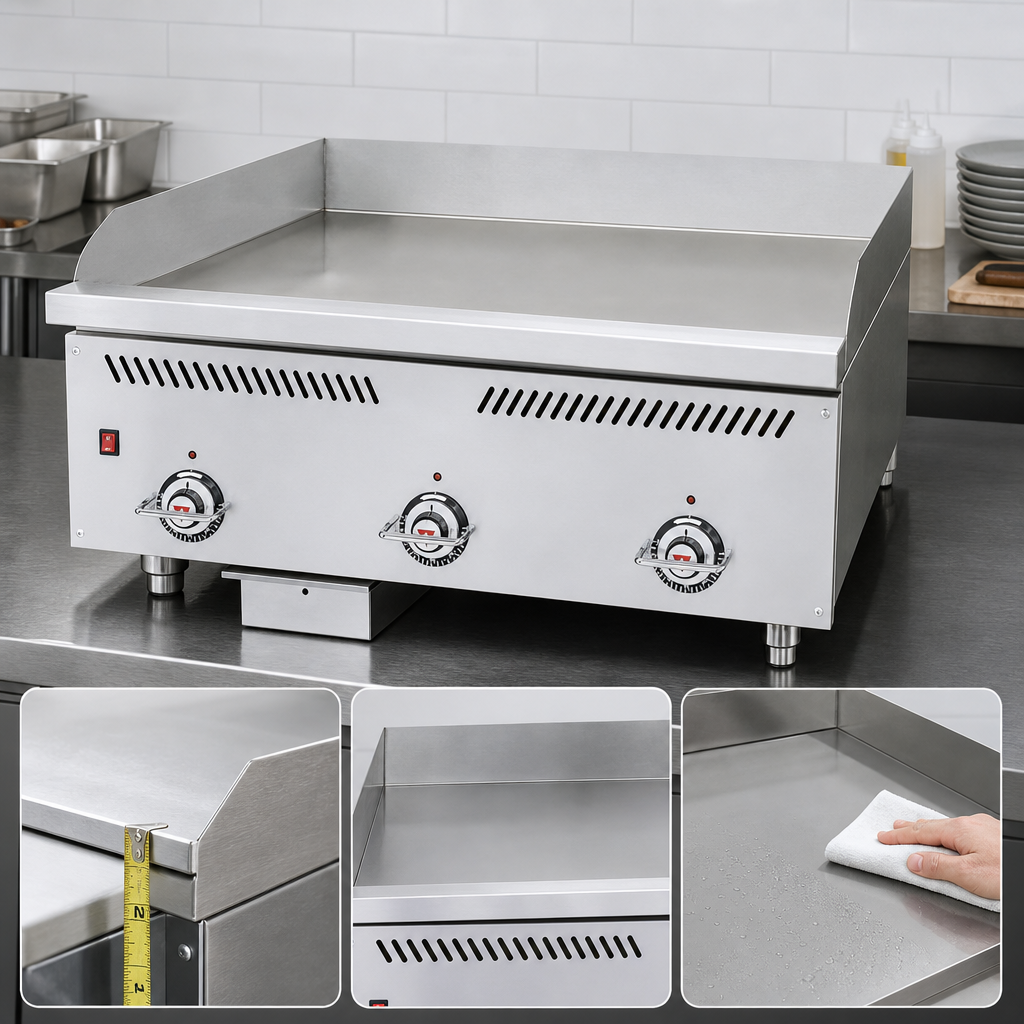

Chrome-Plated Griddle Plate

1-inch thick chrome plate provides a durable cooking surface and easier cleanup.

Solid State Thermostat Control

Thermostatic control helps maintain consistent cooking temperatures across the griddle.

Electronic Spark Ignition

Provides reliable start-up with pilot protection for added operating safety.

Stainless Steel Construction

Stainless steel front and sides support durability in demanding commercial kitchens.

Grease Management Features

Front grease trough and included drawer help collect drippings during operation.

Side and Rear Splashes

4-inch back and tapered side splashes help contain grease and food debris.

Wire Knob Guards

Helps protect control knobs from accidental bumps or damage.

Adjustable Legs

4-inch adjustable legs help level the unit during installation.

Included Cleaning Accessories

Comes with a palmetto brush, scraper, and blade.

Type Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Finish Chrome Plated
Controls Solid State Thermostat
Cooking Surface Width 24 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
BTU 48,000 BTU
Shipping Width 24 Inches
Shipping Depth 34 Inches
Shipping Height 19 Inches
Shipping Weight 380 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of Energy Star Certified
Energy Star Certified
Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Parts manual PDF Download PDF Service manual PDF Download PDF Owner's manual PDF Download PDF Owner's manual - french PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The cooking surface measures 24 inches wide by 24 inches deep.
It uses IRX infrared burner technology.
It features electronic spark ignition with pilot protection.
The griddle includes a palmetto brush, scraper, and blade.
Yes, it includes a front grease trough and a drawer.
Yes, it includes 4-inch adjustable legs.
