Key specifications

BTU
188,500 BTU
Dimensions
72.0"W × 27.25"D × 14.75"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Grate Material
Cast Iron
Spec sheet
Vulcan SKU: VCCB72

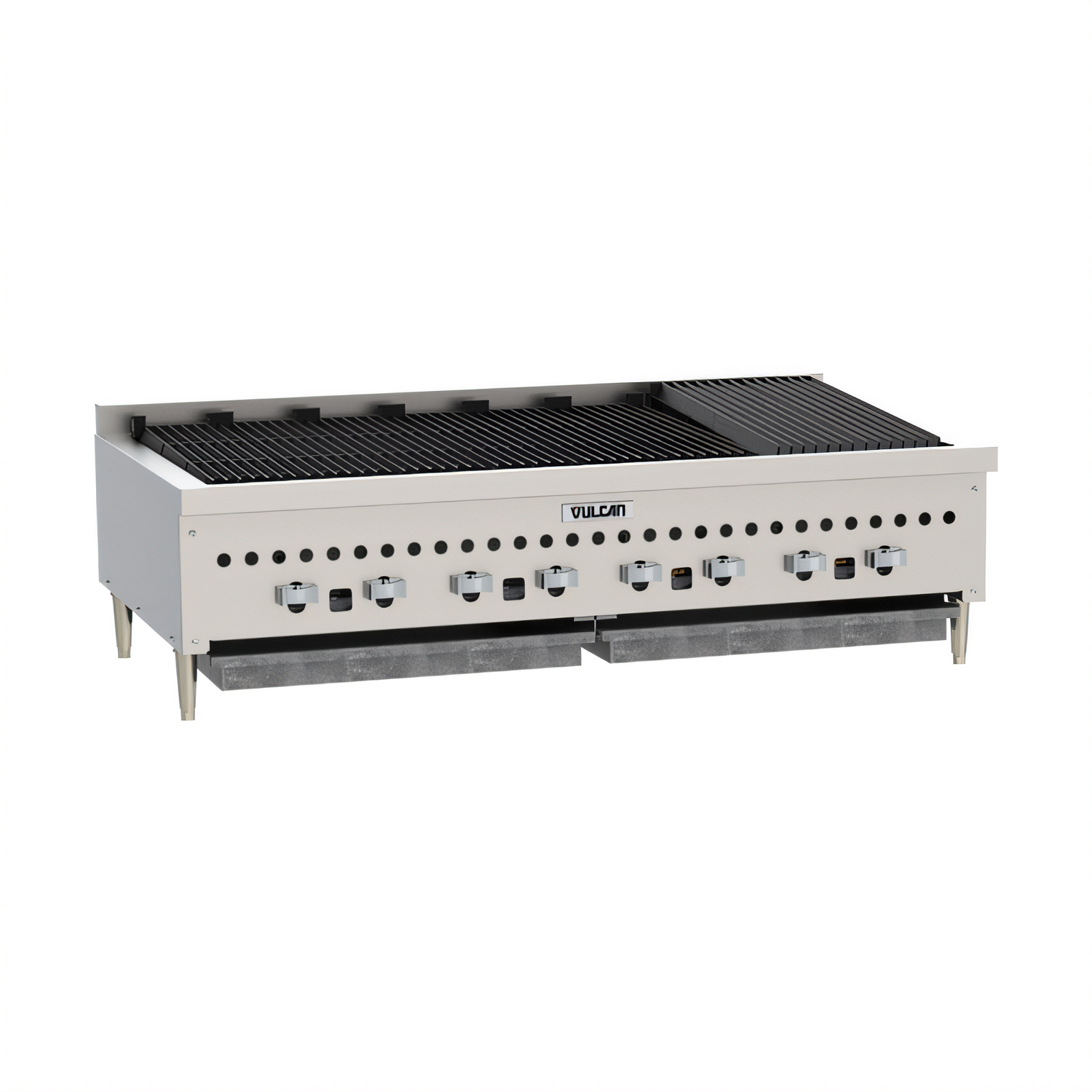

Vulcan VCCB72 72-Inch Countertop Radiant Charbroiler

$16,378.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeRequired
Plate Rails
Stands
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,515/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Grate Material Cast Iron
Burner Material Cast Iron
Size 72 Inches
Broiling Area 66 3/8 x 20 1/2 Inches
Burner Count 13
Burner Output 14,500 BTU Each
BTU 188,500 BTU
Heating Source Radiant
Controls Infinite Heat Controls
Working Height 13 Inches
Gas Connection 3/4 Inch Rear

Description

The Vulcan VCCB72 is a 72-inch countertop gas charbroiler with radiant heating, 13 cast-iron burners, and a total input of 188,500 BTU.

  • Infinite heat controls provide one control valve for each burner.
  • Reversible cast-iron grates support level broiling or self-cleaning.
  • Stainless steel construction includes the front, sides, top trim, backsplash, and grease trough.
  • Full-width front grease drawers collect cooking grease, while 4-inch adjustable legs support leveling.

Overall Dimensions:

72.0"W x 27.25"D x 14.75"H

Product Weight:

720.0 lb

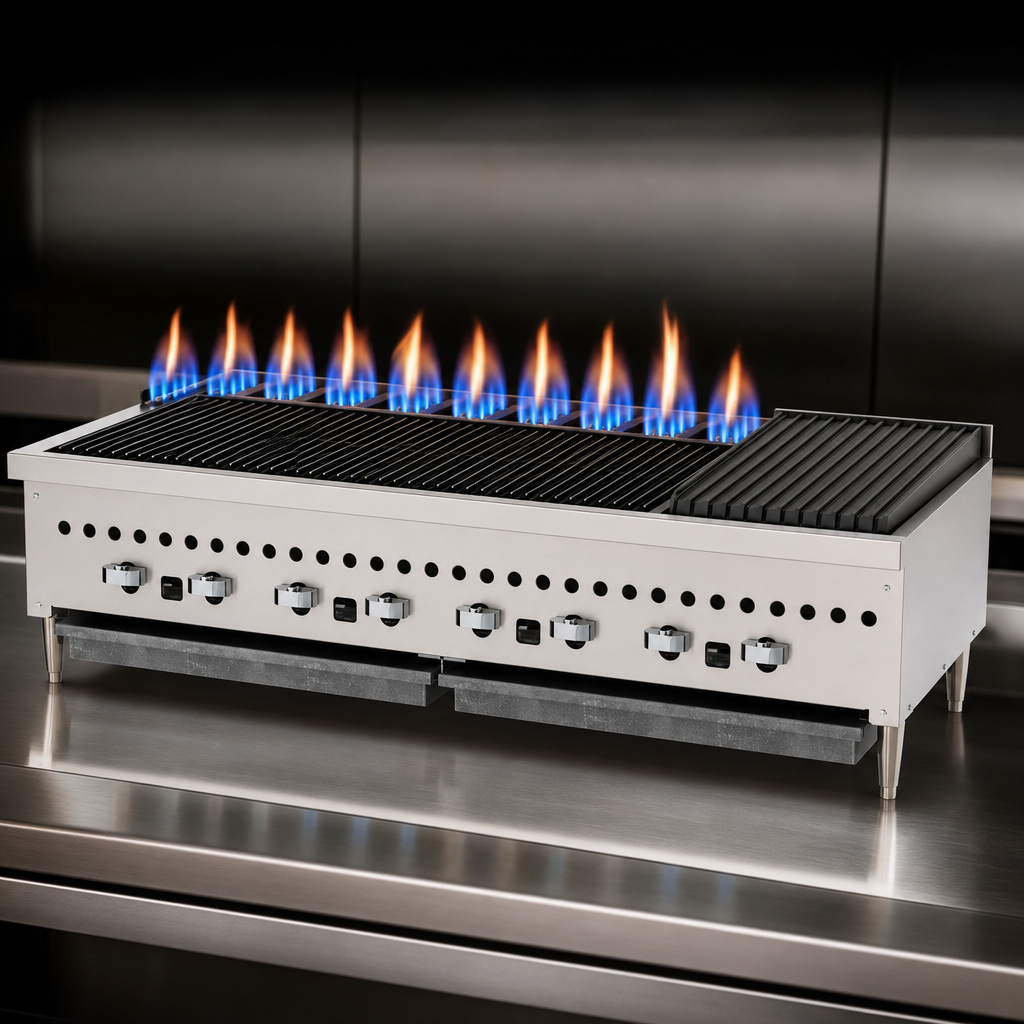

Radiant Gas Heating

The charbroiler uses radiant heating with 13 cast-iron burners.

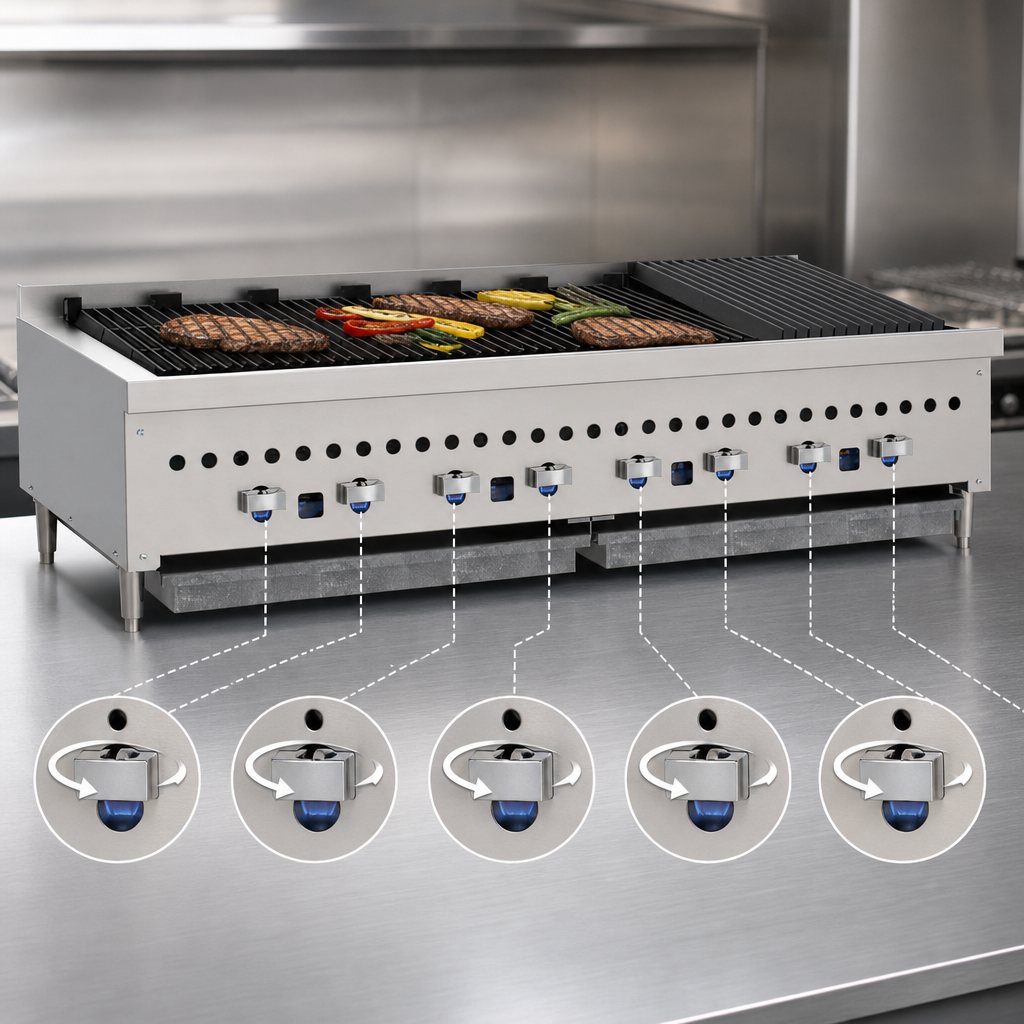

Infinite Heat Controls

One infinite heat control valve is provided for each burner.

Reversible Cast-Iron Grates

The 5 1/4-inch-wide grates are reversible for level broiling or self-cleaning.

Stainless Steel Components

The front, sides, top trim, backsplash, and grease trough are stainless steel.

Grease Collection

Full-width front grease drawers and a grease trough collect cooking grease.

Adjustable Legs

The unit includes 4-inch adjustable legs.

Standing Pilot Ignition

The charbroiler uses a standing pilot ignition system.

Frequently Asked Questions

It has 13 cast-iron burners, each rated at 14,500 BTU, for a total input of 188,500 BTU.
Yes. It has one infinite heat control valve for each burner.
Yes. The cast-iron grates are reversible for level broiling or self-cleaning.
The overall dimensions are 72 inches wide by 27.25 inches deep by 14.75 inches high. The working height is 13 inches.
The front, sides, top trim, backsplash, and grease trough are stainless steel, while the burners and grates are cast iron.
