Key specifications

BTU
159,500 BTU
Dimensions
60.0"W × 27.25"D × 14.75"H
Type
Charbroiler
Style
Low Profile
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Vulcan SKU: VCCB60

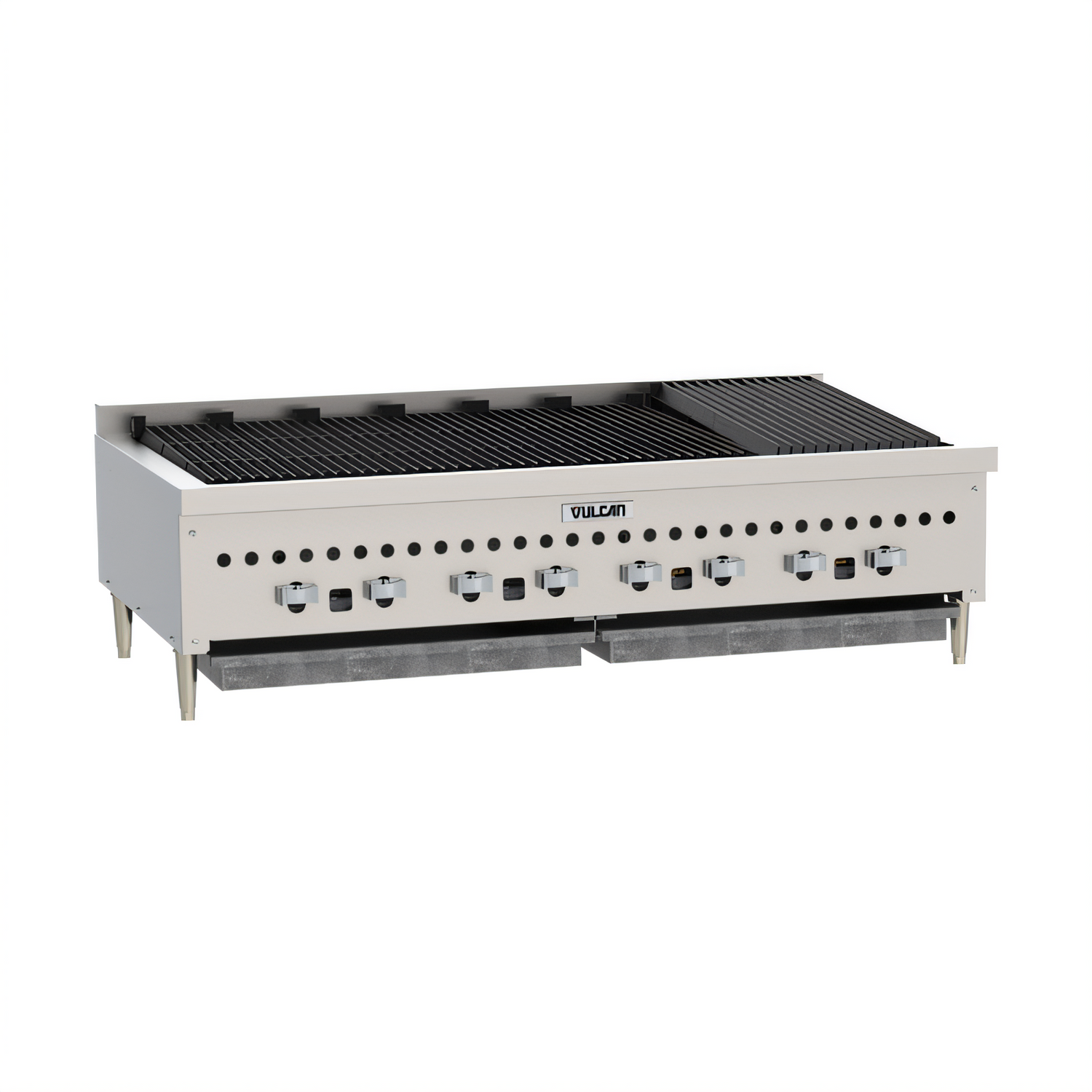

Vulcan VCCB60 60-Inch Gas Countertop Charbroiler, 11 Burners

$13,047.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeRequired
Plate rails
Stands
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,207/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Style Low Profile
Installation Type Countertop
Material Stainless Steel
Heating Source Radiant
Burner Count 11
BTU 159,500 BTU
Burner Output 14,500 BTU Per Burner
Controls Infinite Heat Controls
Grate Material Cast Iron
Grate Type Reversible
Broiling Area 56 3/8 x 20 1/2 Inches
Working Height 13 Inches
Leg Height 4 Inches
Ignition Type Standing Pilot
Gas Connection Size 3/4 Inch Rear
Grease Collection Full Width Front Drawers

Description

The Vulcan VCCB60 is a low-profile countertop gas charbroiler with 11 cast iron burners, infinite heat controls, and reversible cast iron grates.

  • Each burner provides 14,500 BTU/hr. for a total input of 159,500 BTU/hr.
  • Stainless steel front, sides, top trim, backsplash, and grease trough.
  • Full-width front grease collection drawers and an underburner deflector system.
  • Includes standing pilot ignition and 4-inch adjustable legs.

Overall Dimensions:

60.0"W x 27.25"D x 14.75"H

Product Weight:

600.0 lb

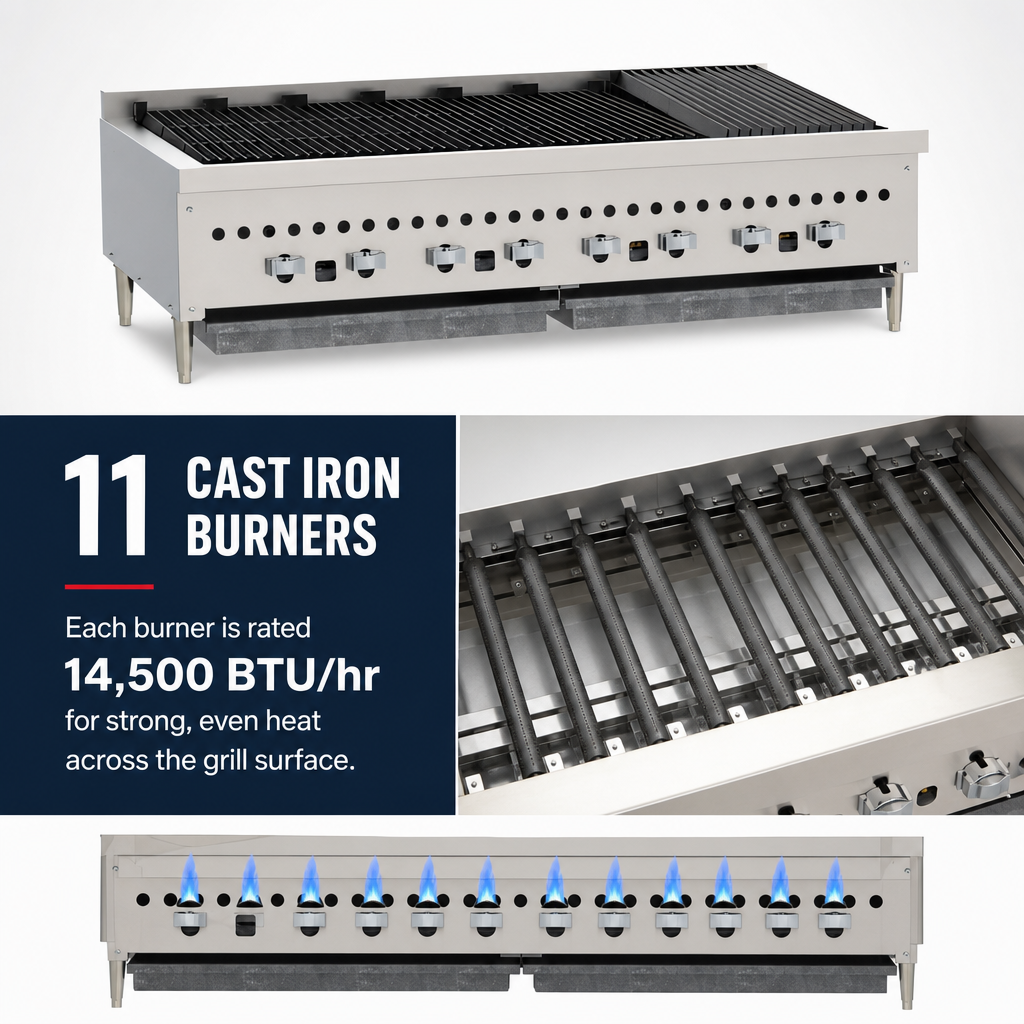

Cast Iron Burners

Eleven cast iron burners provide 14,500 BTU/hr. each.

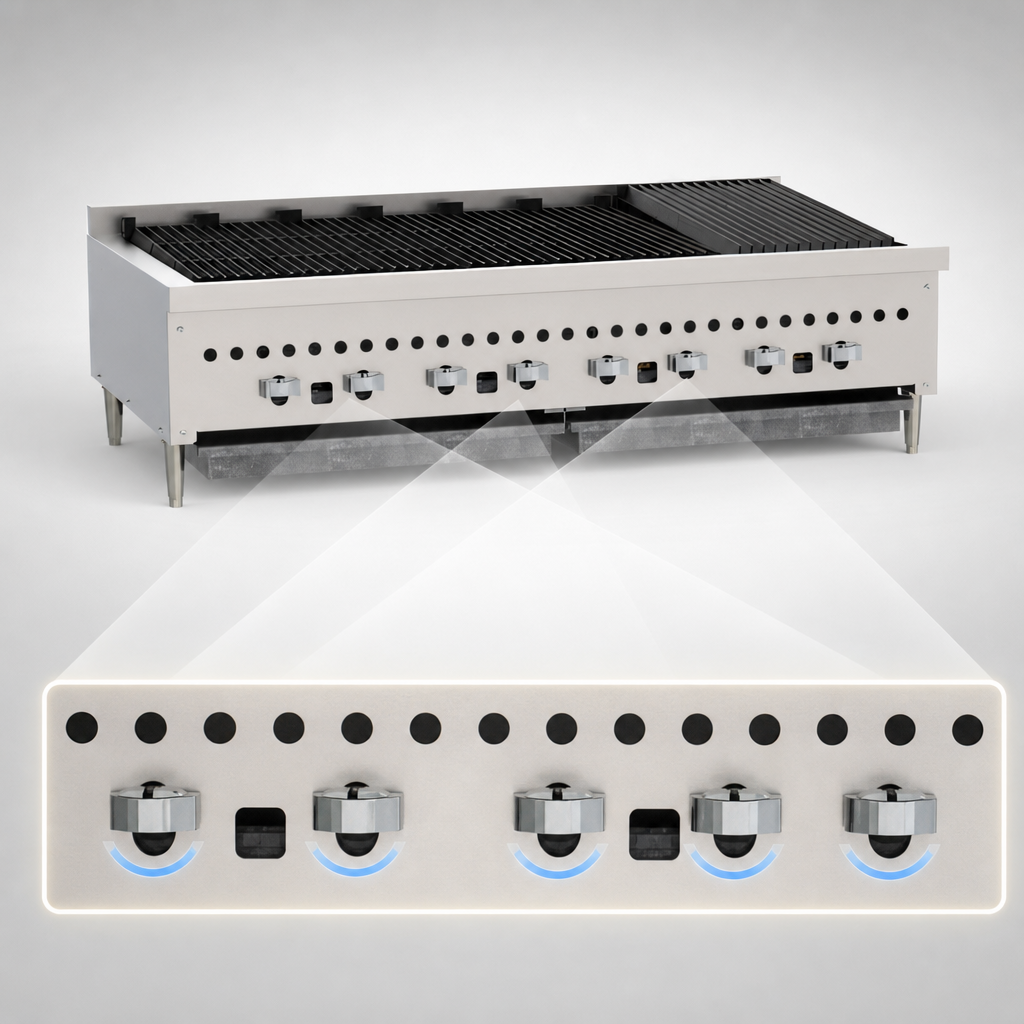

Infinite Heat Controls

One infinite heat control valve is provided for each burner.

Reversible Grates

The 5 1/4-inch cast iron grates support level broiling or self-cleaning.

Stainless Steel Components

The front, sides, top trim, backsplash, and grease trough are stainless steel.

Grease Collection

Full-width front grease collection drawers and an underburner deflector system manage grease and heat.

Standing Pilot Ignition

The charbroiler uses a standing pilot ignition system.

Adjustable Legs

The unit has 4-inch adjustable legs.

Frequently Asked Questions

It is a low-profile countertop gas charbroiler.
The VCCB60 has 11 cast iron burners, each rated at 14,500 BTU/hr., for a total of 159,500 BTU/hr.
Yes. The 5 1/4-inch cast iron grates are reversible for level broiling or self-cleaning.
The unit is 60 inches wide, 27.25 inches deep, and 14.75 inches high, with a listed weight of 600 pounds.
The VCCB60 is CSA certified and NSF listed.
