Key specifications

BTU
116,000 BTU
Dimensions
46.75"W × 27.25"D × 14.75"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Heating Source
Radiant
Spec sheet
Vulcan SKU: VCCB47

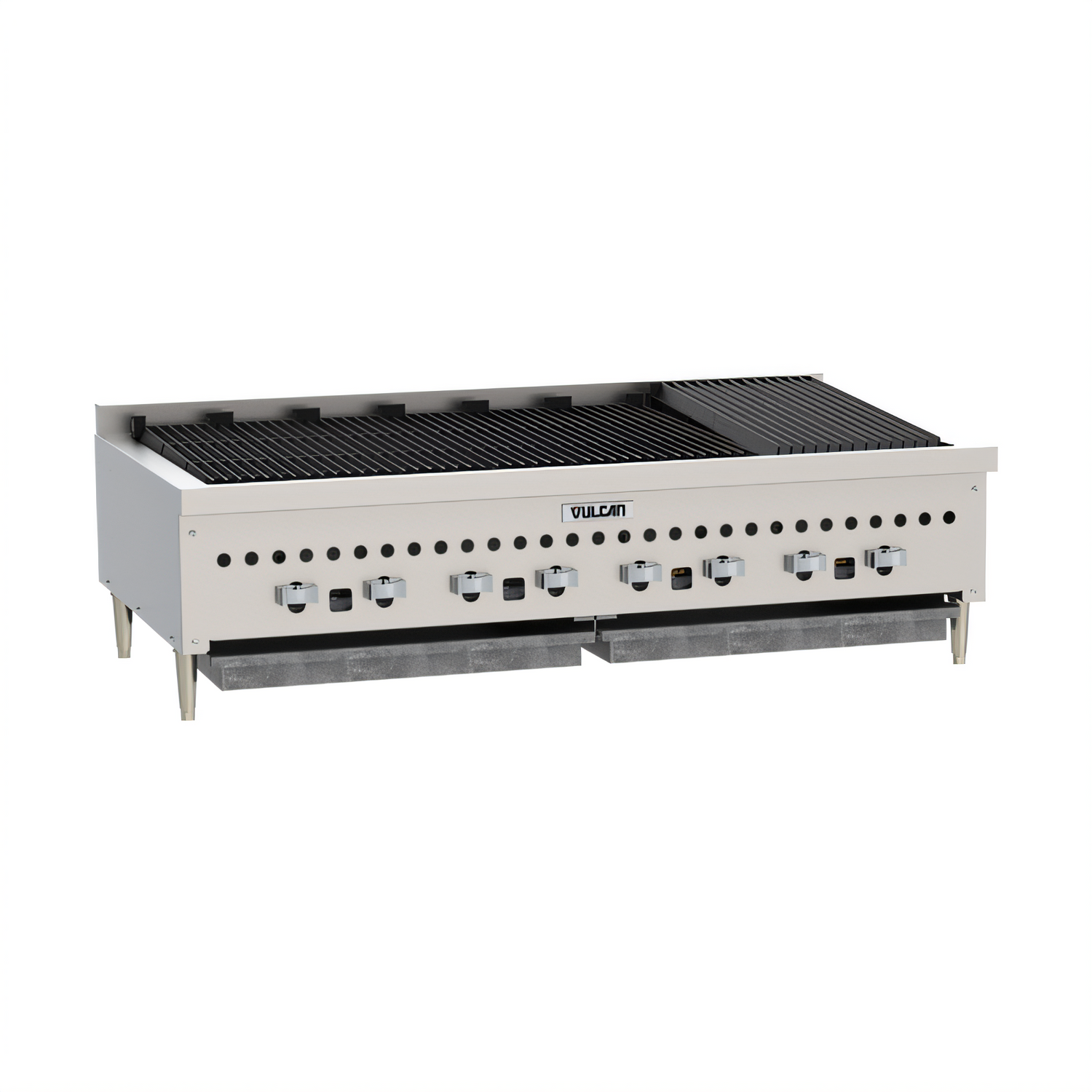

Vulcan VCCB47 46-Inch Countertop Gas Charbroiler, 8 Burners

$10,170.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeRequired
Plate rails
Stands
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $941/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Heating Source Radiant
Width 46.75 Inches
Burner Count 8
Burner Material Cast Iron
Burner Output 14,500 BTU/hr
BTU 116,000 BTU
Controls Infinite Heat Controls
Grate Material Cast Iron
Grate Type Reversible
Grate Width 5.25 Inches
Broiling Area 43 x 20.5 Inches
Ignition Type Standing Pilot
Leg Type 4-Inch Adjustable
Grease Collection Full-Width Front Drawers
Gas Connection 3/4-Inch Rear

Description

The Vulcan VCCB47 is a countertop gas charbroiler with eight cast iron burners rated at 14,500 BTU/hr each.

  • Reversible 5-1/4-inch-wide cast iron grates support level broiling or self-cleaning.
  • Infinite heat control valves provide one control for each burner.
  • Stainless steel construction includes the front, sides, top trim, backsplash and grease trough.
  • Full-width front grease collection drawers and an underburner deflector system help manage grease and heat.

Overall Dimensions:

46.75"W x 27.25"D x 14.75"H

Product Weight:

460.0 lb

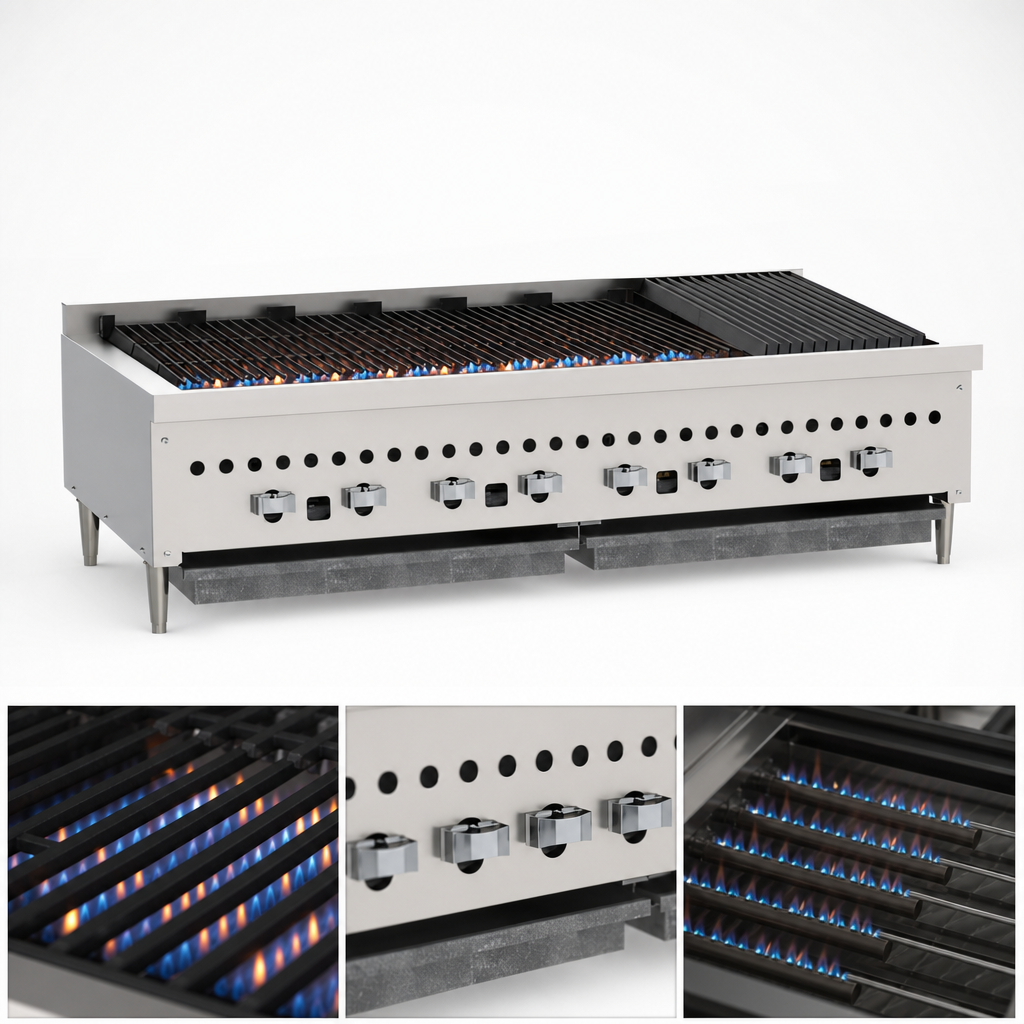

Eight Cast Iron Burners

Includes one 14,500 BTU/hr cast iron burner for each broiler grate.

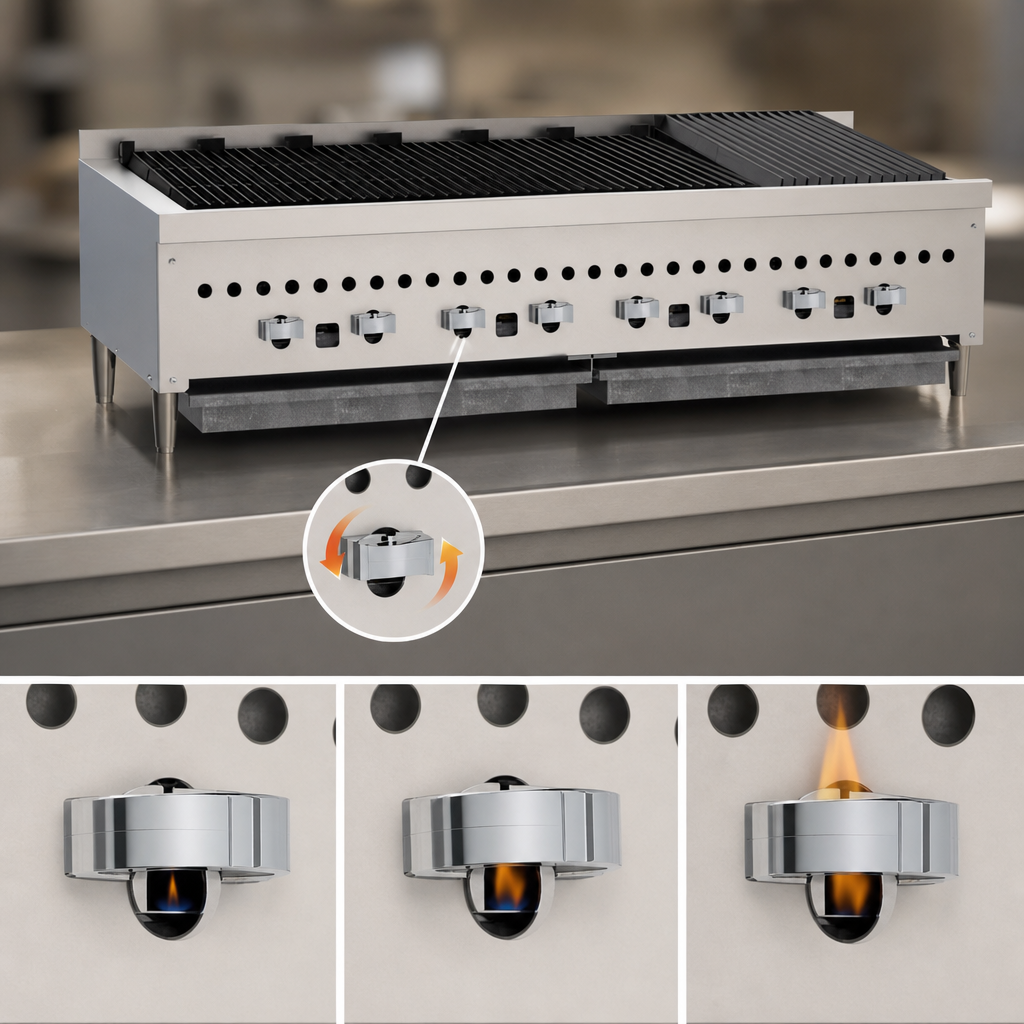

Infinite Heat Controls

Each burner has its own infinite heat control valve.

Reversible Cast Iron Grates

The 5-1/4-inch-wide grates are reversible for level broiling or self-cleaning.

Stainless Steel Components

The front, sides, top trim, backsplash and grease trough are stainless steel.

Grease Collection Drawers

Full-width front grease collection drawers are included.

Underburner Deflector System

The deflector system reflects heat upward and creates a cool zone in the grease drawer and drip areas.

Standing Pilot Ignition

Uses a standing pilot ignition system.

Adjustable Legs

Includes four-inch adjustable legs.

Frequently Asked Questions

It has eight cast iron burners, with one 14,500 BTU/hr burner for each broiler grate.
The VCCB47 has one infinite heat control valve for each burner.
Yes. The 5-1/4-inch-wide cast iron grates are reversible for level broiling or self-cleaning.
The unit is 46.75 inches wide, 27.25 inches deep and 14.75 inches high.
The cutsheet instructs the purchaser to specify the gas type when ordering and lists installation requirements for natural gas and propane gas.
The VCCB47 is CSA design certified and NSF listed.
The product includes a one-year limited parts and labor warranty.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
