Key specifications

BTU
58,000 BTU
Dimensions
25.25"W × 27.25"D × 14.75"H
Type
Charbroiler
Installation Type
Countertop
Material
Stainless Steel
Heating Source
Radiant
Spec sheet
Vulcan SKU: VCCB25

Vulcan VCCB25 25-Inch 4-Burner Gas Charbroiler

$6,309.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeRequired
Plate Rails
Stands
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year limited original commercial equipment warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $584/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Charbroiler
Installation Type Countertop
Material Stainless Steel
Heating Source Radiant
Burner Count 4
Burner Output 14,500 BTU/hr. each
BTU 58,000 BTU
Controls Infinite Heat Controls
Grate Material Cast Iron
Grate Type Reversible
Ignition Type Standing Pilot
Grease Collection Full-Width Front Drawers
Leg Type 4 in Adjustable
Gas Connection 3/4 in Rear
Broiling Area 21.5 in x 20.5 in

Description

The Vulcan VCCB25 is a countertop gas charbroiler measuring 25.25 inches wide. It features four 14,500 BTU/hr. cast iron burners, infinite heat controls, and reversible cast iron grates.

Stainless steel construction is used for the front, sides, top trim, backsplash, and grease trough. The unit also includes full-width front grease drawers, standing pilot ignition, and 4-inch adjustable legs.

  • 58,000 BTU total input
  • 21.5-inch by 20.5-inch broiling area
  • CSA design certified and NSF listed

Overall Dimensions:

25.25"W x 27.25"D x 14.75"H

Product Weight:

265.0 lb

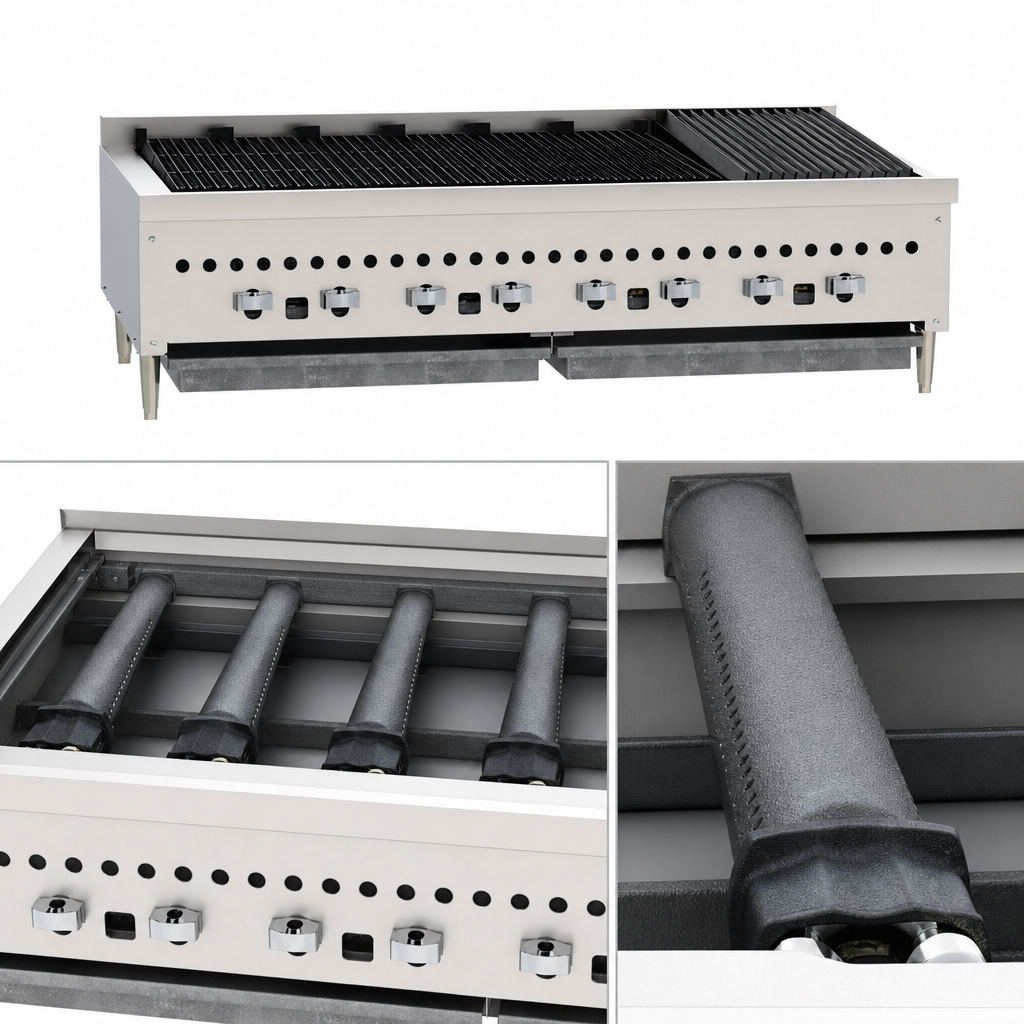

Cast Iron Burners

Four cast iron burners provide 14,500 BTU/hr. each.

Infinite Heat Controls

One infinite heat control valve is provided for each burner.

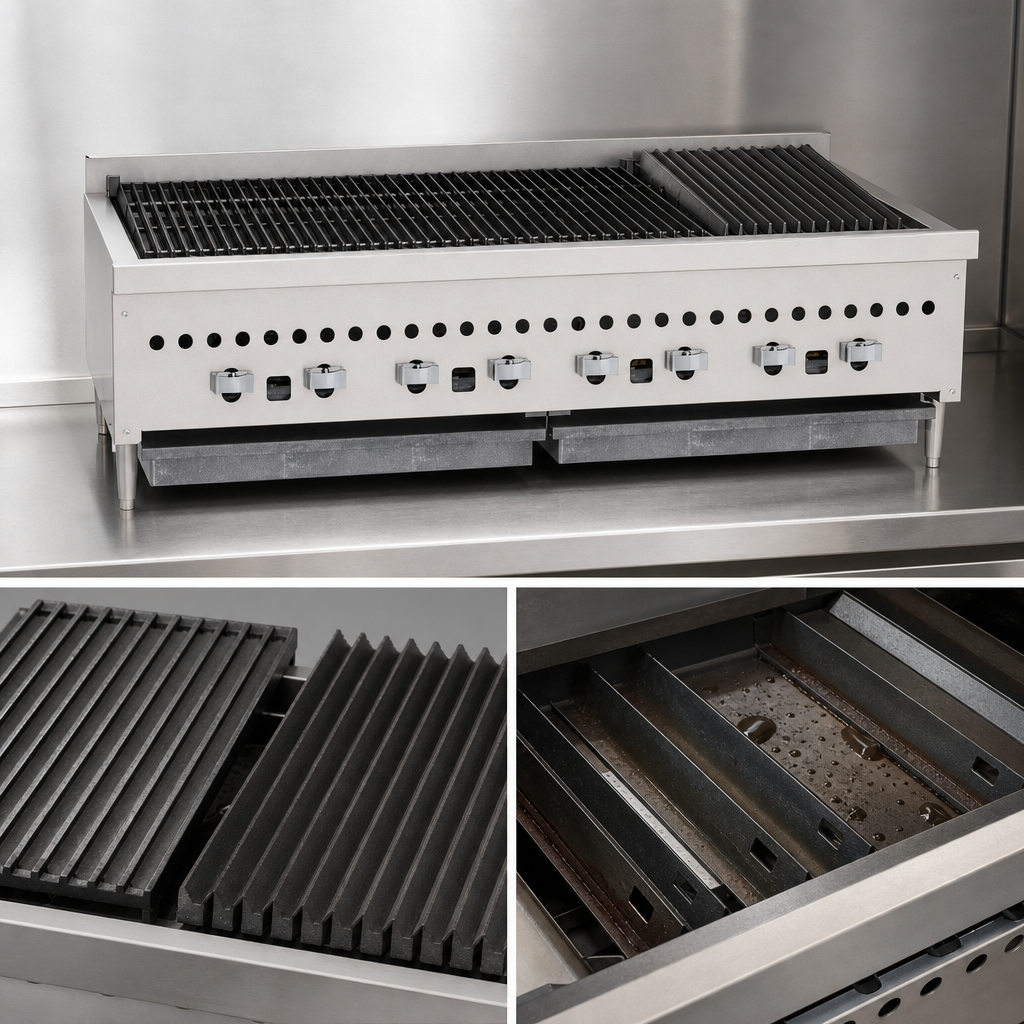

Reversible Cast Iron Grates

The 5.25-inch-wide grates are reversible for level broiling or self-cleaning.

Stainless Steel Components

The front, sides, top trim, backsplash, and grease trough are stainless steel.

Grease Collection

Full-width front grease drawers collect grease.

Standing Pilot Ignition

The charbroiler uses a standing pilot ignition system.

Adjustable Legs

The unit includes 4-inch adjustable legs.

Underburner Deflector System

The deflector system reflects heat upward toward the cooking surface.

Frequently Asked Questions

The VCCB25 has four cast iron burners, each rated at 14,500 BTU/hr.
The total input is 58,000 BTU.
Yes. The 5.25-inch-wide cast iron grates are reversible for level broiling or self-cleaning.
The product is 25.25 inches wide, 27.25 inches deep, and 14.75 inches high, with a listed weight of 265 lb.
The provided product record does not select a gas type. The cutsheet instructs customers to specify Natural Gas or Propane when ordering.
Vulcan's limited original commercial equipment warranty covers defects in materials and workmanship for one year from the date of original installation, subject to the warranty terms.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.
