V Series 36-Inch Heavy Duty Gas Charbroiler Range with Standard Oven Base
Cast Iron Grates and Radiants, Stainless Steel Front and Sides, 149,000 BTU/hr
This 36-inch heavy-duty charbroiler range combines high-output grilling and a standard oven in one durable, space-saving commercial unit.
- 36-inch gas charbroiler range with a standard oven base for versatile cooking.
- 149,000 BTU/hr total input delivers the heat needed for high-volume service.
- Heavy-duty cast iron grates and char-radiants help promote even grilling performance.
- Stainless steel front, sides, base, burner box, and stub back support long-lasting durability.
- Standard oven includes a porcelain-lined cavity, one rack, and three rack positions.
- 6-inch adjustable stainless steel legs and commercial gas connections simplify installation.
Overall Dimensions:
36.0"W x 36.75"D x 36.0"HProduct Weight:

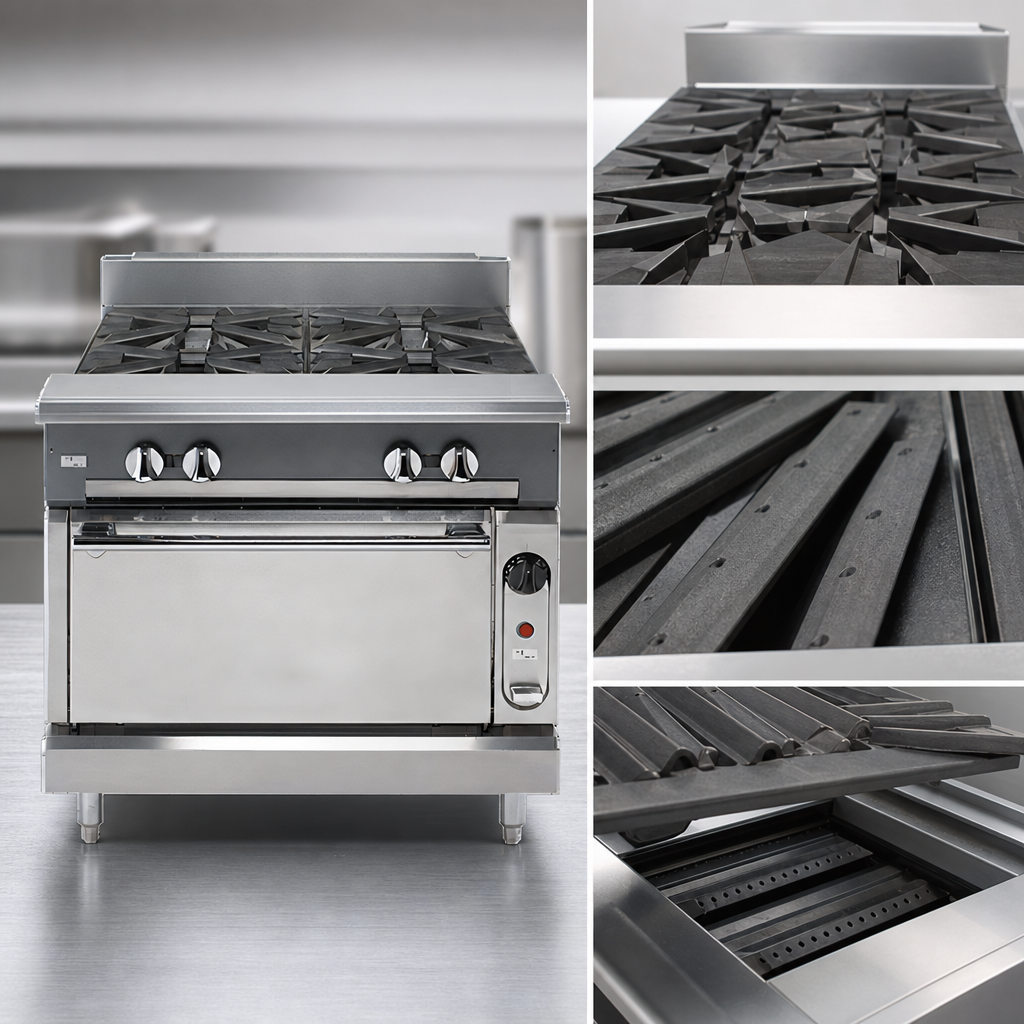

685.0 lbCharbroiler Top
A 36-inch charbroiler surface with heavy-duty slant cast grates and char-radiants for intense, even heat.

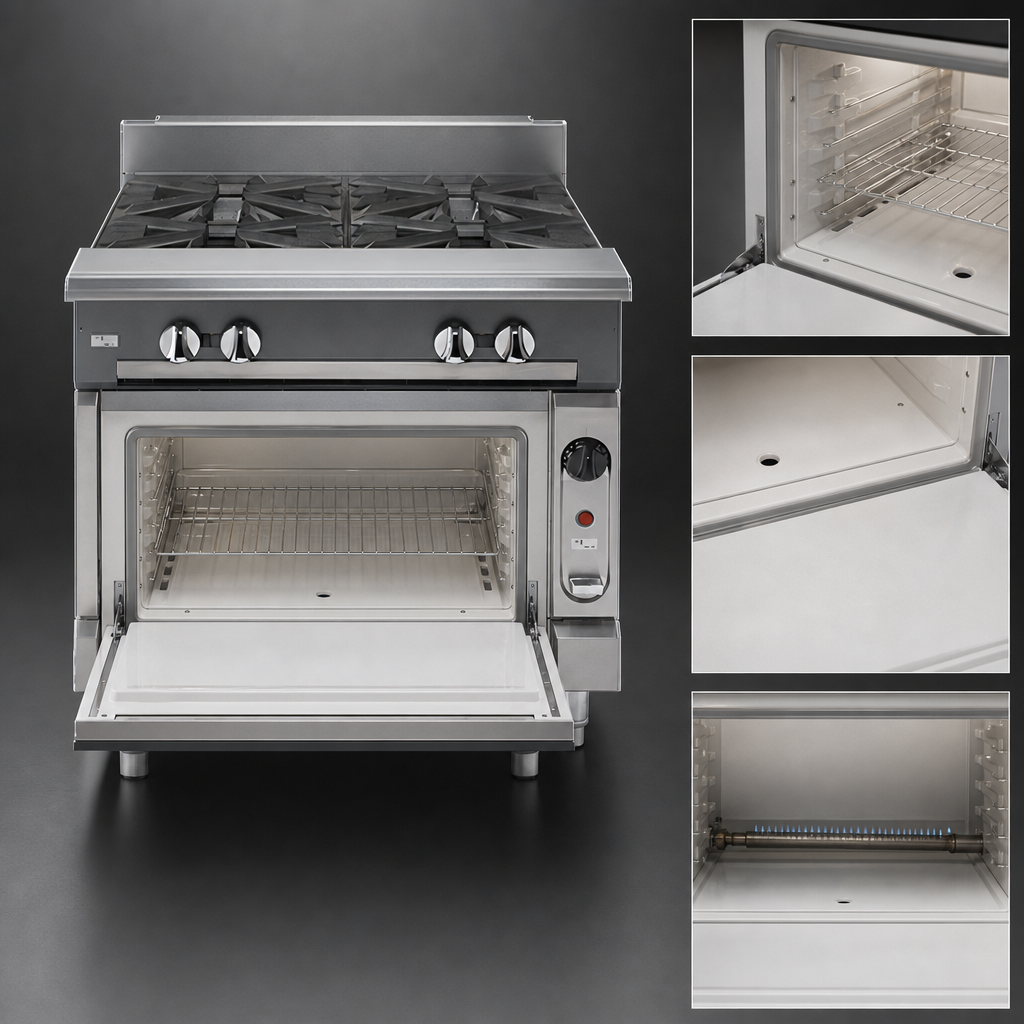

Standard Oven Base
Built with a 50,000 BTU/hr standard oven burner, porcelain oven bottom, sides, and interior door panel.
High Total Output
Six top burners total 99,000 BTU/hr, and the oven burner adds 50,000 BTU/hr for 149,000 BTU/hr total input.
Thermostatic Oven Control
The standard oven thermostat adjusts from 150°F to 550°F for flexible cooking applications.
Durable Stainless Steel Construction
Stainless steel front, front top ledge, burner box, sides, base, stub back, and extra-deep crumb tray.
Convenient Oven Setup
The oven includes one rack and allows three rack positions for cooking flexibility.
Heavy-Duty Door Hardware
The oven door uses counterweight hinges for smooth opening and closing under commercial use.
Commercial Gas Connection
Features a 1 1/4-inch front gas manifold and a 3/4-inch rear gas connection (capped).
Adjustable Support Legs
Supplied with 6-inch adjustable stainless steel legs for stable floor installation.
Certifications & Compliance
Warranty & Protection
One-year limited parts and labor.
Frequently Asked Questions
Need Help Deciding?
Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.
