Vulcan

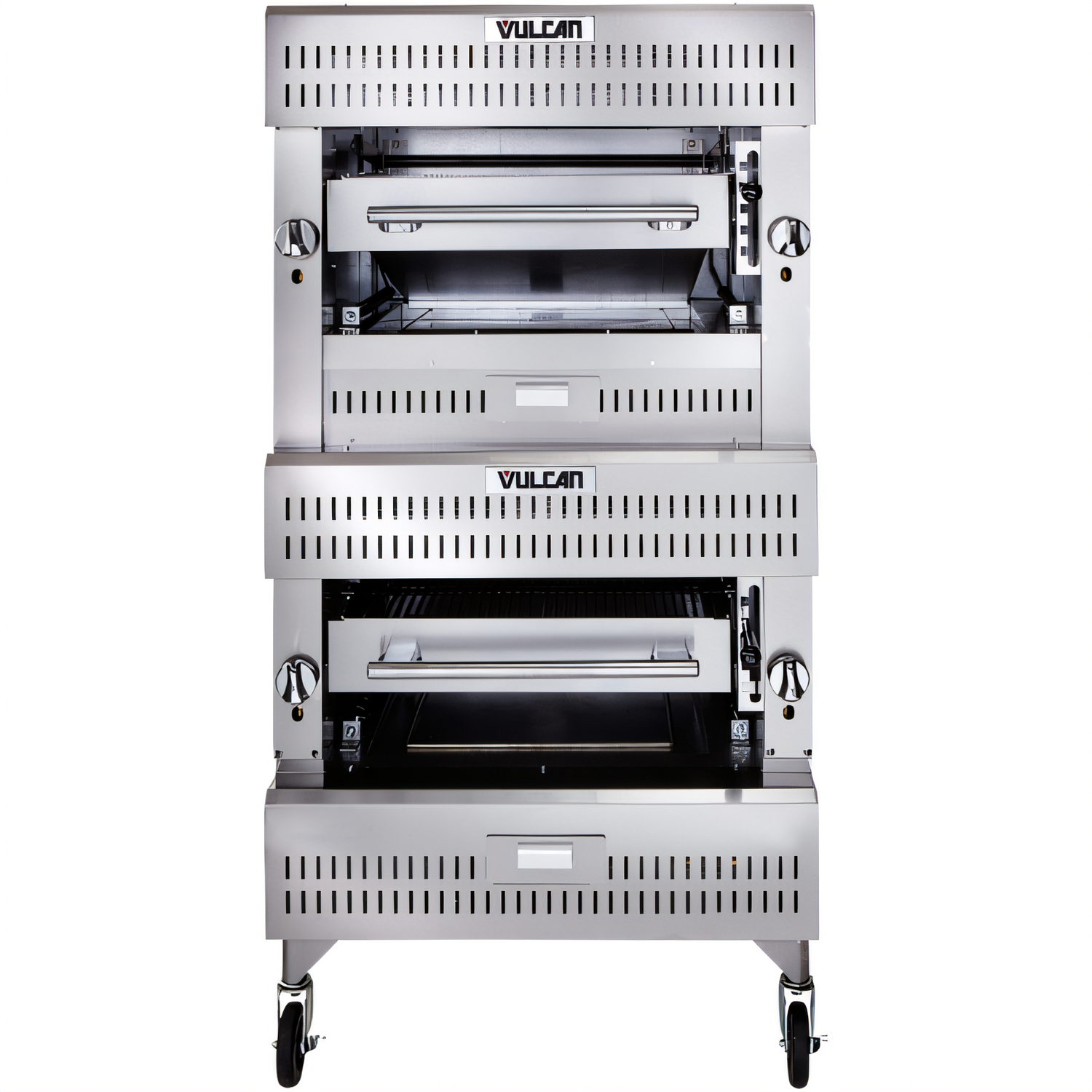

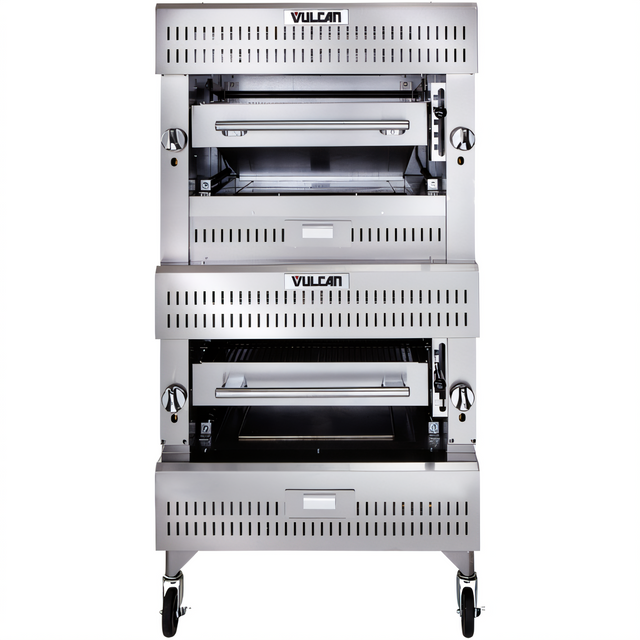

Vulcan V Series 36-Inch Heavy-Duty Double Deck Gas Upright Broiler with Ceramic Over Infrared Heat

SKU: VBI2
$27,676.06
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Deck Ovens Deck Ovens New Arrivals Ovens Restaurant Equipment Upright Broilers Vulcan

Vulcan V Series 36-Inch Heavy-Duty Double Deck Gas Upright Broiler with Ceramic Over Infrared Heat

Range Match, Stainless Steel, On Casters

Built for high-volume kitchens, this double-deck gas broiler combines ceramic-over-infrared performance, spring-balanced grids, and rugged stainless steel construction.

  • Double-deck, range-match design boosts broiling capacity on the cook line.
  • Ceramic-over-infrared heat supports aggressive, even broiling for demanding service.
  • Spring-balanced grids adjust to five locking positions for precise height control.
  • Stainless steel front, top, and sides are built for durability and easy cleanup.
  • Casters make the unit easier to position and service in busy kitchens.
  • 200,000 BTU/hr input and a supplied rear gas regulator support high-output operation.

Overall Dimensions:

36.0"W x 37.5"D x 74.0"H

Product Weight:

1100.0 lb

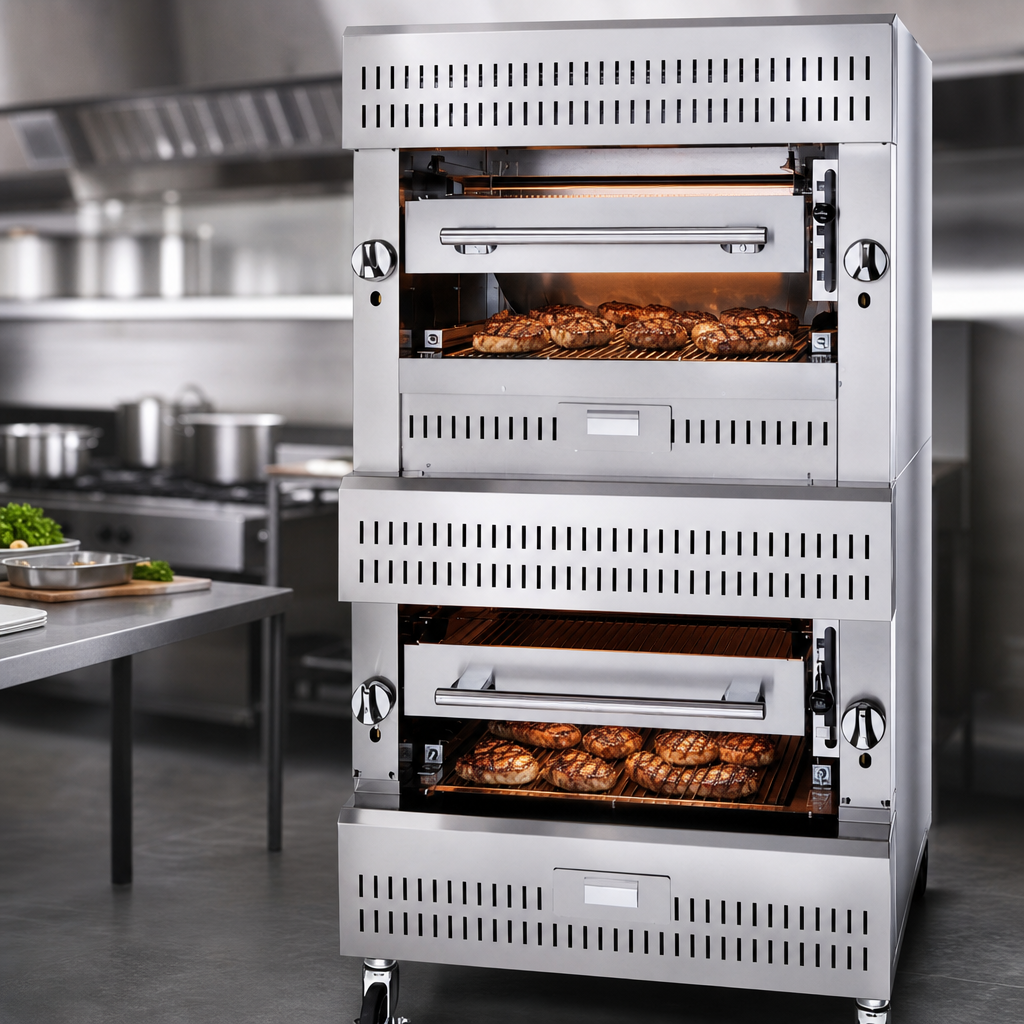

Double-Deck Construction

Two broiling decks increase output and give the kitchen more productive cooking space.

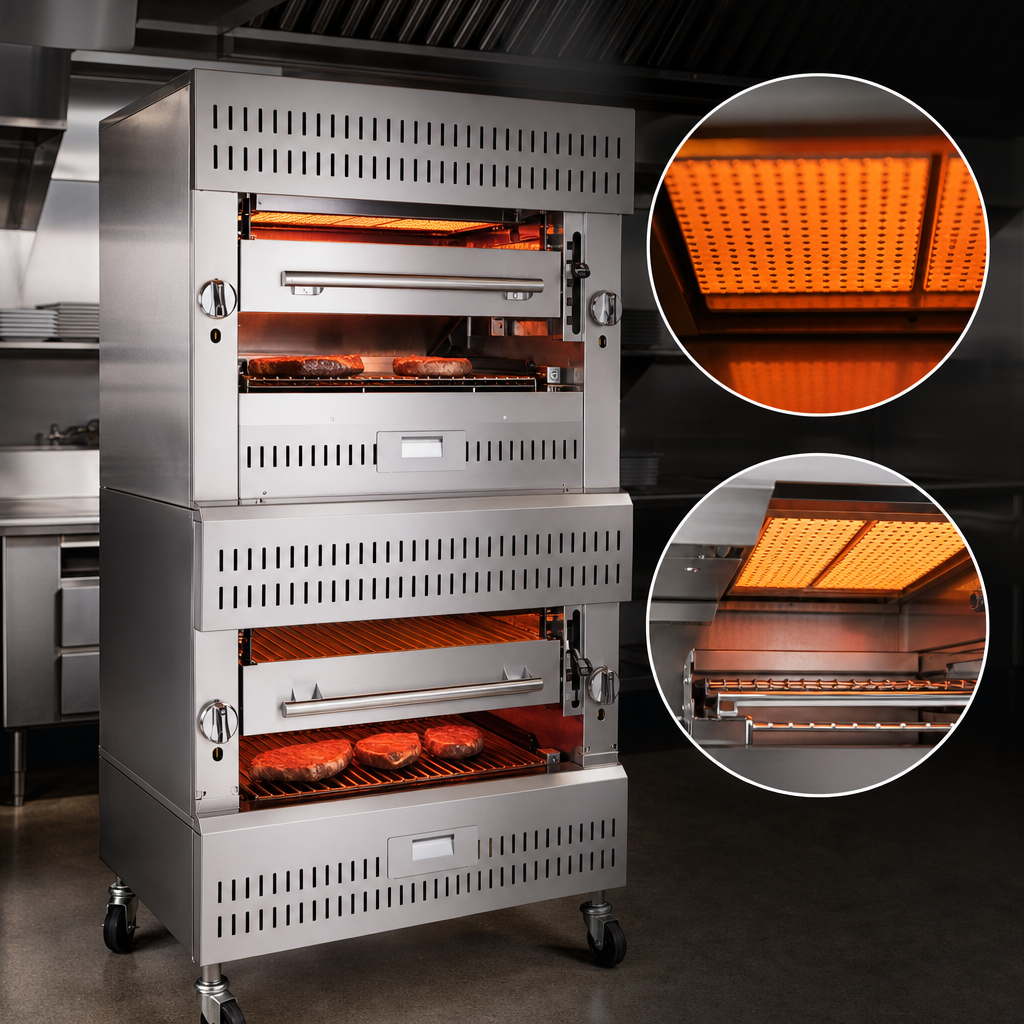

Ceramic-Over-Infrared Heat

Heavy-duty gas heat design delivers fast broiling performance and consistent results.

Spring-Balanced Five-Position Grids

The broiler grids raise and lower smoothly and lock into five positions for control over cooking distance.

Infinite Heat Controls

Two infinite heat controls per deck allow broad adjustment for different menu items.

Stainless Steel Body on Casters

Stainless steel front, top, and sides provide durability, while casters improve mobility.

Rear Gas Connection with Regulator

A 1-inch rear gas manifold and regulator are supplied for installation.

High-Output Performance

200,000 BTU/hr input supports heavy-duty broiling in high-volume kitchens.

Insulated Cabinet and Standing Pilots

Insulation between the outer and inner walls helps retain heat, and standing pilots keep the unit ready for service.

Type Double Deck Broiler
Style Range Match
Installation Type Floor Model
Heat Ceramic Over Infrared
Controls Infinite Heat
Material Stainless Steel
BTU 200,000 BTU
Gas Connection Size 1 Inch Rear
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 74 Inches
Shipping Weight 1100 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Sell sheet PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Specify natural gas or propane when ordering. The installation instructions list 6.0 Inches W.C. for natural gas and 10.0 Inches W.C. for propane.
The overall dimensions are 36 Inches wide, 37.5 Inches deep, and 74 Inches high.
Yes. A 1-inch rear gas connection with regulator is supplied.
The broiler has two infinite heat controls per deck.
The instructions call for 6 inches of clearance at both sides and the rear adjacent to combustible construction, and an adequate ventilation system is required.
It includes a one-year limited parts and labor warranty, with a second-year extended limited parts and labor warranty available as an option.
