Vulcan

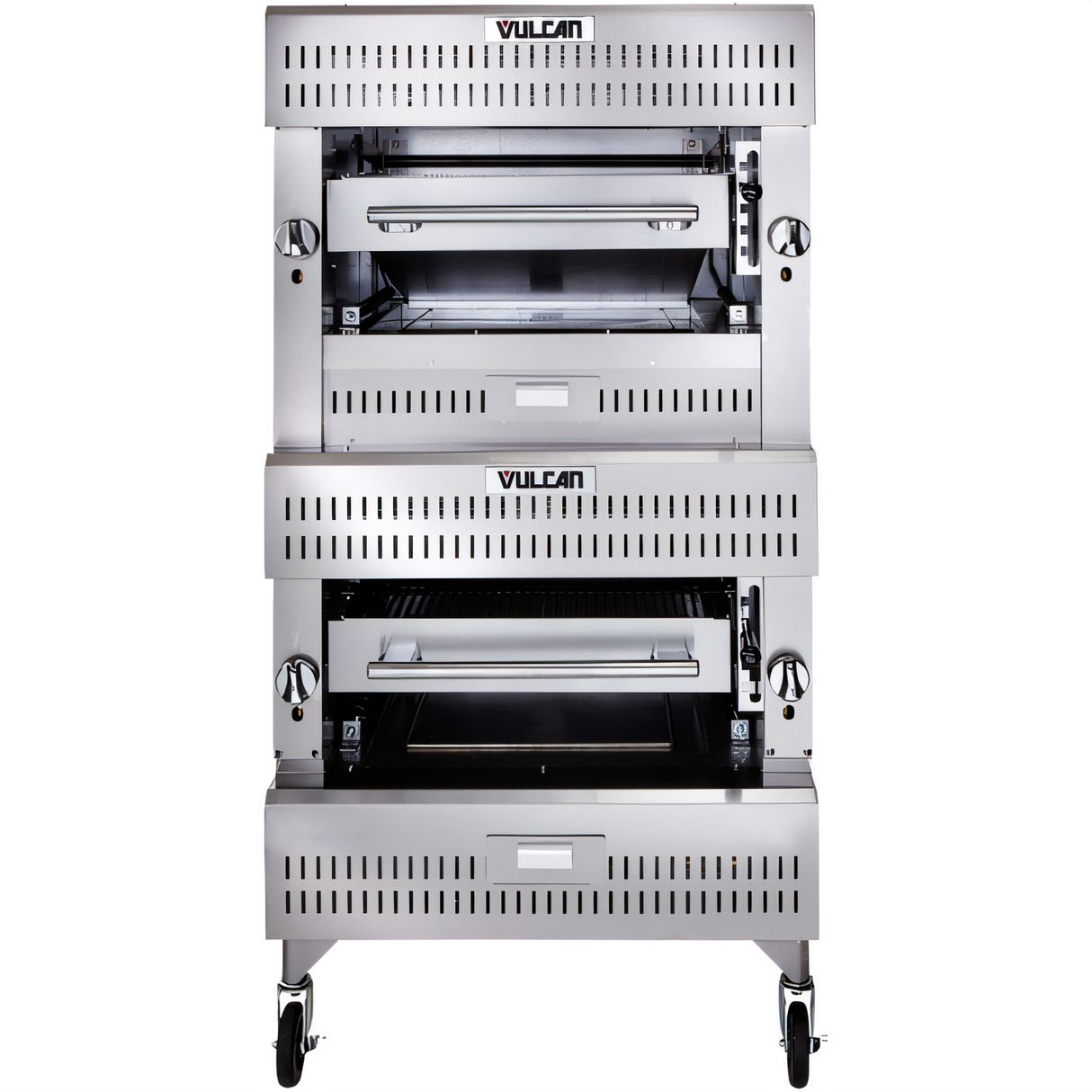

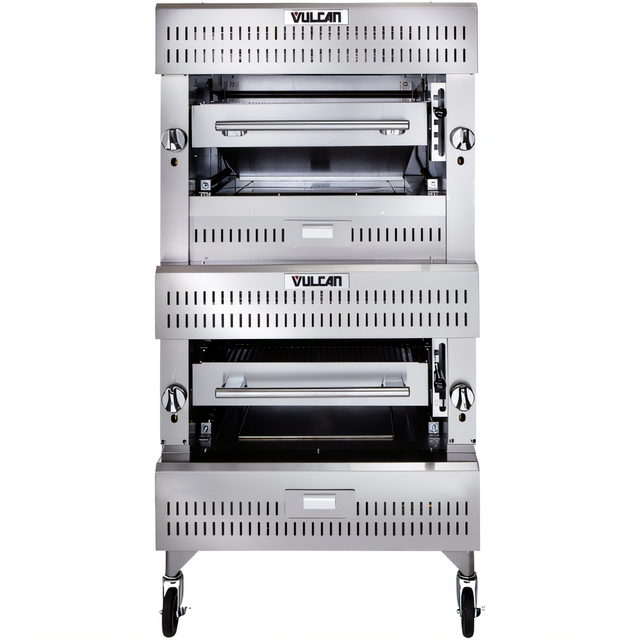

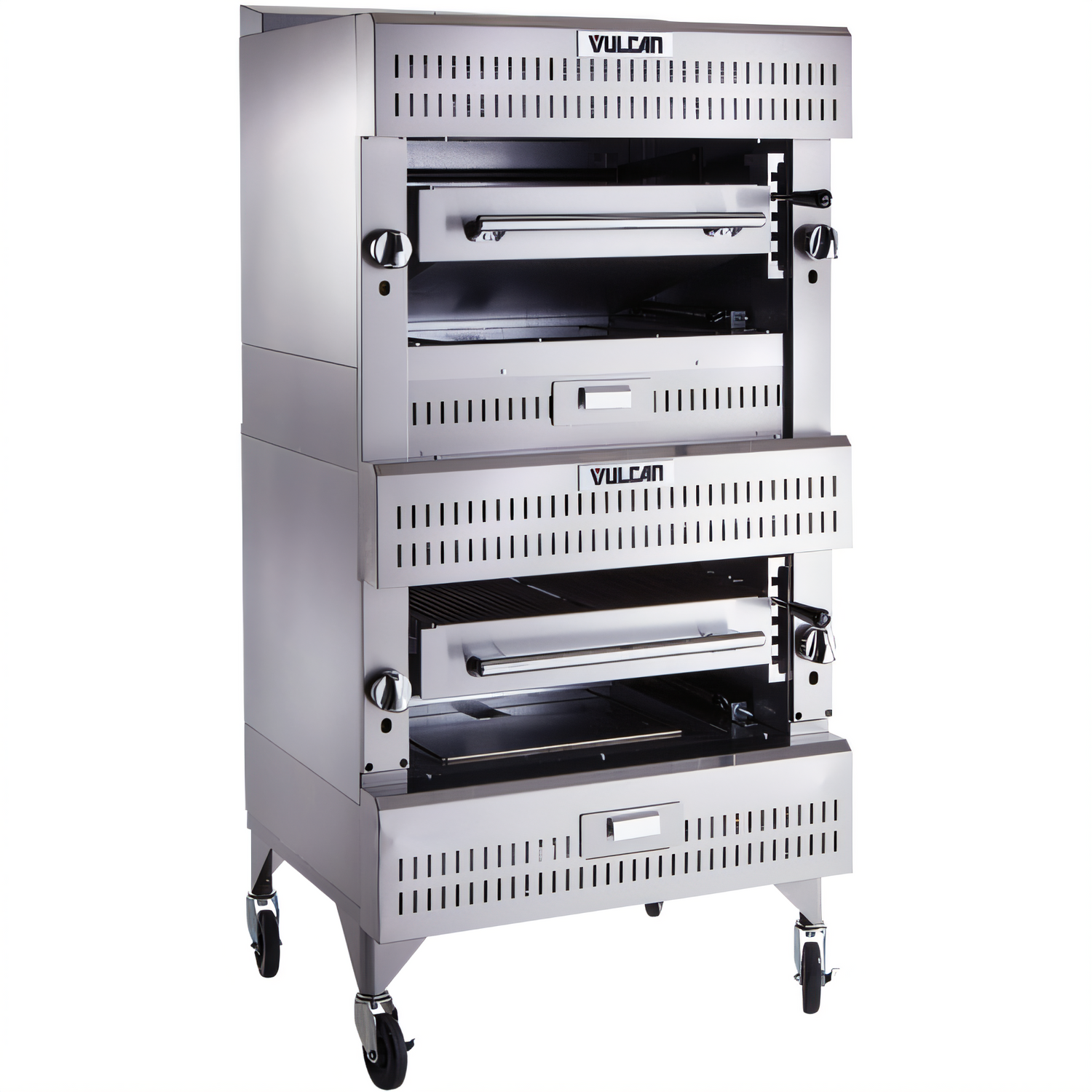

Vulcan V Series Double Deck Ceramic Gas Upright Broiler, Range Match, 36-Inch

SKU: VBB2
$24,955.31
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Broilers Deck Ovens Deck Ovens New Arrivals Ovens Restaurant Equipment Upright Broilers Vulcan

Vulcan V Series Double Deck Ceramic Gas Upright Broiler, Range Match, 36-Inch

Floor Model with Casters, 200,000 BTU

Built for high-volume kitchens, this double-deck gas broiler pairs ceramic radiant heat with spring-balanced grids and a stainless steel body on casters.

  • Heavy-duty, range-match upright broiler designed for demanding commercial broiling applications.
  • Double-deck ceramic heat design delivers intense output for high production and repeat loading.
  • Two infinite heat controls per deck and five-position spring-balanced grids support precise operation.
  • Stainless steel body on casters helps provide durability and easier movement for service or cleaning.
  • 200,000 BTU/hr total input with a supplied rear gas regulator supports powerful performance and installation convenience.

Overall Dimensions:

36.0"W x 37.5"D x 74.0"H

Product Weight:

1100.0 lb

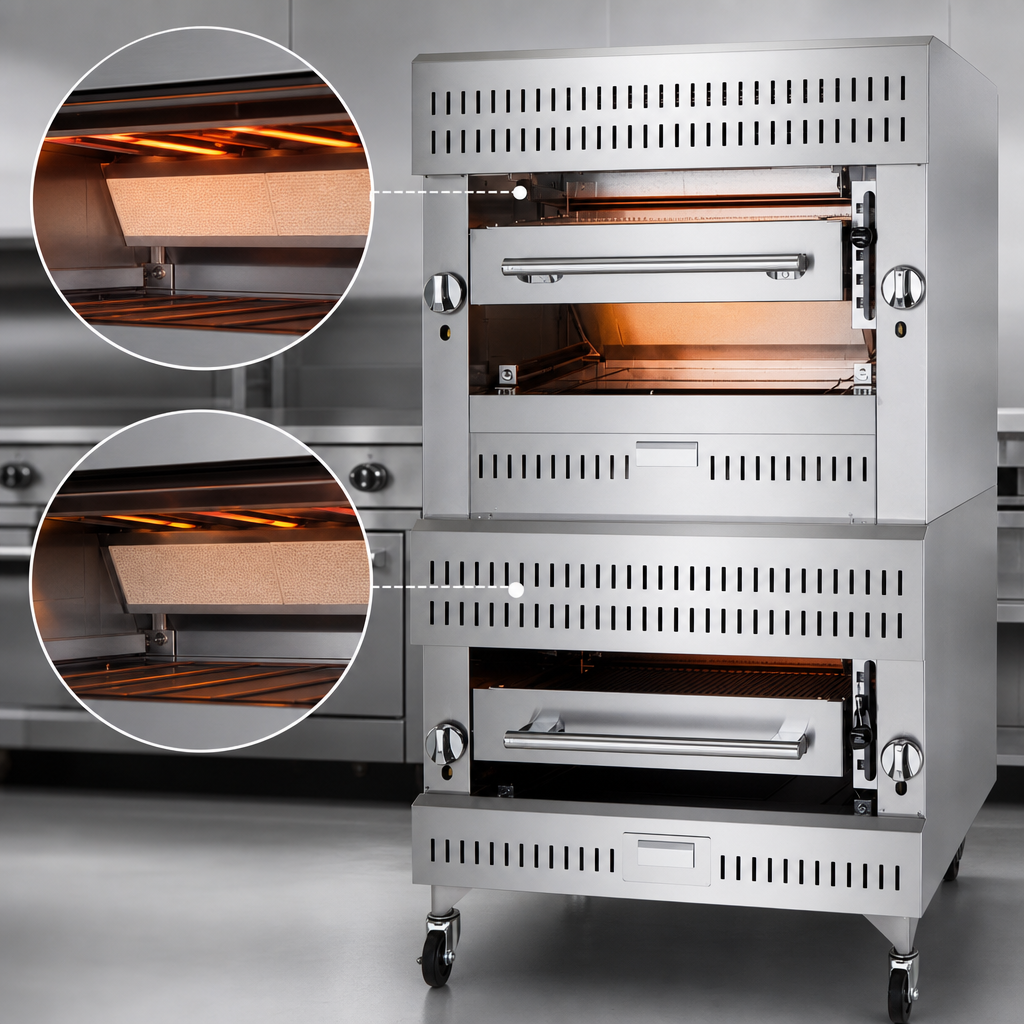

Double Deck Ceramic Design

Heavy-duty two-deck broiler layout is built for range-matched commercial line installations.

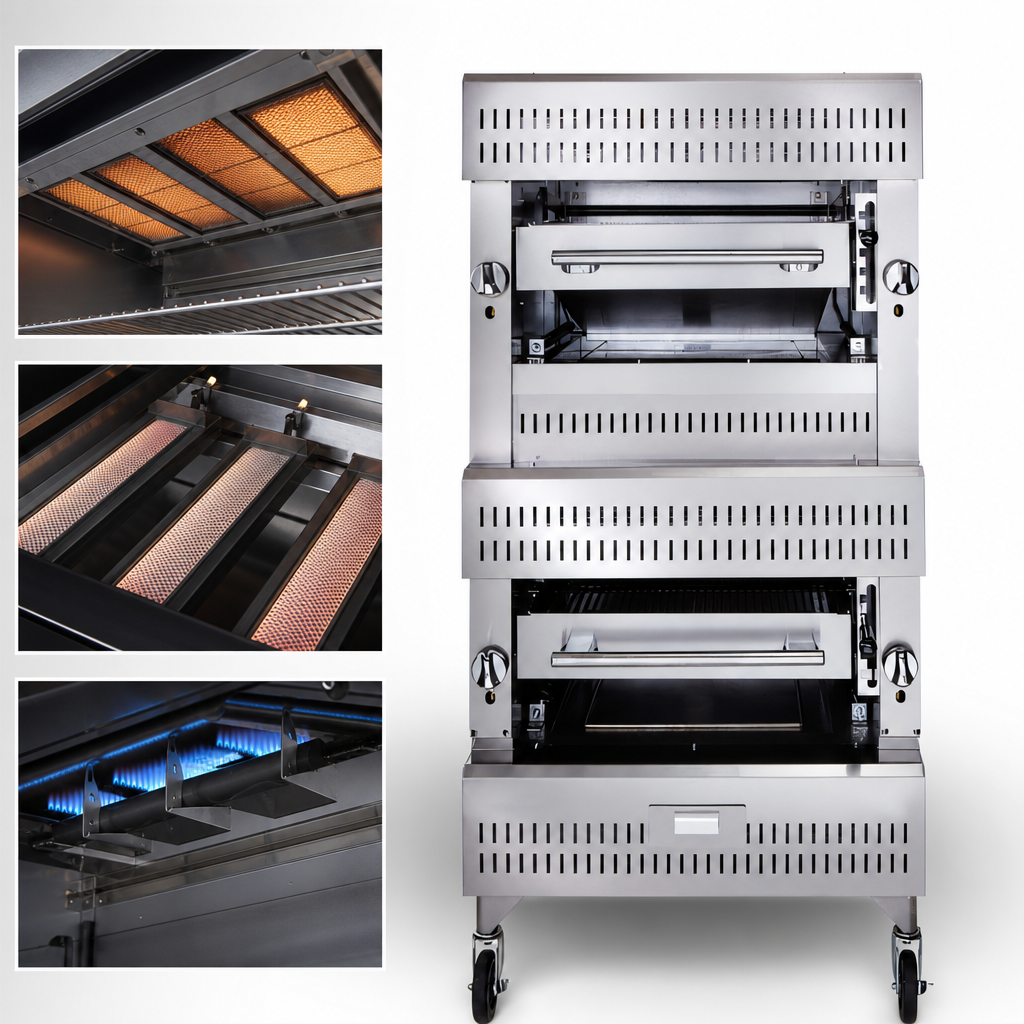

Ceramic Radiant Burners

Each deck uses three 33,333 BTU/hr cast iron burners with ceramic tile radiants for strong, even broiling heat.

Infinite Heat Controls

Two infinite heat controls per deck allow independent temperature adjustment for each broiling level.

Five-Position Spring-Balanced Grid

Spring-balanced grids raise and lower to five locking broiling positions and move on roller bearings for smooth adjustment.

Stainless Steel Body on Casters

Durable stainless steel construction and casters help the unit stand up to heavy use while improving mobility.

Rear Gas Connection with Regulator

A 1-inch rear gas manifold with regulator is supplied for installation convenience.

High-Output Performance

200,000 BTU/hr total input is designed for high production and repeat loading.

Type Upright Broiler
Style Range Match
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 200,000 BTU
Controls Infinite
Gas Connection Size 1 Inch
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 74 Inches
Shipping Weight 1100 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It is a heavy-duty double-deck ceramic gas upright broiler designed for range-match installation.
The broiler has two infinite heat controls per deck.
Natural gas requires 6.0" W.C., and propane requires 10.0" W.C.
Yes, a 1-inch rear gas regulator is supplied.
Yes, the stainless steel body is mounted on casters.
The overall dimensions are 36" W x 37.5" D x 74" H.
