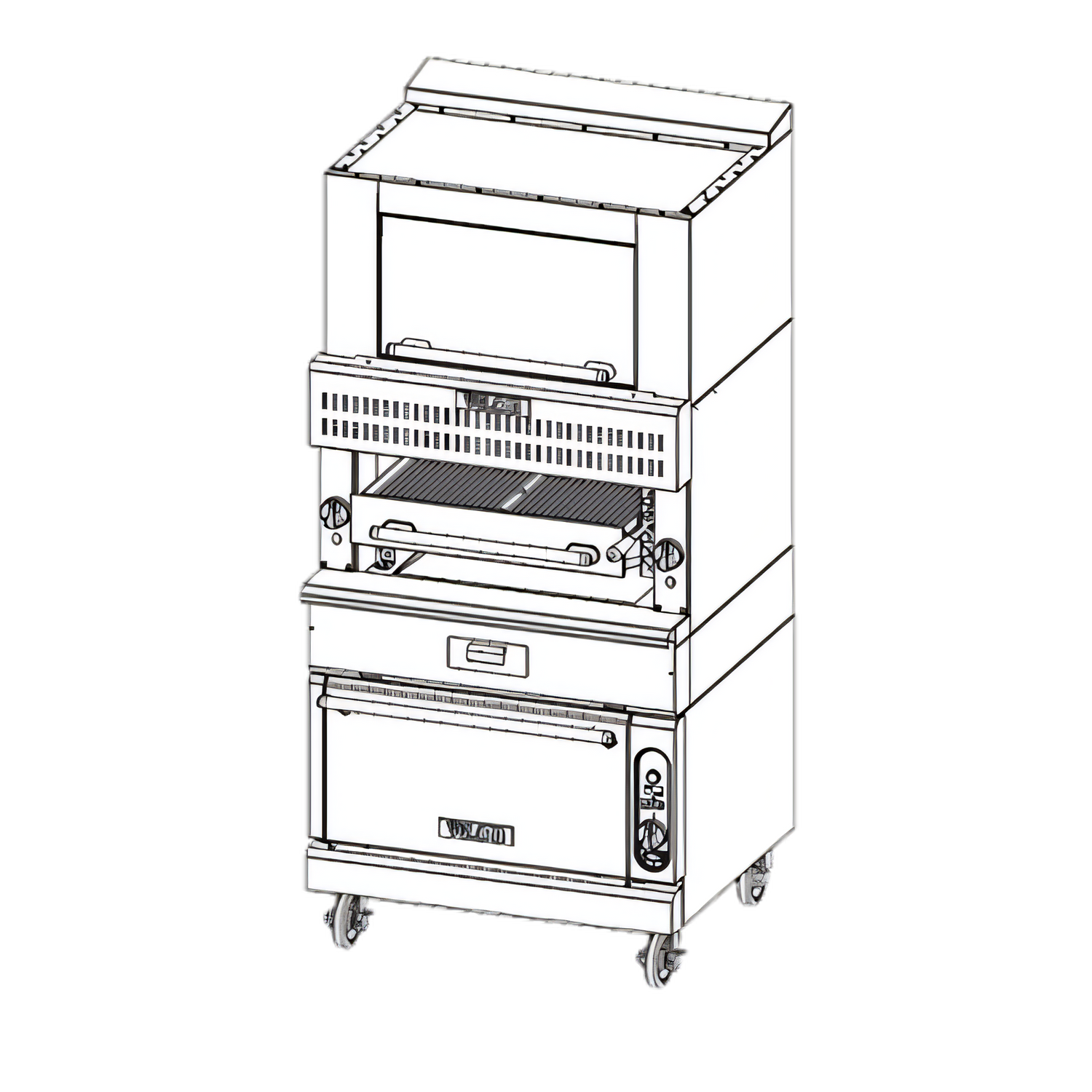

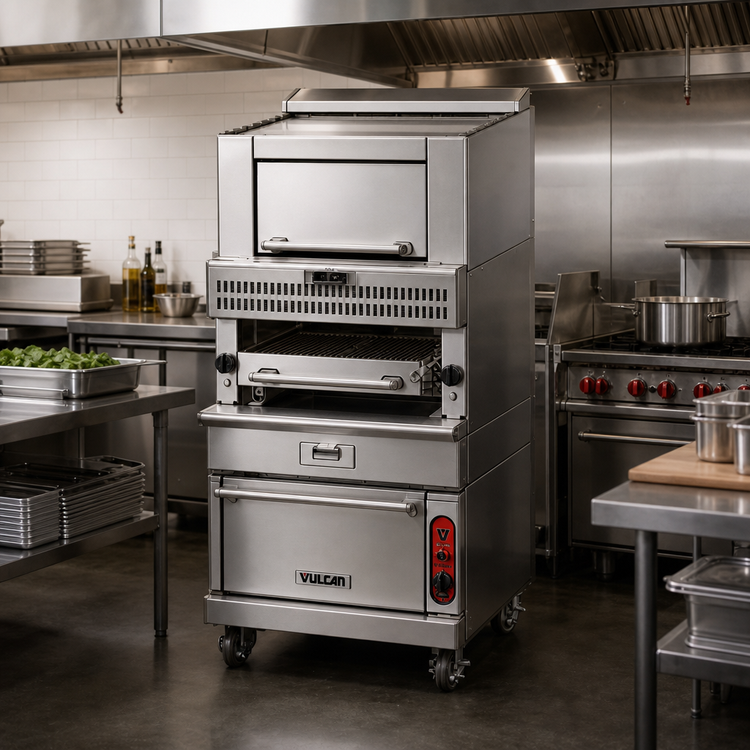

Vulcan V Series 36-Inch Gas Heavy Duty Upright Broiler with Standard Oven Base and Warming Oven

Range-match design with three 33,000 BTU ceramic radiant burners

A rugged 36-inch broiler that combines intense ceramic radiant heat with a durable stainless steel build for demanding cooklines.

  • Three 33,000 BTU ceramic radiant burners deliver powerful broiling performance.
  • Standard oven base adds versatility beneath the broiler section.
  • Listed with a warming oven for added holding and finishing capacity.
  • Range-match design helps it align cleanly with adjacent cookline equipment.
  • Stainless steel front, sides, base, burner box, and stub back support durability and cleanup.
  • Cast iron grates and 6-inch adjustable legs are built for heavy-duty commercial use.
  • Total output of 149,000 BTU is suited for high-volume kitchens.

Overall Dimensions:

36.0"W x 42.63"D x 77.13"H

Product Weight:

675.0 lb

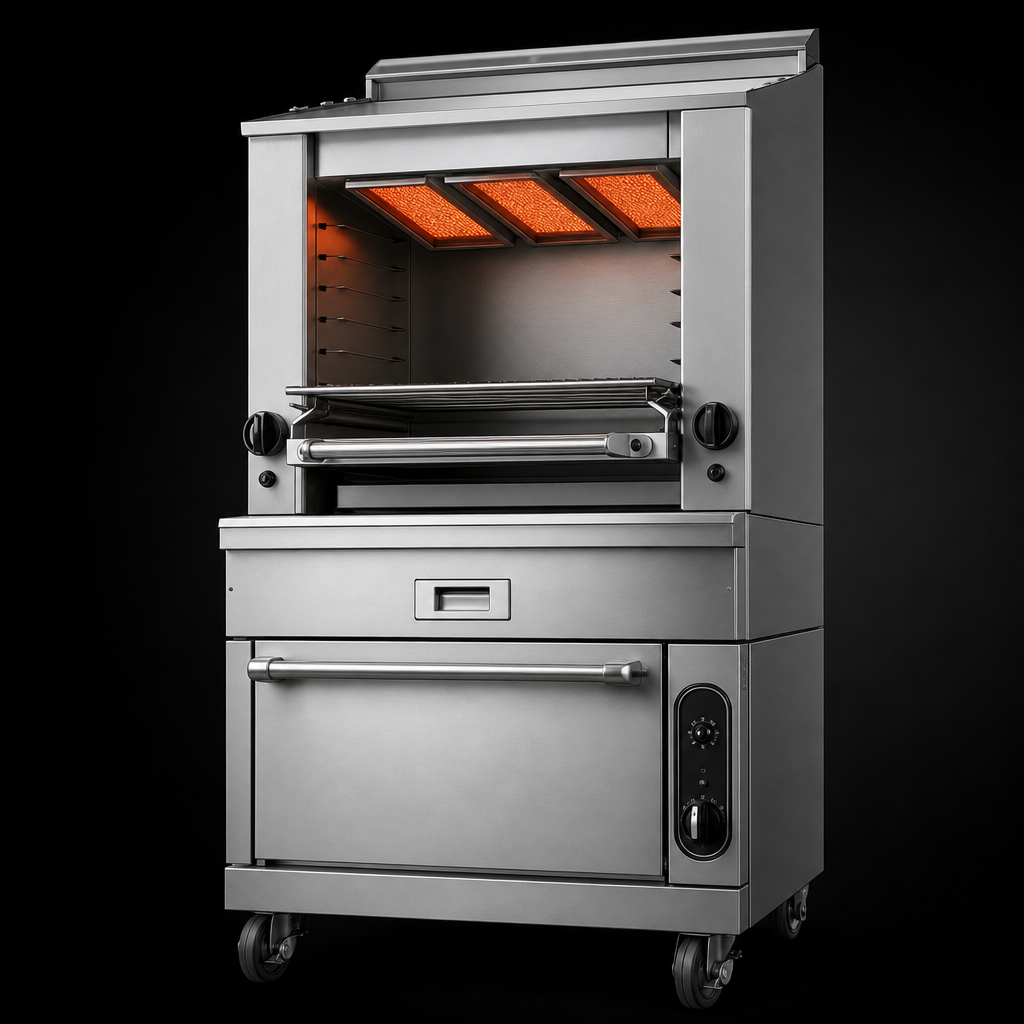

Three Ceramic Radiant Burners

Three 33,000 BTU ceramic radiant burners provide intense, even heat for broiling.

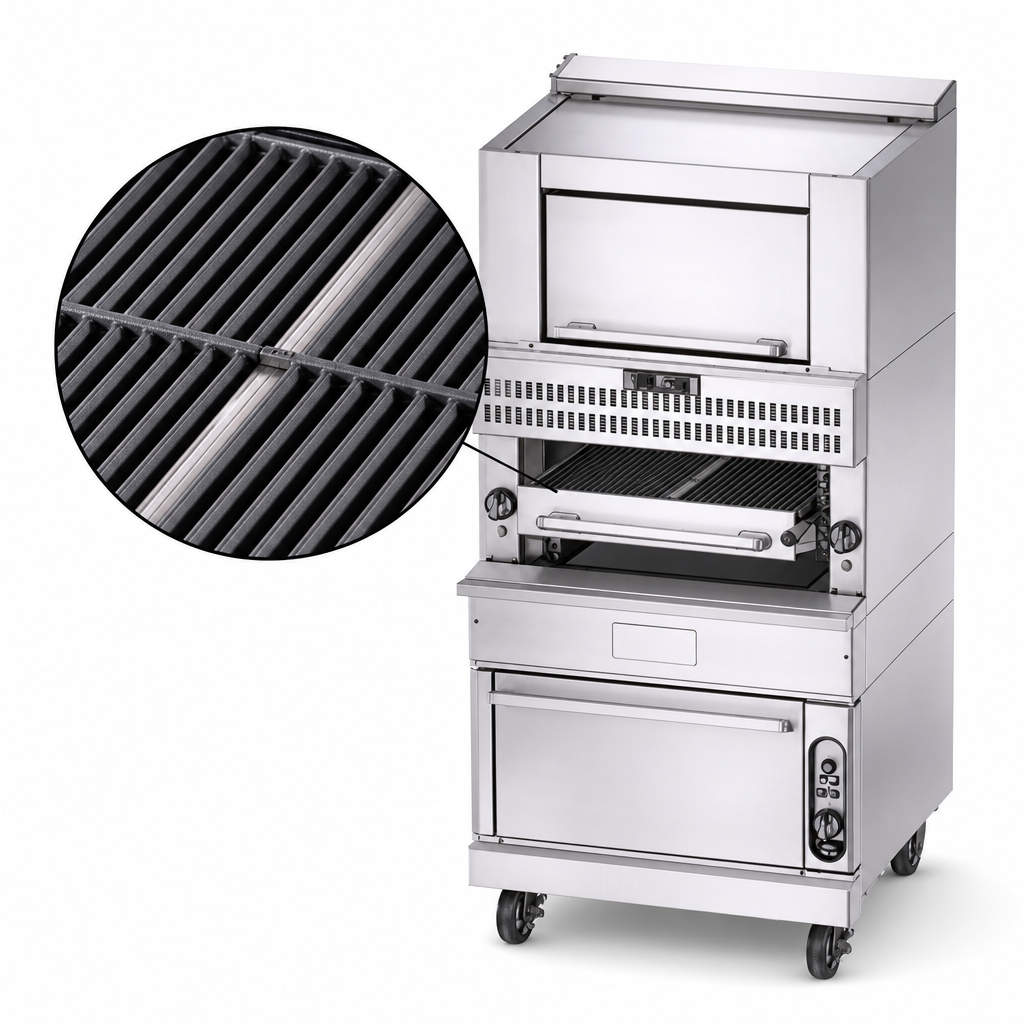

Cast Iron Grates

Heavy-duty cast iron grates are designed to withstand frequent use in busy kitchens.

Standard Oven Base

An integrated standard oven base expands the unit's cooking flexibility.

Warming Oven

The product is listed with a warming oven for holding finished items or completing service tasks.

Stainless Steel Exterior Components

Stainless steel front, top ledge, sides, base, burner box, and stub back improve durability and cleaning ease.

Adjustable Legs

6-inch adjustable legs help with leveling during installation.

Front Gas Manifold

A 1-1/4-inch front gas manifold supports utility connections.

Range-Match Design

Designed to integrate with other range-style equipment in a coordinated cookline.

Type Upright Broiler
Style Range Match
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Burner Count 3
Burner Type Ceramic Radiant
Base Standard Oven
Decks 1
BTU 149,000 BTU
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 43 Inches
Shipping Height 78 Inches
Shipping Weight 675 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has three 33,000 BTU ceramic radiant burners.
The unit is rated at 149,000 BTU total.
It includes a standard oven base.
Yes. The category attributes list this unit as having a warming oven.
The unit includes stainless steel front, sides, base, burner box, and stub back.
