Key specifications

BTU rating
102,000 BTU
Dimensions
36.0"W × 31.0"D × 15.5"H
Product type
Countertop gas charbroiler
Weight
370 lb
Burner count
6
Burner rating
17,000 BTU each
Spec sheet
Vulcan SKU: VACB36

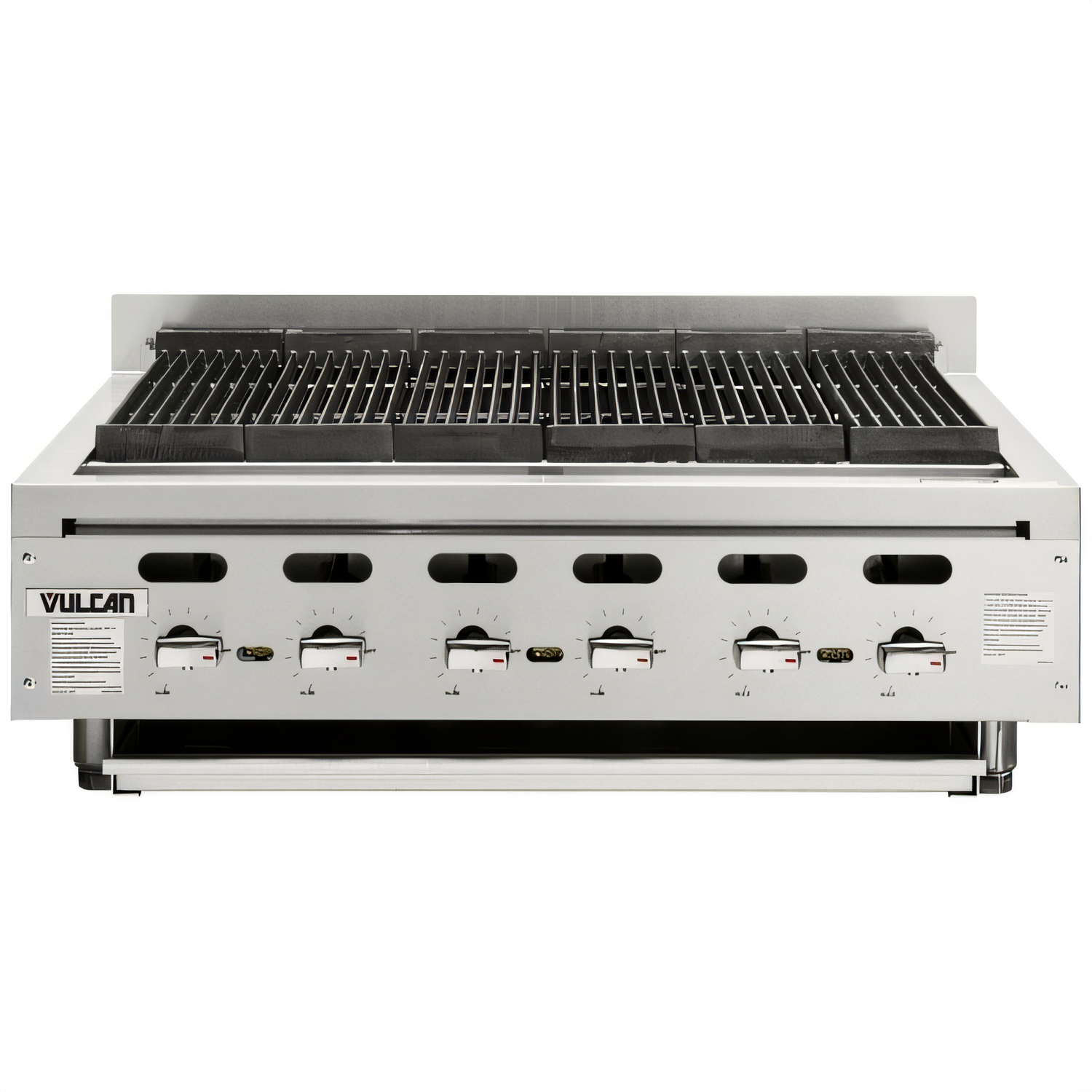

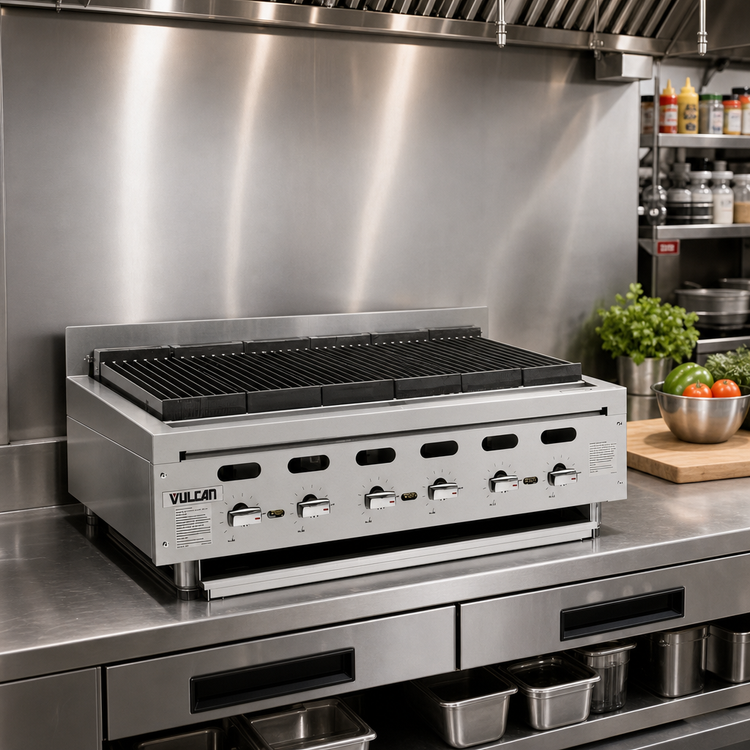

Vulcan Achiever VACB36 36-Inch 6-Burner Gas Charbroiler

$6,692.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Gas typeRequired
Gas Connector
Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $619/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Product type Countertop gas charbroiler
Width 36 in
Depth 31 in
Height 15.5 in
Weight 370 lb
Burner count 6
Burner rating 17,000 BTU each
Burner construction Cast iron
BTU rating 102,000 BTU
Heating source Radiant
Control type Infinite controls
Chassis Fully welded
Exterior trim Stainless steel front, sides and top trim
Drip tray count 1
Legs 4 in adjustable
Grease management Backsplash and grease trough

Description

Vulcan Achiever VACB36 is a 36-inch countertop gas charbroiler with six 17,000 BTU cast iron burners, radiant heat, and infinite controls.

The fully welded chassis has stainless steel front, sides, and top trim, along with a backsplash and grease trough. The unit includes one drip tray and 4-inch adjustable legs.

Overall Dimensions:

36.0"W x 31.0"D x 15.5"H

Product Weight:

370.0 lb

Six cast iron burners

The charbroiler has six cast iron burners rated at 17,000 BTU each.

Radiant heating

Radiant heating is listed for the unit.

Infinite controls

Infinite heat control valves provide adjustable burner heat control.

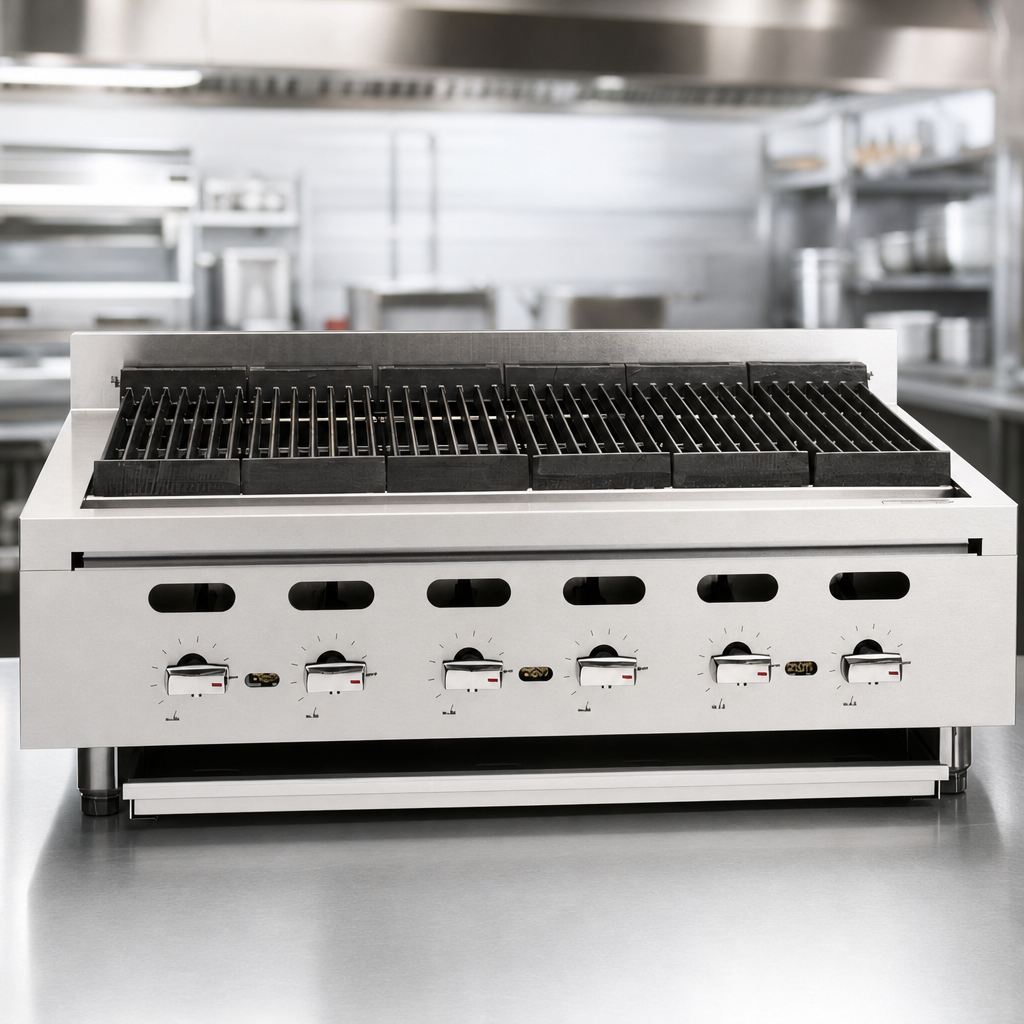

Fully welded chassis

The chassis is fully welded.

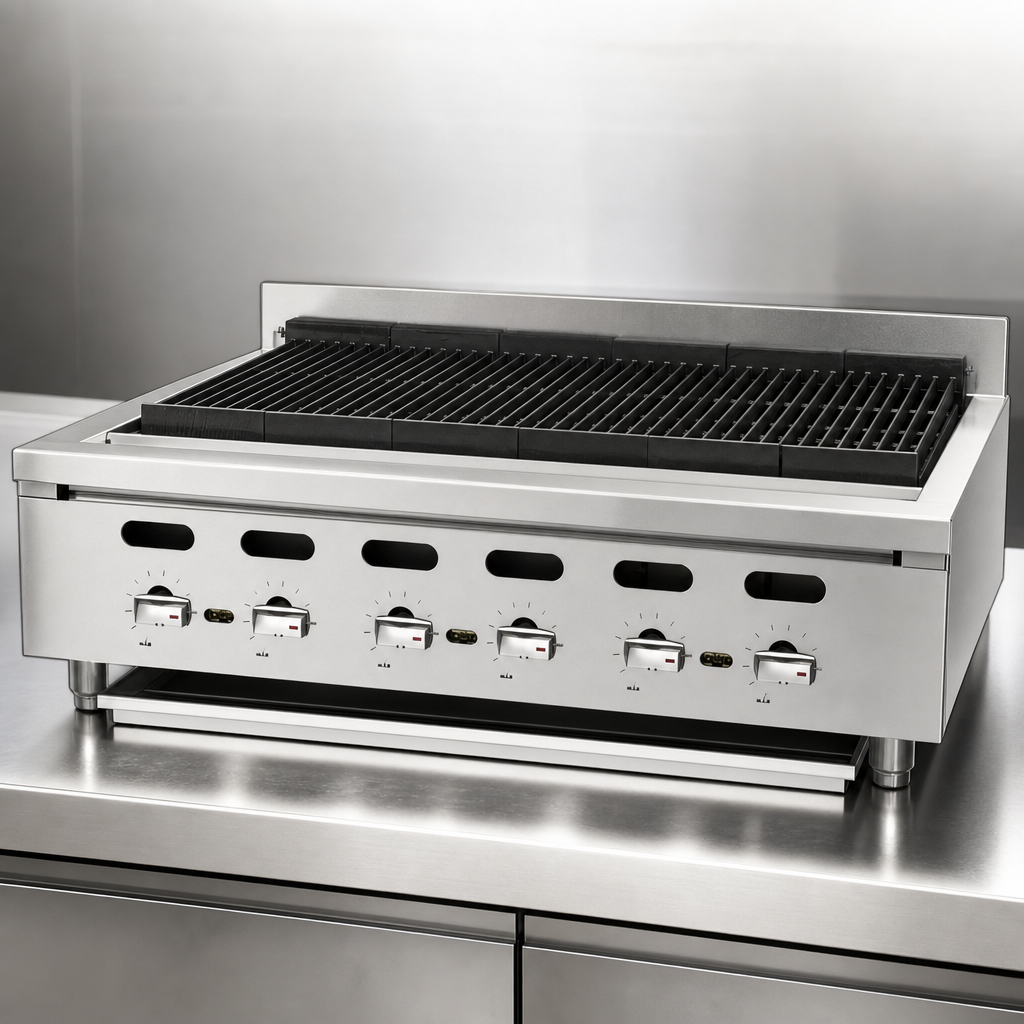

Stainless steel trim

The front, sides, and top trim are stainless steel.

Grease management

The unit has a backsplash and grease trough, plus one drip tray.

Adjustable legs

The charbroiler has 4-inch adjustable legs.

Frequently Asked Questions

The VACB36 has six cast iron burners, each rated at 17,000 BTU.
The VACB36 uses radiant heat.
It has infinite heat control valves, identified as infinite controls.
The unit measures 36 inches wide by 31 inches deep by 15.5 inches high.
The VACB36 is listed with CSA and NSF certifications.
A one-year limited parts and labor warranty from the date of original installation is listed, subject to Vulcan's warranty terms.
No. The product documentation states that the unit is for commercial installation only and is not intended for home use.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
