Key specifications
- Appliance type
- Countertop gas charbroiler
- Burner count
- 4
- Burner input
- 17,000 BTU/hr per burner
- Total input
- Natural gas: 68,000 BTU/hr; LP gas: 64,000 BTU/hr
- Control type
- Infinite heat-control valves
- Heating source
- Radiant
Questions before you buy?
Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.
Specifications
Description
The Vulcan Achiever VACB25 is a countertop gas charbroiler with four 17,000 BTU/hr cast-iron burners and 68,000 BTU/hr total natural-gas input. Infinite heat-control valves provide individual burner adjustment.
The all-welded chassis features stainless steel front, sides, top trim, backsplash, and grease trough. Heavy cast-iron char-radiants, 5-1/4-inch cast-iron diamond grates, one drip tray, and 4-inch adjustable legs are included.
- Commercial installation only
- CSA and NSF certified
Overall Dimensions:
25.13"W x 31.0"D x 15.5"HProduct Weight:

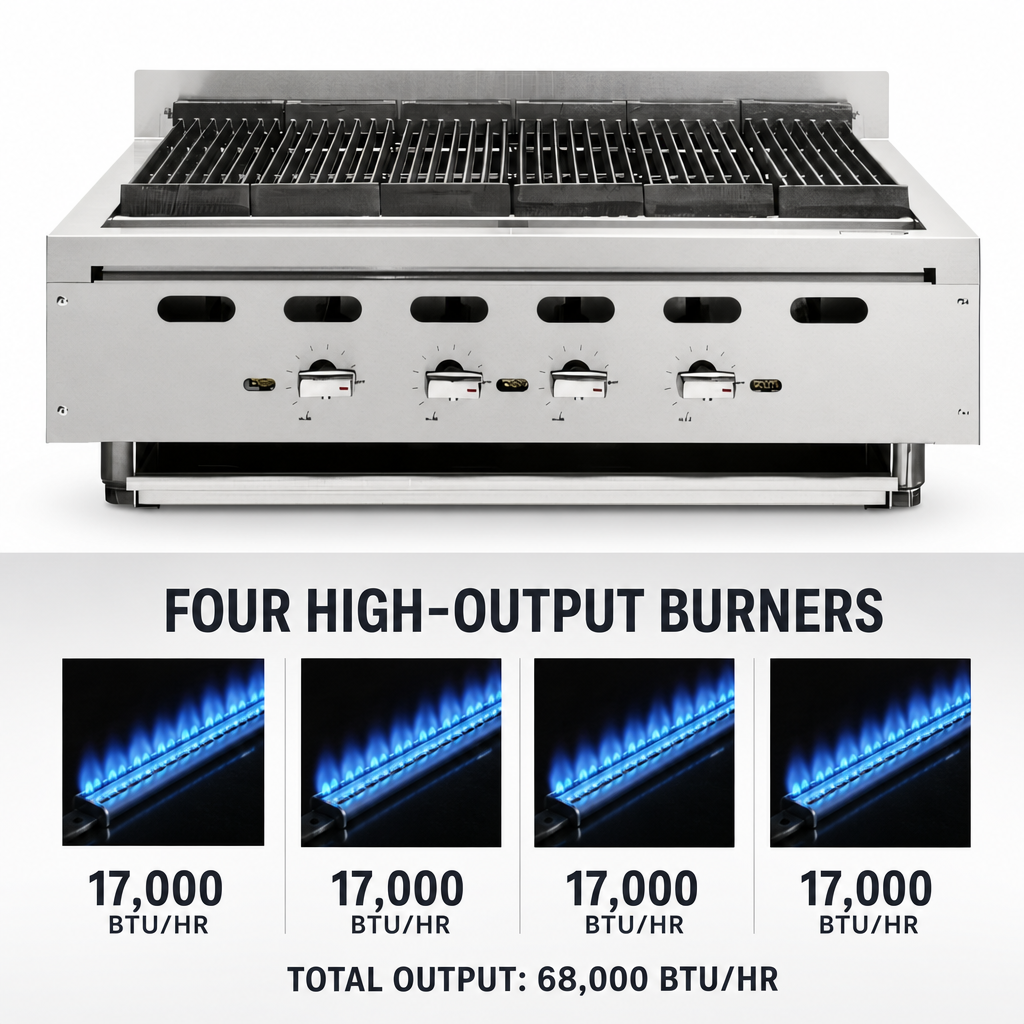

290.0 lbFour cast-iron burners
The VACB25 has four cast-iron burners rated at 17,000 BTU/hr each.
Infinite heat controls
One high-range infinite heat-control valve is specified for each burner, with adjustment marks engraved on the front panel.
Cast-iron cooking components
Heavy cast-iron char-radiants and 5-1/4-inch cast-iron diamond grates are specified.
All-welded chassis
The chassis is fully welded and includes stainless steel front, sides, top trim, backsplash, and grease trough.
Heat deflector tray system
The deflector tray system reflects heat upward and creates a cool zone in the grease drawer.
Standing pilot ignition
The charbroiler uses a standing pilot ignition system.
Adjustable legs
Four-inch adjustable legs are included.
