Vulcan

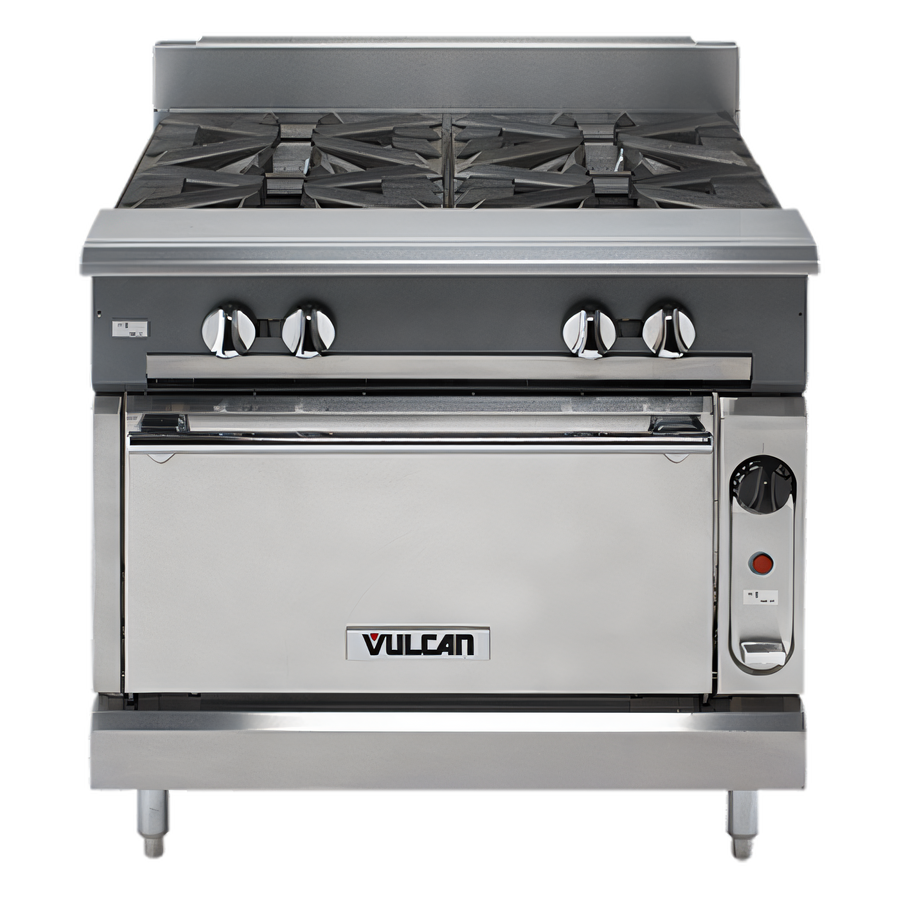

Vulcan V Series 36-Inch Heavy Duty Gas Range with 4 Open Burners and Standard Oven

SKU: V4B36S
$13,643.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan V Series 36-Inch Heavy Duty Gas Range with 4 Open Burners and Standard Oven

Stainless Steel Front & Sides, 190,000 BTU, 6-Inch Adjustable Legs

Built for demanding kitchens, this 36-inch gas range combines four high-output open burners with a standard oven in a rugged stainless steel body.

  • 36-inch heavy duty gas range with four 35,000 BTU open burners and a standard oven base
  • 190,000 BTU total input delivers the output needed for busy commercial kitchens
  • Stainless steel construction on the front, sides, base, burner box, and stub back
  • Heavy-duty cast grates, lift-off burner heads, and individual burner controls help simplify cooking and cleanup
  • Standard oven includes a porcelain cavity, one rack, three rack positions, and a 150°F to 550°F thermostat range
  • 6-inch adjustable stainless steel legs and 1-1/4 inch gas connections support flexible installation

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

675.0 lb

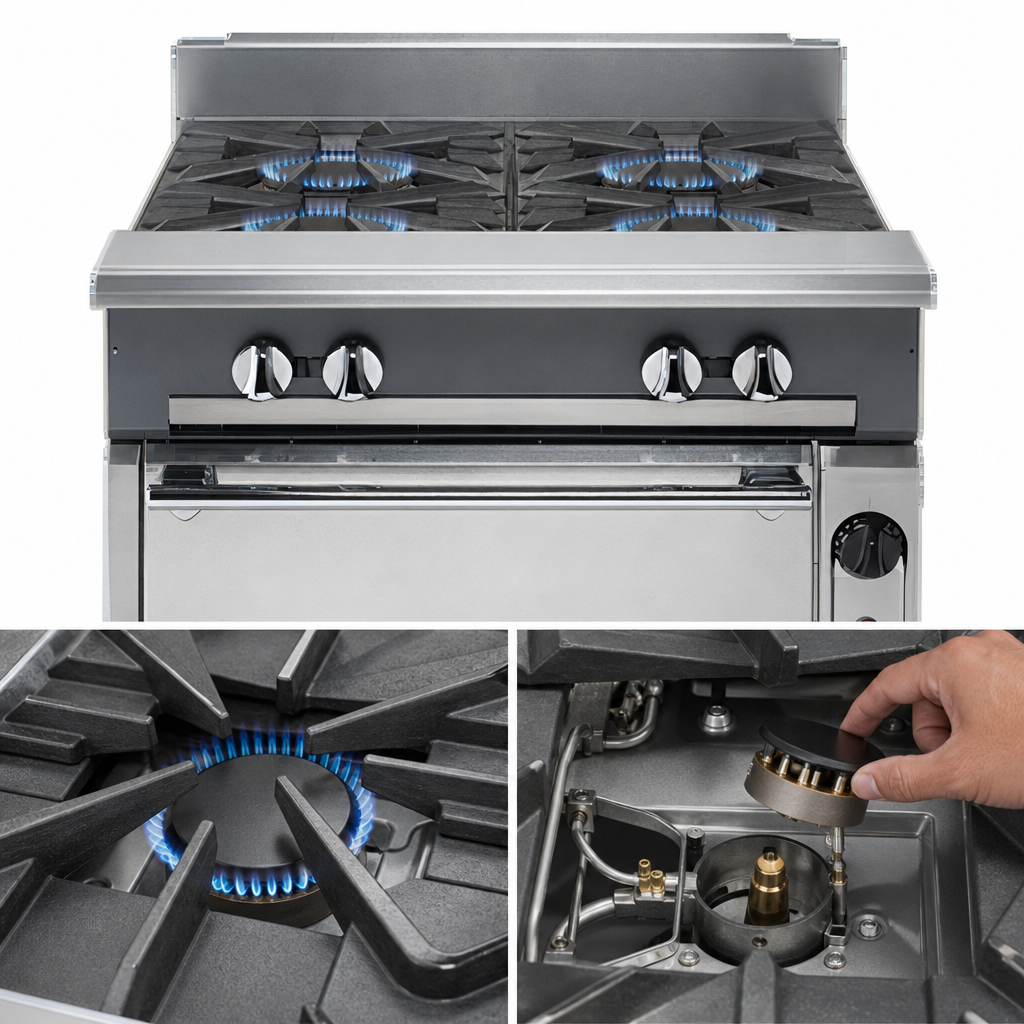

Four 35,000 BTU Open Burners

Lift-off burner heads with individual pilots and controls for each burner.

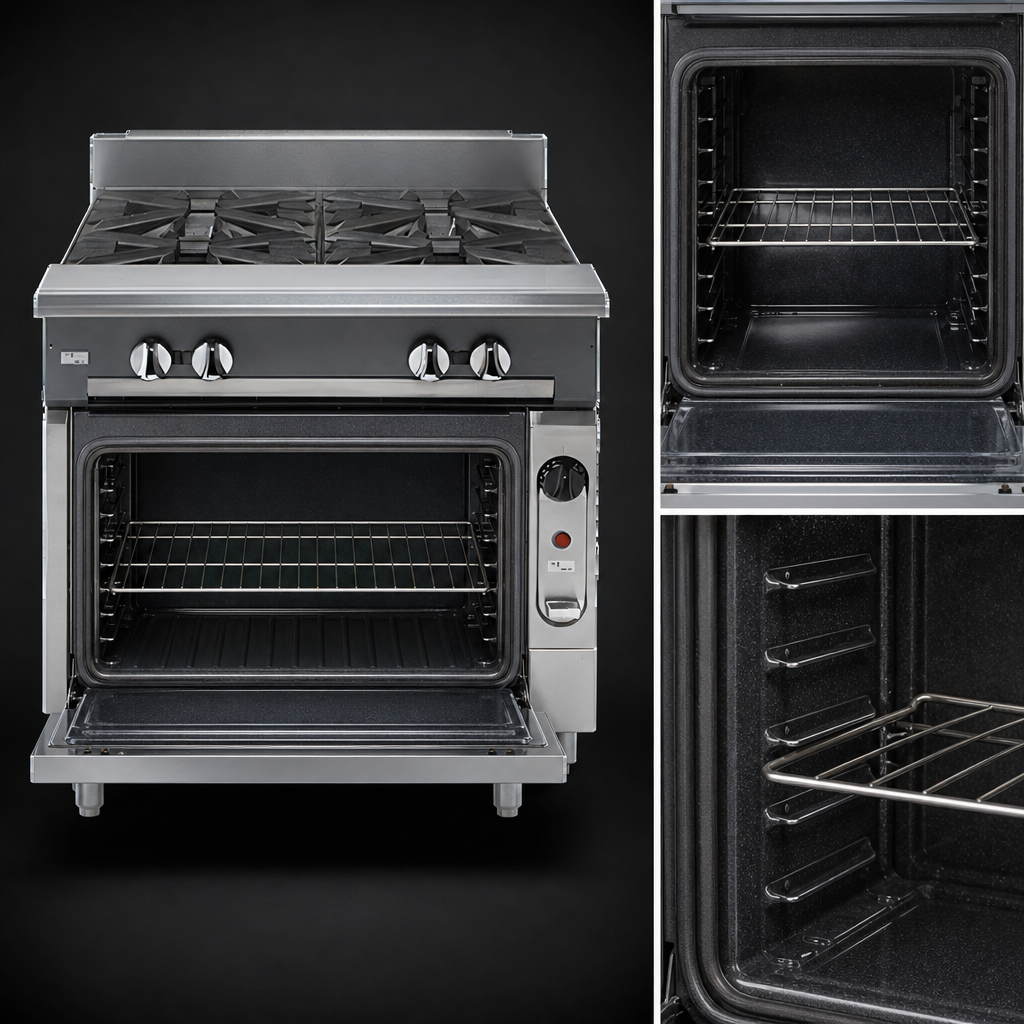

Standard Oven Base

50,000 BTU/hr standard oven with a porcelain cavity, one rack, and three rack positions.

Stainless Steel Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back for durability.

Heavy-Duty Cast Grates

Lift-off cast grates measure 11 x 17 Inches in front and 14 x 17 Inches in rear for easier cleaning.

Adjustable Oven Thermostat

Standard oven temperature range adjusts from 150°F to 550°F.

Counterweight Door Hinges

Heavy-duty oven door design helps provide smooth opening and closing.

1-1/4 Inch Gas Connections

Includes a front gas manifold and a capped rear gas connection.

6-Inch Adjustable Stainless Steel Legs

Adjustable legs are included for stable floor installation.

Type Heavy Duty Gas Range
Style Standard Oven
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain
Finish Stainless Steel
BTU 190,000 BTU
Gas Connection Size 1-1/4 Inches
Temperature Range 150°F to 550°F
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 675 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Video PDF Download PDF Parts manual PDF Download PDF Sell sheet PDF Download PDF Service manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a standard oven base with a 50,000 BTU/hr burner, a porcelain cavity, one rack, and three rack positions.
The total input is 190,000 BTU/hr.
It has a 1-1/4 inch front gas manifold and a 1-1/4 inch rear gas connection that is capped.
The standard oven thermostat adjusts from 150°F to 550°F.
Clearances are 10 inches at the rear and sides for combustible surfaces, and 0 inches for non-combustible surfaces.
Yes, the standard oven base includes 6-inch adjustable stainless steel legs.
