Vulcan

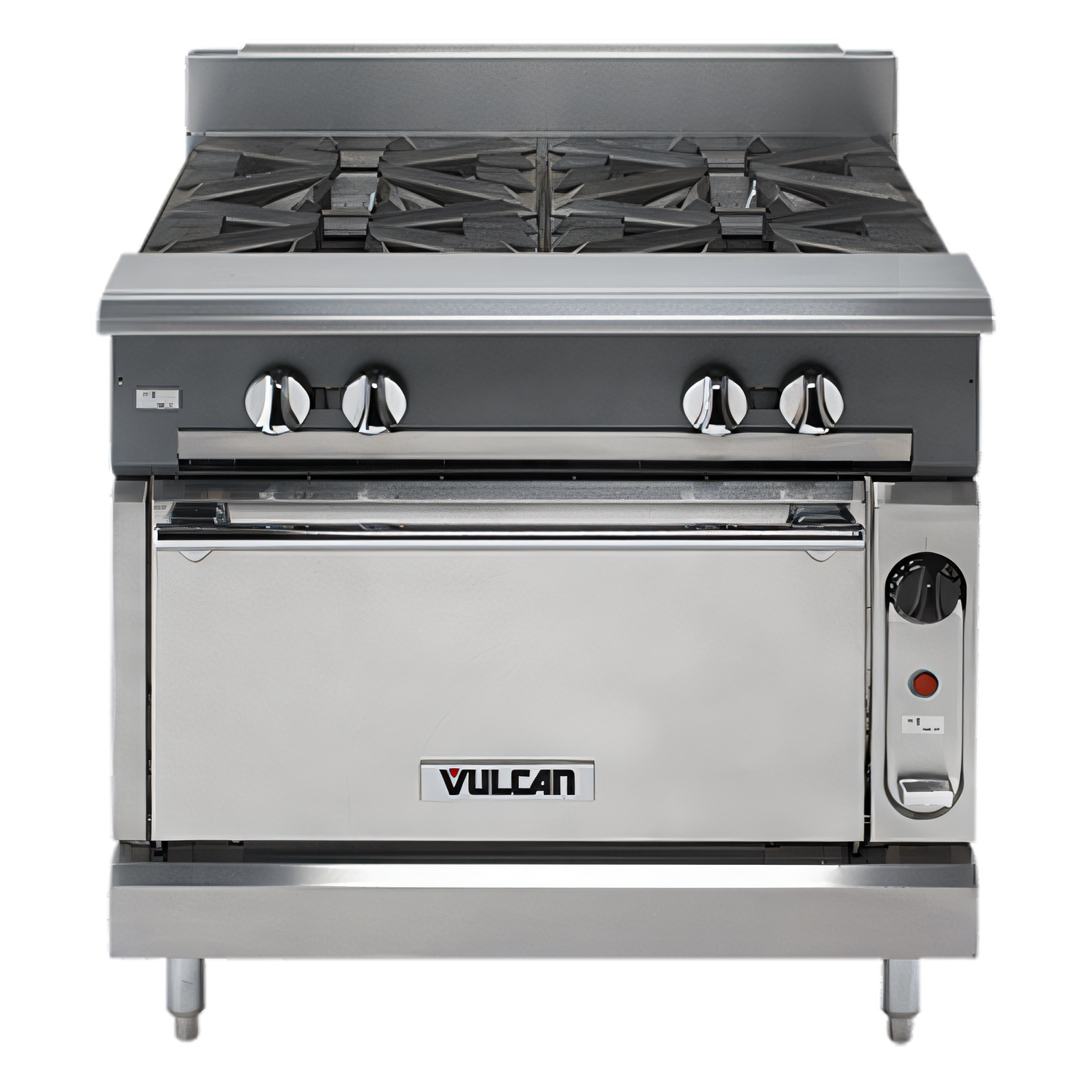

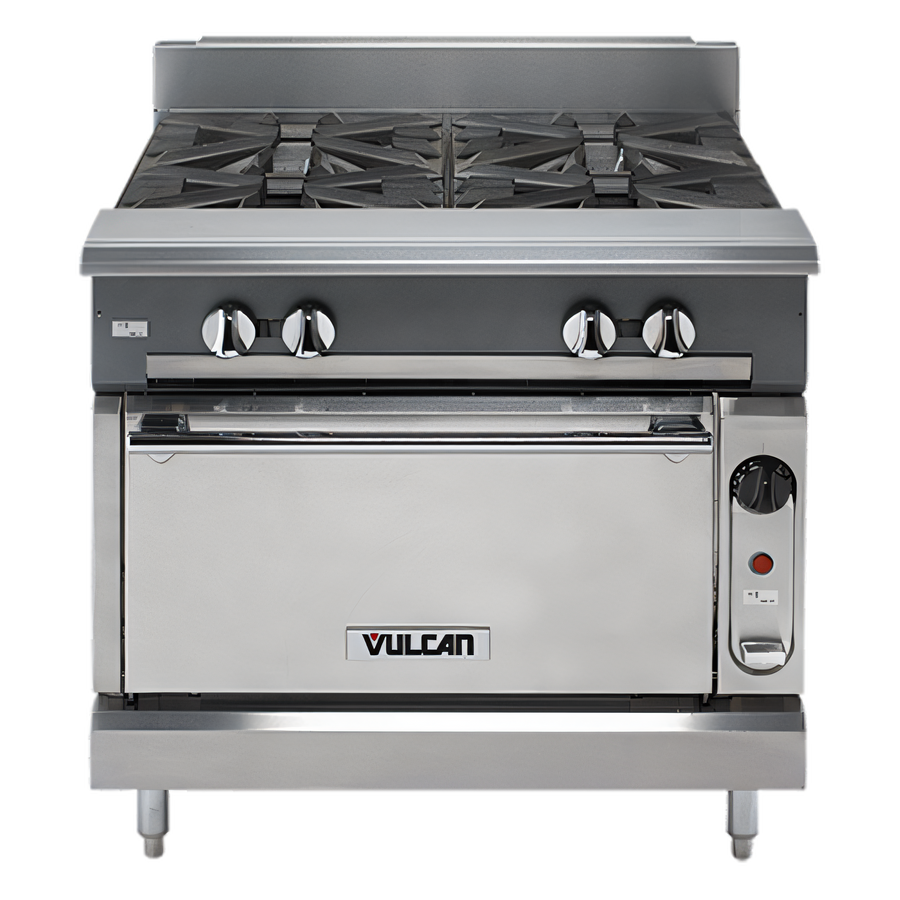

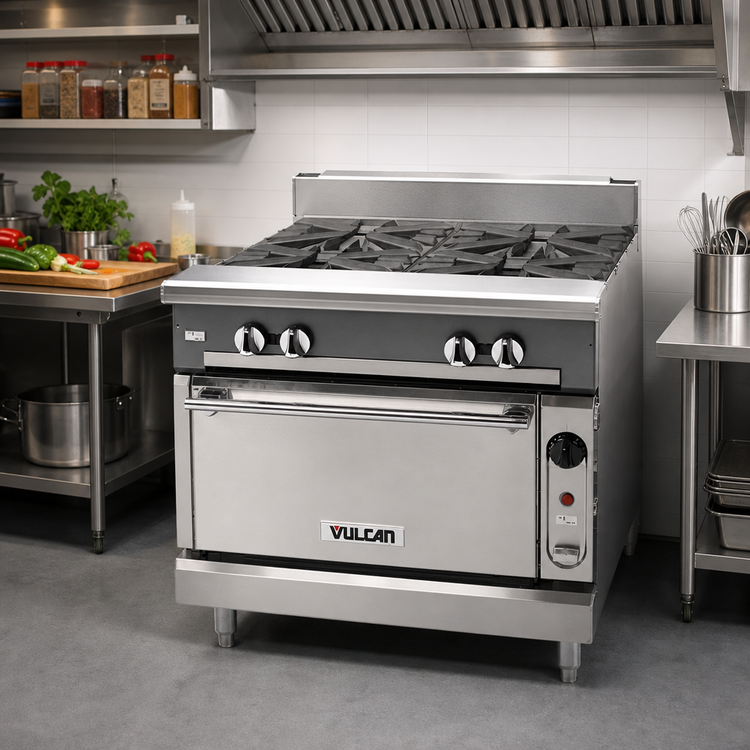

Vulcan V Series 36-Inch Stainless Steel Heavy Duty Gas Range with 4 Open Burners and Convection Oven

SKU: V4B36C
$18,456.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan V Series 36-Inch Stainless Steel Heavy Duty Gas Range with 4 Open Burners and Convection Oven

172,000 BTU Total Input, Floor Model, 6-Inch Adjustable Legs

A compact 36-inch heavy-duty range that combines four high-output open burners with a convection oven for flexible, high-volume cooking.

  • Four 35,000 BTU open burners provide fast top-side heat.
  • Built-in convection oven expands baking and roasting capacity.
  • Stainless steel construction delivers durability in demanding kitchens.
  • Heavy-duty cast iron grates and lift-off burner heads simplify cleaning.
  • 115V blower motor with 6-foot cord powers the convection oven.
  • 6-inch adjustable stainless steel legs help with leveling and installation.

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

715.0 lb

Four High-Output Open Burners

Includes four 35,000 BTU/hr. open top burners with lift-off heads for strong heating performance and easier cleaning.

Convection Oven Base

Built-in convection oven adds baking flexibility and is rated at 32,000 BTU/hr. with a 115V blower motor.

Stainless Steel Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back provide a durable commercial finish.

Heavy-Duty Cast Iron Grates

Cast grates are designed for frequent use and easy removal during cleaning.

Individual Pilots and Controls

Each burner has its own pilot and control for independent operation.

Porcelain Oven Cavity

Porcelain oven bottom, sides, and interior door panel help support cleanup and heat retention.

Counterweight Oven Door Hinges

Heavy-duty oven door with counterweight hinges supports smoother opening and closing.

Adjustable Stainless Steel Legs

6-inch adjustable stainless steel legs aid leveling and floor installation.

Type Heavy Duty Gas Range
Style Open Burner
Installation Type Floor Model
Capacity 1 Convection Oven
Material Stainless Steel
BTU 172,000 BTU
Gas Connection Size 1 1/4 Inches
Voltage 115 Volts
Amps 4 Amps
Phase 1-Phase
Cord Length 6 Feet
Temperature Range 175°F to 550°F
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 715 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Service manual PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The convection oven uses a 115V, 1-phase blower motor drawing 4 amps and includes a 6-foot cord and plug.
Natural gas requires 6.0 inches W.C., and propane requires 10.0 inches W.C. A properly sized gas pressure regulator is required.
The range has four 35,000 BTU/hr. open burners.
The oven measures 27 inches wide x 27 inches deep x 13 inches high, and the convection oven adjusts from 175°F to 550°F.
Required clearances are 10 inches at the rear and 10 inches at the sides for combustible surfaces; non-combustible surfaces require 0 inches.
Yes. The convection oven includes two racks and allows for three rack positions.
