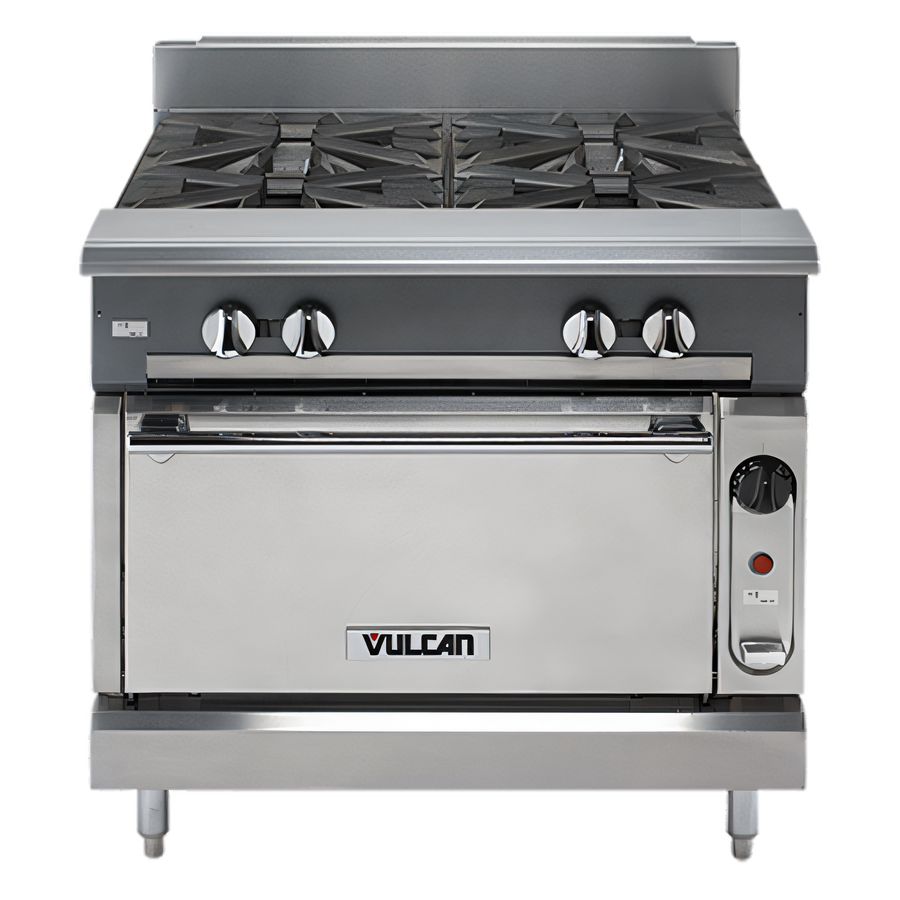

Vulcan V Series V4B36B 36-Inch Heavy Duty 4-Burner Gas Range with Cabinet Base

Stainless Steel Construction, 140,000 BTU Total

Built for high-volume cooking, this 36-inch heavy-duty gas range combines four 35,000 BTU open burners with a durable cabinet base for added storage and everyday utility.

  • Four 35,000 BTU/hr. open burners deliver powerful, responsive heat for busy kitchens.
  • Cabinet base design adds enclosed storage with rack guides and a removable shelf.
  • Stainless steel front, sides, base, burner box, and stub back help stand up to heavy use.
  • Heavy-duty cast iron grates and lift-off burner heads make cleanup easier.
  • 6-inch adjustable stainless steel legs simplify leveling during installation.
  • Front gas manifold and capped rear gas connection support flexible setup.

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

380.0 lb

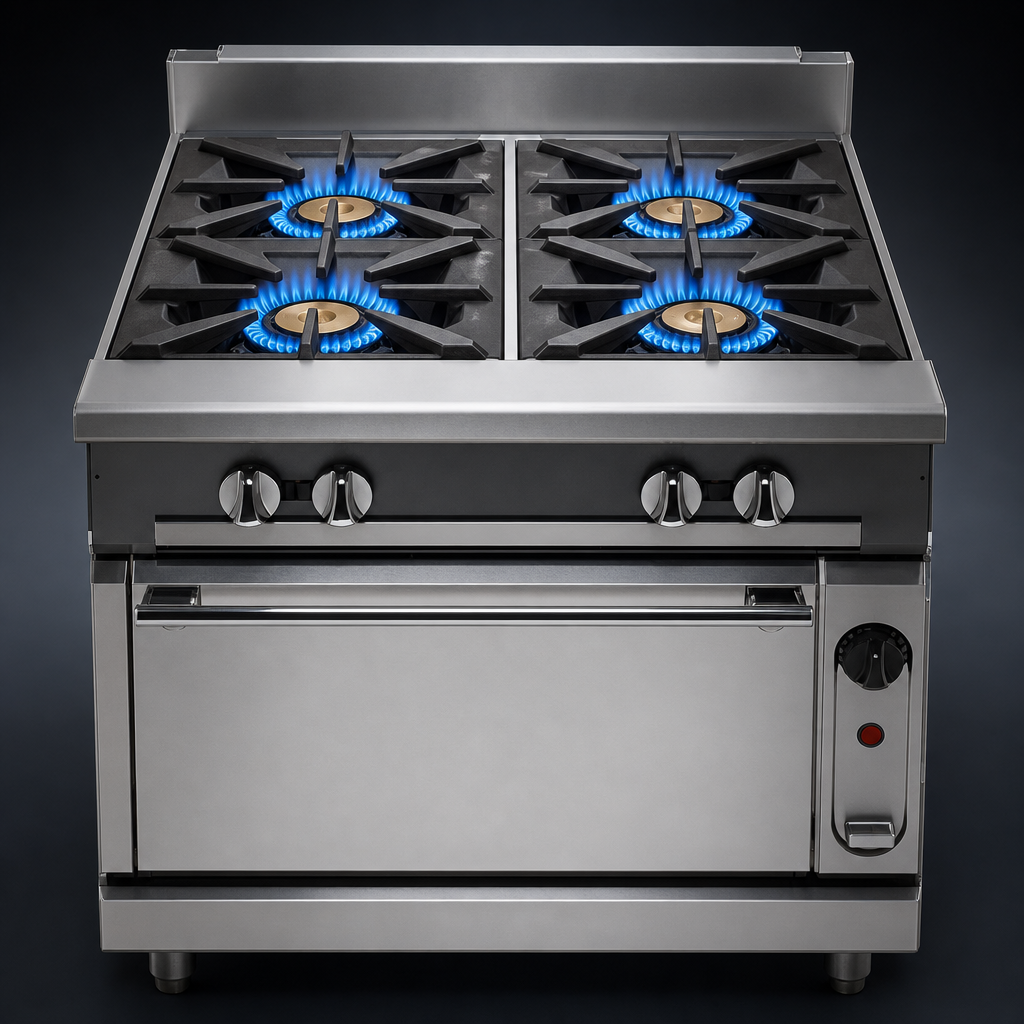

Four Open Burners

Four 35,000 BTU/hr. burners with lift-off heads provide high-output cooking power and easy maintenance.

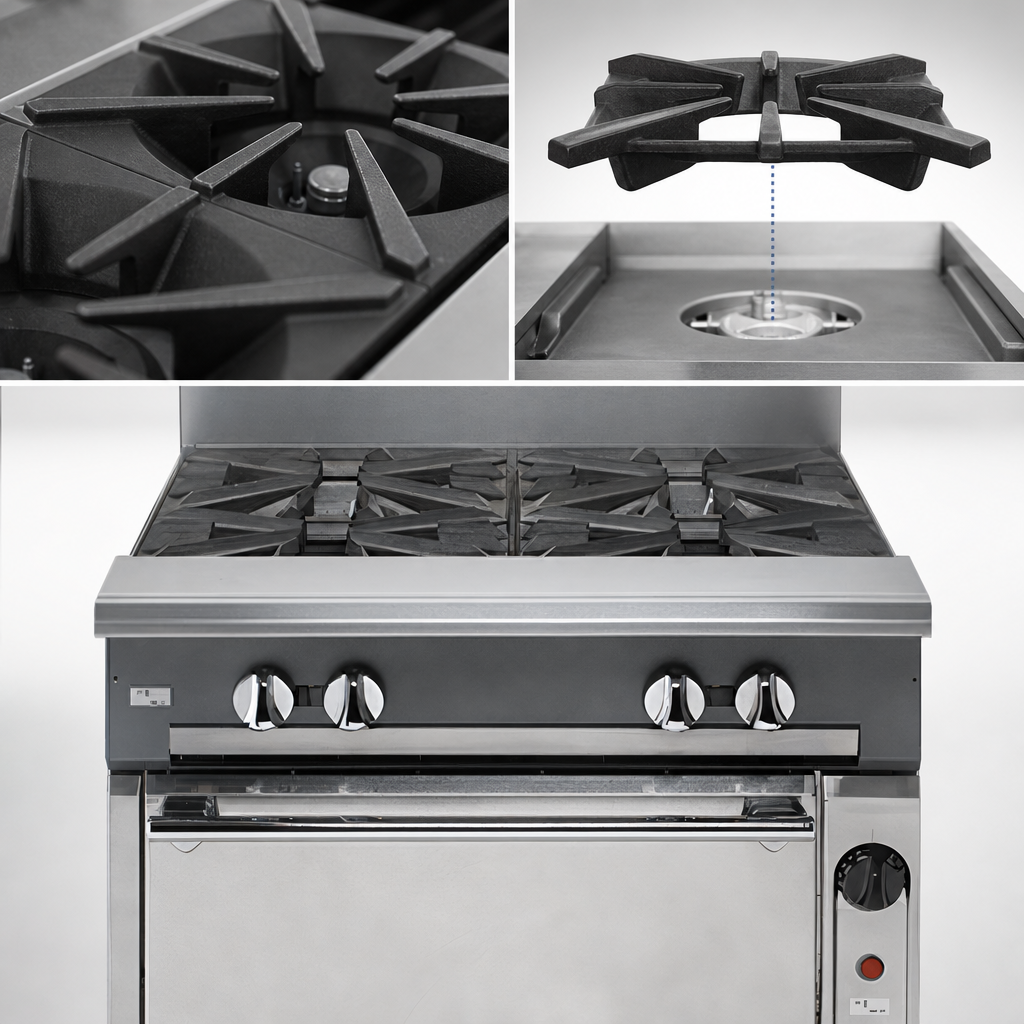

Heavy-Duty Cast Iron Grates

Sturdy cast grates are designed for heavy use and are separate from the aeration bowl for easier cleaning.

Stainless Steel Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back offer durability and a professional appearance.

Front Top Ledge with Condiment Rails

The front top ledge includes pull-out condiment rails for added convenience during service.

Cabinet Base Storage

The stainless steel cabinet base includes a door, universal rack guides, and one removable shelf.

Adjustable Stainless Steel Legs

6-inch adjustable legs help level the range on the floor during installation.

Gas Connection Setup

Features a 1 1/4-inch front gas manifold and a 1 1/4-inch rear gas connection, capped.

Extra-Deep Crumb Tray

A stainless steel crumb tray helps catch spills and debris for easier cleanup.

Type Gas Range
Style Open Burner
Installation Type Floor Model (With Legs)
Material Stainless Steel
Finish Stainless Steel
BTU 140,000 BTU
Gas Connection Size 1 1/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 380 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Video PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Sell sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. V4B36B is the cabinet-base version and does not include an oven; it includes storage with rack guides and one removable shelf.
It has four open burners.
The range has a total input of 140,000 BTU/hr.
Specify gas type when ordering. The installation instructions list natural gas at 6.0 Inches W.C. and propane at 10.0 Inches W.C.
Clearances are 10 Inches at the rear and sides for combustible surfaces, and 0 Inches for non-combustible surfaces.
The cabinet base includes a stainless steel door, universal rack guides, and one removable shelf.
