Vulcan

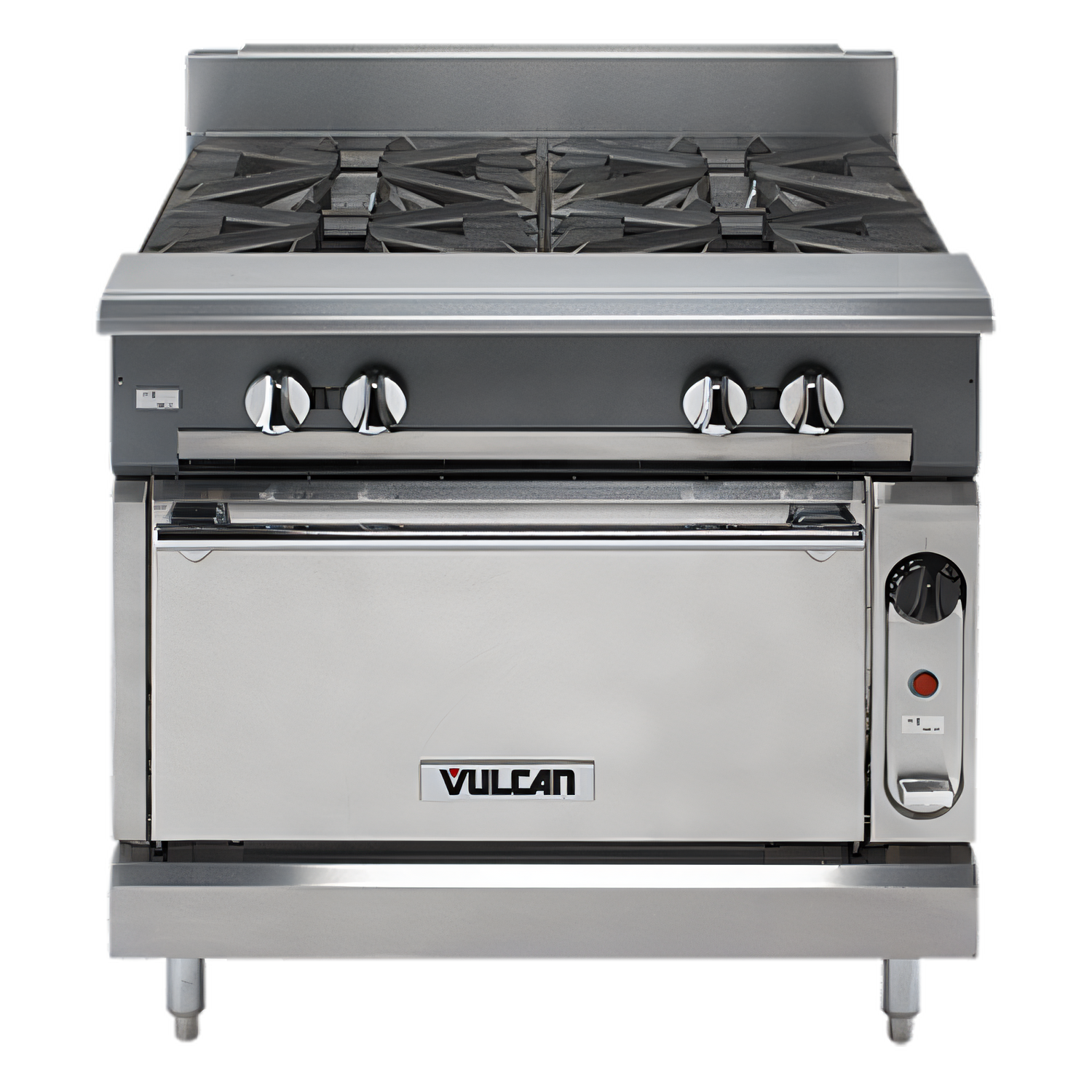

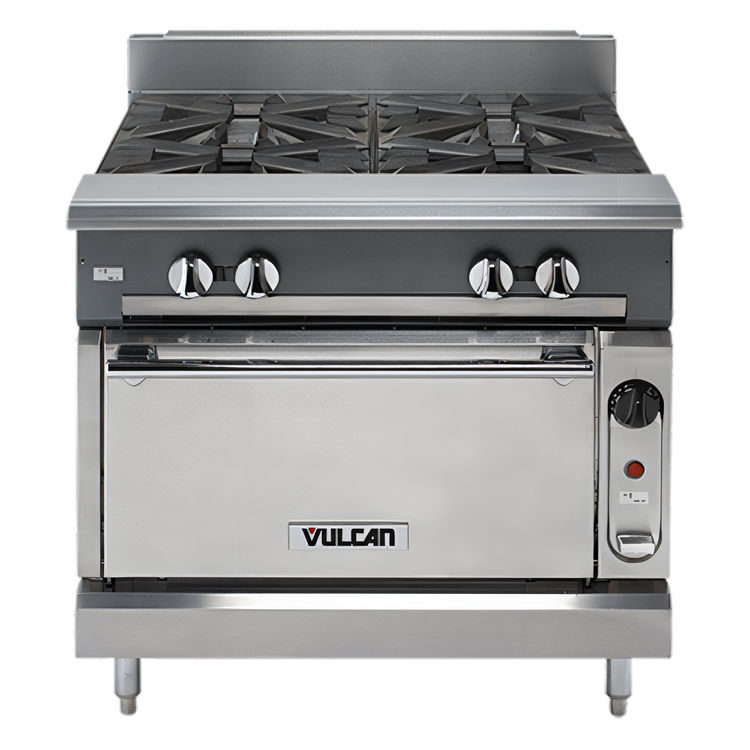

Vulcan V Series 36-Inch Heavy Duty Modular Gas Range Top with 4 Open Burners

SKU: V4B36
$8,140.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan V Series 36-Inch Heavy Duty Modular Gas Range Top with 4 Open Burners

Stainless Steel, 140,000 BTU, Cast Iron Grates

Built for high-volume line cooking, this 36-inch modular gas range top delivers 140,000 BTU across four heavy-duty open burners in a durable stainless steel build.

  • Four 35,000 BTU open burners provide strong, even heat output for demanding kitchens.
  • Modular 36-inch design is made for easy installation and battery-style lineups.
  • Heavy-duty cast iron grates and lift-off burner heads simplify cooking and cleaning.
  • Stainless steel construction helps the unit stand up to everyday commercial use.
  • Individual pilots and controls give each burner independent operation.
  • Front gas manifold and capped rear connection support flexible installation.

Overall Dimensions:

36.0"W x 36.75"D x 13.75"H

Product Weight:

261.0 lb

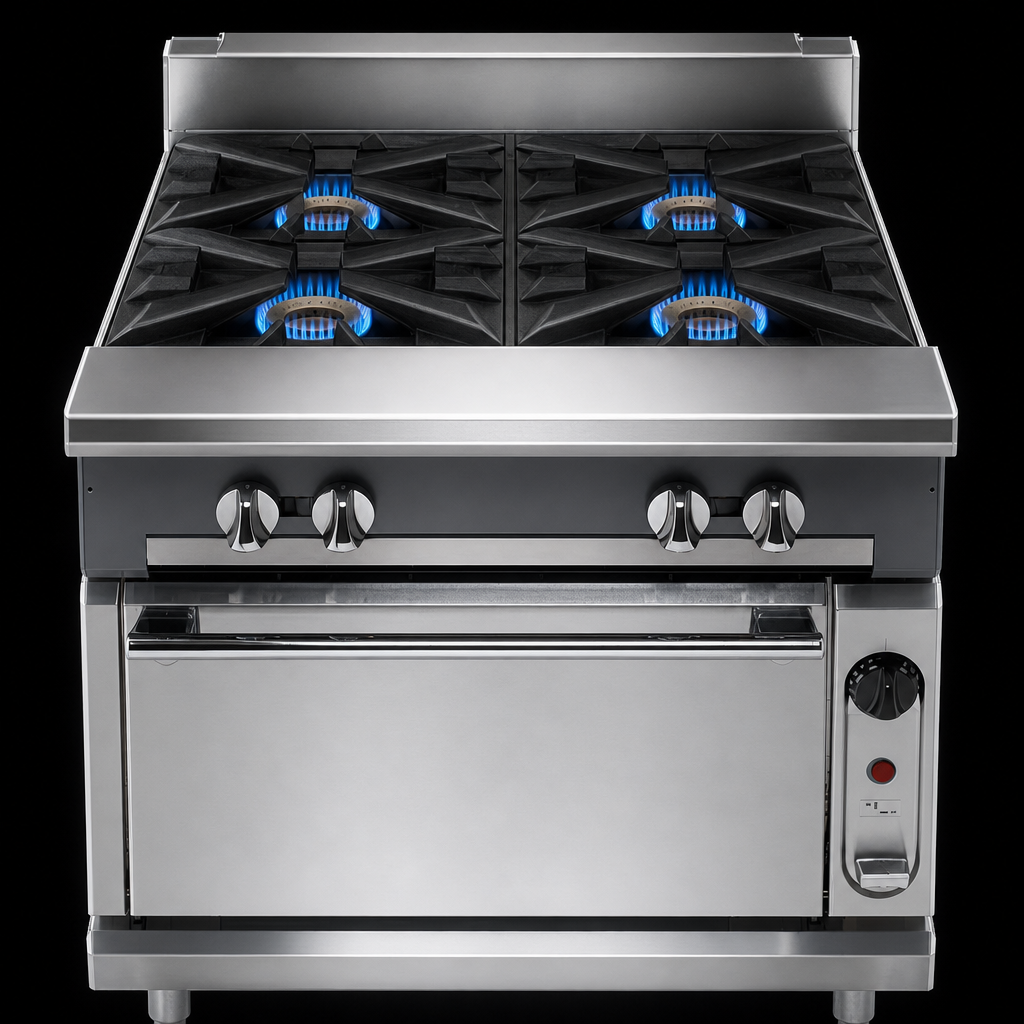

Four High-Output Open Burners

Includes four open burners rated at 35,000 BTU/hr. each for 140,000 BTU/hr. total input.

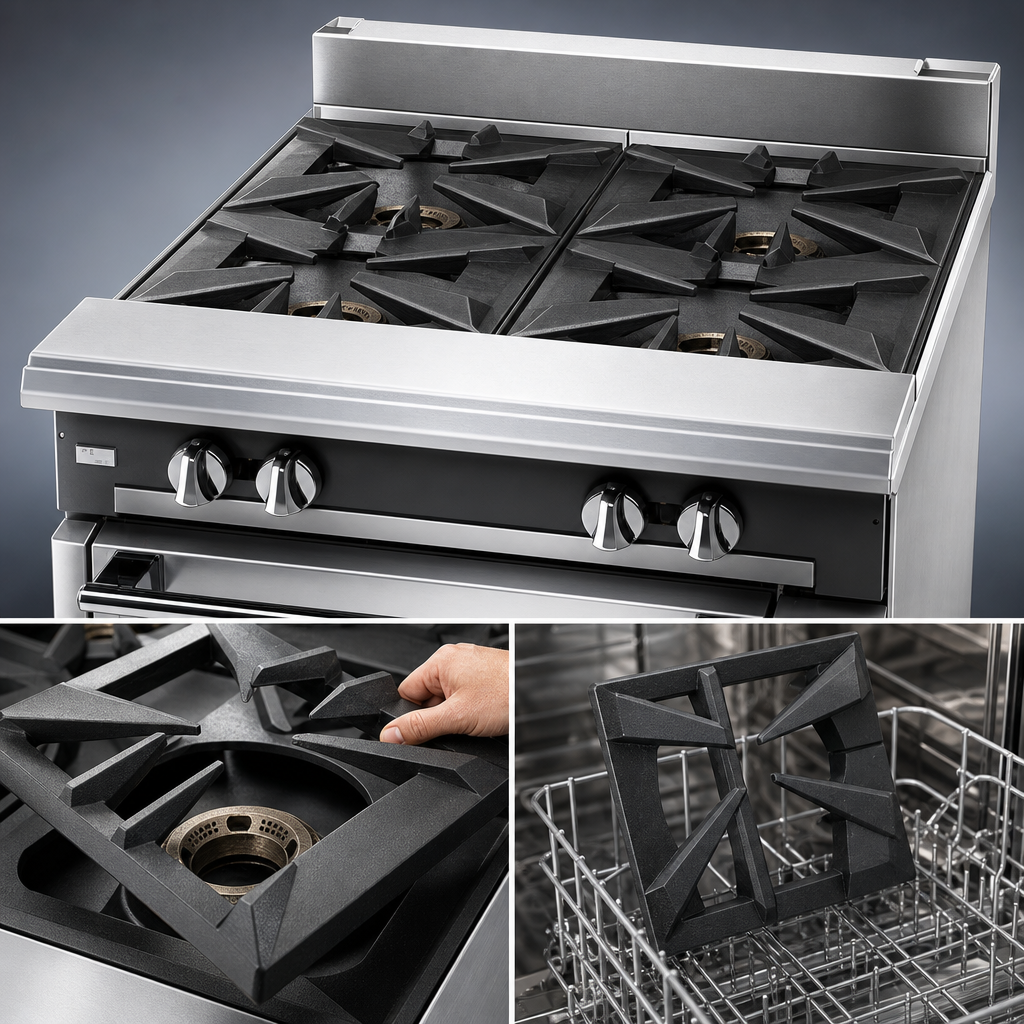

Heavy-Duty Cast Iron Grates

Lift-off cast grates provide sturdy support for cookware and easier cleanup.

Stainless Steel Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back improve durability.

Individual Pilots And Controls

Each burner has its own pilot and control for independent operation.

Front Top Ledge With Condiment Rails

The front top ledge includes pull-out condiment rails for added convenience.

Extra-Deep Crumb Tray

A stainless steel crumb tray helps catch debris and makes cleanup easier.

Flexible Gas Connection Layout

Features a 1 1/4-inch front gas manifold and a capped 1 1/4-inch rear gas connection.

Factory-Installed Flanged Feet Available

Optional 4-inch adjustable flanged feet are available for modular models.

Type Heavy Duty Gas Range
Style Modular
Installation Type Countertop
Material Stainless Steel
BTU 140,000 BTU
Gas Connection Size 1 1/4 Inches
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 14 Inches
Shipping Weight 261 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Sell sheet PDF Download PDF Service manual PDF Download PDF Installation & operation PDF Download PDF Parts manual PDF Download PDF Video PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four open top burners, each rated at 35,000 BTU/hr., for a total input of 140,000 BTU/hr.
No. V4B36 is the modular 4-burner top model; the same series also includes standard oven and convection oven versions.
The installation instructions call for 6.0" W.C. for natural gas and 10.0" W.C. for propane, and a properly sized regulator must be installed.
The unit measures 36" W x 36.75" D x 13.75" H.
Allow 10" at the rear and sides to combustible surfaces, and 0" to non-combustible surfaces. An adequate ventilation system is also required.
The cut sheet lists a one-year limited parts and labor warranty.
