Vulcan V Series 36-Inch Heavy Duty Gas Range with 2 Open Burners and 18-Inch Thermostatic Griddle, Cabinet Base

Stainless Steel Construction, 100,000 BTU, 6-Inch Adjustable Legs

Built for high-volume kitchens, this 36-inch heavy-duty gas range combines two open burners and an 18-inch thermostatic griddle with cabinet-base storage and stainless steel durability.

  • Two 35,000 BTU/hr open burners plus an 18-inch thermostatic griddle for versatile cooking.
  • 100,000 BTU/hr total input supports demanding commercial kitchen output.
  • Stainless steel front, sides, base, and stub back for durability and easy cleaning.
  • Cabinet base with stainless steel doors, rack guides, and a removable shelf adds under-range storage.
  • 6-inch adjustable stainless steel legs and front/rear gas connections simplify installation.

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

432.0 lb

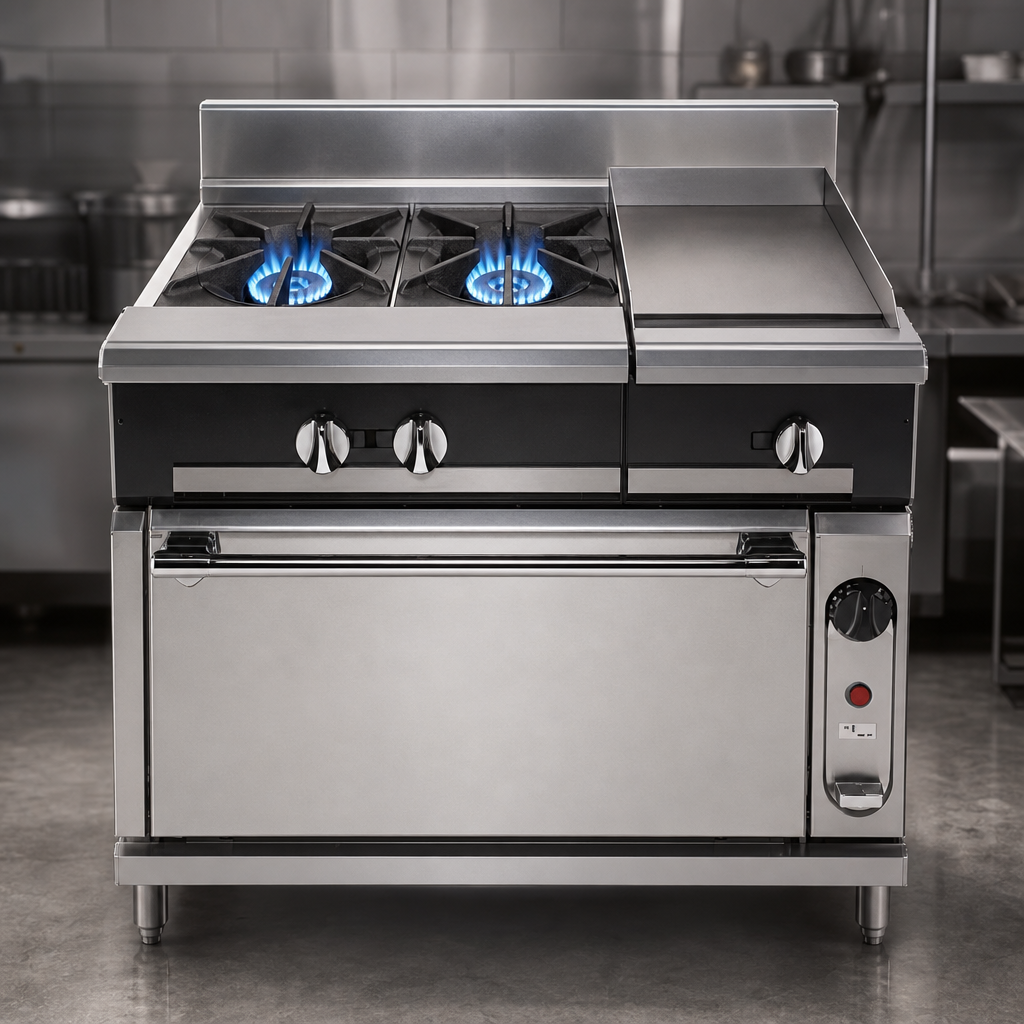

High-Output Open Burners

Two 35,000 BTU/hr open top burners with lift-off heads and individual controls for flexible cooking.

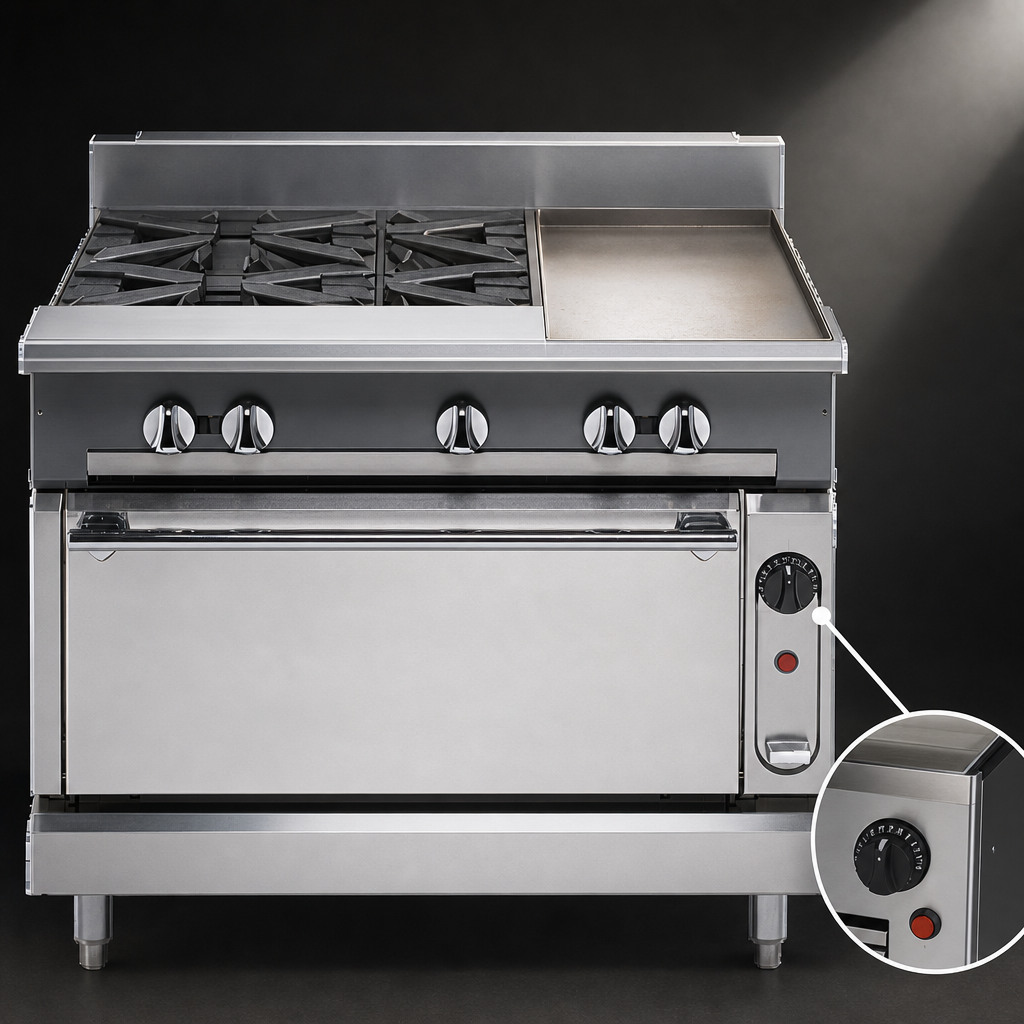

Thermostatic Griddle Section

An 18-inch ground steel griddle plate with 30,000 BTU/hr griddle burners and snap-action thermostats; temperature range is 150°F to 450°F.

Stainless Steel Construction

Stainless steel front, front top ledge, sides, base, burner box, and stub back are built for heavy-duty commercial use.

Cabinet Base Storage

Stainless steel cabinet base doors with universal rack guides and one removable shelf provide under-range storage.

Easy-Clean Design

Heavy-duty cast burner grates, separate grates and plates, and an extra-deep crumb tray help simplify cleanup.

Stable Floor Installation

6-inch adjustable stainless steel legs help level the range during installation.

Service-Friendly Gas Connections

Includes a 1 1/4-inch front gas manifold connection and a capped 1 1/4-inch rear gas connection.

Commercial Output

Total input is 100,000 BTU/hr for high-demand cooking environments.

Type Heavy Duty Gas Range
Style 2 Open Burners / 18-Inch Thermostatic Griddle
Installation Type Floor Model
Controls Snap-Action Thermostatic
Material Stainless Steel
BTU 100,000 BTU
Gas Connection Size 1 1/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 432 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Sell sheet PDF Download PDF Video PDF Download PDF Service manual PDF Download PDF Parts manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes two open burners and an 18-inch thermostatic griddle.
The range has a total input of 100,000 BTU/hr.
Yes. The cabinet base includes stainless steel doors, universal rack guides, and one removable shelf.
It uses a 1 1/4-inch front manifold connection and a capped 1 1/4-inch rear gas connection.
Natural gas or propane. The instructions specify 6.0" W.C. for natural gas and 10.0" W.C. for propane, so the gas type should be specified when ordering.
Yes. The installation instructions state that an adequate ventilation system is required for commercial cooking equipment.
