Vulcan V Series 36-Inch Modular Heavy Duty Gas Range with 2 Open Burners and 18-Inch Thermostatic Griddle
Vulcan V Series 36-Inch Modular Heavy Duty Gas Range with 2 Open Burners and 18-Inch Thermostatic Griddle
100,000 BTU, Stainless Steel Construction, 3/4-Inch Griddle Plate
A compact modular range that combines high-output open burners and a thermostatic griddle for flexible, space-saving commercial cooking.
- Two 35,000 BTU open burners provide powerful heat for high-volume cooking.
- 18-inch thermostatic griddle with 3/4-inch ground steel plate adds versatile flat-top cooking.
- Stainless steel front, sides, base, and stub back are built for daily commercial use.
- Heavy-duty cast grates, lift-off burner heads, and an extra-deep crumb tray help simplify cleanup.
- Individual pilots and controls for each burner support independent operation.
- 100,000 BTU total input delivers strong performance in a 36-inch footprint.
Overall Dimensions:
36.0"W x 36.75"D x 13.75"HProduct Weight:

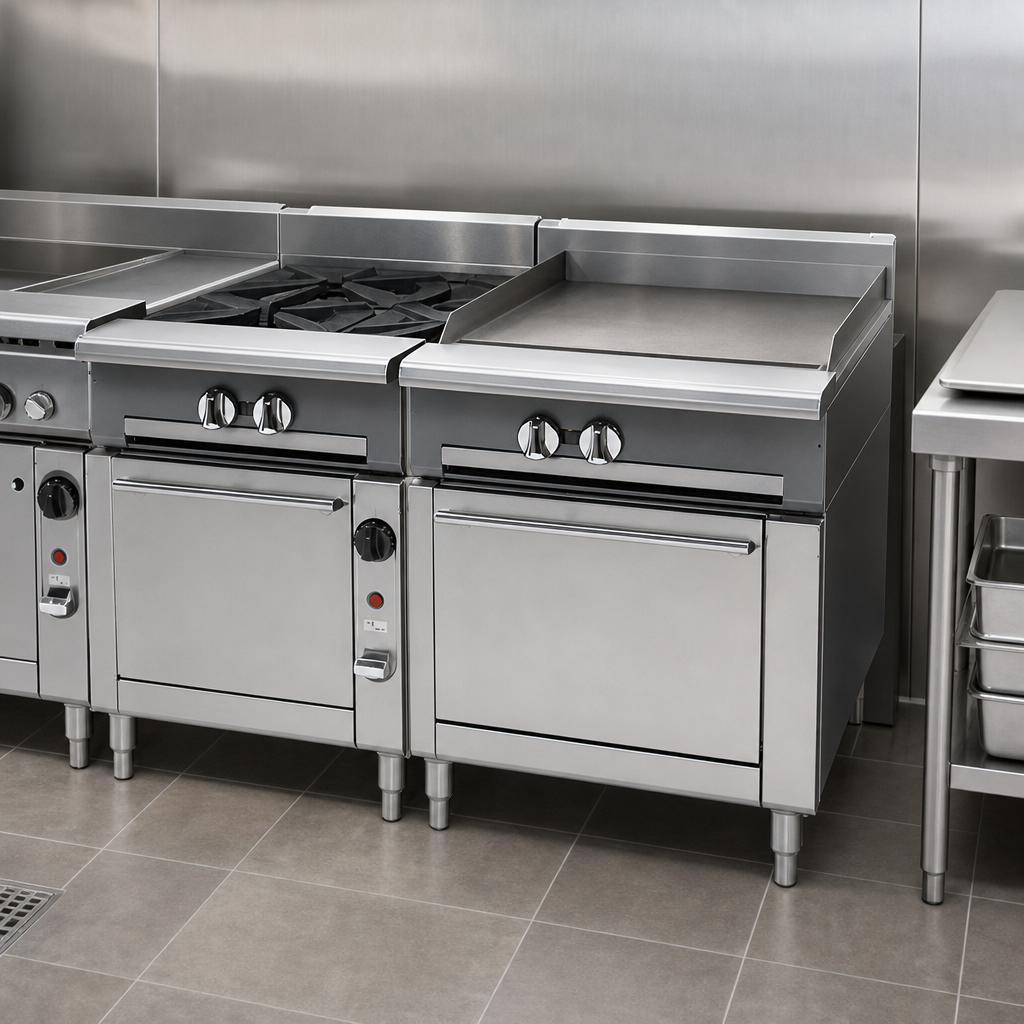

332.0 lbModular Heavy-Duty Construction
36-inch modular design is built for flexible installation in commercial kitchen layouts.
2 High-Output Open Burners
Two 35,000 BTU/hr open burners deliver fast, intense heat for a wide range of cooking tasks.
18-Inch Thermostatic Griddle
The 18-inch griddle includes thermostatic controls for consistent temperature management.
3/4-Inch Ground Steel Griddle Plate
Heavy plate construction helps provide even heat distribution and long-lasting durability.
Stainless Steel Exterior
Stainless steel front, front top ledge, sides, base, and stub back support durability and easier cleaning.
Heavy-Duty Cast Grates
Cast grates and lift-off burner heads are designed for dependable performance and simpler maintenance.
Individual Burner Controls
Each burner has its own pilot and control for more precise operation.
Extra-Deep Crumb Tray
Helps catch debris and drips to keep the cooking area cleaner.
4-Inch Flanged Feet
Flanged feet help secure the modular unit in place during installation.
Gas Connection
Features a 1-1/4-inch front gas manifold and a 1-1/4-inch rear gas connection (capped).
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
