Vulcan V Series Heavy Duty 36-Inch Gas Range with 2 Open Burners and 24-Inch Manual Griddle, Cabinet Base

SKU: V2BG24B
$10,309.67
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

Vulcan V Series Heavy Duty 36-Inch Gas Range with 2 Open Burners and 24-Inch Manual Griddle, Cabinet Base

130,000 BTU total, stainless steel construction, 6-inch adjustable legs

This heavy-duty 36-inch range combines two high-output open burners with a 24-inch manual griddle and a durable cabinet base for versatile, space-efficient cooking.

  • Combines 2 open burners and a 24-inch manual griddle in a compact 36-inch footprint.
  • Delivers 130,000 BTU/hr total input for high-demand commercial cooking.
  • Stainless steel construction and cast grates are built for daily heavy-duty use.
  • Cabinet base adds under-range storage with stainless steel doors and a removable shelf.
  • 6-inch adjustable stainless steel legs help with leveling and installation.
  • Individual pilots and burner controls support more precise operation.

Overall Dimensions:

36.0"W x 41.88"D x 40.5"H

Product Weight:

467.0 lb

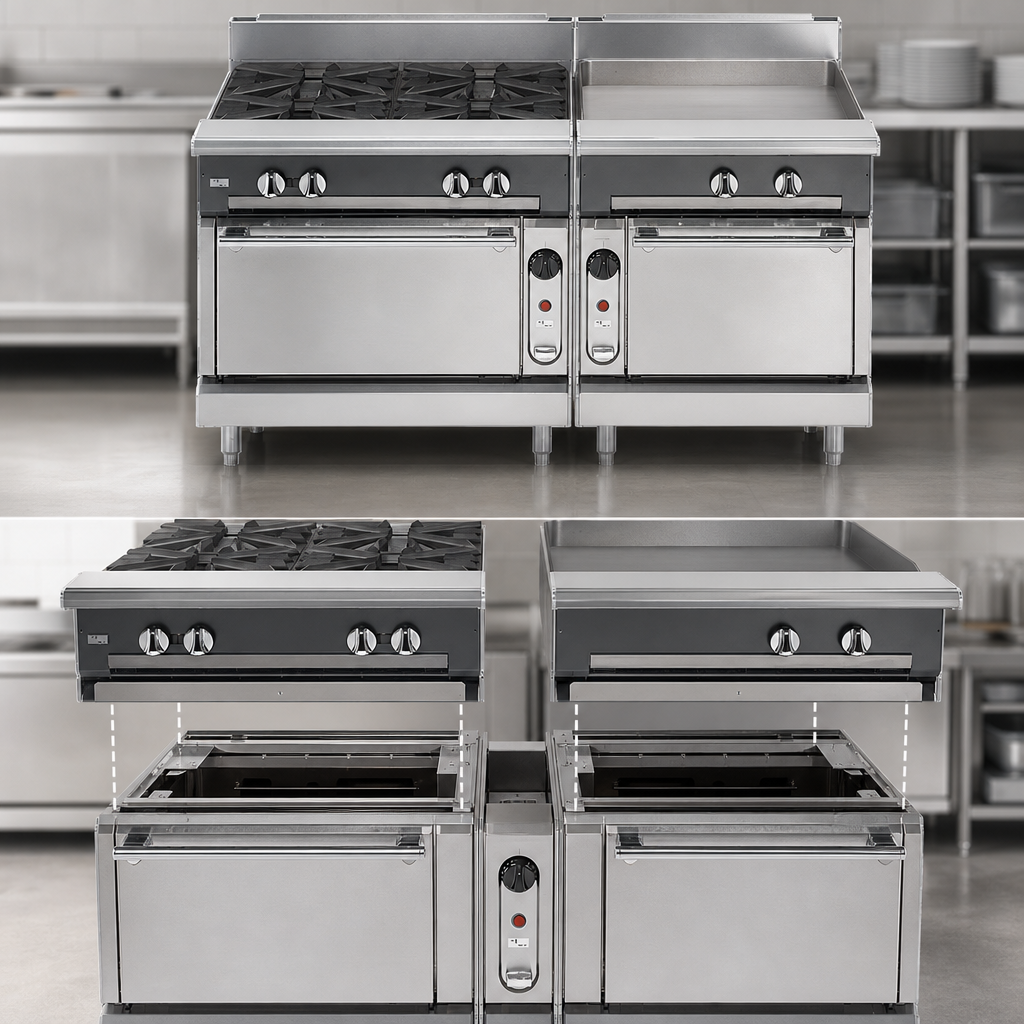

Modular Construction

Modular design helps simplify installation and service.

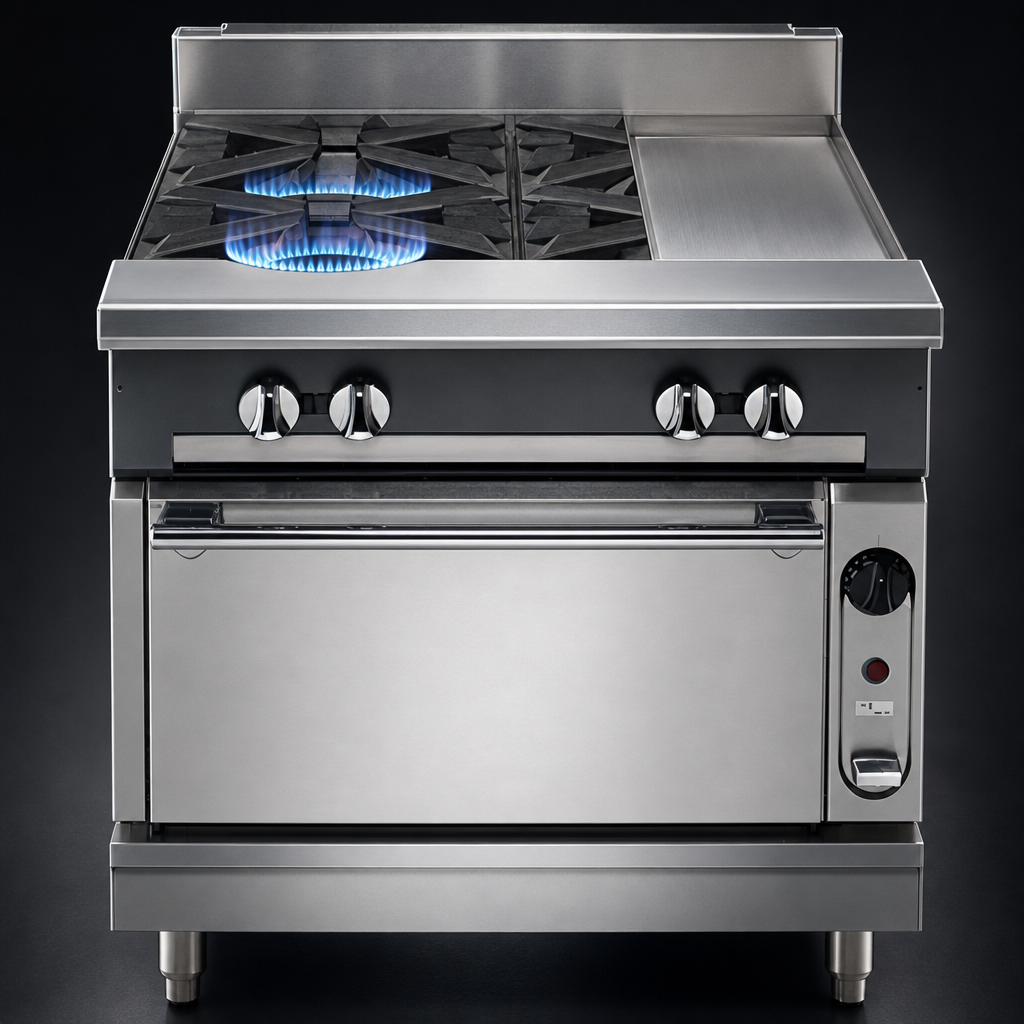

Two 35,000 BTU Open Burners

Lift-off cast burner heads provide high-output heat for everyday range cooking.

24-Inch Ground Steel Griddle

Adds a flat cooking surface for breakfast items, sandwiches, and searing.

Heavy-Duty Stainless Steel Construction

Stainless steel front, front top ledge, burner box, sides, base, and stub back are built for demanding kitchens.

Cabinet Base with Storage

Stainless steel cabinet base doors and universal rack guides with one removable shelf provide convenient under-range storage.

Individual Pilots and Burner Controls

Each burner has its own pilot and control for better heat management.

Heavy Duty Cast Grates

Durable grates support cookware and are made for frequent commercial use.

Extra Deep Crumb Tray

Helps collect debris and makes cleanup easier.

6-Inch Adjustable Stainless Steel Legs

Provides leveling flexibility and clearance beneath the range.

130,000 BTU Total Input

High total heat input supports busy kitchen service.

Type Gas Range
Style Heavy Duty
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
BTU 130,000 BTU/hr
Gas Connection Size 1-1/4 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 42 Inches
Shipping Height 41 Inches
Shipping Weight 467 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Parts manual PDF Download PDF Video PDF Download PDF Installation & operation PDF Download PDF Service manual PDF Download PDF Sell sheet PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes two 35,000 BTU open burners and one 24-inch ground steel griddle.
The total input is 130,000 BTU/hr.
The unit measures 36 inches wide, 41-7/8 inches deep, and 40-1/2 inches high on 6-inch adjustable legs.
The cabinet base includes stainless steel doors, universal rack guides, and one removable shelf.
It uses a 1-1/4 inch front manifold and a 1-1/4 inch rear gas connection. Natural gas requires 6.0 inches W.C., and propane requires 10.0 inches W.C.; a properly sized gas pressure regulator is required.
