Vulcan V Series 36-Inch Heavy Duty Gas Range with 2 Open Burners, 18-Inch Griddle and Convection Oven
Vulcan V Series 36-Inch Heavy Duty Gas Range with 2 Open Burners, 18-Inch Griddle and Convection Oven
Stainless Steel Front and Sides, 132,000 BTU Total Input, 6-Inch Adjustable Legs
This rugged 36-inch gas range combines two high-output burners, an 18-inch griddle, and a convection oven to handle multiple cooking tasks in one footprint.
- 36-inch heavy-duty gas range with two open burners, an 18-inch manual griddle, and a convection oven base.
- 132,000 BTU/hr total input with 35,000 BTU/hr open burners and a 32,000 BTU/hr convection oven burner.
- Stainless steel front, sides, base, burner box, and stub back for lasting durability.
- Porcelain oven cavity with two racks, three rack positions, and a heavy-duty counterweighted door.
- 115V blower motor with 4 amps and a 9-foot cord and plug.
- 6-inch adjustable stainless steel legs and 1-1/4-inch gas connection for installation flexibility.
Overall Dimensions:
36.0"W x 41.88"D x 40.5"HProduct Weight:

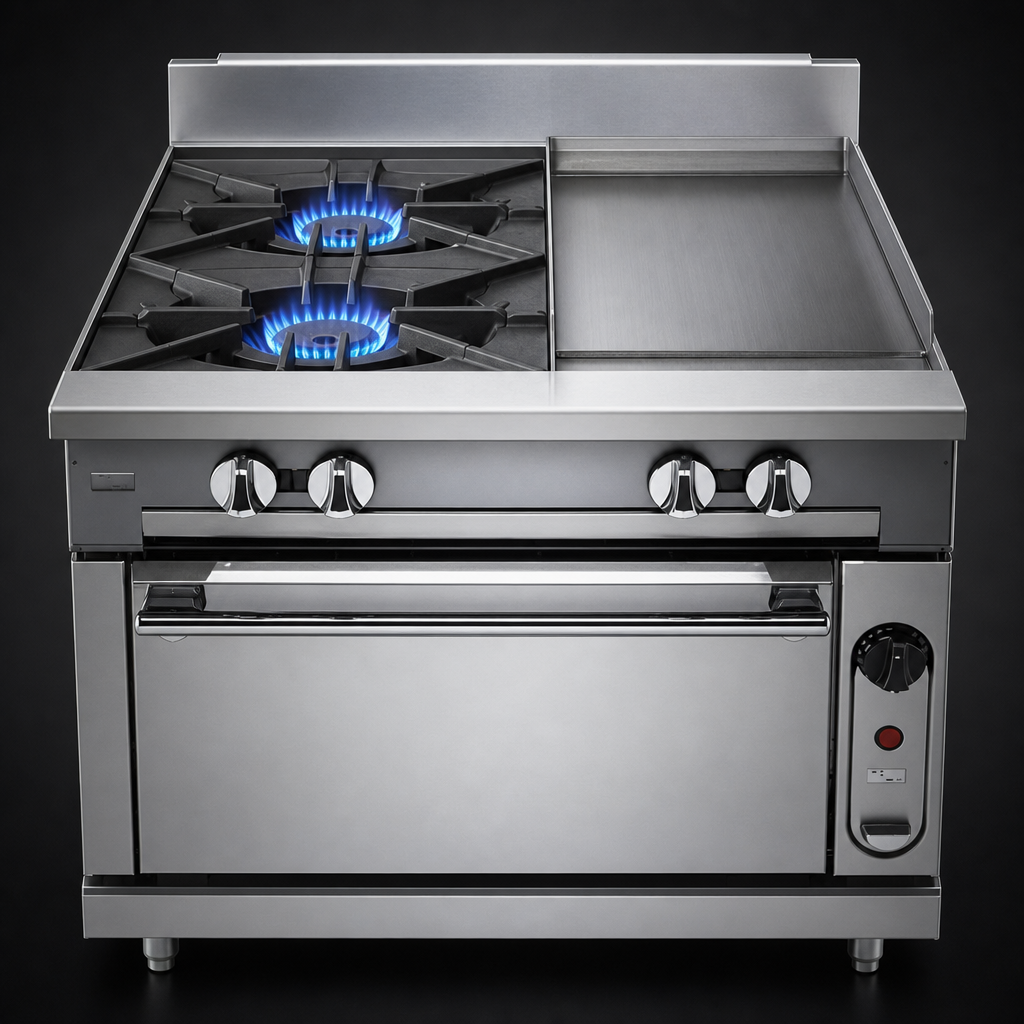

691.0 lbHigh-Output Open Burners
Two 35,000 BTU/hr cast open burners with lift-off heads provide fast, responsive heat.

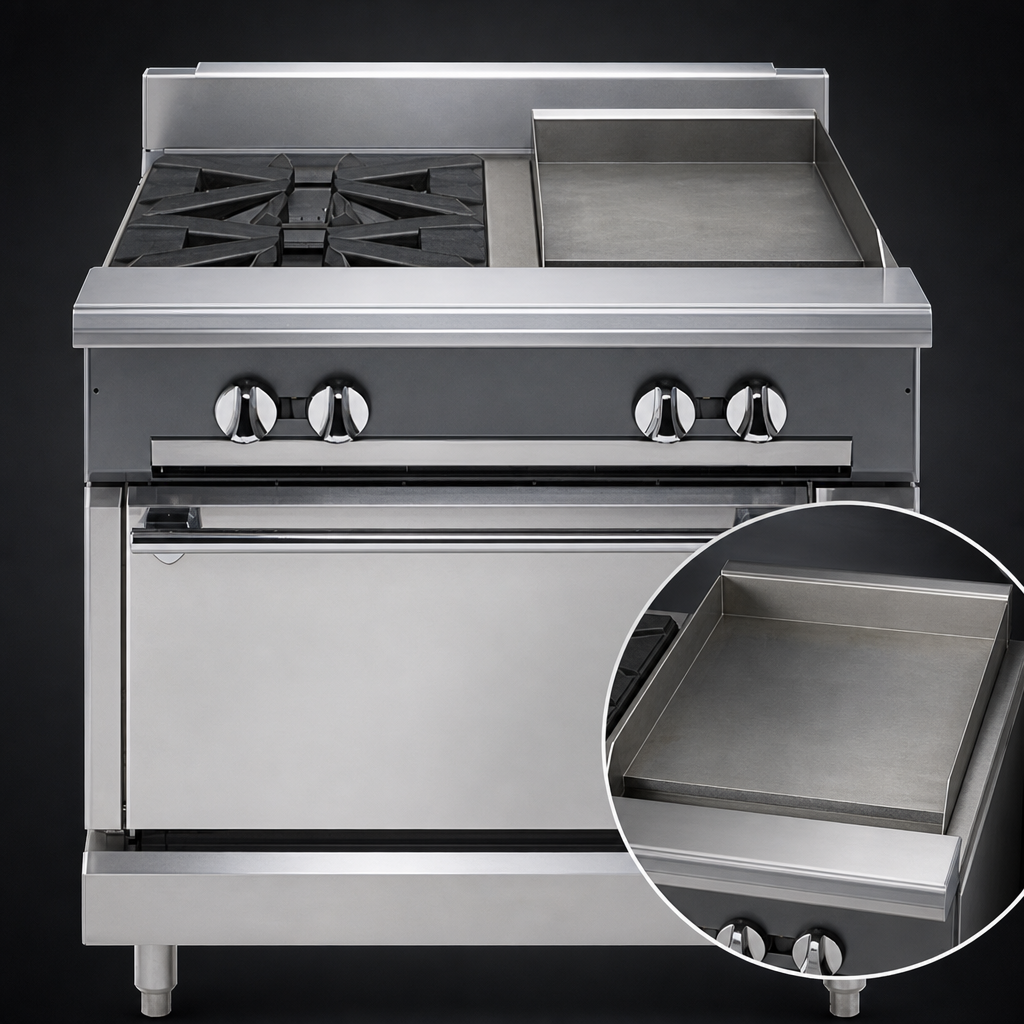

18-Inch Manual Griddle
A 3/4-inch ground steel griddle plate with a 30,000 BTU/hr griddle burner expands the cooktop’s versatility.
Convection Oven Base
The convection oven includes a 32,000 BTU/hr burner, 115V single-phase blower motor, 4 amps, and a 9-foot cord and plug.
Porcelain Oven Interior
Porcelain oven bottom, sides, and interior door panel help support durability and easier cleanup.
Heavy-Duty Door Construction
The oven door uses counterweight hinges for smooth operation and a solid feel.
Stainless Steel Exterior
Stainless steel front, front top ledge, burner box, sides, base, and stub back provide a durable commercial finish.
Individual Burner Controls
Each burner has its own pilot and control for better cooking management.
Easy-Clean Grate Design
Heavy-duty cast grates and separate grate/plate sections simplify access and cleaning.
Installation-Ready Connections
Features a 1-1/4-inch front gas manifold and 1-1/4-inch rear gas connection, capped.
Adjustable Legs
6-inch adjustable stainless steel legs are standard for stable floor installation.
Oven Rack Setup
The convection oven includes two racks and three rack positions for flexible loading.
Certifications & Compliance
Warranty & Protection
1-year limited parts and labor
