Vulcan

Vulcan V Series 36-Inch Heavy Duty Gas Range with Radial Fin French Top and Convection Oven

SKU: V1FT36C
$15,856.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Vulcan

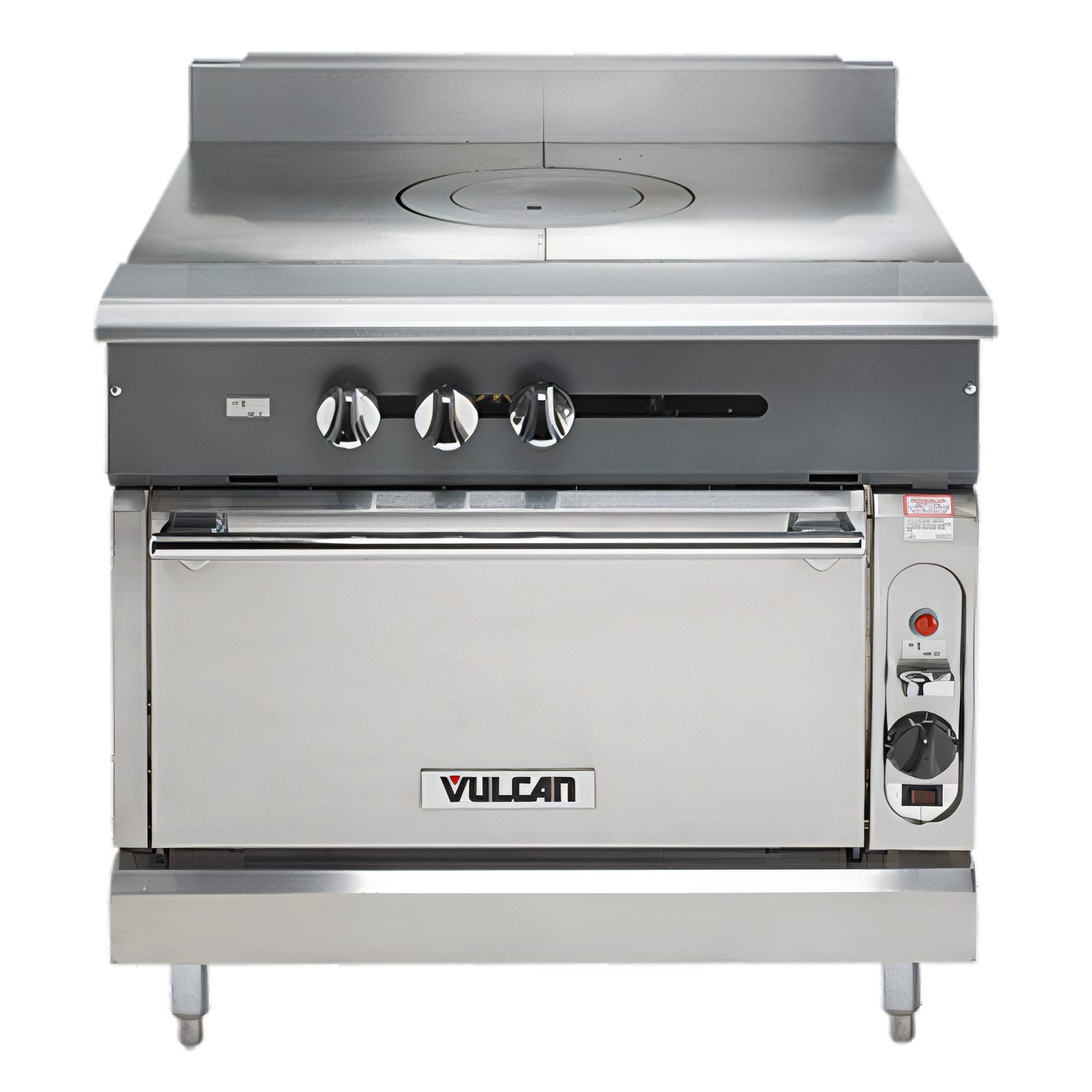

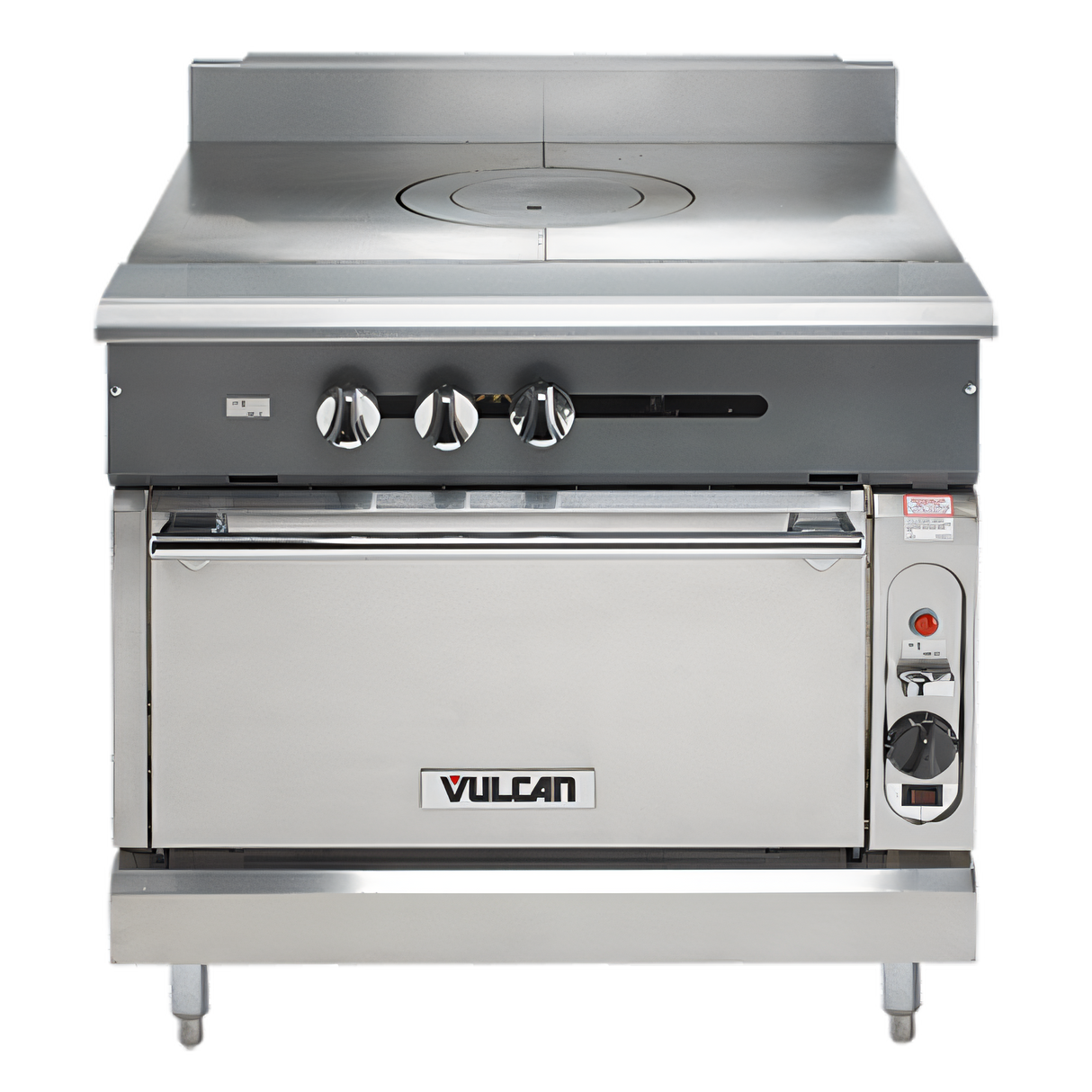

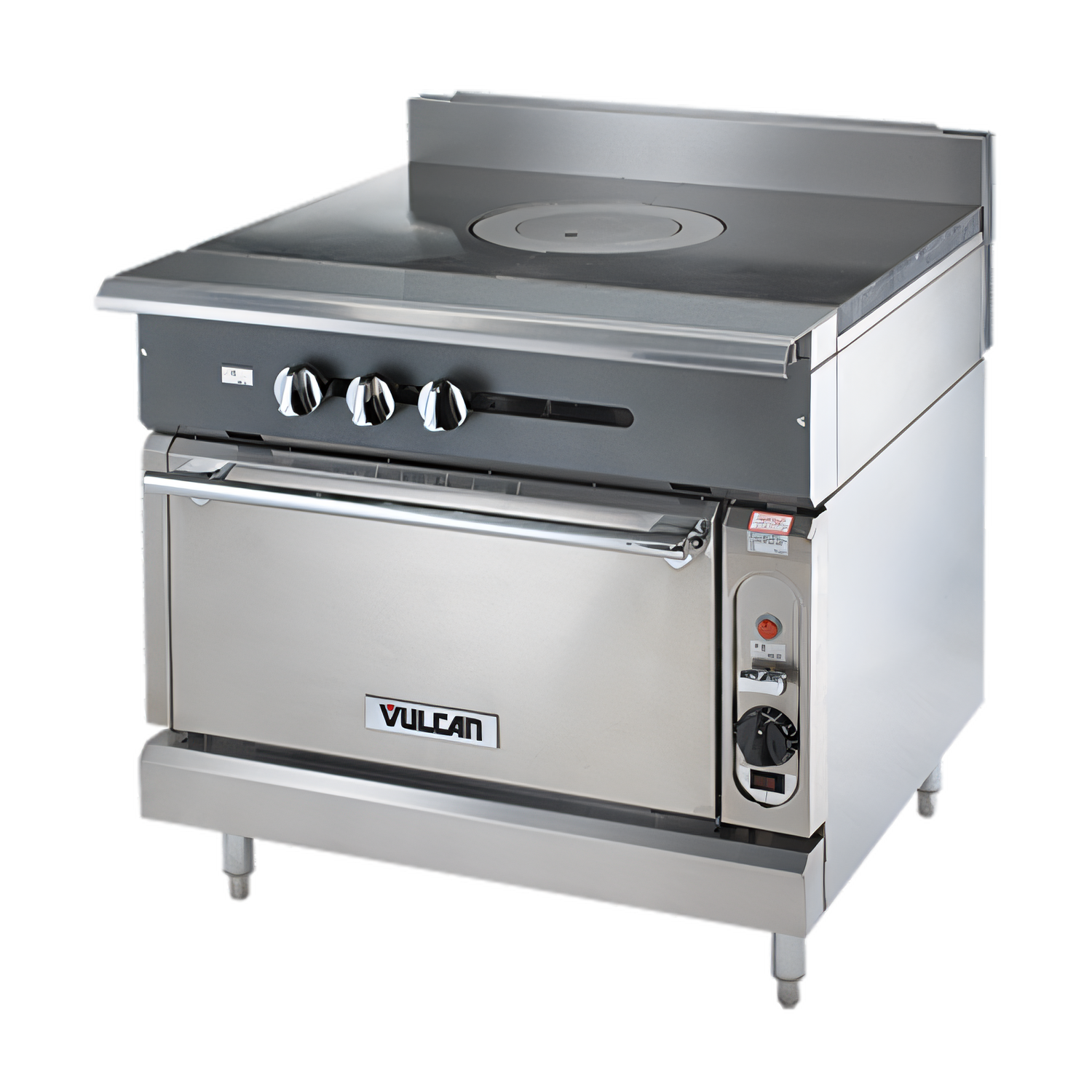

Vulcan V Series 36-Inch Heavy Duty Gas Range with Radial Fin French Top and Convection Oven

Stainless Steel Exterior, 77,000 BTU Total Input, 115V Blower Motor

This rugged 36-inch range combines a high-performance radial fin French top with a convection oven to deliver versatile cooking power in a compact, heavy-duty footprint.

  • 36-inch heavy-duty gas range with a radial fin French top and convection oven base.
  • Three cast ring burners provide 45,000 BTU/hr of open-top cooking power.
  • Convection oven delivers 32,000 BTU/hr, includes two racks, and offers three rack positions.
  • Stainless steel front, top ledge, burner box, sides, base, and stub back for durability.
  • 115V, 1-phase convection blower motor includes a 6-foot cord and plug.
  • 6-inch adjustable stainless steel legs and 1-1/4-inch gas connection support easy installation.

Overall Dimensions:

36.0"W x 36.75"D x 36.0"H

Product Weight:

736.0 lb

Radial Fin French Top

Heavy polished cast iron French top provides broad, even heat distribution for versatile stovetop cooking.

Convection Oven Base

Includes a 32,000 BTU/hr convection oven with porcelain oven bottom, sides, and interior door panel.

Two Oven Racks Included

The convection oven ships with two racks and allows for three rack positions.

Stainless Steel Exterior

Stainless steel front, front top ledge, burner box, sides, base, and stub back help improve durability and cleaning.

Individual Burners and Controls

Each burner has its own pilot and control for more precise operation.

115V Convection Blower Motor

The convection oven uses a 115V, 1-phase blower motor rated at 4 amps with a 6-foot cord and plug.

Counterweight Door Hinges

Heavy-duty oven door construction supports smoother opening and closing.

Adjustable Legs

6-inch adjustable stainless steel legs are included for stable floor installation.

Gas Connections

Features a 1-1/4-inch front gas manifold and a 1-1/4-inch rear gas connection that is capped.

Type Heavy Duty Gas Range
Style Radial Fin French Top
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain
BTU 77,000 BTU/hr
Voltage 115 Volts
Amps 4 Amps
Phase 1-Phase
Cord Length 6 Feet
Gas Connection Size 1-1/4 Inches
Shipping Width 36 Inches
Shipping Depth 37 Inches
Shipping Height 36 Inches
Shipping Weight 763 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

One-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Service manual PDF Download PDF Sell sheet PDF Download PDF Video PDF Download PDF Parts manual PDF Download PDF Installation & operation PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has a radial fin French top made with a heavy polished cast iron French plate.
This model includes a convection oven with a porcelain cavity, 32,000 BTU/hr burner, 115V blower motor, two racks, and three rack positions.
The convection oven uses 115V, 1-phase power and draws 4 amps. It includes a 6-foot cord and plug.
It uses a 1-1/4-inch front gas manifold and a 1-1/4-inch rear gas connection, which is capped.
The total input is 77,000 BTU/hr for the V1FT36C convection oven base model.
The range includes a one-year limited parts and labor warranty.
