Key specifications

BTU
162,000 BTU
Dimensions
72.0"W × 31.5"D × 15.25"H
Type
Griddle
Style
Heavy Duty
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Vulcan SKU: MSA72

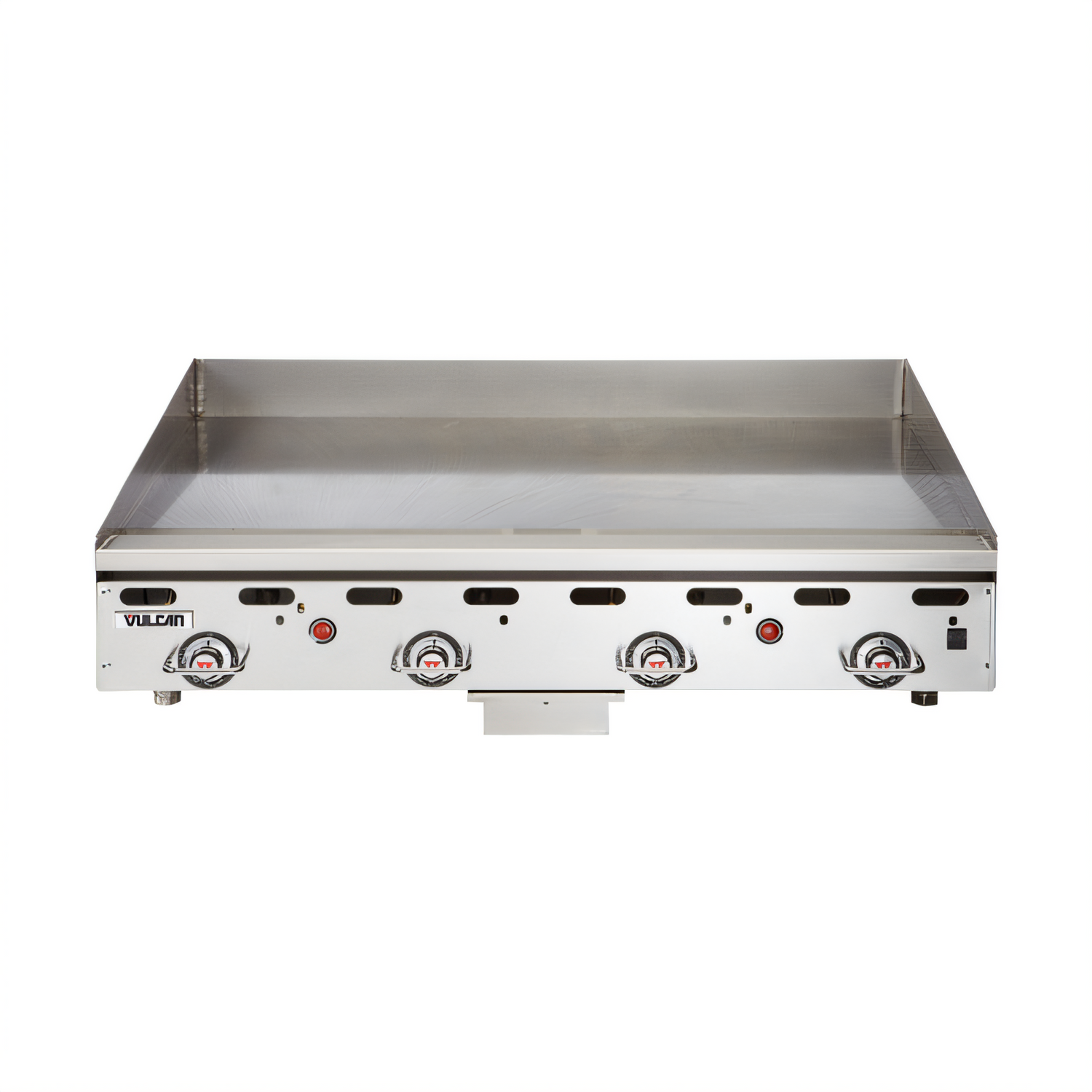

Vulcan MSA72 72-Inch Countertop Gas Griddle, 1-Inch Plate

$11,974.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Feature
Gas typeRequired
Griddle plate
Grease trough
Plate rails
Condiment rails
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty 1-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $1,108/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel Front & Sides
Plate Material Polished Steel
Plate Finish Smooth Steel
Cooking Surface Width 72 in.
Cooking Surface Depth 24 in.
Plate Thickness 1 in.
Controls Mechanical Snap-Action Thermostats
Temperature Range 200°F to 550°F
Burner Count 6
Burner Type U-Shaped Aluminized Steel
BTU 162,000 BTU
Thermostat Spacing Every 12 in.
Ignition Type Manual
Safety System Millivolt Pilot Safety
Grease Trough Position Front
Grease Can Count 2
Grease Can Capacity 6 qt.
Splash Height 4 in.
Splash Configuration Back & Tapered Side
Leg Height 4 in. Adjustable
Working Height 11 1/8 in.
Gas Connection 3/4 in. Rear
Profile Low Profile

Description

The Vulcan MSA72 is a heavy-duty countertop gas griddle with a 72 in. wide by 24 in. deep cooking surface and a 1 in. thick polished steel griddle plate.

  • Six embedded mechanical snap-action thermostats regulate the griddle in 12 in. sections from 200°F to 550°F.
  • Six U-shaped aluminized steel burners provide 162,000 BTU total input.
  • A front grease trough and two 6 qt. grease cans support grease collection.
  • Stainless steel front and sides, 4 in. back and tapered side splashes, manual ignition, and millivolt pilot safety complete the griddle design.

Overall Dimensions:

72.0"W x 31.5"D x 15.25"H

Product Weight:

790.0 lb

72-Inch Cooking Surface

Provides a 72 in. wide by 24 in. deep cooking surface.

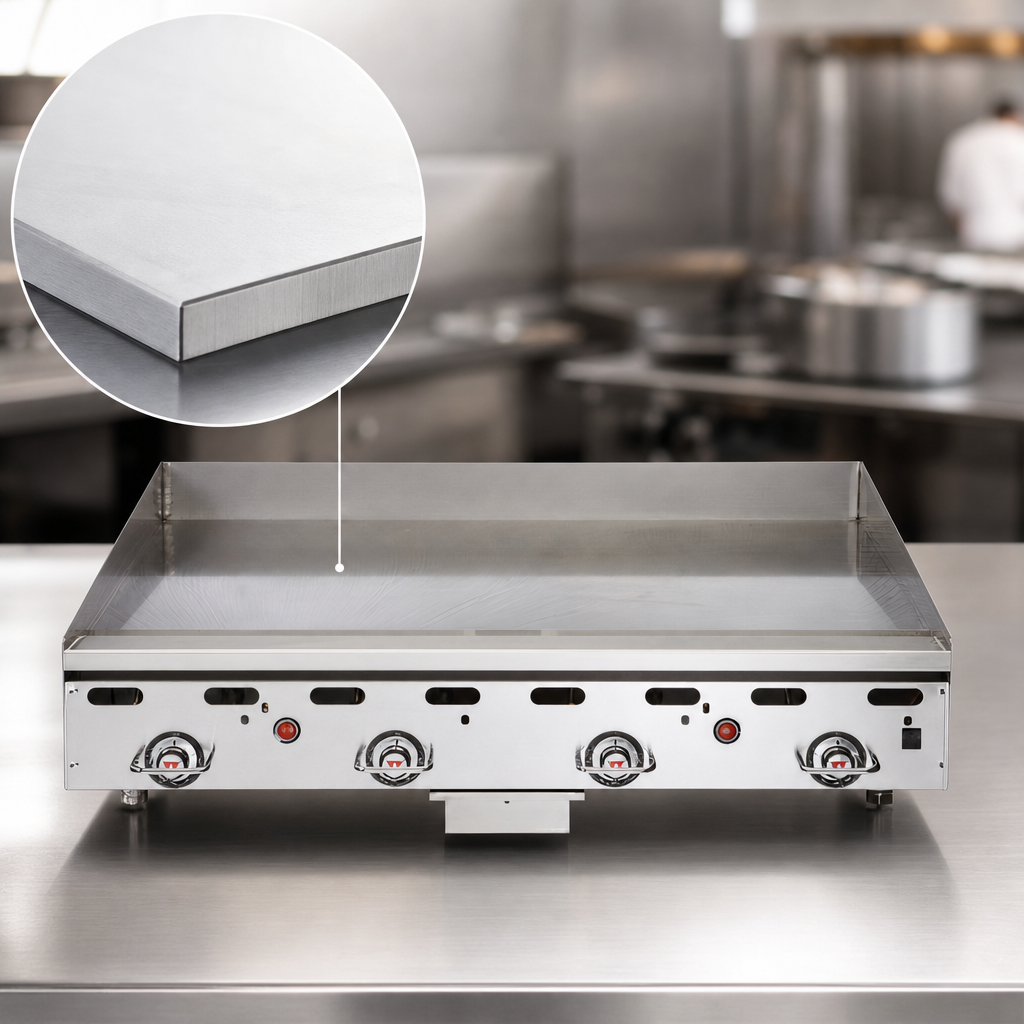

Polished Steel Griddle Plate

Uses a 1 in. thick polished steel plate with a smooth finish.

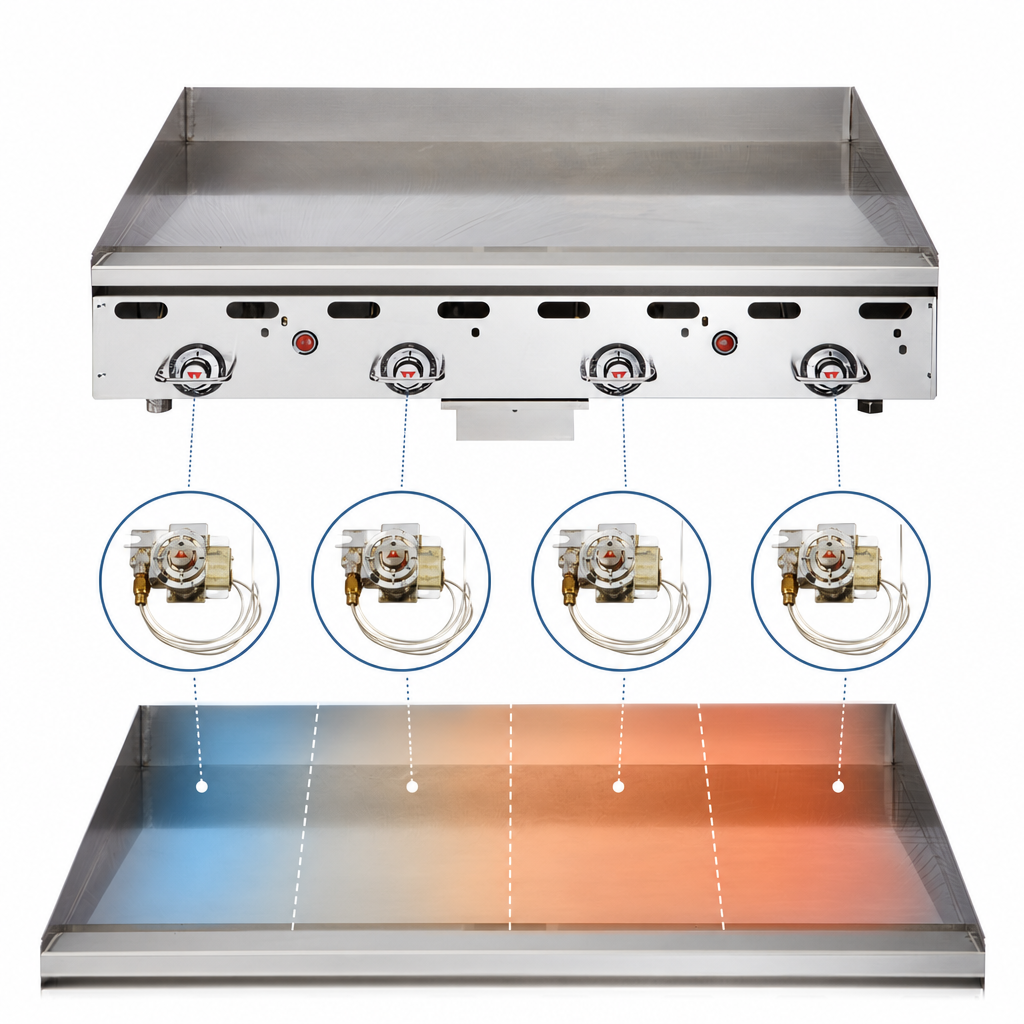

Mechanical Snap-Action Thermostats

Includes one embedded mechanical snap-action thermostat for each 12 in. of griddle width.

Gas Burner System

Six U-shaped aluminized steel burners provide 162,000 BTU total input.

Grease Management

A front grease trough works with two 6 qt. grease cans.

Millivolt Pilot Safety

The pilot safety shuts off gas to the pilot and burners if the pilot extinguishes.

Manual Ignition

Uses manual ignition.

Adjustable Legs

Includes 4 in. adjustable legs.

Frequently Asked Questions

The cooking surface is 72 in. wide by 24 in. deep.
The polished steel griddle plate is 1 in. thick.
The steel plate temperature range is 200°F to 550°F.
The MSA72 has six U-shaped aluminized steel burners with 162,000 BTU total input.
Yes. It has two 6 qt. grease cans and a front grease trough.
The griddle uses manual ignition and includes millivolt pilot safety.

This ships by freight truck on a pallet, not by a parcel carrier. The carrier calls ahead to set a delivery window, and an adult 18 or older must be there to receive, inspect and sign for it.

The driver brings it to the back of the truck, or lowers it to the ground with liftgate service. They don’t bring it inside, so plan for a pallet jack or two people to move it from the curb.

What to have ready on delivery day

  • Count every piece against the delivery receipt.
  • Check every side for crushed corners, torn wrap, punctures, water stains or a tipped unit.
  • Photograph the freight on the truck before it’s moved.
  • If you see any damage, even cosmetic, write “DAMAGED” and what you see on the receipt before you sign.

Your shipping email has the exact instructions for your order. Questions at the door? Call us at (888) 307-5030.

How to inspect and sign for freight

Keep all the packaging, photograph the damage and the packaging, and tell us within 5 business days of delivery. Reply to your shipping email with the photos or call (888) 307-5030.

If the driver won’t wait while you inspect, write “Received – pending inspection. Driver would not wait.” with the date and time on the receipt, then inspect right away and report any damage within 24 hours.

Reporting damage after delivery

Book your installer only after the carrier gives you a firm delivery appointment. Freight dates can move, and installer trips lost to a late truck aren’t reimbursable.
