Key specifications

BTU
135,000 BTU
Dimensions
60.0"W × 31.5"D × 15.25"H
Type
Griddle
Style
Heavy Duty
Installation Type
Countertop
Finish
Stainless Steel
Spec sheet
Vulcan SKU: MSA60

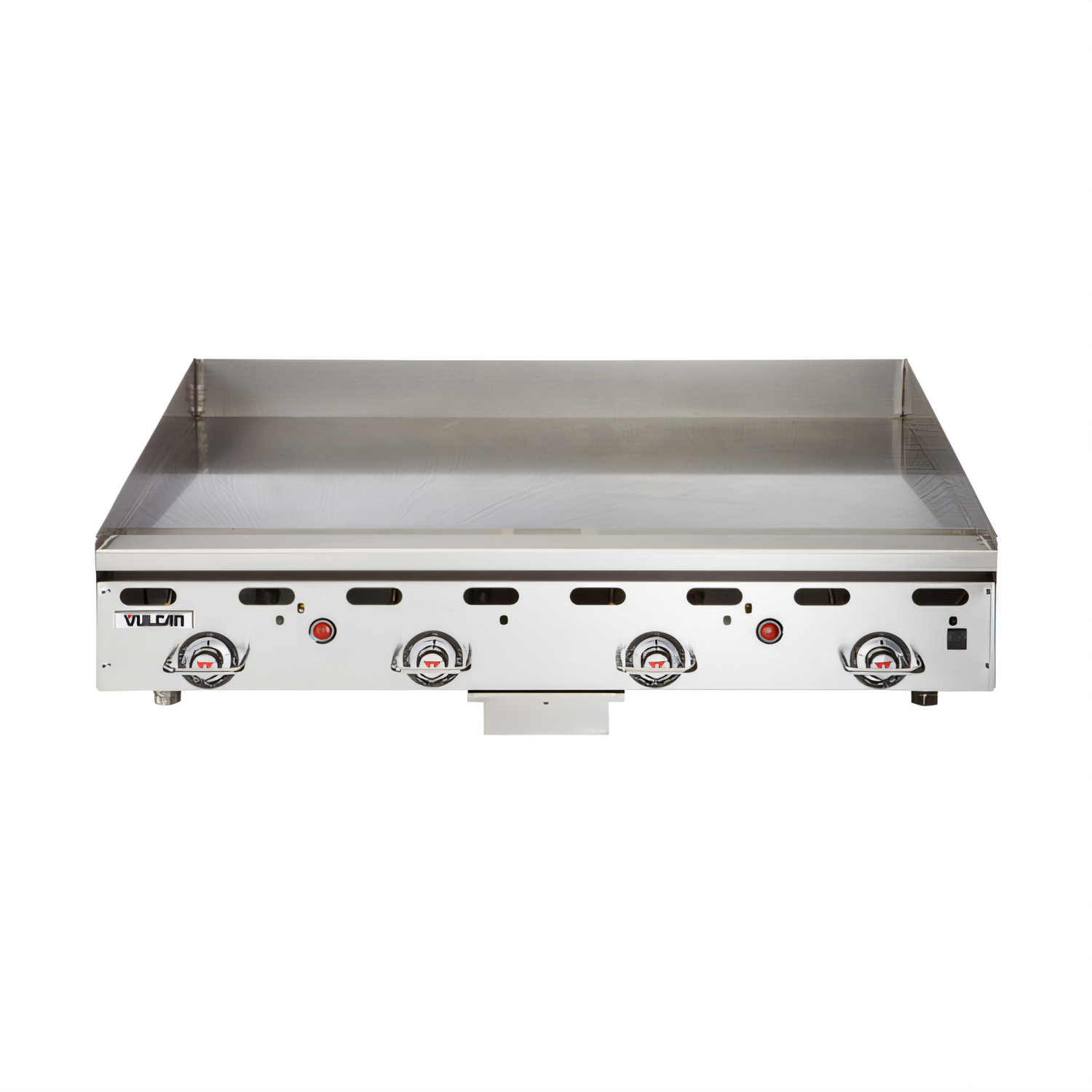

Vulcan MSA60 60-Inch Countertop Gas Griddle

$10,552.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Feature
Gas typeRequired
Plate
Grease trough
Plate rails
Condiment rails
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year limited parts and labor warranty

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $976/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Heavy Duty
Installation Type Countertop
Finish Stainless Steel
Cooking Surface Width 60 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
Plate Finish Smooth Polished Steel
Controls Mechanical Thermostat
Temperature Range 200°F to 550°F
BTU 135,000 BTU
Burner Count 5
Ignition Type Manual
Pilot Safety Millivolt
Grease Trough Location Front
Grease Can Capacity 6 Quarts
Grease Drawer Count 2
Leg Type Adjustable
Leg Height 4 Inches
Gas Connection 3/4 Inch NPT Rear

Description

The Vulcan MSA60 is a heavy-duty countertop gas griddle with a 60 x 24-inch cooking surface and a 1-inch-thick polished steel griddle plate.

  • Thermostatic control: An embedded mechanical snap-action thermostat is provided for each 12-inch section.
  • Gas heating: Five burners provide a total input of 135,000 BTU.
  • Construction: Stainless steel front and sides, a front grease trough, and 4-inch back and tapered side splashes.
  • Operation and service: Manual ignition, millivolt pilot safety, 4-inch adjustable legs, and a 6-quart grease can.

Overall Dimensions:

60.0"W x 31.5"D x 15.25"H

Product Weight:

655.0 lb

Polished Steel Griddle Plate

The cooking surface uses a 1-inch-thick polished steel griddle plate.

Embedded Thermostatic Controls

A mechanical snap-action thermostat is embedded for each 12-inch section.

Five-Burner Gas Heating

The MSA60 has five burners with 135,000 BTU total input.

Manual Ignition

The griddle uses manual ignition.

Millivolt Pilot Safety

A millivolt pilot safety system is specified.

Grease Collection

The unit has a front grease trough and a 6-quart grease can.

Adjustable Legs

The griddle is fitted with 4-inch adjustable legs.

Stainless Steel Exterior

The front and sides have a stainless steel finish.

Frequently Asked Questions

Yes. It is specified as a countertop heavy-duty gas griddle.
The cooking surface is 60 inches wide by 24 inches deep and uses a 1-inch-thick polished steel plate.
It uses embedded mechanical snap-action thermostats, with one thermostat for each 12-inch section.
The MSA60 has a total input of 135,000 BTU.
The listed overall dimensions are 60 inches wide by 31.5 inches deep by 15.25 inches high.
The listed certifications are CSA Star, CSA Flame, and NSF.
The product includes a one-year limited parts and labor warranty.
