Key specifications

BTU
108,000 BTU
Dimensions
48.0"W × 31.5"D × 15.25"H
Type
Griddle
Style
Heavy Duty
Installation Type
Countertop
Material
Stainless Steel
Spec sheet
Vulcan SKU: MSA48

Vulcan MSA48 48-Inch Countertop Gas Griddle

$8,513.00
/each
Estimated to ship in 8–11 business days Free Shipping
Width
Feature
Gas typeRequired
Griddle plate
Grease trough
Plate rails
Condiment rails
Gas Connector

Need something else? Contact us.

Included: Vulcan warranty One-year limited parts and labor warranty from the date of original installation

Get priority processing and free 1-year protection with PREMIUM Learn about Premium

As low as $787/mo with Credit Key Learn more

Questions before you buy?

Talk to a specialist — usually within 1 hour, 9am–6pm EST.

Questions before you buy?

Talk to an equipment specialist about voltage, installation or the right size for your kitchen.
Usually within 1 hour, 9am–6pm EST.

Specifications

Type Griddle
Style Heavy Duty
Installation Type Countertop
Material Stainless Steel
Exterior Finish Stainless Steel
Plate Material Steel
Plate Finish Polished
Plate Thickness 1 Inch
Cooking Surface Width 48 Inches
Cooking Surface Depth 24 Inches
Controls Mechanical Thermostat
Temperature Range 200°F to 550°F
BTU 108,000 BTU
Burner Count 4
Ignition Manual
Pilot Safety Millivolt
Grease Trough Front
Grease Can Capacity 6 Quarts
Back And Side Splash Height 4 Inches
Leg Type Adjustable
Leg Height 4 Inches

Description

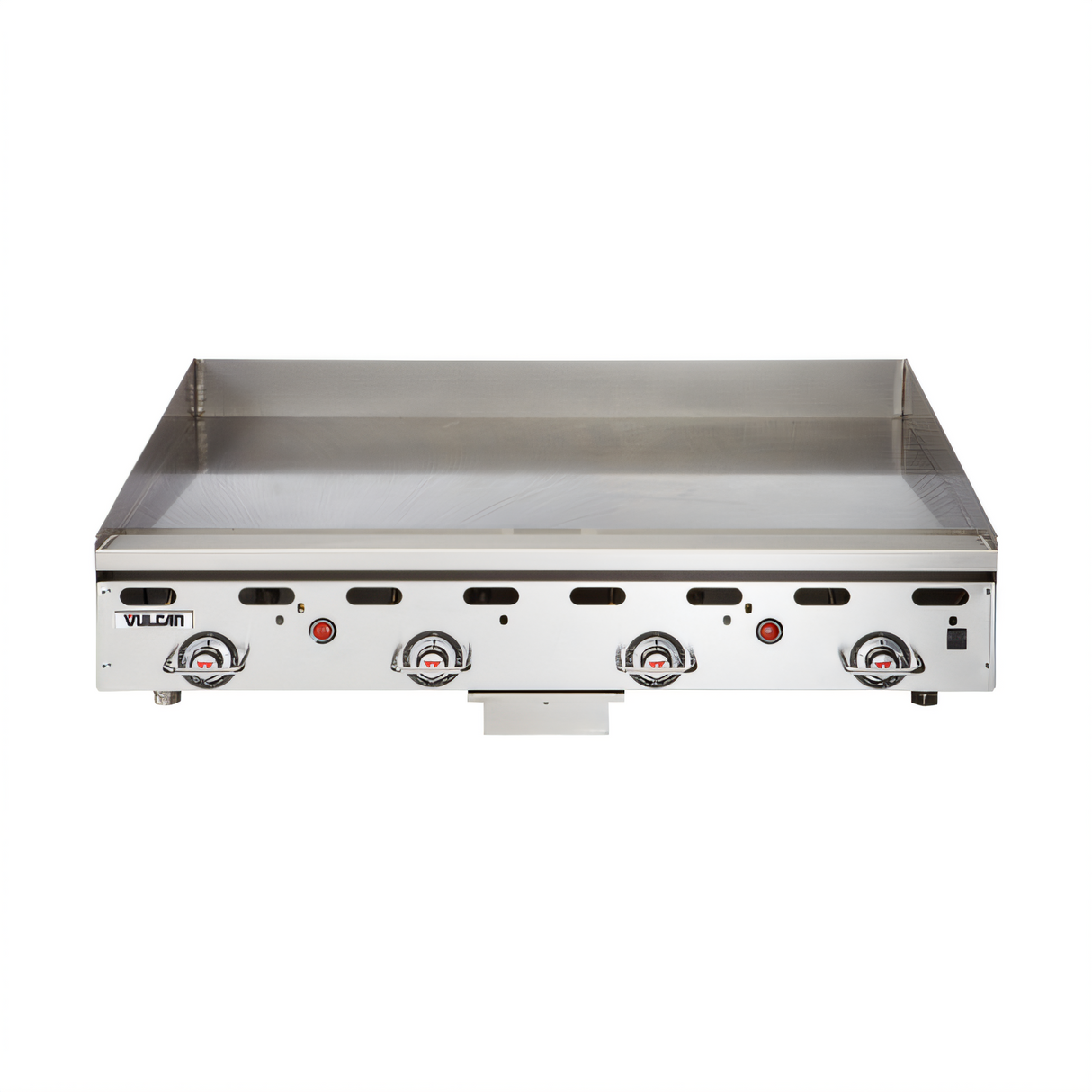

The Vulcan MSA48 is a heavy-duty countertop gas griddle with a 48-inch-wide by 24-inch-deep cooking surface and a 1-inch-thick polished steel griddle plate.

  • Temperature control: Embedded mechanical snap-action thermostats are positioned every 12 inches and adjust from 200°F to 550°F.
  • Heating and safety: Four gas burners provide 108,000 BTU, with manual ignition and millivolt pilot safety.
  • Construction: Stainless steel front and sides, a front grease trough, a 6-quart grease can, and 4-inch back and tapered side splashes.
  • Installation: Countertop design with 4-inch adjustable legs.

Overall Dimensions:

48.0"W x 31.5"D x 15.25"H

Product Weight:

525.0 lb

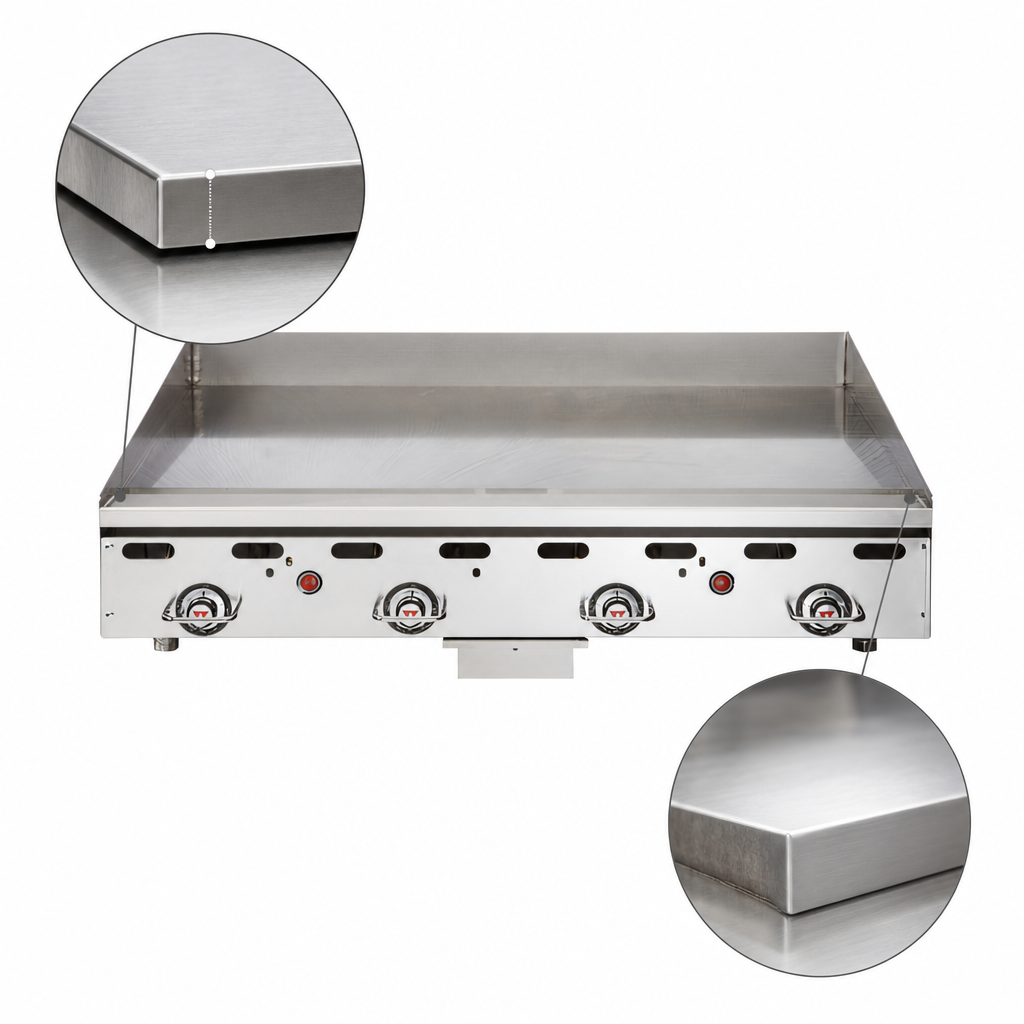

Polished Steel Griddle Plate

The cooking plate is 1 inch thick and made of polished steel.

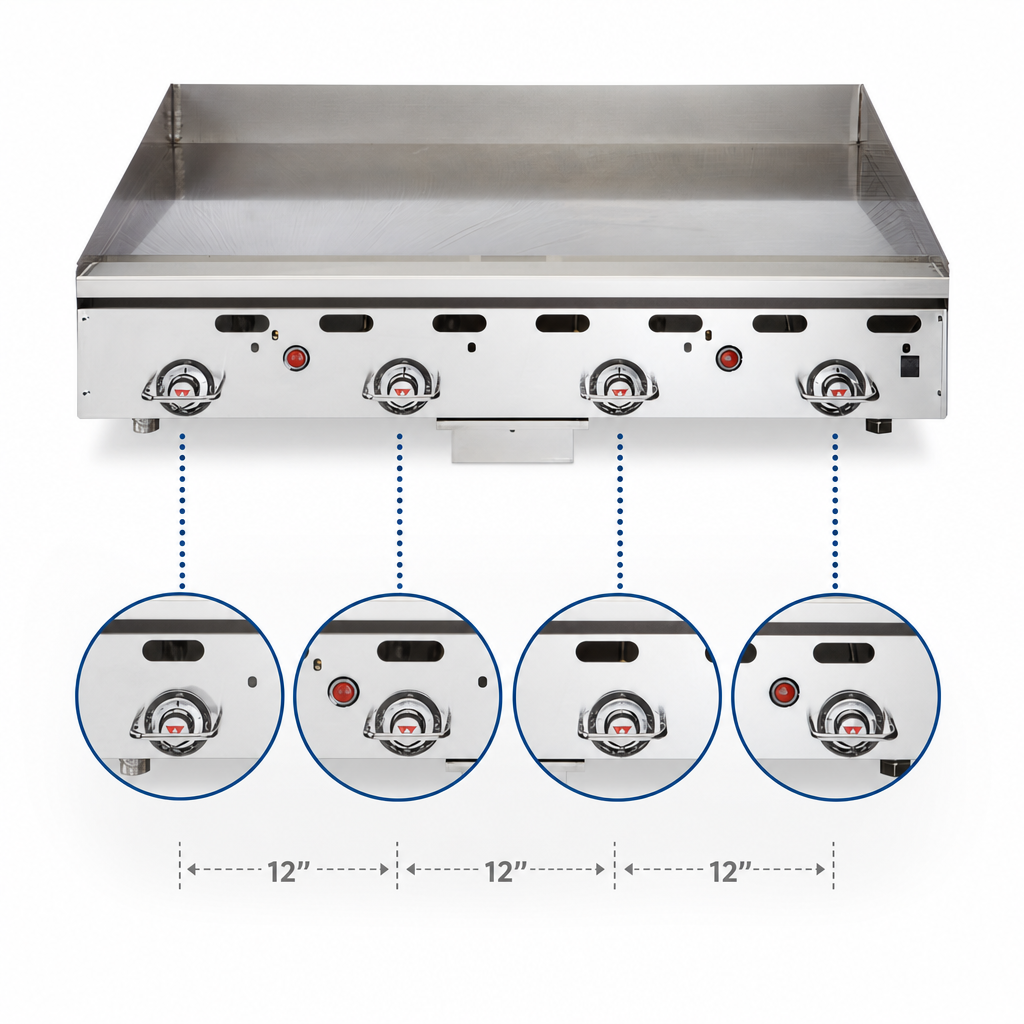

Thermostatic Controls

Embedded mechanical snap-action thermostats are positioned every 12 inches, with adjustment from 200°F to 550°F.

Gas Heating

Four gas burners provide 108,000 BTU total input.

Pilot Safety

The griddle uses manual ignition and millivolt pilot safety.

Stainless Steel Exterior

The front and sides are stainless steel.

Grease Management

A front grease trough is paired with a 6-quart grease can.

Adjustable Legs

The countertop griddle has 4-inch adjustable legs.

Frequently Asked Questions

The cooking surface is 48 inches wide by 24 inches deep.
The polished steel griddle plate is 1 inch thick.
The mechanical snap-action thermostats adjust from 200°F to 550°F.
The MSA48 uses manual ignition and millivolt pilot safety.
The overall dimensions are 48 inches wide by 31.5 inches deep by 15.25 inches high.
The product is listed with CSA Flame, CSA Star, and NSF certifications.
The installation instructions state that the appliance is manufactured for commercial installation only and is not intended for home use.
